Make Noise modDemix Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
modDemix
v2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the modDemix and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Make Noise modDemix

Summary of Contents for Make Noise modDemix

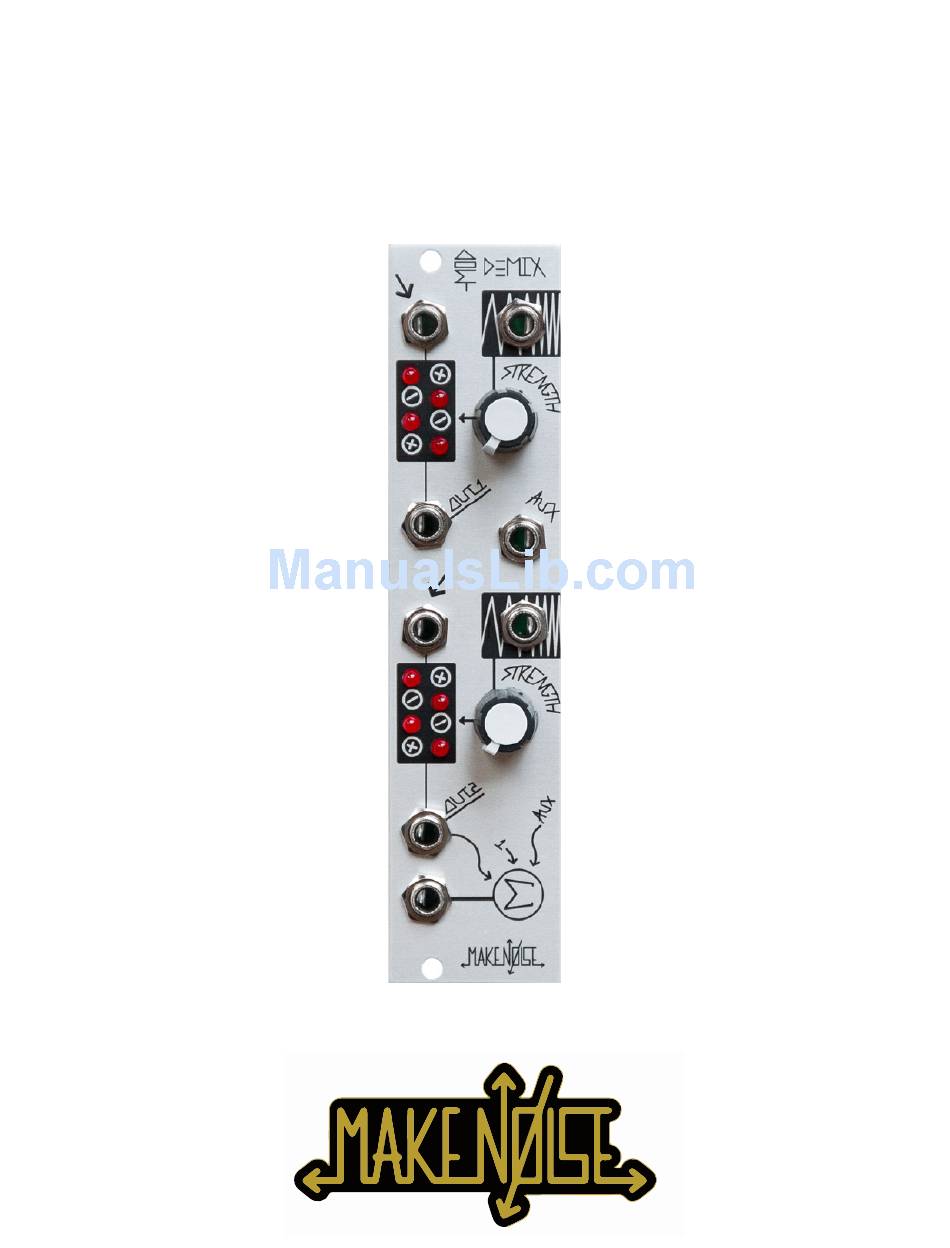

  • Page 1 v2.0...

  • Page 2: Limited Warranty

    Limited WARRANTY: Make Noise warrants this product to be free of defects in materials or construction for a period of one year from the date of purchase (proof of purchase/invoice required). Malfunction resulting from wrong power supply voltages, backwards or reversed eurorack bus board cable connection, abuse of the product or any other causes determined by Make Noise to be the fault of the user are not covered by this warranty, and normal service rates will apply.
  • Page 3 Eurorack style bus board, minding the polarity so that the RED stripe on the cable is oriented to the NEGATIVE 12 Volt line on both the module and the bus board. On the Make Noise 6U or 3U Busboard, the negative 12 Volt line is indicated by the white stripe.
  • Page 4 Signal 1 OUT. AUXiliary INput to Summing stage: An AUXiliary IN allows for the chaining of multiple modDemix (or Optomix) units to create larger mixes. Signal 2 IN: signal to be processed. Normalled to Signal 1 OUT. Carrier/ CV 2 IN: determines amplitude & phase of Signal 2 IN.
  • Page 5 Now remove the DC Offset signal patched to the Carrier/ CV IN, and replace with the MATHS SUM OUT. Be sure to set MATHS CH. 2 and 3 to 50% (NULL). Leave the VCO patched to modDemix Signal IN. Initiate the CYCLE behavior on CH.
  • Page 6 “Stereo-Quasi- Double-Sideband.” Modulating the filter cutoff will animate the sidebands.
  • Page 7 SUM -> Monitor Detune the two sawtooths to taste, and set levels with the modDemix STRENGTH controls. The sawtooth derived from the FINAL output will be one octave above its original pitch, and it will also contain a slight “spike”...
  • Page 8 MATHS/Function envelope or a sequence from Rene. Using a multiple, patch the Control Signal to modDemix Ch1 Carrier/CV IN, and also to MATHS, set up as a Voltage Mirror (see MATHS manual p.17). Patch MATHS SUM to Ch2 Carrier/CV IN.
