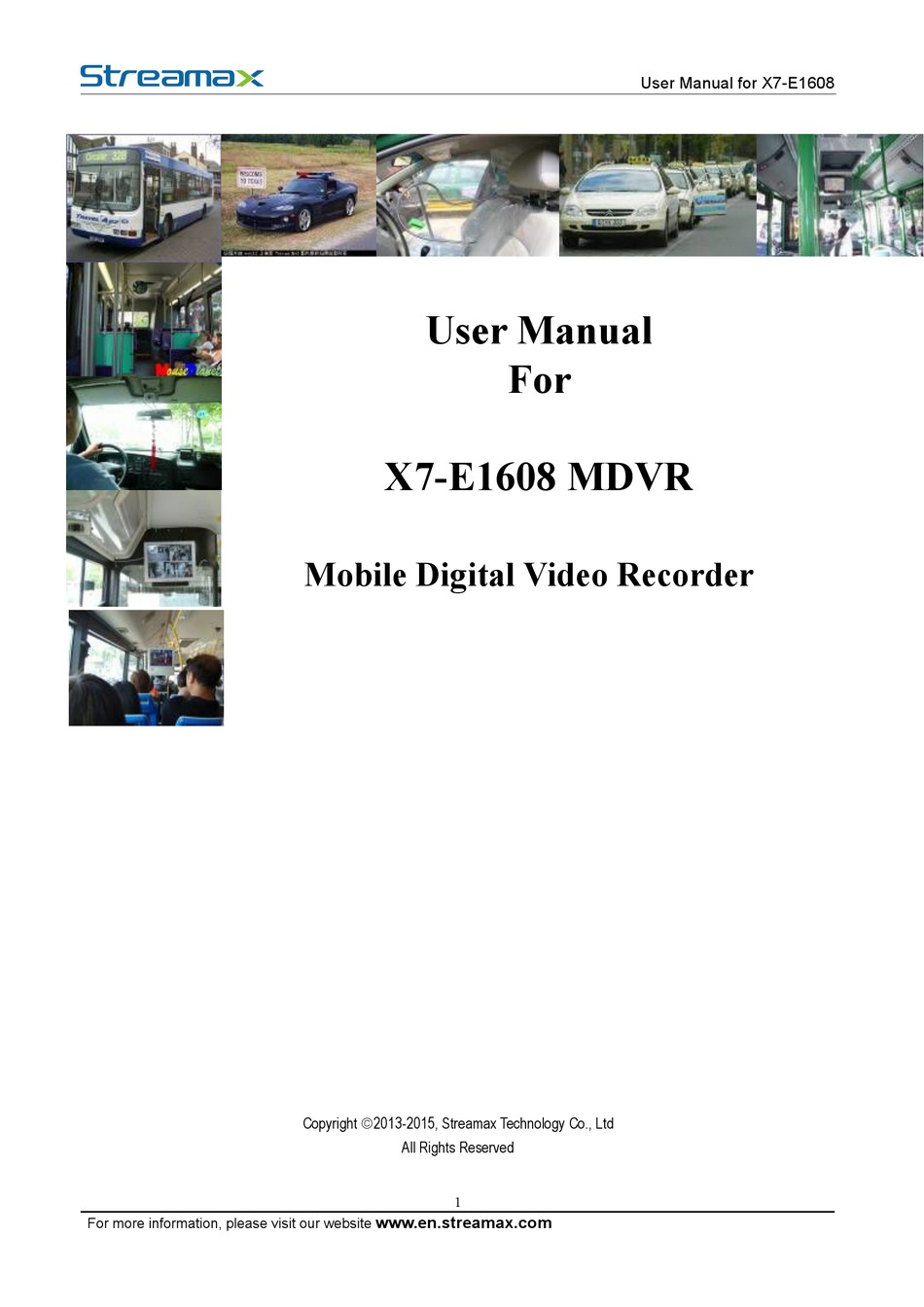

Page 1: User Manual
User Manual for X7-E1608 User Manual X7-E1608 MDVR Mobile Digital Video Recorder Copyright 2013-2015, Streamax Technology Co., Ltd All Rights Reserved www.en.streamax.com For more information, please visit our website... - Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Streamax Technology Co., Ltd (Copyright 2013-2015) www.en.streamax.com...
- Page 3 User Manual for X7-E1608 Guarantee & Warnings 1) Electrical Apparatus Safety All installation and operation should comply with local electrical safety norms. 2) Transportation In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and water splashing.
-
Page 4: Table Of Contents
User Manual for X7-E1608 Content 1． PRODUCT CHARACTERISTICS........................6 1.1. OVERVIEW............................6 1.2. FEATURES............................6 1.2.1. HARDWARE FEATURES:....................... 6 1.2.2. SOFTWARE FEATURES:......................6 1.3. OPTIONAL ACCESSORIES:......................7 1.3.1. POE SMART SWITCH......................7 1.3.2. UPS.............................. 9 1.4. X7-E1608 SPECIFICATIONS......................10 1.5. EXTERNAL INTERFACE........................11 2．... - Page 5 User Manual for X7-E1608 5.6.2 DATA EXPORT.........................43 5.6.3 UPGRADE..........................44 5.6.4 STORAGE..........................44 5.6.5 DEFAULT..........................45 www.en.streamax.com For more information, please visit our website...
-
Page 6: Product Characteristics

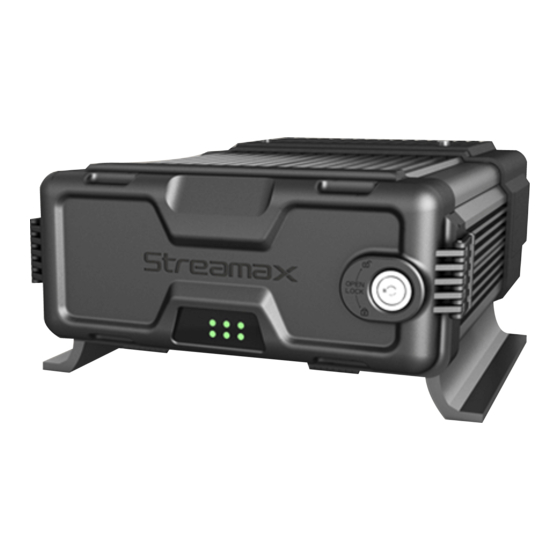

1．PRODUCT CHARACTERISTICS 1.1. OVERVIEW X7-E1608 is a cost effective and function-extensive device specially designed for Mobile Video surveillance and intelligent dispatch. It adopts high speed processor and built-in operating system, combining with H. 264 video compression / decompression technology, 4G/3G network technology, GPS locating technology and WIFI technology. -
Page 7: Optional Accessories
User Manual for X7-E1608 Supports dual streams for main/sub stream recordings and mirror recording; Built-in H.264 codec, user can manually configure the video coding attributes A series of synchronous operation: Information record, recording playback, file backup, network transmission, etc.; Supports multiple languages;... - Page 8 User Manual for X7-E1608 Rear Panel: Unit: (mm) Specification Items Specification IPC Channel 4 channels Interface RJ45(10M/100M) Video IPC Power Supply Interface M12(9 Pin) Power Power Input DC 8—36V Power Standard ISO 7637-2 Network Port RJ45(10M/100M) 6 PCS The yellow light is about power status,...
-
Page 9: Ups
User Manual for X7-E1608 1.3.2. UPS Picture To MDVR To Switch With 16 SV mini dome cameras recording without IR, the UPS last for 90 minutes after main power is off. Specification Name Vehicle Smart Battery Type Input Voltage 8~36V... -
Page 10: X7-E1608 Specifications
User Manual for X7-E1608 1.4. X7-E1608 SPECIFICATIONS Items Technical Index Product Series X7-E1608 Function Overview Preview, Recording, Playback, Network, Locating Linux 3.0.8 System Control Mode CP4, Easy Check, IR Remote Control, Network, Mouse Input 16 channels WD1+8 channels IPC(720P) Output... -
Page 11: External Interface
User Manual for X7-E1608 Storage Hard disk 2.5" SATA hard disk x 2 USB 2.0 x 2 (1 at front panel, 1 at rear panel) SD x 1 Interface Sensor 8 inputs, 2 outputs Speed 1 channel pulse speed detection... - Page 12 User Manual for X7-E1608 Rear Panel Serial Print Description Power DC 8-36 V Power Input The Interfaces of Serial Port, Switch Serial and pulse Panel Control panel (CP4) A/V 1~2 Analog audio/video input&output LAN 1~2 RJ45(1000M) GPS Antenna Interface 3G/4G Antenna Interface WIFI Antenna Interface USB 2.0 Interface...
-
Page 13: Product Installation
User Manual for X7-E1608 2．PRODUCT INSTALLATION 2.1. SYSTEM DIAGRAM 2.2. HARD DISK INSTALLATION INSTRUCTION www.en.streamax.com For more information, please visit our website... -
Page 14: External Wire Diagram
User Manual for X7-E1608 2.3. EXTERNAL WIRE DIAGRAM 2.3.1. DB44 CABLE www.en.streamax.com For more information, please visit our website... - Page 15 User Manual for X7-E1608 www.en.streamax.com For more information, please visit our website...
-
Page 16: Db26 Cable
User Manual for X7-E1608 Definition and interface of DB44 DB44 Definition of DB44 Interface Name Description The port is Aviation Male. There are 4 audio/video inputs of a Audio/Video 4-channel MDVR, while there are 8 audio/video inputs of a VIN1~VIN8... - Page 17 User Manual for X7-E1608 Definition and interface of DB26 DB26 Definition of DB26 Port Interface Description RS232-1 1: 232TX, 2:232RX, 3:5V，4:GND RS232-2 1: 232TX, 2: 232RX, 3: 5V，4: GND RS485 1: 485A, 2: 485B, 3: 5V，4: GND RS485-3 RS485-4 1: 485A, 2: 485B, 3: 5V，4: GND...
-
Page 18: Power Cable
User Manual for X7-E1608 2.3.3. POWER CABLE Below is a power cable, one end is 4PIN white connector which can be insert into the back panel of MDVR. Red cable and black cable can be connected with the battery of vehicle; red cable is “+”, black is “–”, yellow is ignition. -
Page 19: Alarm Input / Output
User Manual for X7-E1608 2.3.5. ALARM INPUT / OUTPUT MDVR has 8 alarm input and 2 alarm output. Alarm input works to inspect the electrical level, it can detect different signals of the vehicle, like braking, turning direction, etc. Please see the diagram below to simulate the working mode. -
Page 20: Setting
User Manual for X7-E1608 3．SETTING 3.1. CP4 CONTROL PANEL User can set parameter, preview, playback and export data via control panel CP4 Remark: When reporting to CMS server, use serial number. When using Android pad, you need to select vehicle number, as when insert the wifi hot spot to USB port of the 4120, the hot spot will get the vehicle number and change its SSID to vehicle number. -
Page 21: Operating Instructions
User Manual for X7-E1608 4．OPERATING INSTRUCTIONS 4.1. LOCAL LOGIN When operating the device, user needs to have permission certified. Press the remote control 【LOGIN / LOCK】or【SETUP】, the login screen will pop up. Right click the mouse, the shortcut menu will pop up, left click login picture, login screen will pop up. -
Page 22: Record Search And Export
User Manual for X7-E1608 Default password and permission table is as follows:： Default Password Related User Related Authority admin admin All Authorities User user Search and playback The password input Instruction： If the password are numbers, user can enter it by remote control directly. - Page 23 User Manual for X7-E1608 In the calendar, the color below the dates means: No color means no video. Green means common video. Red means alarm video. Yellow means there are alarms and the video files are automatically lock (lock video).
- Page 24 User Manual for X7-E1608 Button description Video Playback: Choose the channel No., select start time to play < default start from 0 >, click the playback button to playback the video. In playback interface, user can choose fast forward or fast backward to play the video, the button in the middle of screen can switch the channels.
-
Page 25: Log Search And Export
User Manual for X7-E1608 User can also pull out the hard drive or SD card, export and playback the video by professional software. 4.3. LOG SEARCH AND EXPORT In the log search interface, it records and displays all alarm events and login operation log. Enter the "log query”, the interface will be shown as following :... -
Page 26: System Status
User Manual for X7-E1608 Log types: classification of log search, including the operation log and alarm log and locking log Operation log search interface instruction Log includes the following information: Log time: the time when event is triggered ... - Page 27 User Manual for X7-E1608 System-Server status System - Environment System-Storage: www.en.streamax.com For more information, please visit our website...
-
Page 28: Basic Setup
User Manual for X7-E1608 4.5. BASIC SETUP Click setup button and enter the following interfaces: 4.5.1. REGISTER INFOMATION (SETUP VEHICLE INFORMATION) Register information-Device info: Device ID: Currently, it is not useful. Register information- Vehicle info Vehicle Number：When connected with PAD, the vehicle number is needed. -
Page 29: Time Setup
User Manual for X7-E1608 Line Number：Input manually. Register information—About the driver’s information: Driver Number: Input manually. Driver Name: Input manually. 4.5.2. TIME SETUP Time setup-General Date Format: Setup the date format of device ... -
Page 30: Start Up
User Manual for X7-E1608 Satellite: Synchronize time with GPS satellite. Once GPS signal changes to valid, device will synchronize time Center Server: synchronize time with center server NTP server: synchronize time with NTP server Remark: Synchronize time according to time zone Multi-mode can be selected for time synchronization. -
Page 31: User Setting
User Manual for X7-E1608 Sleep Mode: Currently, there is only no consumption standby mode available. Low Voltage Protection: Enabling the low voltage shutdown protection mode selected. Low Battery Protection: Protect the vehicle battery. When consistently below the standard ... -
Page 32: Network Settings
User Manual for X7-E1608 Remark: Only administrators can add users. Users can add up to two. User name cannot be empty, not the same with the existed user name while the user password can be empty. User name and password can be modified. Select a user, click the "Edit User" button, enter the following interface: Modify the user name and password to confirm the operation temporarily. - Page 33 User Manual for X7-E1608 Automatically obtain IP: Dynamic acquisition, DNS can also be statically configured to dynamically obtain. Use the following IP: Static IP, need to use a static DNS. Remark: Switch from static IP to automatically obtain IP mode, it can display dynamic IP, but the static IP parameters will not be covered, to restore the last saved static IP after switching back.
-
Page 34: Video Surveillance
User Manual for X7-E1608 Encryption: It supports NONE, WEP and WPA Password: Manually input Static IP: Select to use static IP, or MDVR will get dynamic IP Network-3G/4G network interface: Dialing wireless network, user needs to choose the module type and setup dialing parameters No Service. - Page 35 User Manual for X7-E1608 Surveillance-->Real-time Surveillance Real-time Setting Interface： Audio: Enable the audio when live view the video Image Setting: Set the live-view parameters, including brightness, contrast, etc. Splash Screen: Set the live-view screen, it can be single-screen or quad screen or nine screen ...
-
Page 36: Record
User Manual for X7-E1608 Total bandwidth: Set the bandwidth, default is 500Kbps maximum 5M Transmit mode: Default is the recommended (smooth + clear) mode, divided into five level. Live-view OSD Setting Interface: Display the information on screen, default is only the time, and the position can not be set. - Page 37 User Manual for X7-E1608 Overwrite: Enable the HDD to be overwritten when it is full Lock file retention: Protect the record file to be deleted by fault, default is 7 days Pre-recording: Pre-record before the alarm happens. Default is 15min, 0-60min optional.
-
Page 38: Ipc Setup
User Manual for X7-E1608 Parameters includes channel number, enable or not, audio, resolution, frame rate and image quality Can’t record I frame only, record parameters is completely separated from main stream. Remark: Main stream +sub-stream total resource can’t over 12M ... -
Page 39: Data Collection
User Manual for X7-E1608 Setup: Search and edit IP camera recording parameters Fast setup: Search all the IP cameras in LAN network, and auto assign IP address to IP camera 5.4. DATA COLLECTION 5.4.1 GENERAL General- IO sensor ... -
Page 40: Alarm
User Manual for X7-E1608 General- speed Unit: KM/H and MPH selectable. Source: GPS, pulse or both optional. Calibration mode: No need to calibrate if setup as satellite mode. 5.5. ALARM 5.5.1 GENERAL General --Speed alarm www.en.streamax.com... - Page 41 User Manual for X7-E1608 Name: The current name is Overspeed Enable：Enable or disable, tick to enable Alarm type: 3 levels Trigger: Low or high voltage to trigger alarm Linkage: When alarm triggered, link to alarm output, full screen live video, report to server and ...
-
Page 42: Maintenance
User Manual for X7-E1608 Name: From Sensor1 to Sensor8 Enable: Enable this sensor or not, tick to enable Alarm type: 3 levels Trigger: Low or high voltage trigger alarm Linkage: Link to sensor out, report alarm or full screen ... -
Page 43: Configuration
User Manual for X7-E1608 5.6.1 CONFIGURATION In the configuration page, user can export and import the configuration file. Insert the USB drive, and then click “EXPORT”, it will export the configuration file to the root folder of UDB driver, the file name is MDVFCFG.CFG... -
Page 44: Upgrade
User Manual for X7-E1608 5.6.3 UPGRADE In the page of upgrade, you can upgrade the firmware, MCU for MDVR Remark: Make sure don’t power off during upgrading. Put the upgrade file into the folder “upgrade”, which is at the root directory if the USB drive It support upgrade firmware, LOGO, MCU, and MCU for CP4. -
Page 45: Default
User Manual for X7-E1608 Free/Total Not exist: Didn’t find the HDD (not install or broken) Unformatted: Means the HDD has been detected, but unformatted.(New HDD) Capacity info: Display the correct info means HDD working fine Format: Click the Format button to start format, if format successful, it will start to recording, and don’t need to restart, the format time will be around 10 seconds.
