RAIS PALO User Manual

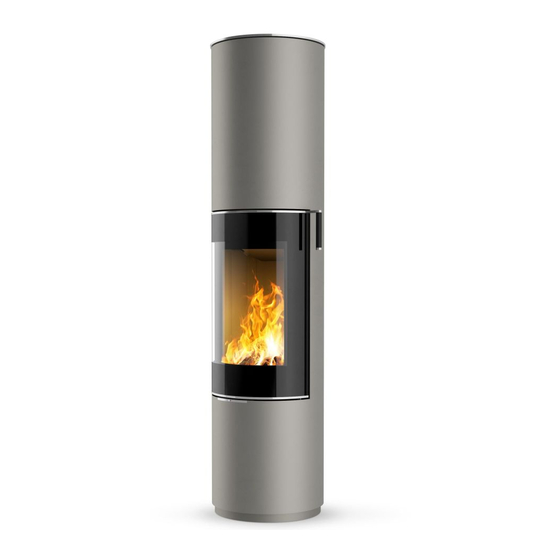

Wood burning stove
Hide thumbs Also See for PALO:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
ENGLISH
RAIS - manual for PALO, PALO C AND PILAR
U S E R M A N U A L
RAIS PALO & PILAR
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PALO and is the answer not in the manual?

Questions and answers

Related Manuals for RAIS PALO

Summary of Contents for RAIS PALO

  • Page 1 ENGLISH RAIS - manual for PALO, PALO C AND PILAR U S E R M A N U A L RAIS PALO & PILAR...

  • Page 3: Table Of Contents

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR Rais Palo & Palo C Rais Pilar Dato : December 2009 Modified : 4 INTRODUCTION ..........................4 WARRANTY ............................4 SPECIFICATIONS ..........................5 CONVECTION ............................ 6 INSTALLATION INSTRUCTIONS ......................7 CHIMNEY ............................

  • Page 4: Introduction

    Thank you for purchasing a RAIS wood burning stove. These appliances have been ap- proved by HETAS Ltd as intermittent operating appliances for burning wood logs only. A RAIS wood burning stove is more than just a heat source: it also shows that you care about design and quality in your home.

  • Page 5: Specifications

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR Specifications...

  • Page 6: Convection

    The heated air pours out at the top of the stove, which ensures a circulation of warm air throughout the room. The stoves are equipped with a “cold” lever – RAIS special feature – which means you could almost do away with gloves. Be aware, however, that all exterior surfaces become...

  • Page 7: Installation Instructions

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR Installation instructions The following pages give instructions for the safe and proper installation of this heating ap- pliance in the UK. These instructions cover the basic principles of installation, although detail may need slight modification to suit particular local site conditions.

  • Page 8: Chimney

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR Chimney The chimney is the driving force which makes the stove function. In order for the stove to perform satisfactorily the chimney height must be sufficient to ensure the correct draught of 14 to 18 Pa so as to clear the products of combustion and prevent problems of smoke emanating into the room when firing.

  • Page 9: Chimney

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR If it is found that there is excessive draught in the chimney then either an adjustable flue damper or alternatively a draught stabiliser should be fitted. The adjustable flue damper...
  • Page 10 ENGLISH RAIS - manual for PALO, PALO C AND PILAR Producent RAIS A/S, Industrivej 20, 9900 Frederikshavn, Danmark EN 13240:2001+A2:2004 EC.nr. 606 Anordning til intervalfyring PALO / PALO C Afstand til brændbart, bagvæg 150 mm PALO & PALO C Afstand til brændbart, sidevæg 400 mm Manufacturer’s Plate...

  • Page 11: Installation

    When you choose where to set up your RAIS wood burning stove, you should consider the heat distribution to the other rooms. This will enable you to get the best use out of your stove.

  • Page 12: Operation Of Swivel Base

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR Operation of swivel base Swivel base (PALO) If the distriutor has already installed a swivelbase on the stove, you should do the follo- wing: Lift up the positioning bolt and rotate the stove at 30°...
  • Page 13 ENGLISH RAIS - manual for PALO, PALO C AND PILAR...

  • Page 14: Installation Distance In Case Of Combustible Wall

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR Installation distance in case of combustible wall To find out whether the wall next to where the stove is going to be installed is flammable, you should contact your building contractor or the local building authorities.

  • Page 15: Generel Installation (Pilar)

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR Mounted with swivelbase - ONLY PILAR Right-angled Corner set-up 70° swivel base 70° swivel base A. Distance to furniture 750 mm 750 mm Distance to flammable materials: B. - in front (floor)

  • Page 16: Generel Installation Palo, Palo C & Pilar

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR Right-angled Corner set-up 160°/360° swivel base 360° swivel base A. Distance to furniture 950 mm 950 mm Distance to flammable materials: B. - in front (floor) 300 mm 300 mm Palo &...

  • Page 17: For The Installer

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR For the Installer Finally before firing the stove for the first time a check should be made to ensure that the as- sembly and stove installation has been satisfactory and that there are no leaks in any seals in the appliance and appliance connections to the chimney.

  • Page 18: Operating Instructions

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR Operating instructions Please note that HETAS Ltd Appliance Approval only covers the use of dry seasoned wood logs on this appliance. HETAS Ltd Approval does not cover the use of other fuels either alone or mixed with the wood logs, nor does it cover instructions for the use of other fuels.

  • Page 19: Drying And Storage

    2-3 days before you need it. Regulating the combustion air All RAIS stoves are equipped with a one-handed operating lever for regulating the damp- er. The stove-specific regulating mechanisms can be seen on the diagrams. Primary air is the combustion air added to the primary combustion zone, i.e. the bed of glowing embers.

  • Page 20: Using The Wood Burning Stove

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR Using the wood burning stove Adjustment of the air damper. The damper has 3 settings. Position 1 The air damper is closed, which means no air supply. Position 2 Pull the lever until click. This position gives full sec- ondary air.

  • Page 21: First Usage

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR First usage A careful start pays off. Start with a small fire, so that the wood burning stove can get accus- tomed to the high temperature. This gives the best start and any damage is avoided.

  • Page 22: Lighting And Fuelling

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR Lighting and fuelling To light the stove, use alcohol briquettes or similar, as well as approx. 2 kg of firewood, split into kin- dling sticks. Set the air damper to the fully open position.
  • Page 23 ENGLISH RAIS - manual for PALO, PALO C AND PILAR When the flames are clear - after approx. 5-10 min. - close the door. Damper - see adjustment of air damper. After approx. 10-20 min. - when you have a good bed of glowing embers - add 2-3 pieces of wood.

  • Page 24: Cleaning And Care

    - Moisten a piece of paper or newspaper, dip it in the ash, and rub the sooty glass with - Now rub with a piece of paper and the glass will become clean. - As an alternative you can use glass polish, which you can buy from you RAIS distributor. Clean the exterior with a dry sponge.

  • Page 25: Cleaning Of The Flue Ways

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR Cleaning of the flue ways Remove the baffle plate by pivoting it up at one end and tilting it slightly at an angle. Carefully pull out the plate. Remove the upper baf-...

  • Page 26: Interruption Of Operation

    - leaky chimney - leakage between chimney and flue If your stove continues to malfunction, we recommend that you contact your RAIS dis- tributor or chimney sweep. IMPORTANT!! To ensure safe burning there must be clear yellow flames or clear embers at all times.
  • Page 27 RAIS - manual for PALO, PALO C AND PILAR Accessories and spare parts If spare parts other than those recommended by RAIS are used, the warranty is voided. All replaceable parts can be bought as spare parts from your RAIS distributor.

  • Page 28: Spare Parts Diagram

    ENGLISH RAIS - manual for PALO, PALO C AND PILAR Spare parts diagram - Pilar Pos. Number Item no./description 5040602SV Stainless steel topplate with hole 504060590/95 Steel topplate with hole 5040601SV Stainless steet topplate without hole 504060490/95 Steel topplate without hole...
  • Page 29 ENGLISH RAIS - manual for PALO, PALO C AND PILAR...
  • Page 30 ENGLISH RAIS - manual for PALO, PALO C AND PILAR Spare parts diagram - Palo Pos. Number Item no./description 6040604SV Stainless steel topplate without hole 604060190/95 Steel topplate without hole 6040605SV Stainless steet topplate with hole 604060290/95 Steel topplate with hole...
  • Page 31 ENGLISH RAIS - manual for PALO, PALO C AND PILAR...
  • Page 32 ENGLISH RAIS - manual for PALO, PALO C AND PILAR Spare parts diagram - Palo C Pos. Number Item no./description 6040604SV Stainless steel topplate without hole 604060190/95 Steel topplate without hole 6040605SV Stainless steet topplate with hole 604060290/95 Steel topplate with hole...
  • Page 33 ENGLISH RAIS - manual for PALO, PALO C AND PILAR...
  • Page 34 ENGLISH RAIS - manual for PALO, PALO C AND PILAR...
  • Page 35 ENGLISH RAIS - manual for PALO, PALO C AND PILAR...
  • Page 36 RAIS A/S Industrivej 20 DK-9900 Frederikshavn www.rais.dk...
