Summary of Contents for RAIS Q-Tee 2 C Soapstone
- Page 1 U S E R M A N U A L / M A N U A L D ’ U T I L I S AT I O N Q-Tee II C SST USA...
- Page 2 FIRE ENVIRONMENTALLY FRIENDLY! 5 Eco-friendly advices for sensible heating - common sense both environmentally and economically. 1. Effective lighting. Use small pieces of wood (fir tree) and a suitable fire lighter, for example paraffined wood wool/sawdust. Open the air damper, so plenty of air is fed to the stove and the gases from the heated wood can burn rapidly.
-
Page 3: Table Of Contents
Q-Tee II C SST USA Report no. : # 23-202, 300-ELAB-2635-EPA Rev 1 Revision Date (DMY) : 28-09-2023 INTRODUCTION ..............4 WARRANTY . -
Page 4: Introduction

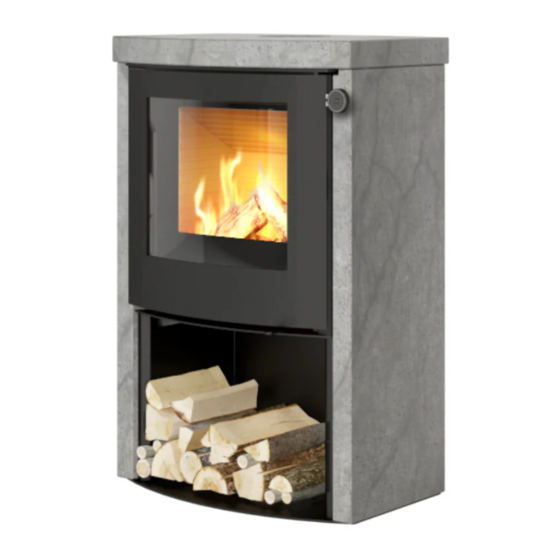

Introduction Congratulations on the purchase of your new RAIS woodburning stove. A RAIS woodburning stove is more than just a source of heat, it is a symbol of the emphasis you put on decorating your home with superiorly designed high-quality products. -
Page 5: Specifications
It is against federal regulations to alter this setting or otherwise operate this wood heater in a manner inconsistent with operating instructions in this manual. Specifications: Rais Q-Tee II C SST USA Weight of Stove 736 lbs (334 kg) -
Page 8: Label
Label... -
Page 10: Convection
Glass and replacement of glass. All RAIS stoves supplied with Robax® glass in the door. Robax® glass is a ceramic glass type suitable for stoves. The glass is installed from RAIS as an integral part of the door and stove. -
Page 11: Production Number
Production number. The production number can be found on the back of the stove. Name tag. The name tag can be found on the back of the stove. -
Page 12: Delivery Packaging
DELIVERY PACKAGING Upon delivery, the stove is secured to a transport pallet using four transport safety fittings, one in each corner (A). The safety fittings are secured with screws, which must be unscrewed. The safety fit- tings can then be removed (B). Q-Tee II C SST Transportsikring 8286503... -
Page 13: Fitting/Changing The Handle
FITTING/CHANGING THE HANDLE The wood-burning stove comes with a temporary handle (1). To remove it, undo the screws and washers (3&2). The new handle (4) can now be fitted to the stove using the screws and washers (3&2). A ( 0,5 ) SST USA the door handle B ( 0,5 ) -
Page 14: Installation Of Fluecollar
INSTALLATION OF FLUE COLLAR. The stove is prepared for top outlet on delivery. Mount the flue collar (61-110) with the delivered M6 nuts and bolts. Rear outlet The stove can be changed to rear outlet in the following Q-Tee II C SST USA way. -
Page 15: Mounting Of Heat Shield
Mounting of Heat shield The Heat shield is not mounted to the stove on delivery, and must be mounted before the stove is put into use. Step 1: Mount the distance piece (1) to the back of the wood stove. Step 2: Mount the Reflector plate (2) with the four M6 bolts (3) to the distance pieces (1) Q-Tee II C SST USA... -
Page 16: Installation
Installation Precautions and Specifications Before installation, remember to consult your local building inspector or fire marshal to determine the need to obtain a permit. Also enquire about restrictions and installation inspection requirements in your area. If utilizing an existing chimney, it is recommended that a professional mason or wood stove installer do a complete check-up of the chimney, liner, and flue beforehand. -
Page 17: Chimney
Chimney RAIS stoves must be installed using a Class A UL 103 HT approved factory-built chim- ney system or a code-approved masonry chimney with a flue liner. In Canada, the ap- pliance must be connected to a factory-built chimney conforming to CAN/ULC-S629. - Page 18 Required Installation Components: A. Chimney Cap B. Insulated Chimney C. Storm Collar D. Roof Flashing E. Ceiling Support Box or Joist Shield/Firestop Spacer F. Chimney Connector For venting vertically into a Class A chimney, a single wall pipe (at least 24 gauge) may be used in the room where the stove is installed.
-
Page 19: Chimney Connector Pass-Throughs In Combustible Wall
Chimney connector pass-throughs in combustible wall Method A: 12” (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thick- ness 3.5” (89 mm) brick and a 5/8” (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. The clay liner must conform to ASTM C315 (Stan- dard Specification for Clay Fire Linings) or its equivalent. - Page 20 Chimney connector pass-throughs in combustible wall Method C: 6” (152.4 mm) Clearance to Combustible Wall Member: Starting with a minimum 24 gage (.024” [.61 mm]) 6” (152.4 mm) metal chimney connector, and a minimum 24 gage ventilated wall thimble which has two air channels of 1”...
-
Page 21: Masonry Chimney
MASONRY CHIMNEY Ensure that a masonry chimney meets the minimum standards of the National Fire Protection Association (BFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Have the chimney cleaned before the stove is installed and operated. -
Page 22: Factory Built Chimney
FACTORY BUILT CHIMNEY When a metal prefabricated chimney is used, the manufacturer’s installations must be followed. You must also purchase (from the same manufacturer) and install the ceiling sup- port package or wall pass-through and “T” section package, firestops (where needed), insulation shield, roof flashing, chimney cap, etc. -
Page 23: Floor Protection
Floor protection Alternate materials may be rated with C-factor (Thermal Conductance) or k-factor (Thermal Conductivity) ratings which must be converted to R-value to determine if the alternate material meets the tested requirements. The following instructions provide the proper information and formulas for conversion to R-value. To determine if alternate materials are acceptable follow this sequence. - Page 24 Floor protection The floor protection plate must lie under the stove and extend 16” (41cm) in front of the stove in USA and 18” (46cm) in Canada. The floor protection plate must extend 0” to the back of the stove in USA and 8” (20cm) in Canada. The floor protection plate must extend 8”...
-
Page 25: Clearances To Combustible Walls
Clearances may only be reduced by means approved by regulatory authority Manufactured by: Manufactured by: Minimum Rear vent Clearance RAIS A/S RAIS A/S Top vent Rear vent Industrivej 20, DK-9900 Frederikshavn, Denmark Industrivej 20, DK-9900 Frederikshavn, Denmark A: Side Wall to Unit 14”/356mm... - Page 26 **Rear/Top vent option Ceiling Please refer to NFPA guidelines in USA and CAN/CSA B365-M91 in Canada. Écartement minimum évent supérieur Évent arriè A: Mur latéral - Appareil 14"/356mm 14"/356m B: Mur arriére - Appareil 12"/305mm 12"/305m C: Mur de coin - Appareil 11"/280mm D: Plafond - Lappareil 45"/1143mm...
-
Page 27: Clearances To Non-Combustible Walls
Clearance to non-combustible wall We recommend a minimum clearance to non-combustible material of at least 2” (50 mm) so that cleaning is easy. The cleaning door of the chimney should be accessible at all times. Clearances may only be reduced by means approved by the regulatory authority. Floor protection Floor protection must be non-combustible material extending beneath the stove, and to the front and sides from door opening and to rear as indicated. -
Page 28: Reduced Clearances (Canada Only)
Reduced clearances (CANADA ONLY) Type of protection (shield) Sheet metal, a minimum of 29 gauge in thickness spaced out at least 21 mm (7/8 in.) by non-combustible spacers. Ceramic tiles, or equivalent non-combustible material on non-combustible supports spaced out at least 21 mm (7/8 in.) by non-combustible spacers. Ceramic tiles, or equivalent non-combustible material on non-combustible supports with a minimum of 29 gauge sheet metal backing spaced out at least 21 mm (7/8 in.) by non-combustible spacers. -
Page 29: Firewood
Firewood Only burn wood that has been seasoned for at least one full year (two years is better). If the wood has not been seasoned or dried, energy will be lost in evaporating the wa- ter held in the wood. Furthermore, condensation or creosote might occur in the stove and pipe when damp wood is burnt. -
Page 30: Adjusting The Combustion Air
Adjusting the combustion air All RAIS stoves are equipped with an easy-to-use handle for adjusting the air control. For the various positions of the control please see the following illustrations. To en- sure proper combustion process it is very important to supply the correct quantity of air at the right time and place. -
Page 31: Using The Stove
REMEMBER THE STOVE IS HOT WHILE IN OPERATION, SO KEEP CHILDREN, CLOTING, AND FURNITURE AWAY. CON- TACT WITH A STOVE WHEN BURNING MAY CAUSE SKIN BURNS. Warning: Do not fire the stove with the door open! Using the stove Only use wood as fuel as described in the firewood section of this manual. Adjusting the air control There are three different positions for air control: Position 1:... -
Page 32: Carbon Monoxide Detectors
First Fire Your new RAIS should be run-in gently for top performance and to prevent paint dam- age, cracks in the firebrick, and excessive wear and tear. Start with a small fire (never overload the firebox) to allow the materials to get accustomed to the higher tempera- tures, and then gradually increase the intensity. -
Page 33: Lighting And Stoking
Lighting and Stoking To light the stove, use alcohol briquettes or similar, as well as approx. 2 kg of firewood, split into kindling sticks. Set the air damper to the fully open position. Be carefull not to place the firewood too close to the opening and glass. - Page 34 When the flames are clear - after approx. 5-10 min. - close the door. After approx. 10-20 min. - when you have a good bed of glowing embers - add 2-3 pieces of wood. Be carefull not to place the firewood too close to the opening and glass.
-
Page 35: Fuel Caution
Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, naphtha, engine oil, or similar liquids to start or freshen up a fire in your RAIS stove. Keep all such liquids well away form the stove while it is in use. - Page 36 Maintaining the installation. Establish a routine for the fuel, wood burner and firing tecnique. Check daily for creosote build-up until experience shows how often you need to clean to be safe. Be aware that the hotter the fire the less creosote is deposited, and weekly cleaning may be necessary in mild weather even though monthly cleaning may be enough in the coldest months.
-
Page 37: Removing The Combustion Chamber Lining
Q-Tee II C SST USA Demounting the vermiculite 8286509 REMOVING THE COMBUSTION CHAMBER LINING The combustion chamber lining protects the body of the fireplace insert from the heat of the fire. The large differences in temperature can lead to cracks in the combustion chamber lining. -
Page 38: Lubricating The Hinges & Lock
LUBRICATING THE HINGES & LOCK The fireplace must be lubricated regularly using the three moving parts on the lock and hinges (see image). Use heat-resistant oil. Q-Tee II C SST USA Lubricating the moving parts. 8286510... -
Page 39: Cleaing Of Smoke Chicane
Cleaning of smoke chicane Remove the smoke convert- er plate by tilting it to one side and turning it a little slantwise. Pull out the plate carefully. Then remove the smoke impediment by lifting it up and moving it forward. Carefully lift out the smoke impedi- ment. -
Page 40: Disposal Of Ashes
REosotE ormation and eed for emoval hen wood is burned slowly it produces tar and other organic vapors which combine with expelled moisture to form creosote he creosote vapors condense in the relatively cool chimney flue of a slow burning fire s a result creosote residue accumulates on the flue lining... -
Page 41: Trouble Shooting
• Leak between chimney and pipe If the problems continue we recommend contacting your chimney sweep or your local RAIS dealer. Chimney fire, soot fire or creosote fire: In case of a fire in the chimney quickly close all doors, dampers, vents and call your lo-... -
Page 42: Spare Parts
Spare parts Q-Tee II C SST USA Only use the specified original Rais components! If spare parts other than those recommended by RAIS are used, the warranty is voided. All replaceable parts can be bought as spare parts from your RAIS distributor. - Page 43 Spare parts...
- Page 44 Fitting the air-box. To mount the air-box, first the build in frame and the bottom cover must be removed. 1. Replace the two screws holding the air damper with the stand offs delivered with the air-box 2. Slide the air-box (1) under the burning chamber, make sure that the back end of the air-box are resting on the two pins.
- Page 45 AIR KIT - FRESH AIR SUPPLY, AIR THROUGH THE BACK. When the space heater is installed in a structure where direct combustion air is re- quired, an air kit must be used to supply fresh air ot the appliance from outside. 1.
- Page 46 OUTLINE NEGATIV RAIS A/S Industrivej 20 DK-9900 Frederikshavn Denmark www.rais.com...
- Page 47 Revision log: Dato (DMY) 01-05-2023 sparepart list updated with new part numbers for firebrick set and shaking grate. 15-05-2023 Section on “Smoke and carbon monoxide detectors” added 05-08-2023 Label changed according to S627-2023 28-09-2023 label changed...
