Owner's Manual
Dealer: This manual must be given to the user of the wheelchair
User: Before using, read this manual, and save for future reference.
Future Mobility Healthcare Inc., 3223 Orlando Drive, Mississauga, ON L4V 1C5
905 671-1661 – 1 888 737-4011 – Fax: 905 671-3377 www.future-mobility.com
Innovative seating and mobility solutions
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Northern lite and is the answer not in the manual?

Questions and answers

Related Manuals for Future Mobility Healthcare Northern lite

Summary of Contents for Future Mobility Healthcare Northern lite

  • Page 1: Table Of Contents

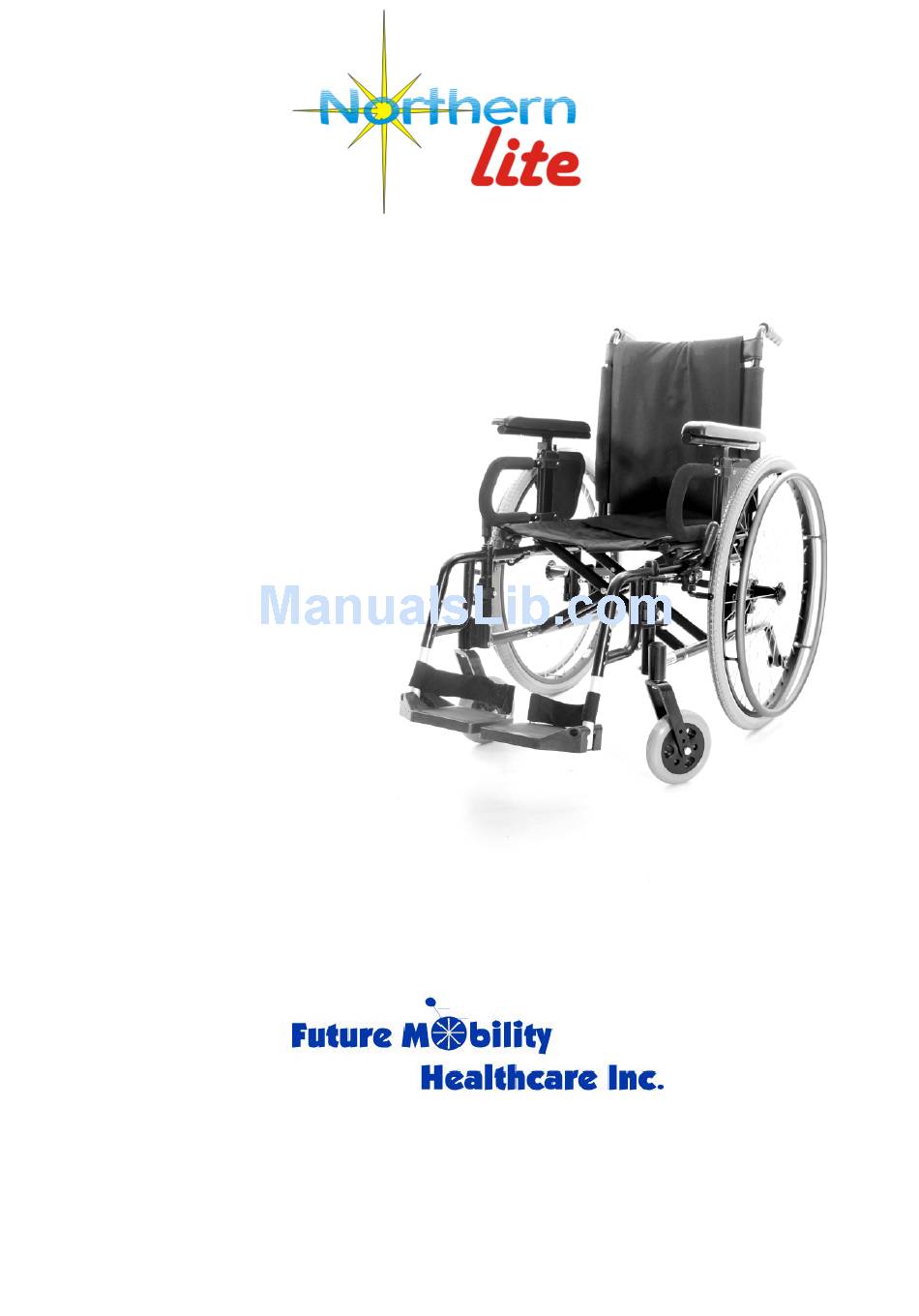

    Owner’s Manual Dealer: This manual must be given to the user of the wheelchair User: Before using, read this manual, and save for future reference. Innovative seating and mobility solutions Future Mobility Healthcare Inc., 3223 Orlando Drive, Mississauga, ON L4V 1C5 905 671-1661 –...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS ..............1 READ BEFORE USE ............... 4 SELECTING THE BEST COMBINATION..........4 REFER TO THIS MANUAL FREQUENTLY ..........4 NORTHERN LITE WHEELCHAIR AND PARTS........... 5 BASIC SAFETY PRECAUTIONS............6 EQUIPMENT GUIDLENES AND PRECAUTIONS......... 7 WARNINGS FOR THE USER .............. 8 WHEELCHAIR SAFETY AND HANDLING..........
  • Page 3 SEATING ................18 A. Armrest Height ..............18 Tension Adjustable Back Settings.......... 18 C. Foot Rest Height .............. 18 D. Anti-Tipper Height............19 CHAIR SET-UP ................20 A. Back Cane Height ............. 20 Wheel Lock Position ............20 C. Front Seat Height ............. 20 D.

  • Page 4: Read Before Use

    READ BEFORE USE SELECTI NG THE B EST COMBI NATI ON A Future Mobility Healthcare wheelchair offers the user many different combinations of styles, accessories, and options to best fit each individual; the final selection should be made by you and your health care advisor in conjunction with the dealer and based on factors such as: The level of your coordination, balance, and physical strength The conditions and challenges you will encounter in your environment (your...

  • Page 5: Northern Lite Wheelchair And Parts

    NORTHERN LITE WHEELCHAIR AND PARTS Complimentary Tool Kit Wheel Lock Adjustable Clamp Multi-wrench Adjustable Caster Housing Allen Wrench Urethane Caster Wheel Aluminum Hand Rim Front Frame Stopper Quick Release Axle Top Footrest Mount Rubber Handgrip Swing-Away Footrest Assembly Back Cane Push Handle...

  • Page 6: Basic Safety Precautions

    BASIC SAFETY PRECAUTIONS Make sure to study and comply with all the instructions contained here; failure to comply with these warnings may result in serious injury and/or damage to the equipment. Prior to use, you should receive training from an authorized dealer and/or a health care advisor on safety and efficiency.

  • Page 7: Equipment Guidlenes And Precautions

    EQUIPMENT GUIDLENES AND PRECAUTIONS Do not exceed the published weight limit of 250 lbs. Please note the weight limit applies to the user and all items carried or loaded onto the chair, activities such as lifting weights or towing may damage the chair and void the warranty.

  • Page 8: Warnings For The User

    WARNINGS FOR THE USER YOU ARE CONSIDERED A PEDESTRIAN. Do not attempt to operate the chair on streets or highways. When crossing the street make sure to make eye contact with motorists and always wait until you are confident it is safe to proceed. If you are required to use the chair at night or when lighting is poor, use reflective tape on the chair or reflective clothing to ensure safe visibility.

  • Page 9: Wheelchair Safety And Handling

    WHEELCHAIR SAFETY AND HANDLING FOLDI NG AND UNFOLDI NG THE CHAIR A. Unfolding Tilt the wheelchair sideways and towards you to take any weight off the opposite wheel. Push down on the top of the seat rails until the chair is fully open. WARNING: NEVER place your hands or fingers beneath the seat rail between the wheel and the frame.

  • Page 10: Balance And Stability

    BALANCE AND STABI LITY Centre of Gravity Adjustments Your Wheelchair is equipped with several adjustments that affect the balance point or centre of gravity. In consultation with a health care advisor and with your authorized dealer, you can make the following adjustments which will impact safety and performance.

  • Page 11: Shifting Positions In The Chair

    SHI FTI NG POSI TI ONS I N THE CHAI R It may be necessary for you to engage in activities that require weight and balance shifts in the chair, such as changing clothes or reaching/bending towards objects. In order to complete these movements safely, always follow these instructions: Be careful to maintain your balance so that you can recover without strain on yourself or the chair.

  • Page 12: Ramps And Inclines

    Make sure the occupants feet are securely on the footplates and that arms, hands, and fingers are clear of pinch points and wheels. Place one foot on the rear frame above the anti-tip tubes and apply downward pressure. Continue to press down and lift the front casters off the ground until the balance point is reached.

  • Page 13: Transfers

    TRANSFERS It is potentially dangerous to attempt unaided transfers; exceptional balance and agility is required. To ensure safety during transfers complete the following steps first: Work with your health care advisor to learn how to position your body for maximum support, and always have assistance until you can confidently complete the transfer process repeatedly.

  • Page 14: Maintain Performance

    MAI NTAI N PERFORMANCE To keep the chair functioning as efficiently as possible pay attention to the following procedures and conditions for your routine: A. Safety Checklist The following items should be checked routinely to ensure optimal and safe performance of your wheelchair. If any of these things are not as outlined contact your dealer for service.

  • Page 15: Storage

    C. Storage Store the wheelchair in a clean, dry area preferably indoors. Inspect the wheelchair fully if stored for longer than two weeks and have the wheelchair fully serviced by your authorized dealer if stored for longer than three months. Future Mobility Healthcare Inc., 3223 Orlando Drive, Mississauga, ON L4V 1C5 905 671-1661 –...

  • Page 16: Removable Components

    REMOVABLE COMPONENTS Your chair has come equipped with several removable components that assist in transfers, navigating tight spaces, storage, and transport. Never attempt to pick up the chair by any of the removable components, as they could be damaged and may not function normally in the future. A.

  • Page 17: Armrests

    FI GURE B Push Button In To remove the wheels, depress the button in the centre of the wheel as shown in Figure B. below. With the button depressed grab the spokes of the wheel and pull the wheel out. To replace the wheel, depress the quick-release button and slide the axle through the sleeve until the outside-quick release button pops out to its fully extended position.

  • Page 18: Adjustments And Fitting

    ADJUSTMENTS AND FITTING SEATI NG Your chair is equipped with a number of adjustable components that ensure proper fit, these adjustments may be made by yourself or your attendants as required – please ensure you have received training and instruction from your dealer and health care advisor prior to making any new changes.

  • Page 19: Anti-Tipper Height

    Make sure the inner sleeve is aligned properly. Slide the footrest to the desired height in keeping with the available settings. Reinsert and tighten the bolt at the new height. NOTE: The bolts used for this function are specially selected and may not fit or work with standard tools.

  • Page 20: Chair Set-Up

    CHAIR SET-UP The following components and settings can be adjusted for increased comfort and performance. Each of these adjustments must be made by an authorized dealer, in conjunction with a health care advisor. Failure to make these adjustments properly may result in complications and compromised safety and performance.

  • Page 21: Rear Seat Height

    D. Rear Seat Height The height of the seat at the rear can be changed in conjunction with or independently of, the front seat height. This can be changed by either: Axle Plate Location The 8-Position Axle Plate can be moved up and down as well as inverted to produce height changes as small as ½”...
  • Page 22 The wheels should always be parallel to each other and the frame. In the event that modifications have compromised this orientation it may be necessary to realign the wheels. You may need to adjust this if the chair pulls to one side consistently regardless of tire pressure or weight shifts.

  • Page 23: Warranty

    This warranty is extended only to the original purchaser/user of our products. Future Mobility Healthcare Inc. warrants its Northern Lite Wheelchair to be free from defects in materials and workmanship for one (1) year from the date of purchase. The frame is warranted for (5) five years of the original purchaser/user and the upholstery for 90 days, upon normal usage by original purchaser.
