Future Mobility Healthcare EXPRESS User Manual

Power chair
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P
C
U
M
OWER
HAIR
SER
ANUAL – EXPRESS
Future Mobility Healthcare
3223 Orlando Drive, Mississauga, ON L4V 1C5
Phone: 1-888-737-4011, Fax 1-866-670-3377
www.future-mobility.com . Prices and specs are subject to change without notice.
Dealer: This manual must be given to the user of the wheelchair.
User: Before using, read this manual, and save for future reference.
1 of 30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXPRESS and is the answer not in the manual?

Questions and answers

Related Manuals for Future Mobility Healthcare EXPRESS

Summary of Contents for Future Mobility Healthcare EXPRESS

  • Page 1 3223 Orlando Drive, Mississauga, ON L4V 1C5 Phone: 1-888-737-4011, Fax 1-866-670-3377 www.future-mobility.com . Prices and specs are subject to change without notice. Dealer: This manual must be given to the user of the wheelchair. User: Before using, read this manual, and save for future reference.

  • Page 2: Table Of Contents

    ABLE OF ONTENTS Table of Contents Page 2 Read Before Use Page 3 Selecting the Best Combination Page 3 Refer to this Manual Frequently Page 3 Dealer and Technician Warning Page 3 Labels Page 3 Power Wheelchair and Parts Page 4 Basic Safety Precautions Page 5 Equipment Guidelines and Precautions...

  • Page 3: Read Before Use

    EFORE SELECTING THE BEST COMBINATION The Express offers the user many different combinations of styles, accessories, and options to best fit each individual; the final selection should be made by you and your health care advisor in conjunction with the dealer and based on factors such as:...

  • Page 4: Power Wheelchair And Parts

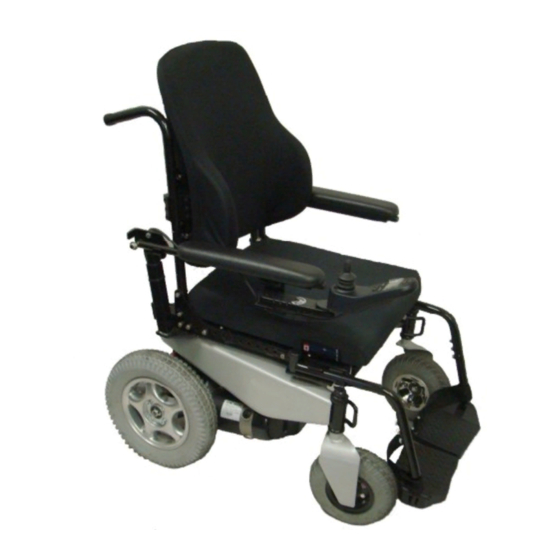

    OWER HEELCHAIR AND ARTS Back Cane – Push Handle Rehab Seat Frame Flip-Up Armrest 70° Swing away Footrest Hangers Rear Seat Pivot Caster Fork Free-Wheel Lever (Behind Tire) Foot Plate (Pictured: Composite FlipUp) Drive Wheel Rear Anti Tip Assembly Fuse (Under Shroud, Above Left Motor) 700 Watt Motor Backrest Armrest (Full-Length Pictured)

  • Page 5: Basic Safety Precautions

    2. Unauthorized modification of the wheelchair or the use of non-Future Mobility Healthcare parts may change the performance of the wheelchair and could represent a safety hazard as well as voiding the warranty.

  • Page 6: Warnings For The User

    ARNINGS FOR THE YOU ARE CONSIDERED A PEDESTRIAN. Do not attempt to operate the chair on streets or highways. When crossing the street make sure to make eye contact with motorists and always wait until you are confident it is safe to proceed. If you are required to use the chair at night or when lighting is poor, use reflective tape on the chair or reflective clothing to ensure safe visibility.
  • Page 7 EMI (NOTE: There is no easy way to evaluate their effect on the overall immunity of the powered wheelchair.) 5. Report all incidents of unintended movement or brake release to Future Mobility Healthcare Inc., and note whether there is a source of EMI nearby.

  • Page 8: Wheelchair Safety And Handling

    So please... 2. Do not carry passengers. 3. Do not back up your Express unless the speed governing dial is set to low speed. Never back up onto uneven inclines or surfaces. 4. Do not turn suddenly at full speed.
  • Page 9 Going up and down ramps and hills is now simple. To stop, simply release your joystick. Because of the power of the Express you are able to keep your speed control turned down low so that you have total control going up or down an incline, ramp or curb.

  • Page 10: Power Wheelchair Controls

    DOWN IN THIS MANUAL. Please refer to the rules on page 1. Safety must come first. If you are unsure about a situation, avoid it. Feel free to use your Express on lawns or in park areas. Avoid long, unkempt grass. Otherwise, just follow the rules.
  • Page 11 OWER HEELCHAIR ONTROLS VR2 System (P & G) Your wheelchair is equipped with a VR2 System from PG Drives. 70 Amp Controller Ergonomic Joystick Module Standard LED Display Dual Push Button Speed Control Dual Push Button Speed Control Programmable Drive Modes Your controls are located on the joystick module, the black box found on the front end of your armrests.
  • Page 12 12 of 30...
  • Page 13 13 of 30...

  • Page 14: Transfers

    RANSFERS It is potentially dangerous to attempt unaided transfers; exceptional balance and agility is required. To ensure safety during transfers complete the following steps first: 1. ALWAYS TURN OFF THE CHAIR USING THE POWER BUTTON ON THE JOYSTICK! 2. Work with your health care advisor to learn how to position your body for maximum support, and always have assistance until you can confidently complete the transfer process repeatedly.

  • Page 15: Maintenance

    CARE OF BATTERIES Express wheelchairs have two long lasting 12 volt batteries. They are sealed and are maintenance free. The charger is fully automatic. There is no danger of spillage. They will work or transport in any position.

  • Page 16: Disconnecting The Charger

    8. If you use your wheelchair at all during the day, put it back on charge when you stop using it. It is fully automatic, so will not overcharge, and your Express will be ready to give you full service the next time you use it.

  • Page 17: Maintain Performance

    REMOVING BATTERIES When removing the batteries, be sure to disconnect the Breaker Line first, then disconnect the Controller Line next. MAINTAIN PERFORMANCE To keep the chair functioning as efficiently as possible pay attention to the following procedures and conditions for your routine: SAFETY CHECKLIST The following items should be checked routinely to ensure optimal and safe performance of your wheelchair.

  • Page 18: Adjustments And Fitting

    DJUSTMENTS AND ITTING Front Caster Service Procedures 1. Loosen & Remove Caster Journal Nuts 2. Remove & Clean Caster Journal 3. Coat Lower Bearing Seat with 4. Base of Caster Journal with High High Viscosity Grease Viscosity Grease 5. Slide Lower Caster Bearing onto 6.

  • Page 19: Installing Anti Flutter Kit

    7. Coat Upper Bearing Seat with 8. Slide Upper Caster Bearing into High Viscosity Grease Upper Caster Bearing Seat 9. Ensure Upper Bearing is Properly 10. Replace Remaining Parts & Seated & Coat with Grease Tighten Nuts to Suitable Tension Installing Anti Flutter Kit 1.

  • Page 20: Changing Seat Width

    Changing the Seat Width 1. Remove Seat Pan 2. Tilt Seat Up (see Changing Front Seat Height if no power tilt) 3. Remove Bolts from Adjustment Rods 4. Remove Bolts from Rigidizer Bar 5. Slide Seat Rails Out or In to desired width (by 1” Increments). 6.

  • Page 21: Adjusting Infinity Arms

    4. Place Back Assembly to Desired Depth 5. Replace Bolts in Seat Rails and Replace Nuts. Adjusting Infinity Arms To adjust starting depth, remove bolts from under seat rails and mount in desired • position To Adjust Height an/or Position of Armpads •...

  • Page 22: Adjusting Back Rest Angle

    3. Tighten hex head bolts. Adjusting Back Rest Angle 1. Remove the bottom bolt and nut holding the Push Cane to the Back Adjustment plate. 2. Repeat for other side of wheelchair. 3. Reference the hole chart for the back adjustment plate and rotate the back rest to the desired angle ( 87°(a) ,95°(b) ,102°(c) ,110°(d) ,118°(e) ,125°(f) ,or 132°(g) ) 4.

  • Page 23: Setup Front Casters

    3. Remove the bolts from the ends of the width adjustment rods and outside seat rails. 4. Place outer seat rail assembly in desired location (usually 1” forward or back is a significant enough change) 5. Replace bolts through outside seat rails into width adjustment rods Set-Up Front Caster •...

  • Page 24: Change Front Seat Height

    2. For increased tension and greater stability, slide the top mount plate forwards as allowable by the slots. 3. For decreased tension and easier obstacle clearance, slide the top mount plate back as allowable by the slots. • To adjust the height of the front anti-tip caster: OPTIONAL: Remove drive wheel for easier access to the swing arm/motor mount arm.

  • Page 25: Adjust The Suspension Damper

    1. Remove the two or three bolts at the rear of the Leg Rest Hanger 2. Locate desired foot location 3. Replace bolts into Leg Rest Hanger and Threaded Insert • To adjust the Swing Away Legrests position (depth) 1. Press Legrest Release Lever downwards to swing away the Legrest and Lift off Receiver to remove legrest.

  • Page 26: Remove Wheels + Motors

    Remove Wheels and Motors 1. Lift up the side of the base you want to remove the wheel and/or motor from. 2. Place block underneath frame so wheel can spin freely without touching the ground 3. Remove Plastic Cover from Centre of Drive Wheel 4.

  • Page 27: Power Tilt Option - Cg Tilt

    Power Tilt Option – “CG Tilt” 1. The power tilt option on the Express wheelchairs allows the client to control the tilt angle of the wheelchair seat from 0° to 45° though the use of the VR2 or RNET joystick and a Linak Actuator which connects to the seat frame.
  • Page 28 Wheelchair at 0° tilt Wheelchair at 25° tilt Wheelchair at 45° tilt 4. Prior to driving the wheelchair ensure that the wheelchair is brought down to 0° tilt so that the wheelchair can be driven in a proper and safe manner. 28 of 30...

  • Page 29: Disclaimer

    The part or parts will be replaced, but no responsibility for any damage or injury can be implied to Future Mobility Healthcare Inc. or Ranger Wheelchairs Ltd. . Future Mobility Healthcare Inc.

  • Page 30: Warranty

    IMITED ARRANTY The Express Power Chair is built with safety and comfort in mind. This warranty is to make it easy to enjoy new freedom and independence on your Express. Ranger Wheelchairs Ltd. warrants the Express Power Chair against defects in parts and workmanship for a period of two full years from the date of delivery.
