Summary of Contents for Future Mobility Healthcare PRISM MULTIBACK

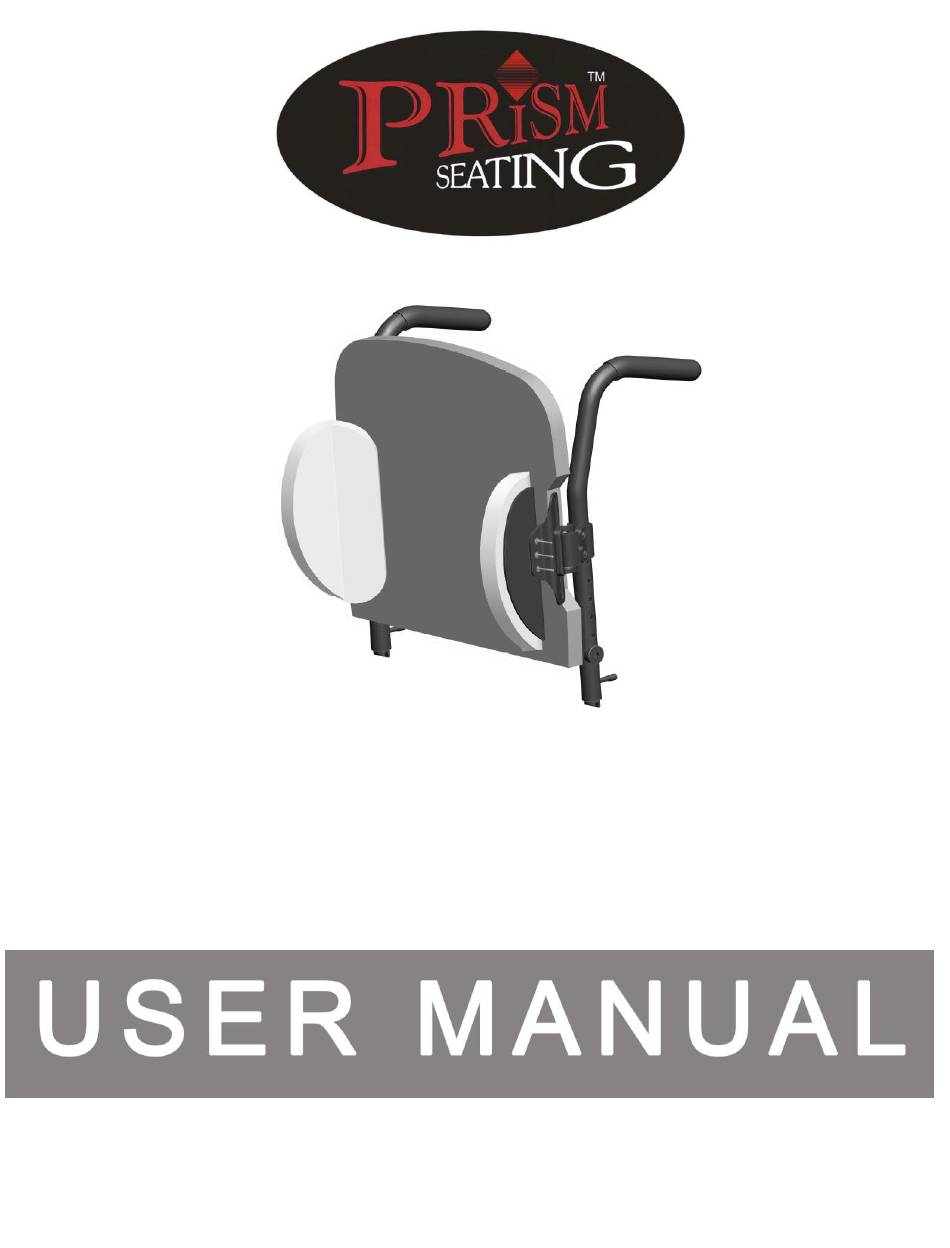

- Page 1 PRISM MULTIBACK TENSION BACK 990 REV01 REV DATE: 11/11/2013...
- Page 2 990 REV01 REV DATE: 11/11/2013...
-
Page 3: Table Of Contents
Table of Contents 1.0 Hardware Kit Contents 2.0 Tools Required 3.0 Before Installation 4.0 Installation Instructions 5.0 Maintenance 6.0 Warranty 990 REV01 REV DATE: 11/11/2013... -
Page 4: Hardware Kit Contents
1.0 Hardware Kit Contents A-Main outer standard clamp (1) x 2 Left cane Figure 1 B- Main inner standard clamp (1) x 2 C- Screw, socket head, 10-32NF x 1 (2) x 2 D- Screw, SOC HD cap ¼-20 x 0.5 (3) x 2 E- Cane mount lateral bracket (1) x 2 F- Backing plate (1) x 2 G- Cane mount plate right &... -
Page 5: Before Installation
Healthcare will not be held responsible for improperly installing the back. The Prism MULTIBACK back comes preinstalled on the chair but adjustments will be needed to get the appropriate amount of tension of the back. Minor adjustments will be required in such case where the back is already installed on the chair. -
Page 6: Installation Instructions
4.0 Installation Instructions Follow the instructions below to install the back and the side laterals on the chair. Consult a qualified technician or your local dealer for help installing the back. Top Folding Nylon Flap Back Foam Right Looping Flap Adjustable Velcro Straps Left Velcro Straps... - Page 7 Installing the Side laterals The back comes installed on the chair if it is ordered with the chair, however if ordered separately it must be installed by a qualified technician. To install the side laterals please follow the steps below. Left Cane Backing Plate Inner clamp...
-
Page 8: Maintenance
DO NOT machine dry -air dry in shady area. PLEASE NOTE Prism MULTIBACK back fabric is water repellant and will resist absorbing moisture, however it should be kept away from water since soaking it in the water for prolonged periods can make the Velcro straps loose its stickiness. For cleaning purposes a soft cloth with antibacterial detergent should be used to for wiping. -
Page 9: Warranty
6.0 Warranty This warranty is extended only to the original purchaser/user of our products. Future Mobility Healthcare Inc. warrants its positioning products to be free from defects in materials and workmanship for three (3) years on backs, one (1) year on hardware and 90 days on covers, upon normal usage by original purchaser. - Page 10 Cut below this line Warranty Registration Form To validate your Future Mobility HealthCare warranty, please complete the below form and return it the address at the end of this form. Visit online at www.futuremobility.ca for more Future Mobility Products. Name: ____________________________ Street Address: ____________________________________________________ City/Country/Postal Code: __________________________________________________ Telephone: _______________________________...
