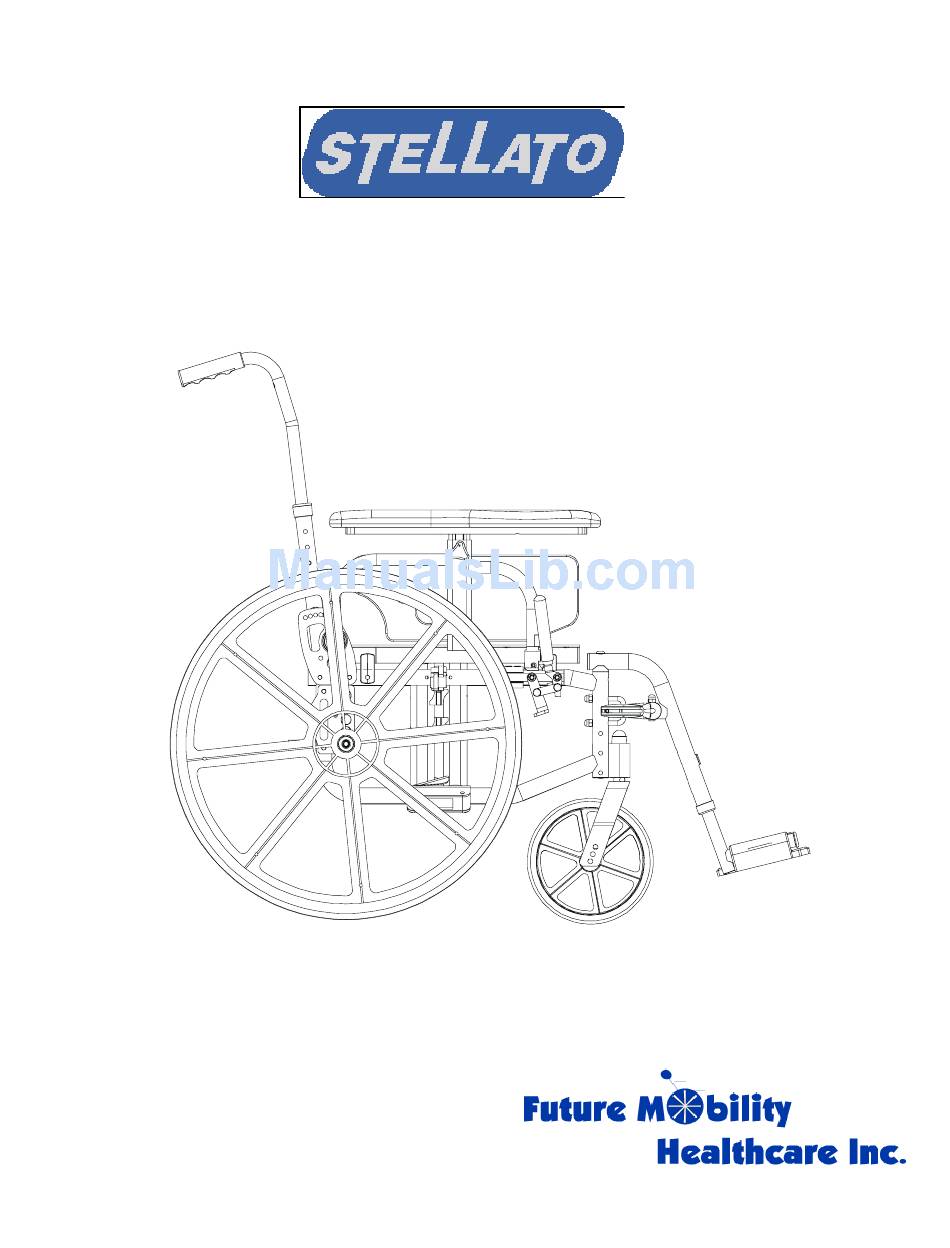

STELLATO
Owner's Operations Manual
23
1005845 REV B
Page 1 of
2007
FMHI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stellato and is the answer not in the manual?

Questions and answers

Related Manuals for Future Mobility Healthcare Stellato

Summary of Contents for Future Mobility Healthcare Stellato

  • Page 1 STELLATO Owner’s Operations Manual 1005845 REV B Page 1 of 2007 FMHI...

  • Page 2: Labels

    - otherwise, injury or damage may occur. NOTICE Information contained within this document is subject to change without notice. STELLATO LABELS WEIGHT CAPACITY 250 LBS. (114 kgs) REFER TO OWNER’S MANUAL WARNING...

  • Page 3: Table Of Contents

    STELLATO TABLE OF CONTENTS Labels……………………………………………………………………………………… Specifications……………………………………………………………………………. General Guidelines……………………………………………………………………… Safety Inspection……………………………………………………………………….. Front Rigging…………………………………………………………………………….. Arms………………………………………………………………………………………. Seat & Back………………………………………………………………………………. Rear Wheels……………………………………………………………………………… Front Casters……………………………………………………………………………. Anti-tippers & Wheel Locks…………………………………………………………… Warranty…………………………………………………………………………………… 1005845 REV B Page 3 of 2007 FMHI...

  • Page 4: Specifications

    STELLATO STELLATO SPECIFICATIONS STELLATO Overall Width: Max. 28”, Min. 22” Overall Depth: (with front Max. 47” (rear wheel – rear position) rigging) Seat Width: 14” – 20” Seat Depth: 15” – 20” Seat-to-Floor: Small frame 13.25” – 18 ” Large frame 15.5”...

  • Page 5: General Guidelines

    STELLATO GENERAL GUIDELINES STABILITY WARNING The seat depth, back height/angle, seat angle, size/position of the front casters, size/position of the rear wheels, anti-tipper model, as well as the user condition directly relate to the stability of the wheelchair. Any change to one (1) or any combination of the ten (10) may cause the wheelchair to decrease in stability.

  • Page 6: Weight Training

    Future Mobility Healthcare Inc. shall NOT be liable for bodily injury or damage to the wheelchair and the warranty is void. WEIGHT LIMITATION WARNING The Stellato wheelchair has a weight limitation of 250 lbs. (114kg). 1005845 REV B Page 6 of 2007...
  • Page 7 STELLATO UNFOLDING AND FOLDING THE WHEELCHAIR WARNING Keep hands and fingers clear of moving parts to avoid injury. DO NOT sit or transfer into the wheelchair unless it is fully open and the seat frame rails are fully seated into the side frame H- blocks.

  • Page 8: Safety Inspection

    STELLATO SAFETY INSPECTION CHECKLIST Initial adjustments should be made to suit your personal body structure needs and preference. Thereafter follow these maintenance procedures: Item Initially Weekly Monthly Periodically GENERAL • Wheelchair rolls straight (no excessive drag or pull to one side) FRAME AND CROSSBRACES •...

  • Page 9: Troubleshooting

    STELLATO TROUBLESHOOTING Chair Chair 3 Sluggish Caster Squeaks Looseness Solutions Veers Wheels Turn or Flutter in Chair Right/Left Performance Rattles Check tires for correct and equal pressure. Check for loose nuts and bolts Check caster headtube angle. Check that rear wheels are equally spaced away from seat frame.
  • Page 10 STELLATO Removing: 1. Pull the front rigging release lever outward. 2. Rotate swingaway front rigging assembly outward. 3. Lift the swingaway front rigging assembly off the hinge pins. FOOTPLATE HEIGHT ADJUSTMENT Note: This procedure applies to the swingaway front riggings and swingaway elevating legrest.

  • Page 11: Arms

    STELLATO ELEVATING LEGREST OPERATION Instructions: Raising/Lowering the Elevating Legrest 1. To adjust the angle of the elevating legrest, turn the handle knob counter-clockwise to disengage from the index rod. 2. Lift the legrest to the desired angle. 3. Re-tighten the handle knob such that the legrest arm remains firmly in position.
  • Page 12 STELLATO Height Adjustment Flip-up Arm Rests Engaging and Disengaging Flip-up style armrest 1. To engage, push armrest into arm socket until release lever is engaged into slot. 2. For flip-up, push and hold release lever, while lifting armrest from arm socket.

  • Page 13: Seat & Back

    STELLATO SEAT AND BACK WARNING After ANY adjustments, repair or service and BEFORE use, make sure all attaching hardware is tightened securely – otherwise injury or damage may occur. REPLACING THE SEAT UPHOLSTERY 1. Remove the front universal plugs that retain the existing insert rod to the wheelchair seat rail.
  • Page 14 STELLATO REPLACING THE BACK UPHOSTERY Slip on Back Upholstery 1. Remove the two (2) mounting screws and washers that secure the existing back upholstery to the back canes. 2. Pull the loose back cane out of the existing back upholstery.

  • Page 15: Rear Wheels

    STELLATO REAR WHEELS WARNING After ANY adjustments, repair or service and BEFORE use, make sure all attaching hardware is tightened securely – otherwise injury or damage may occur. REMOVING/INSTALLING THE REAR WHEELS WARNING If changing the size of the rear wheel or a change in the seat-to-floor height is desired, this procedure MUST be performed by a qualified technician.
  • Page 16 STELLATO WARNING Make sure the detent pin and locking pins of the quick-release axle are fully released BEFORE operating the wheelchair. The locking pins MUST be protruding past the inside of the rear wheel axle bushing for a positive lock.

  • Page 17: Front Casters

    STELLATO FRONT CASTERS WARNING After ANY adjustments, repair or service and BEFORE use, make sure all attaching hardware is tightened securely – otherwise injury or damage may occur. INSTALLING/REPLACING FRONT CASTERS AND FORKS Note: This procedure can be performed if replacing the exact same size front caster.
  • Page 18 STELLATO ADJUSTING FRONT CASTER ANGLE 1. Remove bolt and loosen locknut. 2. Adjust cam plate for angle. 3. Reinsert bolt, tighten locknut. CASTER HOUSING LOCK NUT LOOSEN BOLT REMOVE BOLT PLATE,ANGLE ADJUSTABLE CASTER Position 1 Position 2 Position 3 0 degrees...

  • Page 19: Anti-Tippers/Wheel Locks

    STELLATO ANTI-TIPPERS/WHEEL LOCKS WARNING After ANY adjustments, repair or service and BEFORE use, make sure all attaching hardware is tightened securely – otherwise injury or damage may occur. INSTALLING/ADJUSTING THE ANTI-TIPPERS WARNING Anti-tippers are specific to the different seat-to floor angles and/or seat-to-floor heights. Refer to the chart in this section of the manual for correct usage and adjustment.
  • Page 20 STELLATO ANTI-TIPPER RELEASE FRAME TUBING BUTTONS GLIDE BUSHING ANTI-TIPPER WHEELS ADJUSTING THE ANTI-TIPPERS 1. Press the release buttons on the wheeled portion of the anti-tipper and slide it up or down to achieve the 1 ½ “ to 2” clearance.
  • Page 21 STELLATO USING/ADJUSTING THE DISK WHEEL LOCKS WARNING DO NOT attempt to stop a moving wheelchair with the wheel locks. WHEEL LOCKS ARE NOT BRAKES – otherwise injury or damage may occur. 1. Ensure the wheelchair is not moving before engaging the wheel locks.
  • Page 22 STELLATO WHEEL LOCK CLAMP SOCKET WHEELCHAIR SCREWS FRAME Positioning the Wheel Locks 1005845 REV B Page 22 of 2007 FMHI...

  • Page 23: Warranty

    This warranty is extended only to the original purchaser/user of our products. Future Mobility Healthcare Inc. warrants its Orion Stellato Wheelchair to be free from defects in materials and workmanship for one (1) year from the date of purchase. The frame is warranted for the lifetime of the original purchaser/user and the upholstery for 90 days, upon normal usage by original purchaser.
