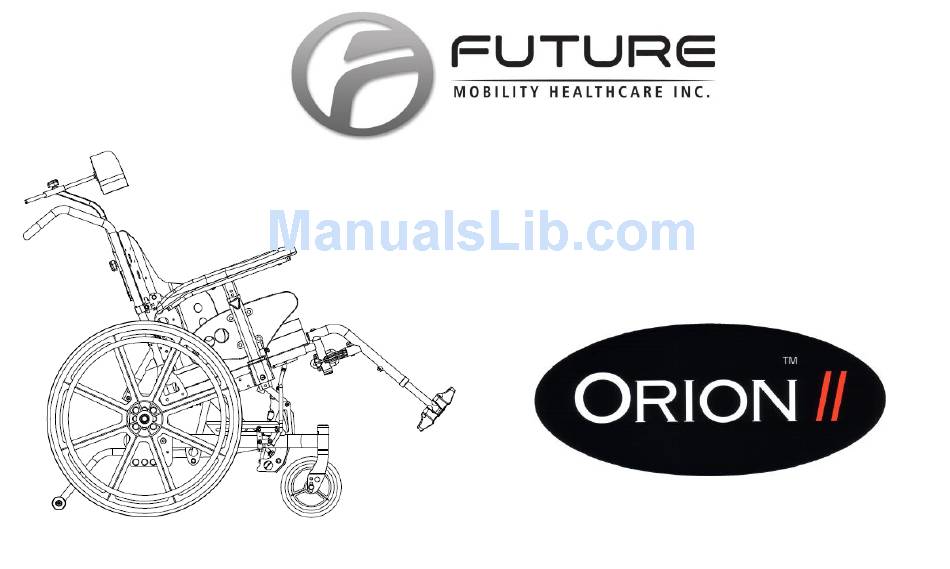

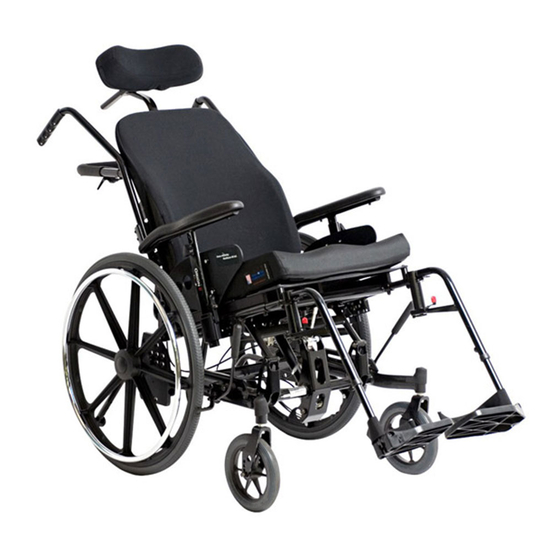

470 – ORION II
REV03 REV
08/14/2013

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion II and is the answer not in the manual?

Questions and answers

Related Manuals for Future Mobility Healthcare Orion II

Summary of Contents for Future Mobility Healthcare Orion II

  • Page 1: User Manual

    470 – ORION II REV03 REV 08/14/2013 USER MANUAL...

  • Page 2: Table Of Contents

    Installing and removing center pivot swingaway leg rests and foot plate [Figure 5] ............16 Center Pivot Dual Swingaway Legrest ..........................17 Installing and adjusting center pivot dual swingaway leg rests [Figure 6] ................17 Center Pivot Swingaway Elevating Legrest ........................18 470 REVO03REV DATE: 08/14/13 Orion II...
  • Page 3 Operating wheel locks [Figure 20, Figure 21] ........................27 Adjusting the Patient Operated Wheel Locks ........................28 Front Casters ..................................29 Installing and removing forks and casters [Figure 22 - Figure 25] ..................29 470 REVO03REV DATE: 08/14/13 Orion II...
  • Page 4 CONTENTS Anti-Tippers ..................................33 Installing/ adjusting anti-tippers [Figure 26, Figure 27] ......................33 Cable Adjustment Procedure ............................36 Adjusting recline cable [Figure 28, Figure 29] ........................36 Cleaning Instructions ................................. 38 Warranty ................................... 39 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 5: General

    - otherwise, injury or damage may occur. NOTE: Check all parts for shipping damages before using. In case of damage, DO NOT use the equipment. Contact the Equipment Supplier for further instructions. 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 6: Operating Safety Warnings

     It is not recommended to transport users in vehicles of any kind while seated in the wheelchair. Do not use any kind of wheelchair Tie-Down restraints that are not approved by the FDA. 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 7: Features

     Heel loops   Weight capacity: 350lbs (159 kg) Power tilt (optional upgraded version)  Product weight: 65lbs (including seating system)  Frame Material: Steel  Frame Colours: Black or Silver 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 8: Safety Inspection Checklist

    Inspect for rips or sagging Inspect for loose or broken hardware Inspect cane and hand grips for wear/looseness TIRES Inspect for flat spots, cracks and wear Caution: as with any vehicle, the wheels and tires should be 470 REVO03REV DATE: 08/14/13 Orion II...
  • Page 9 Adjust bearing system if wheel wobbles or binds to a stop. Ensure wheel bearings are clean and free of moisture. Check stem caster journal and lock nut for tightness Inspect casters for cracks and wear Inspect for cracked, bent or broken spokes CLEANING Clean upholstery and armrests 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 10: Troubleshooting

    GENERAL Troubleshooting Solutions Check for loose nuts and bolts Check angle adjustable caster assembly Check that rear wheels are equally spaced away from seat frame. 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 11: Labels

    GENERAL Labels ORION II WARNING DO NOT OPERATE WITHOUT THE ANTI-TIP MECHANISM IN PLACE WEIGHT CAPACITY 350 LBS. (159 kgs) REFER TO OWNER’S MANUAL CAUTION MOVING THE REAR AXLE TO THE FORWARD POSITION MAY DECREASE THE STABILITY OF THE WHEEL CHAIR...

  • Page 12: Style Knob Release Arm Rests

    Re-install the armrest in the arm socket. Arm Height Adjustment Loosen knob (`D'). Lift armrest until desired position is acquired (ranges Figure 1 from 9 ½” – 14” in ½” increments). “Re-tighten” knob (‘D’). 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 13: Flip-Up Arm Rests

    For flip-up, push and hold release lever (`A'), while lifting armrest from arm socket. Arm Height Adjustment Loosen knob (`B'). Lift armrest until desired position is acquired (ranges from 9 ½” – 14” in ½” increments). “Re-tighten” knob (‘B’). Figure 2 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 14: Style Pin Release Arm Rests

    Lift armrest until desired position is acquired (ranges from 9’’– 13” in ½” increments). Swing in the height adjustment latch lever to engage the holding pin. Repeat this procedure for the opposite T-style arm assembly. Figure 3 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 15: Pin Style Swingaway Leg Rest

    Lift the legrest assembly off the legrest hanger pins. Footplate Adjustment Remove bolt which holds the footrest extension tube in place. Slide footrest extension tube up or down to desired height. "Re-tighten" bolt. Figure 4 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 16: Center Pivot Swingaway Legrest

    Footplate Length Adjustment Remove bolt which holds the footrest extension tube in place. Slide footrest extension tube up or Figure 5 down to desired height. "Re-install" bolt. 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 17: Center Pivot Dual Swingaway Legrest

    Footplate Length Adjustment Remove bolt which holds the footrest extension tube in place. Slide footrest extension tube up or down to desired height. Figure 6 "Re-install" bolt. 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 18: Center Pivot Swingaway Elevating Legrest

    “vertically” with the user’s knee pivot. Figure 7 6. Re-tighten bolts on hanger side. Adjust footplate and calf pad position to 470 REVO03REV DATE: 08/14/13 Orion II...
  • Page 19 2. Lift the leg rest to the desired angle. 3. Re-tighten the handle knob such that the leg rest arm remains firmly in position. Figure 8 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 20: Fixed Back/Cane Stroller Bar

    Remove nut and screw from the top side of the outer and inner mounting plates. Move fixed back cane to desired angle and insert nuts and bolts making sure the coved spacers are Figure 9 in place. Figure 10 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 21: Fold Down Back Cane/Stroller Bar

    Push and hold up the knob on the right side to release back post forward. To return back to an upright position, lift back posts up ensuring right side locks into place and pulling left knob out and down. Figure 12 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 22: Recline Back Cane Stroller/Bar

    Reclining the Back [Figure 13, Figure 14] To Recline Stroller/Cane And Cane Bar 1. To recline the Orion II depress the lever as depicted in Figure 13 and gently force the pushbar in a downward motion to allow the recline.

  • Page 23: Hinged Stroller Bar (Angle Adjustable)

    Push the bottom inwards to activate the hinge assembly mechanism and rotate the stroller bar to the desired angle for the attendant. Release the buttons to lock the hinge assembly mechanism in place. Figure 15 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 24: Recline Cylinder Installation

    Assemble stabilis actuator and gas cylinder assembly (#9, #13) onto seat frame bracket using hardware item #11. Assemble gas cylinder (#9) onto recline back cane using hardware items # 7,#8, #10, #12. Figure 16 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 25: Rear Wheel Positioning

    Push in the detent pin of the quick-release axle again and pull the axle out of the rear wheel. Figure 17 To reinstall the rear wheel onto the wheelchair, reverse steps 1 to 2. Repeat this procedure for the other rear wheel assembly 470 REVO03REV DATE: 08/14/13 Orion II...
  • Page 26 Future Mobility Healthcare Inc. recommends Inserting quick-release axles with the detent pin to the inside of the wheelchair to prevent accidental release during contact activities. LOCKING PIN DETENT PIN OUTSIDE OF INSIDE OF WHEELCHAIR WHEELCHAIR QUICK-RELEASE AXLE Figure 91 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 27: Wheel Locks

    Push-to-Lock – to engage, push the wheel lock handle (‘A’) forward Figure 20 b. Pull-to-Lock – to engage, pull the wheel lock handle (‘A’) backward 3. Disengage the wheel locks by reversing STEP 2. Figure 21 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 28: Adjusting The Patient Operated Wheel Locks

    7. Repeat STEPS 1 to 6 until the wheel lock brake shoe embeds the tire and HOLDS the occupied wheelchair in place when pushed. 8. Engage both wheel locks and ensure the occupied wheelchair is held in place when pushed. 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 29: Front Casters

    Tip back of wheelchair to floor Figure 22 b. Pivot both forks and casters to top of their arc simultaneously. Let casters drop to bottom of arc (wheels should swing once to 470 REVO03REV DATE: 08/14/13 Orion II...
  • Page 30 6. Secure the new fork and caster assembly in place by using the locknut and caster stem bolt. 7. Follow steps 5 to 9 of REPLACING/INSTALLING FRONT CASTERS guide to properly install the new fork assembly and prevent fluttering. Figure 23 470 REVO03REV DATE: 08/14/13 Orion II...
  • Page 31 Figure 24 470 REVO03REV DATE: 08/14/13 Orion II...
  • Page 32 FRONT CASTERS Figure 25 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 33: Anti-Tippers

    Figure 26 wheelchair (you may order with or without the anti- tippers), Future Mobility Healthcare Inc. strongly recommends ordering the anti-tippers as a safeguard for 470 REVO03REV DATE: 08/14/13 Orion II...
  • Page 34 (1) through the holes to secure anti-tipper to the wheel chair. 6. Once properly assembled anti-tippers are ready to use. 7. Refer to FLIPPINGTHE ANTI-TIPPERS below for flip up and flip down instructions. 470 REVO03REV DATE: 08/14/13 Orion II...
  • Page 35 1 ½“to 2” clearance from the ground is achieved. 2. Check to make sure that the snap buttons are fully engaged in the adjustment holes. 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 36: Cable Adjustment Procedure

    This must be avoided. 7. Actuate the release lever to assure that the mechanical lock operates correctly and Figure 28 does not slip without actuating the release 470 REVO03REV DATE: 08/14/13 Orion II...
  • Page 37 8. After the proper adjustment is obtained, tighten the lower lock nuts on the adapter cable. Use the minimum amount of torque necessary to lock it into position – (1/4 turn of wrench is maximum). Figure 29 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 38: Cleaning Instructions

    RINSE WITH A DAMP RAG AFTER CLEANING TO ENSURE THAT ANY SOAP RESIDUE IS REMOVED DO NOT USE CLEANING PRODUCTS WITHOUT CONSULTING THE PRODUCTS’ INSTRUCTIONS AND TAKING APPROPRIATE PRECAUTIONS FOR HUMAN EXPOSURE TO CHEMICALS 470 REVO03REV DATE: 08/14/13 Orion II...

  • Page 39: Warranty

    This warranty is extended only to the original purchaser/user of our products. Future Mobility Healthcare Inc. (“FMHI”). warrants its Orion II Wheelchair parts and miscellaneous components for a period of one year from date of purchase to be free from defects in material and workmanship. The frame is warranted for the lifetime of the original purchaser/user.
  • Page 40 WARRANTY QSF: 390 –UM 1024403 REV03 08/14/13 Orion II...
