Summary of Contents for Ross DRA-8204

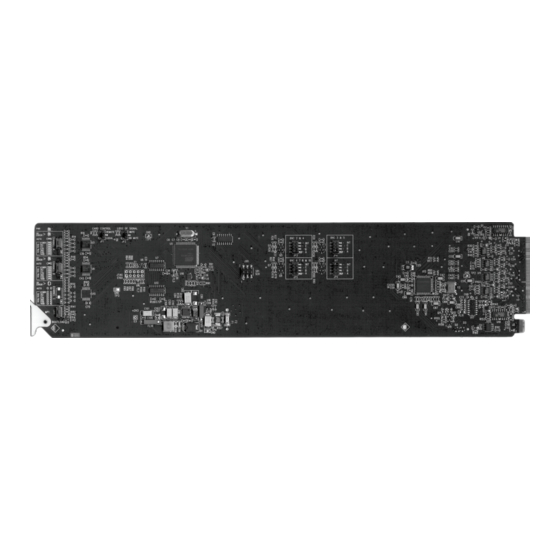

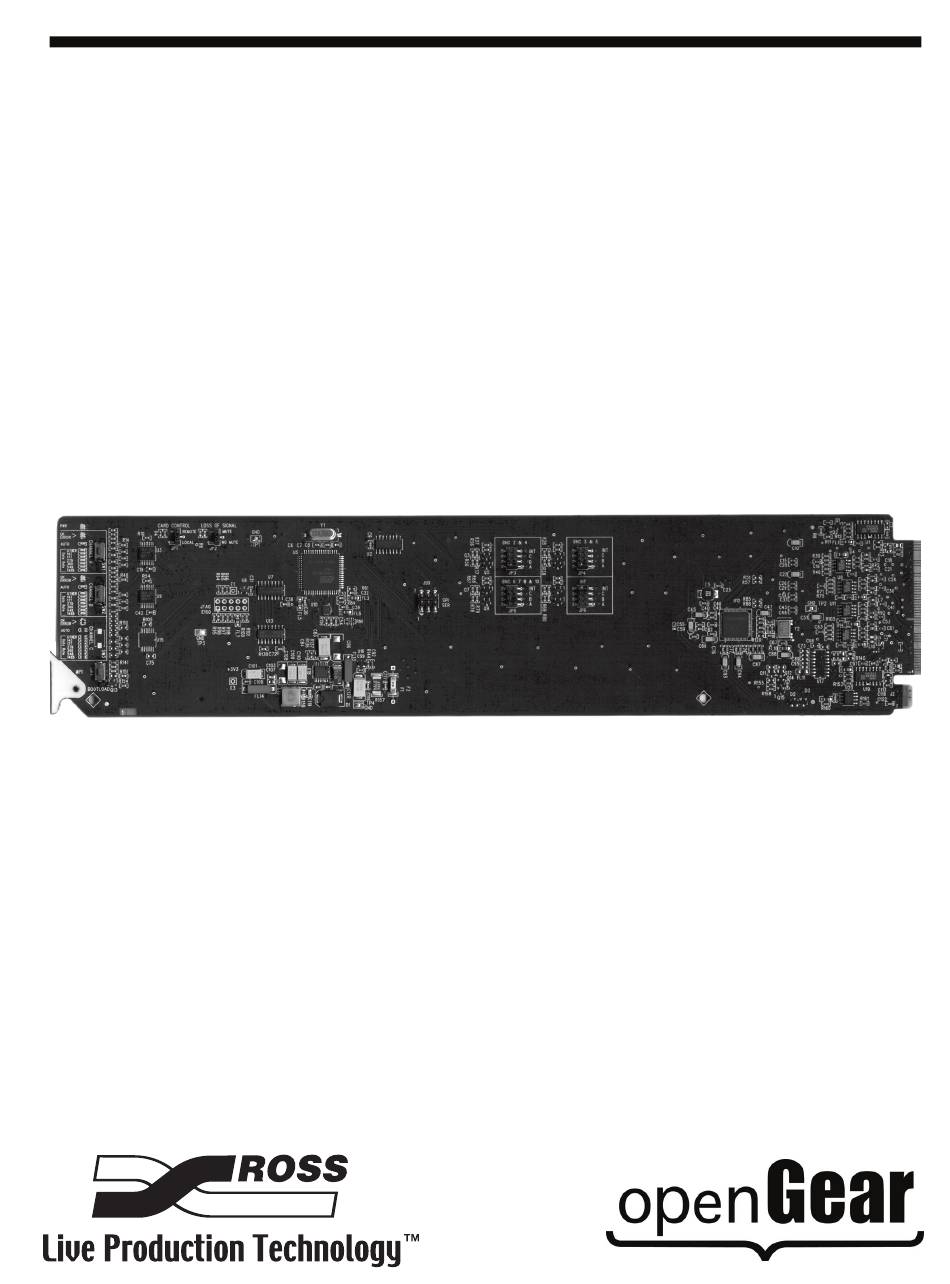

- Page 1 Ross Video Limited DRA-8204 Dual MD-SDI Reclocking Amplifier User Manual...
- Page 2 The material in this manual is furnished for informational use only. It is subject to change without notice and should not be construed as commitment by Ross Video Limited. Ross Video Limited assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.
- Page 3 Important Regulatory and Safety Notices Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Products may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements.
- Page 4 Notice — Changes or modifications to this equipment not expressly approved by Ross Video Limited could void the user’s authority to operate this equipment. CANADA This Class “A” digital apparatus complies with Canadian ICES-003.
- Page 5 The crossed-out wheeled bin symbol invites you to use these systems. If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration. You can also contact Ross Video for more information on the environmental performances of our products.
- Page 6 Company Address Ross Video Limited Ross Video Incorporated 8 John Street P.O. Box 880 Iroquois, Ontario Ogdensburg, New York Canada, K0E 1K0 USA 13669-0880 General Business Office: (+1) 613 • 652 • 4886 Fax: (+1) 613 • 652 • 4425 Technical Support: (+1) 613 •...
-
Page 7: Table Of Contents
Channel Rate Selection Buttons and LEDs ............3-4 Single or Dual Channel Jumper Configurations............ 3-4 Control and Monitoring ....................... 3-5 Status and Selection LEDs on the DRA-8204............3-5 Factory Default Values..................3-6 Reclocker Rate Selection ..................... 3-7 Reclocker Rate Selection LEDs ................3-7 Menus SNMP Monitoring and Control ................... - Page 8 2 • Contents DRA-8204 User Manual (Iss. 05)
-
Page 9: Introduction
A Word of Thanks Congratulations on choosing an openGear DRA-8204 Dual MD-SDI Reclocking Amplifier. Your DRA-8204 is part of a full line of Digital Products within the openGear Terminal Equipment family of products, backed by Ross Video's experience in engineering and design expertise since 1974. -
Page 10: Overview
A special feature of the DRA-8204 is the ability to operate in a number of different channel configurations. Dual channel mode is ideal for applications requiring only a few outputs, such as mid-cable signal boosters, router expansion, or signal cleanup. -
Page 11: Functional Block Diagram
Functional Block Diagram This section provides the functional block diagram for the DRA-8204. SDI OUT SDI IN BNC 2 Channel A BNC 3 Equalizer Reclocker (BNC 1) BNC 4 BNC 5 Crosspoint BNC 6 BNC 7 Channel B Equalizer Reclocker... -
Page 12: Documentation Terms
Documentation Terms The following terms are used throughout this manual: • “Frame” refers to DFR-8300 series frame that houses the DRA-8204 card, as well as any openGear frames. • All references to the DFR-8300 series frame also includes all version of the 10-slot (DFR-8310 series) and 20-slot (DFR-8321 series) frames and any available options unless otherwise noted. -
Page 13: Installation
Installation In This Chapter This chapter provides instructions for installing the rear modules for the DRA-8204, installing the card into the frame, and cabling details. The following topics are discussed: • Before You Begin • Installing the DRA-8204 • Cabling for the DRA-8204 DRA-8204 User Manual (Iss. -
Page 14: Before You Begin
Unpacking Unpack each DRA-8204 you received from the shipping container and ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly. -
Page 15: Installing The Dra-8204
Installing the DRA-8204 This section outlines how to install a Rear Module and the DRA-8204 in a DFR-8300 series frame. Rear Modules for the DRA-8204 The following rear module are required when installing the DRA-8204: • DFR-8310 series frames — The DRA-8204 requires the 8310AR-030 Rear Module (R1-8204), and is also compatible with the DFR-8310-BNC frame. -
Page 16: Installing The Dra-8204
Installing the DRA-8204 Use the following procedure to install the DRA-8204 in a DFR-8300 series frame: 1. Locate the Rear Module you installed in the procedure “Installing a Rear Module” on page 2-3. 2. Ensure the Rear Module is the required one. -
Page 17: Cabling For The Dra-8204
The inputs are internally terminated in 75 ohms. It is not necessary to terminate unused outputs. Figure 2.2 Cable Connections for the DRA-8204 The flexible assignment of Input Channels to Output BNCs via jumper selection is discussed in the section “Output Channel Configuration”... - Page 18 2–6 • Installation DRA-8204 User Manual (Iss. 05)
-
Page 19: User Controls
User Controls In This Chapter This chapter provides a general overview of the user controls available on the DRA-8204. This following topics are discussed: • Card Overview • Output Channel Configuration • Control and Monitoring DRA-8204 User Manual (Iss. 05) -
Page 20: Card Overview
Card Overview This section provides an overview of the DRA-8204 components. The DRA-8204 is a dual channel Distribution Amplifier, and will only have components installed into the CHANNEL A and B sections of the card-edge. Channel C is not applicable to the DRA-8204. - Page 21 If a mix of SD and HD signals are passed through the channel, select HD. 8. Bootload Button In the unlikely event of a complete card failure, you may be instructed by a Ross Technical Support specialist to perform a complete software reload on the DRA-8204.
-
Page 22: Output Channel Configuration
For applications where only one specific data rate will be used, and the fastest possible lock times are desired, the DRA-8204 can be set and locked to a specific data rate. Press the Channel Rate Selection button until the AUTO LED is off, and the specific data rate LED is illuminated. Only SDI signals matching the selected data rate will be reclocked and passed through the DRA-8204. -
Page 23: Control And Monitoring
Figure 3.3 DRA-8204 — Card-edge LEDs Status and Selection LEDs on the DRA-8204 The front-edge of the DRA-8204 has LED indicators for the power, video input status, and communication activity. Basic LED displays and descriptions are provided in Table 3.2. Refer to the section “Reclocker Rate Selection”... -
Page 24: Factory Default Values
When lit red or flashing red, this LED indicates the card is not operational. Re-seat card in frame, check the rear module type and connections, or call Ross Video Technical Support. When off, this LED indicates there is no power to the card. -
Page 25: Reclocker Rate Selection
Channel set to reclock 360Mbps. Channel set to reclock 540Mbps. Channel set to reclock 1.485Gbps. Channel equalizes (but does not reclock) any SDI signal from 143Mbps to 1.485Gbps. = Illuminated LED DRA-8204 User Manual (Iss. 05) User Controls • 3–7... - Page 26 3–8 • User Controls DRA-8204 User Manual (Iss. 05)
-
Page 27: Menus
Menus In This Chapter This section provides a summary of the menus available for the DRA-8204. The following topics are discussed: • SNMP Monitoring and Control • DashBoard Control System Software DRA-8204 User Manual (Iss. 05) Menus • 4–1... -
Page 28: Snmp Monitoring And Control
SNMP Monitoring and Control The MFC-8300 Series Network Controller card in the DFR-8300 series frame provides optional support for remote monitoring and control of your frame and DRA-8204 using Simple Network Management Protocol (SNMP), which is compatible with many third-party monitoring and control tools. -
Page 29: Dashboard Control System Software
DashBoard communicates with other cards in the DFR-8300 series frame through the Network Controller Card. This section briefly summarizes the menus, items, and parameters available from DashBoard for the DRA-8204. Default parameters are noted with an asterisk (*). -
Page 30: Setup Menus
If you have input channels set to any rate other than Auto Mode, the Mute option is recommended. The output of the card would then mute if an incorrect data rate is applied to the input, or if the input signal became too weak for the input equalizer to compensate. 4–4 • Menus DRA-8204 User Manual (Iss. 05) -
Page 31: Routing Menus
Same as above In the Alarms menu, if an input channel is not routed to any outputs, the Input Status field ignores any loss of input, and the status is not displayed in DashBoard. DRA-8204 User Manual (Iss. 05) Menus • 4–5... - Page 32 4–6 • Menus DRA-8204 User Manual (Iss. 05)
-
Page 33: Specifications
Specifications In This Chapter This chapter provides technical specifications information on the DRA-8204. Note that technical specifications are subject to change without notice. The following topic is discussed: • Technical Specifications DRA-8204 User Manual (Iss. 05) Specifications • 5–1... -
Page 34: Technical Specifications
Technical Specifications This section includes the technical specifications for the DRA-8204. Table 5.1 DRA-8204 Technical Specifications Category Parameter Specification Number of Inputs • 143Mbps, NTSC Composite, SMPTE 259M-A • 177Mbps, PAL Composite, SMPTE 259M-B • 270Mbps, 525/625 Component, SMPTE 259M-C •... -
Page 35: Service Information
Service Information In This Chapter This chapter contains the following sections: • Troubleshooting Checklist • Warranty and Repair Policy DRA-8204 User Manual (Iss. 05) Service Information • 6–1... -
Page 36: Troubleshooting Checklist
Bootload Button In the unlikely event of a complete card failure, you may be instructed by a Ross Technical Support specialist to perform a complete software reload on the DRA-8204. To perform this task, perform the following steps: 1. -
Page 37: Warranty And Repair Policy
FIVE (5) years from the date of shipment from our factory. In the event that your DRA-8204 proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics. - Page 38 6–4 • Service Information DRA-8204 User Manual (Iss. 05)
- Page 39 Notes:...
- Page 40 P.O. Box 880, Ross Video Incorporated Ogdensburg, New York, USA 13669-0880 Visit Us Please visit us at our website for: • Company information • Related products and full product lines • On-line catalog • News • Testimonials Ross Video Part Number:8204DR-004-05...
