B-series dv-2
Hide thumbs Also See for B34DV-2:
Table of Contents

Advertisement

Quick Links

See also: Installation and Maintenance Manual

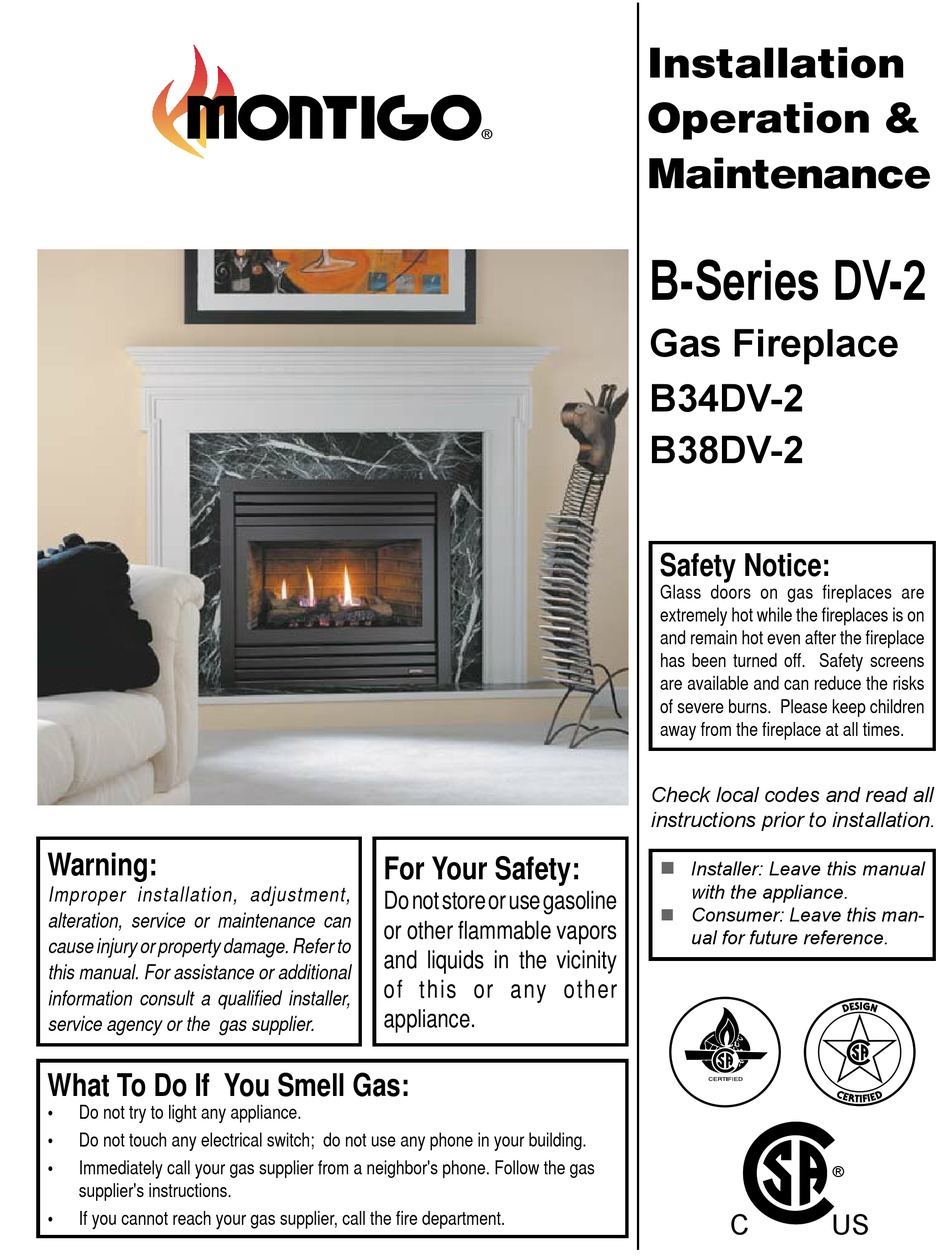

Warning:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Refer to
this manual. For assistance or additional
information consult a qualified installer,
service agency or the gas supplier.

What To Do If You Smell Gas:

•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.

For Your Safety:

Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity
of this or any other
appliance.
Installation
Operation &
Maintenance
B-Series DV-2
Gas Fireplace
B34DV-2
B38DV-2

Safety Notice:

Glass doors on gas fireplaces are
extremely hot while the fireplaces is on
and remain hot even after the fireplace
has been turned off. Safety screens
are available and can reduce the risks
of severe burns. Please keep children
away from the fireplace at all times.
Check local codes and read all
instructions prior to installation.
Installer: Leave this manual
with the appliance.
Consumer: Leave this man-
ual for future reference.
C
®
US

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B34DV-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Montigo B34DV-2

Summary of Contents for Montigo B34DV-2

  • Page 1: Safety Notice

    Installation Operation & Maintenance B-Series DV-2 Gas Fireplace B34DV-2 B38DV-2 Safety Notice: Glass doors on gas fireplaces are extremely hot while the fireplaces is on and remain hot even after the fireplace has been turned off. Safety screens are available and can reduce the risks of severe burns.

  • Page 2: Table Of Contents

    Installing the Gasline ............4 each model. The Remote Switch ............5 The B34DV-2 is rated for Natural Gas at 18,000 BTU/H (5.28 Kilowatts) Input or Propane at 18,000 BTU/H (5.28 Kilowatts) Input. Direct Vent Installation ........... 4 B34DT-2; Top Vent, Millivolt Pilot.

  • Page 3: Installation

    B-Series DV-2 Gas Fireplace Installation Installing and Framing the Fireplace Framing * When sheetrock is The fireplace may be installed in any location that maintains proper clear- not used behind the ances to air conditioning ducts, electrical wiring and plumbing. Safety, fireplace, framing depth may be reduced as well as efficiency of operation, must be considered when selecting...

  • Page 4: Installing The Gasline

    B-Series DV-2 Gas Fireplace Installation Installing The Gas Line Use only certified Montigo vent components. (Use of other parts will void The gas line must be installed before finishing the B-Series DV-2 ■ the Montigo warranty, and may impede the operation of the fireplace.) Fireplace.

  • Page 5: Installing The Remote Switch

    B-Series DV-2 Gas Fireplace Installation Installing Terminations with Built-In Frames Installing Heat Guards over Terminations MTO-3F (4"/7") PTO-3F (5"/8") MTKOG (4"/7") PTKOG (5"/8") Ensure that the two long mounting brackets are facing the bottom Frame the termination opening to 11" x 11". of the termination.

  • Page 6: Top Vent Venting Runs

    NOT be an acceptable installation. If the 'X' falls on or above the top boundary of the shaded area, the installation is acceptable. B34DV-2 B34DV-2 Example A: (Acceptable Installation) If the vertical dimension from the hearth is 108" and the horizontal run to the wall flange of the vent termination is 180", this would be an accept-...
  • Page 7 B-Series DV-2 Gas Fireplace Installation Example 1: For our shortest venting configuration use components A and E (see table on page 6). Figure 12. Extended Installation using a combination of solid and flex venting. Use the vent graph to determine your allowable run, then select appropriate components.
  • Page 8 B-Series DV-2 Gas Fireplace Installation B. Vertical (Through-The-Roof) Installations A maximum of two offsets (each offset has two 90° bends) may be  made and shall not exceed total length of 25% of the vertical vent Vertical Terminations must be installed: ...

  • Page 9: Rear Vent Venting Runs

    B-Series DV-2 Gas Fireplace Installation Rear Vent Venting Runs 3. Corner Installation — 45° or less. The B-Series DV-2 Rear Vent has three possible installations which Use an MTO-3 or MTO-3F termination, an MFL-1 or MFL-2(12" do not require vertical lift. or 24"...
  • Page 10 B-Series DV-2 Gas Fireplace Installation Installation Of Rear Vent DV B. Multi-Elbow Installations For more difficult installation situations, the H-Series DL Rear Vent may The following venting components are available for an B-Series DV-2 be installed with two - 90° elbows and up to 15' of horizontal run. If using in a Rear Vent installation: this installation option, you must adhere to the following guidelines: 4"...

  • Page 11: Finishing Around The Fireplace

    Alkyd sealer prior to the applying of latex paints. This is to prevent leaching of water from evaporation and causing a brownish staining effect to paint over coats. Figure 23a. Combustible mantles and facings for B34DV-2. B34DV-2 Figure 24. Combustible surrounds.

  • Page 12: Wiring

    B-Series DV-2 Gas Fireplace Installation Wiring Wiring for the optional Fan Kit All B-Series DV-2 fireplaces may be equipped with optional fan kits for circulating heat into the living space. Gas Control and Pilot Wiring B-Series DV-2-I Installations in Canada which employ the fans must be electrically grounded in accordance with CSA C22.1 Canadian Electrical Code Honeywell (Q3450) Pilot Assembly...

  • Page 13: Removing And Installing The Door

    The trim piece with the Montigo Emblem should be installed on the lower middle clips with the emblem on the right side. Figure 28b. Removing and installing the glass door.

  • Page 14: Lighting Instructions

    B-Series DV-2 Gas Fireplace Operation - Model B-Series DV-2 B-Series DV-2 with Continuous Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A.
  • Page 15 B-Series DV-2 Gas Fireplace Operation - Model B-Series DV-2-I B-Series DV-2-I with Honeywell Electronic Ignition For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A.
  • Page 16 B-Series DV-2 Gas Fireplace Operation - Model B-Series DV-2-A B-Series DV-2-A with American Flame Electronic Ignition For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A.

  • Page 17: Operation

    B-Series DV-2 Gas Fireplace Operation Maintenance Lighting Instructions General Have the fireplace and installation inspected yearly. The inspection See pages 19 and 20. ■ must include, but is not limited to, the following: Burner Adjustment B-Series DV-2 • A visual check of the entire vent system and termination. The B-Series DV-2 is equipped with an adjustable burner, allowing you •...

  • Page 18: Gas Control Valve

    B-Series DV-2 Gas Fireplace Maintenance Gas Control Valve Troubleshooting B-Series DV-2 The following is a troubleshooting chart of possible problems: PROBLEM CORRECTIVE ACTION Noisy Pilot Flame Locate pilot adjustment screw on gas control valve. Flame is decreased by turning adjustment screw clockwise. Pilot won’t ignite Disconnect remote wires and try to light pilot.

  • Page 19: Warranty

    The duration of any implied warranty with respect to this Montigo Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above may not apply to you.

  • Page 20: Termination Locations

    B-Series DV-2 Gas Fireplace Appendix A - Termination Locations A = clearance to the termination frame above grade, veranda, porch, deck, clearance above paved sidewalk or a paved driveway located on public † or balcony [16 inches (41 cm) minimum] property [*7 feet (2.1 m) minimum] B = clearance to door, or sides and top of window, that may be opened [16 P = c l e a r a n c e u n d e r v e r a n d a , p o r c h , d e c k , o r b a l c o n y...

  • Page 21: Spare Parts

    B-Series DV-2 Gas Fireplace Maintenance Notes Spare Parts - B-Series DV-2 B34DV-2 B38DV-2 NG Gas Valve RGC1006 RGC1006 LP Gas Valve RGC1005 RGC1005 NG Pilot RPA020 RPA020 LP Pilot RPA021 RPA021 Burner NG Front RBT1121 RBT1009 Burner NG Rear RBT1122...
  • Page 22 XG0160 - 050807 Canadian Heating Products Inc. Montigo Del Ray Corp. Langley, BC V4W 4A1 Ferndale, WA 98248...
