2.12.5 Output Setting

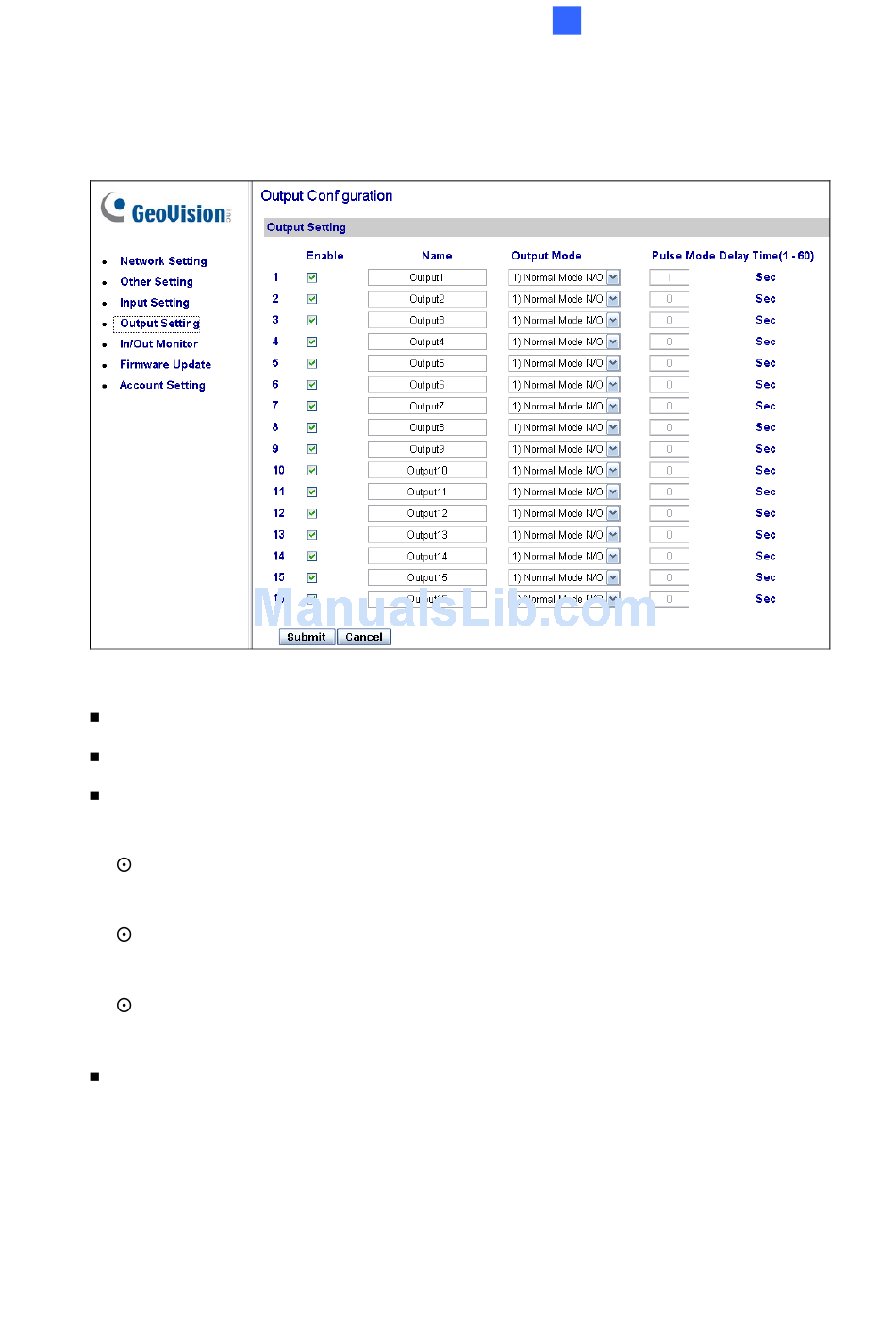

In the left menu, click Output Setting. This page appears.
Enable: Select to enable this Output function to be used by GV-I/O Box.
Name: Edit the name of the Output.
Output Mode: Configure the input to NC (normally closed) or NO (normally open)
mode.
Normal Mode (N/O and N/C): Output continues to be triggered until the source of
the output condition is stopped.
Toggle Mode (N/O and N/C): Output continues to be triggered until a new input
trigger ends the output.
Pulse Mode (N/O and N/C): Output is triggered for the amount of time set in the
Pulse Mode Delay Time (1-60) field.
Pulse Mode Delay Time (1-60): Enter the time in seconds for the pulse delay time
between 1 and 60 seconds.
Click Submit button to save the changes, or click Cancel button to return the changes to
its previous state.
2
Figure 2-60
