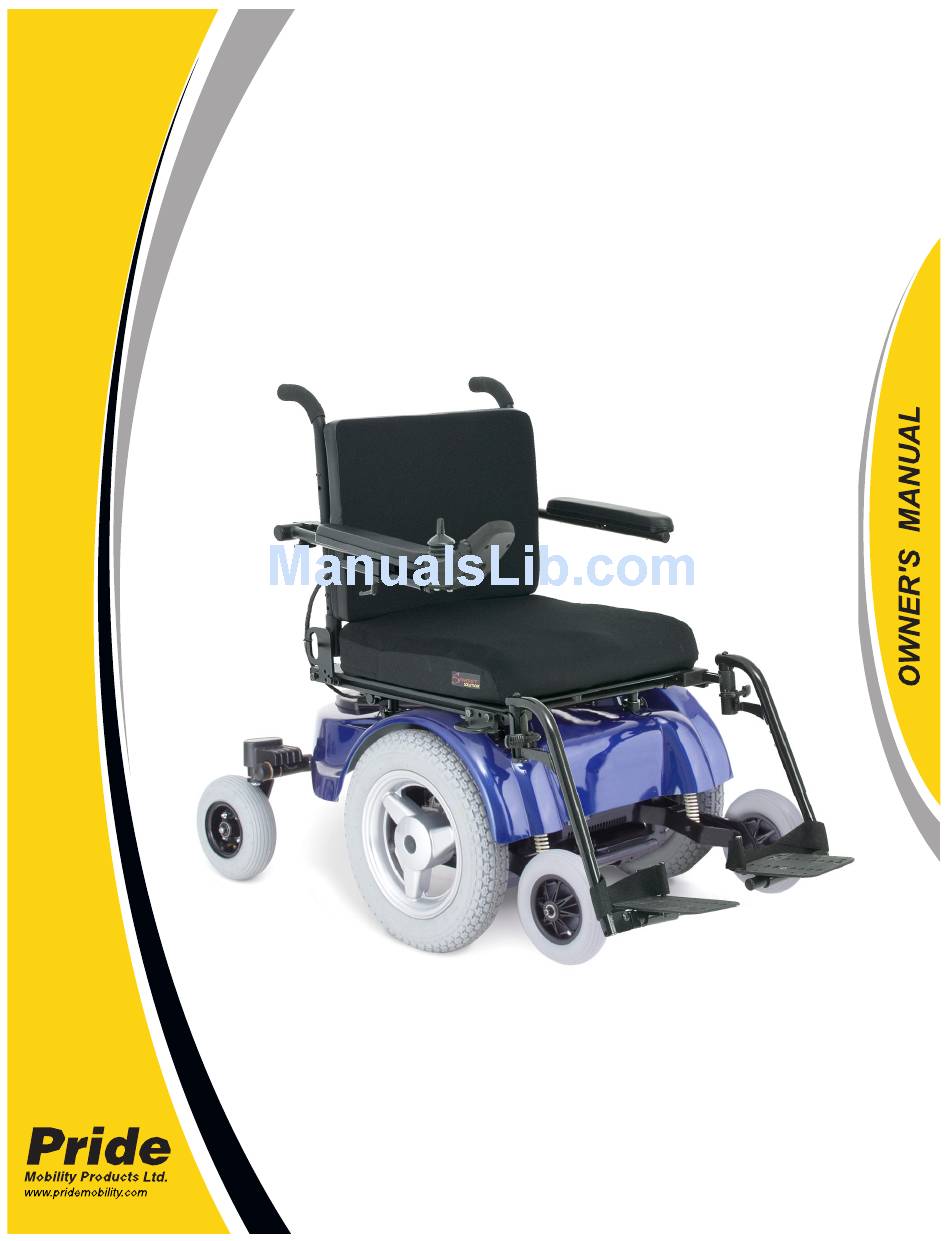

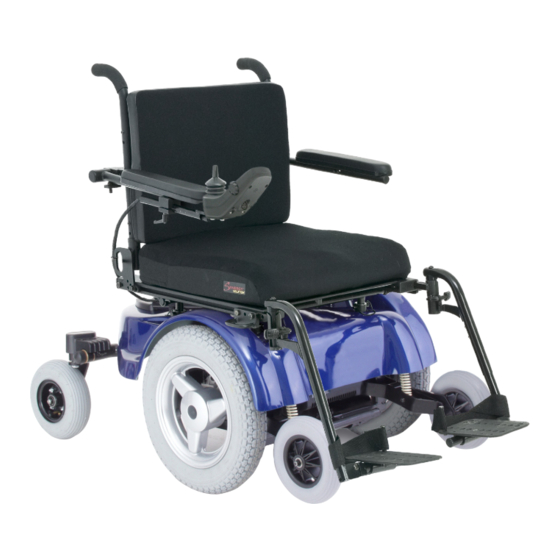

Page 1 QUANTUM JAZZY 1420 32 Wedgwood Road Bicester, Oxon OX26 4UL...
Page 3: Table Of Contents
III. YOUR POWER CHAIR ......................... 17 IV. ASSEMBLY ............................21 COMFORT ADJUSTMENTS ..................... 23 VI. BATTERIES AND CHARGING ....................30 VII. CARE AND MAINTENANCE ..................... 34 VIII. WARRANTY ............................ 39 APPENDIX I – SPECIFICATIONS ....................40 Quantum Jazzy 1420 www.pridemobility.com...
Page 4: Introduction
I . I N T R O D U C T I O N SAFETY WELCOME to Quantum Rehab, a division of Pride Mobility Products Ltd. (Pride). The power chair you have purchased combines state-of-the-art components with safety, comfort and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities.
Page 5 Avoid exposure to rain, snow, ice, salt or standing water whenever possible. Maintain and store in a clean and dry condition. Quantum Jazzy 1420 www.pridemobility.com...
Page 6 Failure to heed could result in personal injury and/or property damage. Wear safety goggles. Corrosive chemicals contained in battery. Do not remove anti-tip wheels. EMI-RFI — This product has been tested and passed at an immunity leverl of 20 V/m. www.pridemobility.com Quantum Jazzy 1420...
Page 7 Connect Red wires to Red Positive (+) Terminal Posts. Connect Black wires to Black Negative (–) Terminal Posts. Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and new batteries. Always replace both batteries at the same time. Pinch/crush point. Quantum Jazzy 1420 www.pridemobility.com...
Page 8 Disposal and recycling — Contact your Quantum Rehab Dealer for information on proper disposal and recycling of your Pride product and its packaging. Do not place power chair in freewheel mode on a decline. Do not place power chair in freewheel mode on an incline. Contains Lead. www.pridemobility.com Quantum Jazzy 1420...
Page 9: General Guidelines
Check all controller connections to the electronics tray. Make sure they are secured properly. Check the brakes. See VII. “Care and Maintenance.” Check battery charge. See VI. “Batteries and Charging.” NOTE: If you discover a problem, contact your Quantum Rehab Dealer for assistance. Quantum Jazzy 1420 www.pridemobility.com...
Page 10: Your Power Chair
Always exercise extreme caution when negotiating an incline. WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas covered with snow, ice, cut grass or wet leaves). www.pridemobility.com Quantum Jazzy 1420...
Page 11: Braking Information
WARNING! When cornering sharply, reduce your speed and maintain a stable centre of gravity. This greatly reduces the possibility of a tip or fall. Quantum Jazzy 1420 www.pridemobility.com...
Page 12: Outdoor Driving Surfaces
WARNING! Do not attempt to have your power chair proceed rearward down any step, kerb or other obstacle. This may cause the power chair to tip and cause personal injury. www.pridemobility.com Quantum Jazzy 1420...
Page 13: Motor Vehicle Transport
In addition, all removable power chair parts, including armrests, seat, front riggings, controller and shrouds should be removed and/or properly secured during motor vehicle transport. Quantum Jazzy 1420 www.pridemobility.com...
Page 14: Positioning Belts
WARNING! If you anticipate being seated in a stationary position for an extended period of time, turn off the power. This will prevent unexpected motion from inadvertent joystick contact. This will also eliminate the possibility of unintended chair movement from electromagnetic (EM) sources. www.pridemobility.com Quantum Jazzy 1420...
Page 15: Reaching And Bending
Such use may cause damage to these components, resulting in a fall from the power chair and personal injury. WARNING! Avoid putting all of your weight on the front riggings. Such use may cause the power chair to tip. Quantum Jazzy 1420 www.pridemobility.com...
Page 16 NOTE: For further information on EMI/RFI, go to the Resource Center on www.pridemobility.com. If unin- tended motion or brake release occurs, turn your power chair off as soon as it is safe to do so. Contact your Quantum Rehab Dealer to report the incident. www.pridemobility.com Quantum Jazzy 1420...
Page 17: Assembly
THE QUANTUM JAZZY 1420 The Quantum Jazzy 1420 has two main assemblies: the seat and the power base. See figures 5 and 6. Typically, the seat assembly includes the armrests, seatback and seat base.The power base assembly includes two motor/ brake assemblies, two drive wheels, two anti-tip wheels, two castor wheels, two batteries and wiring harnesses.
Page 18 FRONT SEAT TOWER BATTERY POWER MODULE FREEWHEEL LEVER REAR SEAT TOWER FRONT SEAT TOWER Figure 6. The Quantum Jazzy 1420 Power Base (Shroud Removed) MAIN CIRCUIT BREAKER CONTROLLER CONNECTOR Figure 7. The Quantum Jazzy 1420 Electronics Tray www.pridemobility.com Quantum Jazzy 1420...
Page 19 3-pin connector. Active-Trac Suspension Your Quantum Jazzy 1420 is equipped with Active-Trac Suspension (ATS). ATS is a system designed to make your power chair traverse different types of terrain and obstacles while maintaining smooth operation. With ATS, the front anti-tip wheels work in conjunction with the motor suspension to help you manoeuvre over obstacles.
Page 20 If a lever is difficult to move in either direction, slightly rock the power chair back and forth. The lever should then move to the desired position. WARNING! Do not use the freewheel lever handle as a tie-down point to secure this product. Figure 8. Freewheel Mode (Drive Disengaged) Figure 9. Drive Mode (Drive Engaged) www.pridemobility.com Quantum Jazzy 1420...
Page 21: Seat Installation
Replacement nylon insert lock nuts are available at local hardware stores or through your Quantum Rehab Dealer. SEAT LATCH SAFETY REAR TRAPEZE BAR REAR EXTRUSION FRONT TRAPEZE BAR FRONT EXTRUSION Figure 10. Seat Installation Quantum Jazzy 1420 www.pridemobility.com...
Page 22 7. Plug the controller connector into the electronics tray. See figure 6. Figure 13. Controller Harness Routing on a Contour 8. Secure the controller harness to the armrest receiver with one or more wire ties. Seat www.pridemobility.com Quantum Jazzy 1420...
Page 23: Comfort Adjustments
Your Quantum Rehab Dealer has evaluated your power chair and made any necessary adjustments to suit your specific requirements. Do not change your seating configuration without first contacting Pride Mobility Products or your Quantum Rehab Dealer.
Page 24: Seat Position Adjustment
If your power chair is equipped with the deluxe high-back seat, you can adjust the headrest height. To adjust the headrest height: 1. Push in the headrest release button. 2. Move the headrest up or down to the desired position. www.pridemobility.com Quantum Jazzy 1420...
Page 25: Armrest Width Adjustment
1. Use a hex key to remove the mounting hardware from the foot platform. See figure 18. 2. Raise or lower the foot platform to the desired height. 3. Reinstall the mounting hardware into the foot platform. Quantum Jazzy 1420 www.pridemobility.com...
Page 26: Controller Position
NOTE: If your power chair is equipped with a Specialty Seat, Synergy Seat or TRU-Balance Power Positioning System, loosen the mounting screws in the mounting block, transfer the mounting block and controller to the opposite armrest, and tighten the mounting screws. See figure 20. www.pridemobility.com Quantum Jazzy 1420...
Page 27 NOTE: Each drive tyre must be inflated to the psi/bar/kPa air pressure rating indicated on the tyre if equipped with pneumatic tyres. The user must also be seated in the power chair in order to properly adjust the anti-tip wheels. Figure 21. Anti-Tip Wheel Adjustment (Inner Figure 22. Anti-Tip Wheel Adjustment (Cam) Locknut) Quantum Jazzy 1420 www.pridemobility.com...
Page 28 2.5–5 cm (1–2 in.). Always check to be sure this system is operating properly before using your power chair. www.pridemobility.com Quantum Jazzy 1420...
Page 29: Positioning Belt
MANDATORY! Inspect the positioning belt for loose or damaged parts before each use of the power chair. If you discover a problem, contact your Quantum Rehab Dealer for maintenance and repair. Quantum Jazzy 1420 www.pridemobility.com...
Page 30: Batteries And Charging
Refer to the manual supplied with the battery charger for more information. www.pridemobility.com Quantum Jazzy 1420...
Page 31 Many factors come into play when deciding how often to charge the batteries. You may use your power chair all day on a daily basis or you may not use it for weeks at a time. Quantum Jazzy 1420 www.pridemobility.com...
Page 32 A fully charged deep-cycle battery will provide reliable performance and extended battery life. Keep your power chair’s batteries fully charged whenever possible. Batteries that are regularly and deeply discharged, infrequently charged or stored without a full charge may be permanently damaged, causing unreliable power chair operation and limited battery life. www.pridemobility.com Quantum Jazzy 1420...
Page 33 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container and ship the batteries in separate boxes. Quantum Jazzy 1420 www.pridemobility.com...
Page 34: Care And Maintenance
V I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your Quantum Jazzy 1420 is a sophisticated power chair. Like any motorised vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from a Quantum Rehab Dealer.
Page 35 Check the rear forks for damage or fluttering which indicates that they may need to be adjusted or have the bearings replaced. See a Quantum Rehab Dealer for repair. Keep your power chair clean and free of foreign material, such as mud, dirt, hair, food, drink, etc. Quantum Jazzy 1420 www.pridemobility.com...
Page 36: Cleaning Instructions
WARNING! When changing a tyre, remove only the centre lug nut and washer, then remove the wheel. If any further disassembly is required, deflate the tyre completely or it may explode. www.pridemobility.com Quantum Jazzy 1420...
Page 37: Battery Replacement
Use proper lifting techniques and avoid lifting beyond your capacity. WARNING! Do not mix old and new batteries. Always replace both batteries at the same time. Quantum Jazzy 1420 www.pridemobility.com...
Page 38 Disconnect both batteries before load testing and follow the directions that come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair still does not power up, contact your Quantum Rehab Dealer. www.pridemobility.com Quantum Jazzy 1420...
Page 39: Warranty
Pride Mobility Products Ltd. cannot be deemed responsible. NOTE: Pride Mobility Products Ltd. provides parts only under warranty. Your Quantum Rehab Dealer is responsible for labour and service. Please contact your Quantum Rehab Dealer for information about these services and for any applicable charges.
Page 40: Appendix I - Specifications
Test conducted at maximum weight capacity. NOTE: This product conforms to all applicable ANSI/RESNA testing requirements and ISO 7176 Series EN12184 standards. All specifications subject to change without notice. www.pridemobility.com Quantum Jazzy 1420...
Page 41 LENGTH (WITHOUT FRONT RIGGINGS) 116.84 cm (46 in.) 65.4 cm (25.75 in.) WIDTH 69.21 cm (27.25 in.) TURNING RADIUS (WITHOUT FRONT RIGGINGS) GROUND CLEARANCE 11.43 cm (4.5 in.) Figure 29. Quantum/Jazzy 1420 Dimensions and Ground Clearance Quantum Jazzy 1420 www.pridemobility.com...
Page 42 N O T E S www.pridemobility.com Quantum Jazzy 1420...
Page 44 Quality Control - Quantum Jazzy 1420 Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected...
