Summary of Contents for Pride Mobility COLT PURSUIT

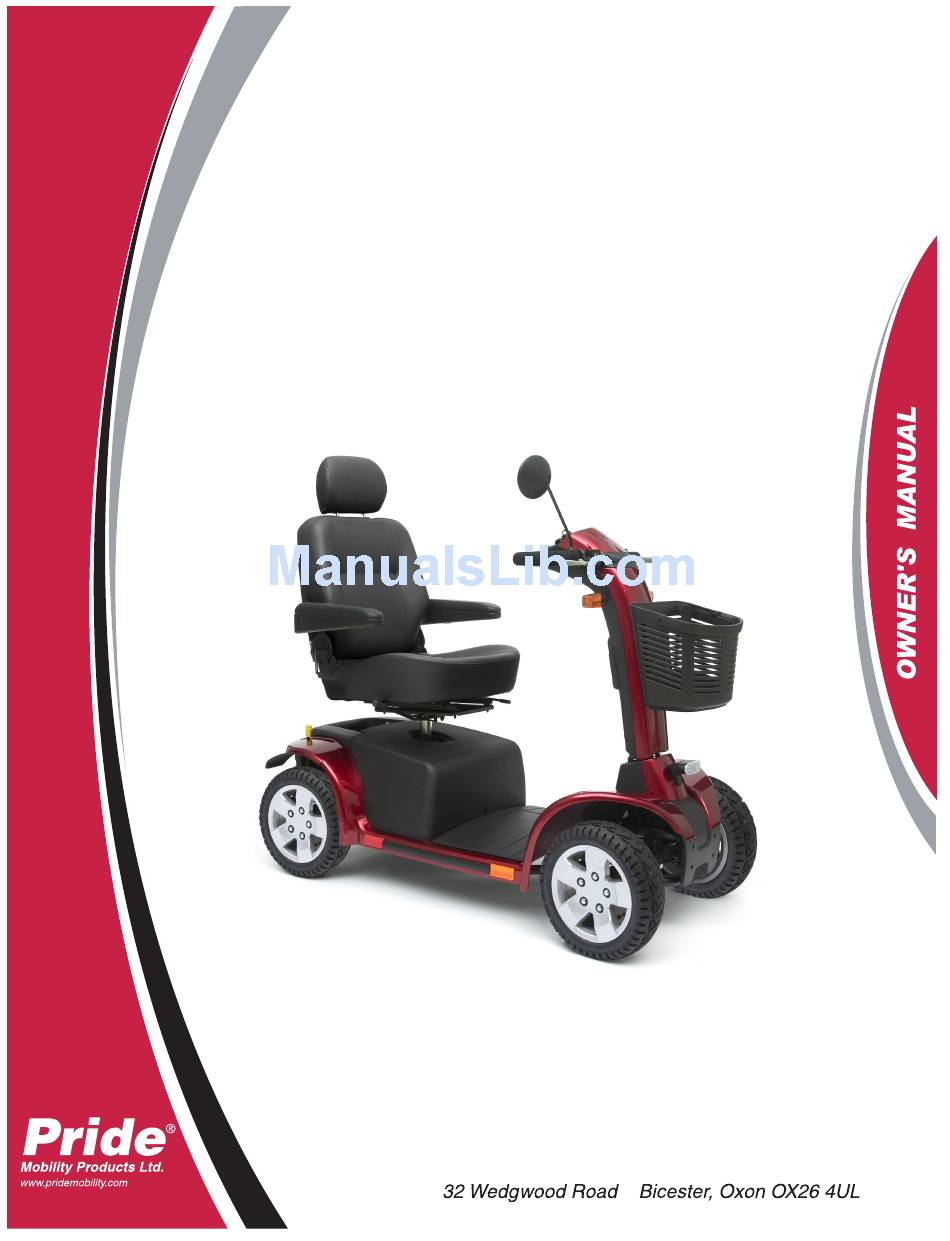

- Page 1 COLT PURSUIT...
- Page 2 The latest/current version of this manual is available on our website. Copyright © 2011 Pride Mobility Products Ltd. INFMANU4185/Rev B/August 2011...
- Page 3 C O N T E N T S INTRODUCTION ........................4 SAFETY ............................5 III. YOUR SCOOTER ........................21 IV. BATTERIES AND CHARGING ..................25 OPERATION ..........................30 VI. COMFORT ADJUSTMENTS ....................32 VII. DISASSEMBLY AND ASSEMBLY ...................36 VIII.BASIC TROUBLESHOOTING ...................38 IX. CARE AND MAINTENANCE ....................40 WARRANTY ..........................43 Colt Pursuit www.pridemobility.com...
- Page 4 I . I N T R O D U C T I O N SAFETY Welcome to Pride Mobility Products (Pride). The product you have purchased combines state-of-the-art components with safety, comfort and styling in mind. We are confident the design features will provide you with the conveniences you expect during your daily activities.
- Page 5 Explosive conditions exist! Read and follow the information in the owner’s manual. Maximum seating weight. Indicates flammable material. Do not expose to heat sources such as open flame or sparks. Do not transport batteries with flammable or combustible items. Colt Pursuit www.pridemobility.com...
- Page 6 Wear goggles and gloves when handling batteries and wash hands after handling. Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. Do not raise or lower the power seat while the scooter is in motion. Do not remove anti-tip wheels. www.pridemobility.com Colt Pursuit...
- Page 7 Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and new batteries. Always replace both batteries at the same time. Do not place the scooter in freewheel mode when on an incline or decline. Colt Pursuit www.pridemobility.com...
- Page 8 Battery Set Configuration: + = Positive (Red) Terminal Post 60 AMP CIRCUIT BREAKER - = Negative (Black) Terminal Post 125A/50V Connect Red wires to Red Positive (+) Terminal Posts. Connect Black wire to Black Negative (-) Terminal Posts. www.pridemobility.com Colt Pursuit...
- Page 9 I I . S A F E T Y Not a brake. Indicates scooter tie-down points. Colt Pursuit www.pridemobility.com...
- Page 10 PRE-RIDE SAFETY CHECK Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety check before each use to make sure your scooter operates smoothly and safely. www.pridemobility.com Colt Pursuit...
- Page 11 When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to ensure a safely controlled descent. Avoid sudden stops and starts. Colt Pursuit www.pridemobility.com...
- Page 12 WARNING! Never carry an oxygen tank weighing more than 6.8 kg (15 lbs). Never fill the front or rear basket with contents exceeding 6.8 kg (15 lbs). 181 kg 28 stone 8 lbs. (400 lbs.) 17.6% (10°) Figure 1. Maximum Recommended Incline Angle www.pridemobility.com Colt Pursuit...
- Page 13 Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop or when power is removed from the system for any reason. Handbrake: This lever provides you with emergency stopping power. See III. “Your Scooter.” Colt Pursuit www.pridemobility.com...
- Page 14 If you feel unsure about a driving surface, avoid that surface. PUBLIC STREETS AND ROADWAYS WARNING! Exercise extreme caution when operating the scooter on footpaths, pave- ments, bridleways, pedestrian areas and roads. Obey all local pedestrian traffic rules. www.pridemobility.com Colt Pursuit...
- Page 15 Exercise caution when using your scooter in extremely hot or cold conditions or when exposing your scooter to direct sunlight for prolonged periods of time. Colt Pursuit www.pridemobility.com...
- Page 16 NOTE: If your scooter’s turning radius is greater than 152.4 cm (60 in.) it may be difficult to manoeu- vre in lifts and building entrances. Use caution when attempting to turn or manoeuvre your scooter in small spaces and avoid areas that might pose a problem. www.pridemobility.com Colt Pursuit...
- Page 17 In addition, all removable scooter parts, including the armrests, seat and shroud should be removed and/or properly secured during motor vehicle transport. Colt Pursuit www.pridemobility.com...
- Page 18 Your authorised Pride Dealer, therapist(s) and other healthcare professionals are responsible for determin- ing your requirement for a positioning belt in order to operate your scooter safely. WARNING! If you require a positioning belt to safely operate your scooter, make sure it is fastened securely. www.pridemobility.com Colt Pursuit...
- Page 19 Pride recommends that you do not expose your scooter to open flames. WARNING! Replace worn or damaged upholstery immediately to reduce the risk of fire hazard. WARNING! Be aware that washing of upholstered items may reduce the resistance to flammability of the fabric. Colt Pursuit www.pridemobility.com...
- Page 20 NOTE: For further information on EMI/RFI, visit the Resource Center on www.pridemobility.com. If unintended motion or brake release occurs, turn your scooter off as soon as it is safe to do so. Contact your authorised Pride Dealer to report the incident. www.pridemobility.com Colt Pursuit...
- Page 21 Release the throttle control lever and allow your scooter to come to a complete stop before engaging the other side of the lever. When the throttle control lever is completely released, it automatically returns to the center “stop” position and engages your scooter’s brakes. Tiller Adjustment Lever See VI. “Comfort Adjustments.” Colt Pursuit www.pridemobility.com...
- Page 22 See figure 7. REAR TAIL LIGHTS NOTE: Keep all electrical areas clean and free of LEFT TURN INDICATOR moisture and foreign material. RIGHT TURN INDICATOR Figure 7. Tiller Console Fuses www.pridemobility.com Colt Pursuit...
- Page 23 2. Push forward on the manual freewheel lever to disable the drive system and the brake system. This will enable you to push the scooter. 3. Pull back on the manual freewheel lever to reengage the drive and the brake systems and take your scooter out of freewheel mode. Colt Pursuit www.pridemobility.com...
- Page 24 FRONT SECUREMENT POINTS REAR SECUREMENT POINT Figure 9A. Rear Section Figure 9. Front Section www.pridemobility.com Colt Pursuit...
- Page 25 Refer to the manual supplied with the battery charger for more information. Colt Pursuit www.pridemobility.com...
- Page 26 Ensure both ends of the charger power lead are inserted fully. How often must I charge the batteries? Two major factors must be considered when deciding how often to charge your scooter’s batteries: All day scooter use on a daily basis. Infrequent or sporadic scooter use. www.pridemobility.com Colt Pursuit...
- Page 27 Do not use wet-cell batteries, which have removable caps. WARNING! Corrosive chemicals are contained in batteries. Use only AGM or Gel- Cell batteries to reduce the risk of leakage or explosive conditions. NOTE: Sealed batteries are not serviceable. Do not remove the caps. Colt Pursuit www.pridemobility.com...
- Page 28 Figure 13. Battery Wiring Diagram tery terminal on each battery. 9. Reposition the terminal boots over the battery terminals. 10. Reconnect the battery harnesses. 11. Reconnect the battery tie-down strap. 12. Reinstall the battery shroud and seat. www.pridemobility.com Colt Pursuit...
- Page 29 What about public transport? If you intend to use public transportation with your scooter, you must contact the transportation provider in advance to determine their specific requirements. Colt Pursuit www.pridemobility.com...
- Page 30 Pull on the left handgrip to steer your scooter to the left. Pull on the right handgrip to steer your scooter to the right. Move the tiller to the centre position to drive straight ahead. www.pridemobility.com Colt Pursuit...
- Page 31 Although the controller is shut down, power will still be supplied to the scooter’s lighting system. If the power down timer feature takes effect, perform the following steps to resume normal operation: 1. Remove the key from the key switch. 2. Reinsert the key and power up your scooter. Colt Pursuit www.pridemobility.com...
- Page 32 SEATBACK forward or rearward to adjust the seatback angle. ADJUSTMENT 2. Release the seatback adjustment lever once the LEVER seat is in a comfortable riding position. Figure 16. Seatback Adjustment www.pridemobility.com Colt Pursuit...
- Page 33 5. Insert the seat height adjustment bolt through the locating holes of both the upper and lower seat posts. 6. Reinstall the nut onto the seat height adjustment bolt and tighten. 7. Reinstall the rear shroud and the seat. Colt Pursuit www.pridemobility.com...
- Page 34 6. Install the desired spring. See figure 19. 7. Press down on the seat post while reinstalling the hardware and tightening to 210 in • lb (24 N • m). 8. Replace the rear shroud and the seat. www.pridemobility.com Colt Pursuit...
- Page 35 MANDATORY! Inspect the positioning belt for loose or damaged parts before each use of the scooter. If you discover a problem, contact your authorised Pride Dealer for mainte- nance and repair. Colt Pursuit www.pridemobility.com...
- Page 36 See figure 25. WARNING! Failure to unplug both battery harnesses and the front- to-rear cable prior to separating the front and rear sections could result in permanent damage to the scooter. www.pridemobility.com Colt Pursuit...
- Page 37 7. Reinstall the batteries to the battery wells. STRAP 8 Connect both battery harnesses. See figure 22. 9. Secure the battery tie-down strap. 10. Reinstall the battery shroud. 11. Reinstall the seat and rotate it into place. BATTERY SPACERS Figure 25. Battery Spacers Colt Pursuit www.pridemobility.com...
- Page 38 Throttle control lever broken Contact your authorised Pride Dealer. T POT or faulted Motor fault Contact your authorised Pride Dealer. MOTOR Other fault Contact your authorised Pride Dealer. OTHER www.pridemobility.com Colt Pursuit...
- Page 39 See the previous troubleshooting question for load testing the batteries yourself. If you experience any problems with your scooter that you are not able to solve, immediately contact your authorised Pride Dealer for information, maintenance and service. Colt Pursuit www.pridemobility.com...
- Page 40 4. Pull the wheel off of the axle. 5. Slide the new wheel onto the axle. 6. Reinstall the lug nuts and ensure they are tight- ened properly. 7. Remove the blocks from beneath the scooter. LUG NUTS Figure 27. Solid Tyre Wheel Removal www.pridemobility.com Colt Pursuit...
- Page 41 Pride Dealer. CONSOLE, CHARGER AND REAR ELECTRONICS Keep these areas free of moisture. Allow these areas to dry thoroughly if they have been exposed to moisture before operating your scooter again. Colt Pursuit www.pridemobility.com...
- Page 42 Your scooter must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorised Pride Dealer for information on proper disposal of packaging, metal frame components, plastic components, electronics, batteries, neoprene, silicone and polyurethane materials. www.pridemobility.com Colt Pursuit...
- Page 43 Pride Mobility Products Ltd. cannot be deemed responsible. NOTE: Pride Mobility Products Ltd. provides parts only under warranty. Your Pride Dealer is respon- sible for labour and service. Please contact your Pride Dealer for information about these services and for any applicable charges.
- Page 44 N O T E S www.pridemobility.com Colt Pursuit...
- Page 45 N O T E S Colt Pursuit www.pridemobility.com...
- Page 46 N O T E S www.pridemobility.com Colt Pursuit...
- Page 48 32 Wedgwood Road Bicester, Oxon OX26 4UL *INFMANU4185*...
