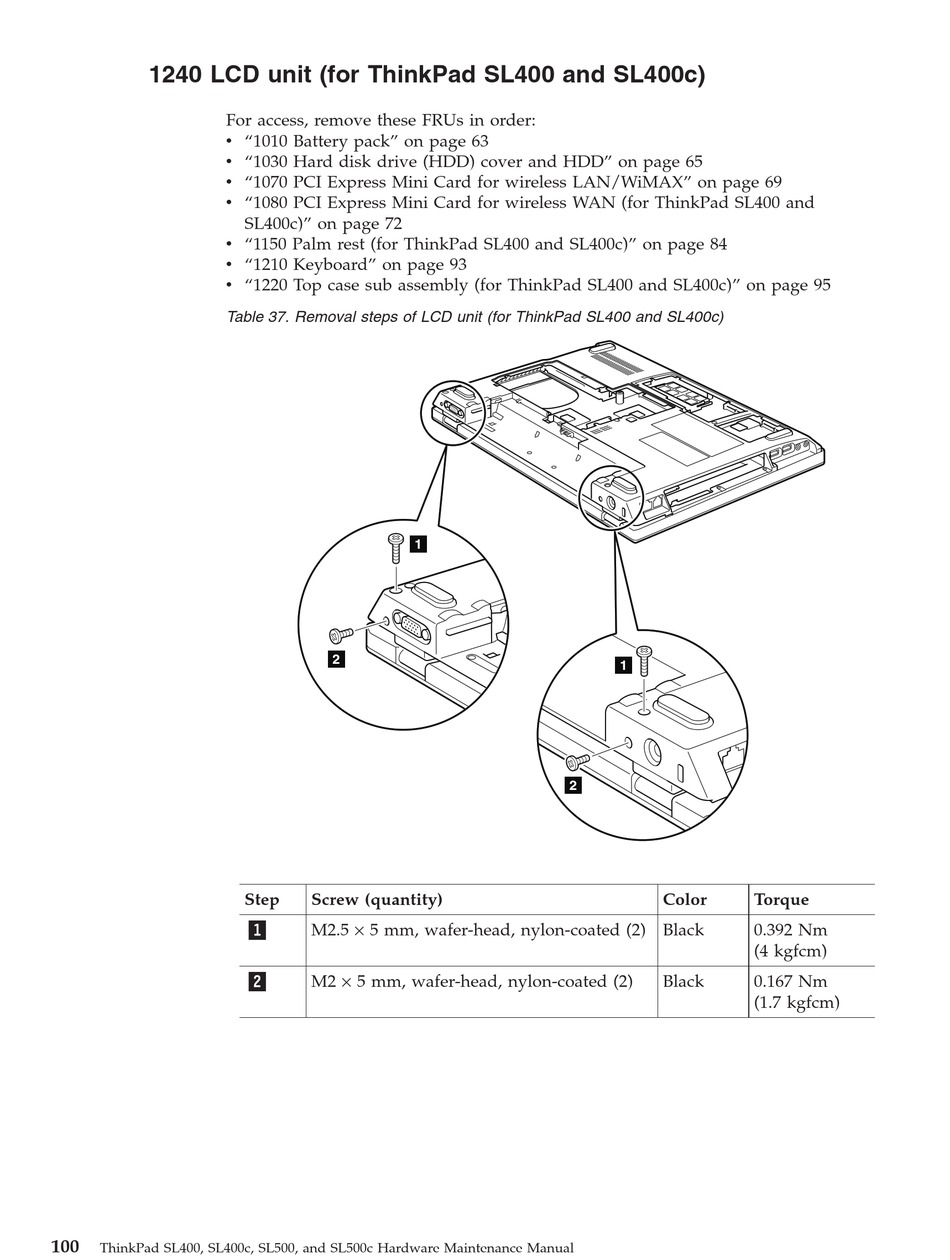

1240 LCD unit (for ThinkPad SL400 and SL400c)

For access, remove these FRUs in order:
v "1010 Battery pack" on page 63
v "1030 Hard disk drive (HDD) cover and HDD" on page 65
v "1070 PCI Express Mini Card for wireless LAN/WiMAX" on page 69
v "1080 PCI Express Mini Card for wireless WAN (for ThinkPad SL400 and
v "1150 Palm rest (for ThinkPad SL400 and SL400c)" on page 84
v "1210 Keyboard" on page 93
v "1220 Top case sub assembly (for ThinkPad SL400 and SL400c)" on page 95
Table 37. Removal steps of LCD unit (for ThinkPad SL400 and SL400c)
100
ThinkPad SL400, SL400c, SL500, and SL500c Hardware Maintenance Manual
SL400c)" on page 72
1
2
Step Screw (quantity)
M2.5 × 5 mm, wafer-head, nylon-coated (2) Black
1
M2 × 5 mm, wafer-head, nylon-coated (2)
2
1
2
Color
Black
Torque
0.392 Nm
(4 kgfcm)
0.167 Nm
(1.7 kgfcm)
