KINO-QM770 Mini-ITX SBC
IEI Technology Corp.
MODEL:
KINO-QM770
Mini-ITX SBC with 3rd Generation 22nm Intel® Mobile CPU
Up to 8.0 GB DDR3, DVI, HDMI, LVDS, Dual GbE, USB 3.0,
SATA 6Gb/s, PCIe Mini, PCIe x16, Intel® AMT, RoHS
Rev. 1.01 – 7 December, 2012

User Manual

Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KINO-QM770 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology KINO-QM770

Summary of Contents for IEI Technology KINO-QM770

  • Page 1: User Manual

    KINO-QM770 Mini-ITX SBC IEI Technology Corp. MODEL: KINO-QM770 Mini-ITX SBC with 3rd Generation 22nm Intel® Mobile CPU Up to 8.0 GB DDR3, DVI, HDMI, LVDS, Dual GbE, USB 3.0, SATA 6Gb/s, PCIe Mini, PCIe x16, Intel® AMT, RoHS User Manual Page i Rev.
  • Page 2 KINO-QM770 Mini-ITX SBC Revision Date Version Changes 7 December, 2012 1.01 Modified PICe Mini card slot specification Modified Table 4-5: Display Mode Selection Jumper Settings 17 July, 2012 1.00 Initial release Page ii...
  • Page 3 KINO-QM770 Mini-ITX SBC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    KINO-QM770 Mini-ITX SBC Table of Contents 1 INTRODUCTION......................1 1.1 I ......................2 NTRODUCTION 1.2 B ........................3 ENEFITS 1.3 F ........................3 EATURES 1.4 C ......................4 ONNECTORS 1.5 D ....................... 5 IMENSIONS 1.6 D ........................ 6 1.7 T ..................
  • Page 5 KINO-QM770 Mini-ITX SBC 3.2.11 LVDS Backlight Connector ................28 3.2.12 PCIe Mini Card Slot ..................28 3.2.13 PCI Express x16 Slot..................30 3.2.14 Power Button (On-board) ................33 3.2.15 Power Connector (12V) ................. 33 3.2.16 RS-232 Serial Port Connectors (COM2) ............34 3.2.17 RS-422/485 Serial Port Connector (COM3)..........
  • Page 6 KINO-QM770 Mini-ITX SBC 4.6.2 Clear CMOS..................... 63 4.6.3 Clear ME RTC Registers ................. 65 4.6.4 Display Mode Selection ................... 65 4.6.5 Flash Descriptor Security Override..............66 4.6.6 LVDS Voltage Selection..................67 4.6.7 LVDS Resolution Selection ................68 4.6.8 PCIe Channel Mode Selection ................. 69 4.7 C...
  • Page 7 KINO-QM770 Mini-ITX SBC 5.3.6 Intel(R) Rapid Start Technology............... 90 5.3.7 Intel TXT(LT) Configuration................90 5.3.8 AMT Configuration ..................91 5.3.9 USB Configuration................... 92 5.3.10 F81866 Super IO Configuration ..............93 5.3.10.1 Serial Port n Configuration ..............94 5.3.11 F81866 H/W Monitor ..................97 5.3.11.1 Smart Fan Mode Configuration ..............
  • Page 8 KINO-QM770 Mini-ITX SBC B.2 S ................ 144 ETUP ROCEDURE FOR INDOWS B.2.1 Hardware and BIOS Setup ................145 B.2.2 Create Partitions ................... 145 B.2.3 Install Operating System, Drivers and Applications ........149 B.2.4 Building the Recovery Partition ..............150 B.2.5 Create Factory Default Image............... 152 B.3 A...

  • Page 9: List Of Figures

    KINO-QM770 Mini-ITX SBC List of Figures Figure 1-1: KINO-QM770 ........................2 Figure 1-2: Connectors ........................4 Figure 1-3: Dimensions (mm) ......................5 Figure 1-4: Data Flow Diagram......................6 Figure 3-1: Connector and Jumper Locations................15 Figure 3-3: Audio Connector Location ..................18 Figure 3-4: Battery Connector Location..................19 Figure 3-5: Digital I/O Connector Location ................20...
  • Page 10 KINO-QM770 Mini-ITX SBC Figure 3-28: TPM Connector Location..................44 Figure 3-29: USB Connector Locations..................45 Figure 3-30: External Interface Connectors................46 Figure 3-31: Audio Jacks ......................47 Figure 3-32: DVI-I Connector .......................48 Figure 3-33: Ethernet Connector....................48 Figure 3-34: HDMI Connector ......................50 Figure 3-35: 4-pin Power Mini-DIN Connection .................50 Figure 3-36: Serial Port Pinouts ....................51...
  • Page 11 KINO-QM770 Mini-ITX SBC Figure 6-5: Chipset Driver Read Me File ................. 117 Figure 6-6: Chipset Driver Setup Operations ................. 118 Figure 6-7: Chipset Driver Installation Finish Screen............119 Figure 6-8: Graphics Driver Welcome Screen ................ 120 Figure 6-9: Graphics Driver License Agreement..............120 Figure 6-10: Graphics Driver Setup Operations ..............
  • Page 12 KINO-QM770 Mini-ITX SBC Figure B-5: Partition Creation Commands................148 Figure B-6: Launching the Recovery Tool ................150 Figure B-7: Manual Recovery Environment for Windows ............. 150 Figure B-8: Building the Recovery Partition................151 Figure B-9: Press Any Key to Continue .................. 151 Figure B-10: Press F3 to Boot into Recovery Mode...............
  • Page 13 KINO-QM770 Mini-ITX SBC Figure B-40: Restore Backup ....................169 Figure B-41: Restore System Backup Complete Window ............. 169 Figure B-42: Symantec Ghost Window ................... 170 Figure B-43: Disable Automatically Restart................177 Page xiii...
  • Page 14 KINO-QM770 Mini-ITX SBC List of Tables Table 1-1: Technical Specifications....................8 Table 2-1: Packing List.........................12 Table 2-2: Optional Items......................13 Table 3-1: Peripheral Interface Connectors ................17 Table 3-2: Rear Panel Connectors ....................17 Table 3-3: Audio Connector Pinouts ..................18 Table 3-4: Battery Connector Pinouts ..................19 Table 3-5: Digital I/O Connector Pinouts..................20...
  • Page 15 KINO-QM770 Mini-ITX SBC Table 3-28: TPM Connector Pinouts ...................44 Table 3-29: USB Port Connector Pinouts...................45 Table 3-30: DVI Connector Pinouts.....................48 Table 3-31: LAN Pinouts ......................48 Table 3-32: Connector LEDs......................49 Table 3-33: USB Port Pinouts......................49 Table 3-34: HDMI Connector Pinouts ..................50 Table 3-35: Serial Port Pinouts....................51...
  • Page 16 KINO-QM770 Mini-ITX SBC BIOS Menus BIOS Menu 1: Main ........................82 BIOS Menu 2: Advanced ......................83 BIOS Menu 3: ACPI Configuration ....................84 BIOS Menu 4: RTC Wake Settings ....................85 BIOS Menu 5: Trusted Computing ....................86 BIOS Menu 6: CPU Configuration ....................87 BIOS Menu 7: SATA Configuration .....................89...

  • Page 17: Introduction

    KINO-QM770 Mini-ITX SBC Chapter Introduction Page 1...

  • Page 18: Introduction

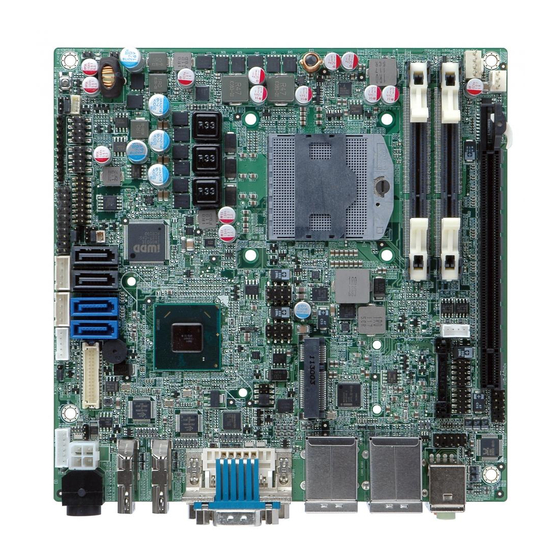

    KINO-QM770 Mini-ITX SBC 1.1 Introduction Figure 1-1: KINO-QM770 The KINO-QM770 is a Mini-ITX SBC with a 3 generation 22nm Intel® mobile CPU and Intel® QM77 Express Chipset. Storage on the board is handled by two SATA 6Gb/s ports and two SATA 3Gb/s ports for connecting a hard drive, optical drive or SSD.

  • Page 19: Benefits

    Some of the KINO-QM770 motherboard benefits include: Low power consumption Wide range of I/O interfaces Triple independent display support 1.3 Features Some of the KINO-QM770 motherboard features are listed below: Mini-ITX form factor RoHS compliant Intel® AMT 8.0 support Dual GbE Supports HDMI, LVDS and DVI-I interface for triple independent display (HDMI V1.3a compliant)

  • Page 20: Connectors

    KINO-QM770 Mini-ITX SBC 1.4 Connectors The connectors on the KINO-QM770 are shown in the figure below. Figure 1-2: Connectors Page 4...

  • Page 21: Dimensions

    KINO-QM770 Mini-ITX SBC 1.5 Dimensions The main dimensions of the KINO-QM770 are shown in the diagram below. Figure 1-3: Dimensions (mm) Page 5...

  • Page 22: Data Flow

    KINO-QM770 Mini-ITX SBC 1.6 Data Flow Figure 1-4 shows the data flow between the system chipset, the CPU and other components installed on the motherboard. Figure 1-4: Data Flow Diagram Page 6...

  • Page 23: Technical Specifications

    KINO-QM770 Mini-ITX SBC 1.7 Technical Specifications KINO-QM770 technical specifications are listed in Table 1-1. Specification KINO-QM770 Form Factor Mini-ITX CPU Socket Socket G2 generation 22nm Intel® mobile CPU System Chipset Intel® QM77 Memory Two 204-pin 1600/1333/1066 MHz DDR3 SO-DIMM supported (system max.

  • Page 24: Table 1-1: Technical Specifications

    KINO-QM770 Mini-ITX SBC Two RS-232 COM connectors (one by pin header, one on rear side) Serial Ports One RS-422/485 COM connector (4-pin wafer) Four internal USB 2.0 ports (by two 8-pin header) USB Ports Four external USB 3.0 ports SMBus...

  • Page 25: Packing List

    KINO-QM770 Mini-ITX SBC Chapter Packing List Page 9...

  • Page 26: Anti-Static Precautions

    Only handle the edges of the PCB:- Don't touch the surface of the motherboard. Hold the motherboard by the edges when handling. 2.2 Unpacking Precautions When the KINO-QM770 is unpacked, please do the following: Follow the antistatic guidelines above. Make sure the packing box is facing upwards when opening.

  • Page 27: Packing List

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the KINO-QM770 was purchased from or contact an IEI sales representative directly by sending an email to sales@iei.com.tw.

  • Page 28: Optional Items

    KINO-QM770 Mini-ITX SBC Quantity Item and Part Number Image One Key Recovery CD Quick installation guide Table 2-1: Packing List 2.4 Optional Items These optional items are available. Item and Part Number Image RS-422/485 cable (P/N: 32205-003800-100-RS) Dual USB cable (w bracket)

  • Page 29: Table 2-2: Optional Items

    KINO-QM770 Mini-ITX SBC Item and Part Number Image Infineon TPM module (P/N: TPM-IN01-R11) DVI-VGA Adaptor (P/N: 33Z00-000031-RS) SATA to IDE/CF converter board (P/N: SACF-KIT01-R10) Table 2-2: Optional Items Page 13...

  • Page 30: Connector Pinouts

    KINO-QM770 Mini-ITX SBC Chapter Connector Pinouts Page 14...

  • Page 31: Peripheral Interface Connectors

    KINO-QM770 Mini-ITX SBC 3.1 Peripheral Interface Connectors Section 3.1.1 shows peripheral interface connector locations. Section 3.1.2 lists all the peripheral interface connectors seen in Section 3.1.1. 3.1.1 Layout The figure below shows the on-board peripheral connectors, rear panel peripheral connectors and on-board jumpers.

  • Page 32: Peripheral Interface Connectors

    KINO-QM770 Mini-ITX SBC 3.1.2 Peripheral Interface Connectors The table below shows a list of the peripheral interface connectors on the KINO-QM770. Detailed descriptions of these connectors can be found below. Connector Type Label Audio connector 10-pin header FRONT-PANEL1 Battery connector...

  • Page 33: External Interface Panel Connectors

    8-pin header USB1, USB2 Table 3-1: Peripheral Interface Connectors 3.1.3 External Interface Panel Connectors The table below lists the rear panel connectors on the KINO-QM770. Detailed descriptions of these connectors can be found in a later section. Connector Type Label...

  • Page 34: Battery Connector

    KINO-QM770 Mini-ITX SBC CN Pinouts: See Table 3-3 This connector connects to speaker, microphone and audio input connectors on the front panel. Figure 3-2: Audio Connector Location Description Description LMIC2-L ANALOG GND LMIC2-R PRESENCE# LLINE2-R MIC2-JD FRONT-IO LLINE2-L LINE2-JD Table 3-3: Audio Connector Pinouts 3.2.2 Battery Connector...

  • Page 35: Digital I/O Connector

    KINO-QM770 Mini-ITX SBC CN Label: BAT1 CN Type: 2-pin wafer CN Location: See Figure 3-3 CN Pinouts: See Table 3-4 This is connected to the system battery. The battery provides power to the system clock to retain the time when power is turned off.

  • Page 36: Ec Debug Port

    KINO-QM770 Mini-ITX SBC Figure 3-4: Digital I/O Connector Location Description Description +V5S Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 Table 3-5: Digital I/O Connector Pinouts 3.2.4 EC Debug Port CN Label:...

  • Page 37: Fan Connector (Cpu)

    KINO-QM770 Mini-ITX SBC Figure 3-5: BIOS Debug Port Location Description Description EC_EPP_STB# EC_EPP_AFD# EC_EPP_PD0 EC_EPP_PD1 EC_EPP_INIT# EC_EPP_PD2 EC_EPP_SLIN# EC_EPP_PD3 EC_EPP_PD4 EC_EPP_PD5 EC_EPP_BUSY EC_EPP_PD6 EC_EPP_KSI5 EC_EPP_PD7 EC_EPP_KSI4 Table 3-6: EC Debug Port Pinouts 3.2.5 Fan Connector (CPU) CN Label: CPU_FAN1 CN Type:...

  • Page 38: Fan Connector (System)

    KINO-QM770 Mini-ITX SBC Figure 3-6: CPU Fan Connector Location Description +V12S Rotation Signal PWM Control Signal Table 3-7: CPU Fan Connector Pinouts 3.2.6 Fan Connector (System) CN Label: SYS_FAN1 CN Type: 3-pin wafer CN Location: See Figure 3-7 See Table 3-8 CN Pinouts: The fan connector attaches to a system cooling fan.

  • Page 39: Front Panel Connector

    KINO-QM770 Mini-ITX SBC Figure 3-7: System Fan Connector Location Description Rotation Signal +12V Table 3-8: System Fan Connector Pinouts 3.2.7 Front Panel Connector CN Label: F_PANEL1 10-pin header CN Type: CN Location: See Figure 3-8 CN Pinouts: See Table 3-9 The front panel connector connects to the indicator LEDs and buttons on the computer's front panel.

  • Page 40: Infrared Interface Connector

    KINO-QM770 Mini-ITX SBC Figure 3-8: Front Panel Connector Location Description Description Power PWR_LED+ Power PWR_BTN+ PWR_LED+ Button PWR_BTN- GROUND HDD_LED+ RESET+ Reset HDD_LED- GROUND Table 3-9: Front Panel Connector Pinouts 3.2.8 Infrared Interface Connector CN Label: CN Type: 5-pin header...

  • Page 41: Keyboard/Mouse Connector

    KINO-QM770 Mini-ITX SBC Figure 3-9: Infrared Connector Location Description VCC (+5V) IR-RX IR-TX Table 3-10: Infrared Connector Pinouts 3.2.9 Keyboard/Mouse Connector CN Label: KB_MS1 CN Type: 6-pin wafer CN Location: See Figure 3-10 CN Pinouts: See Table 3-11 The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a PS/2 keyboard and mouse.

  • Page 42: Lvds Connector

    KINO-QM770 Mini-ITX SBC Figure 3-10: Keyboard/Mouse Connector Location Description VCC5_KBMS Mouse Data Mouse Clock Keyboard Data Keyboard Clock Table 3-11: Keyboard/Mouse Connector Pinouts 3.2.10 LVDS Connector CN Label: LVDS1 CN Type: 30-pin crimp CN Location: See Figure 3-11 CN Pinouts: See Table 3-12 The LVDS connector is for an LCD panel connected to the board.

  • Page 43: Figure 3-12: Lvds Connector Location

    KINO-QM770 Mini-ITX SBC Figure 3-11: LVDS Connector Location Description Description A_Y0 A_Y0# A_Y1 A_Y1# A_Y2 A_Y2# A_CK A_CK# A_Y3 A_Y3# B_Y0 B_Y0# B_Y1 B_Y1# B_Y2 B_Y2# B_CK B_CK# B_Y3 B_Y3# VCC/VCC3 VCC/VCC3 VCC/VCC3 VCC/VCC3 Table 3-12: LVDS Connector Pinouts Page 27...

  • Page 44: Lvds Backlight Connector

    KINO-QM770 Mini-ITX SBC 3.2.11 LVDS Backlight Connector CN Label: INVERTER1 5-pin wafer CN Type: CN Location: See Figure 3-12 CN Pinouts: See Table 3-13 The backlight inverter connectors provide power to LCD panels. Figure 3-12: LVDS Backlight Inverter Connector Description...

  • Page 45: Figure 3-14: Pcie Mini Card Slot Location

    KINO-QM770 Mini-ITX SBC CN Pinouts: See Table 3-14 The PCIe Mini card slot enables a PCIe Mini card expansion module to be connected to the board. Cards supported include among others wireless LAN (WLAN) cards and IEI PCIe Mini disk on module (DOM) SSD cards.

  • Page 46: Pci Express X16 Slot

    KINO-QM770 Mini-ITX SBC Description Description 1.5V SMBCLK PETN2 SMBDATA PETP2 USBD- USBD+ 1.5V VCC3 Table 3-14: PCIe Mini Card Slot Pinouts 3.2.13 PCI Express x16 Slot CN Label: CONN1 PCIe x16 slot CN Type: CN Location: See Figure 3-14 CN Pinouts: See Table 3-15 (Side A) Table 3-16 (Side B) The PCIe x16 expansion cards slot is for PCIe x16 expansion cards.

  • Page 47: Figure 3-15: Pcie X16 Slot Location

    KINO-QM770 Mini-ITX SBC Figure 3-14: PCIe x16 Slot Location Description Description Description Description Name HSIn(1) HSIp(6) HSIp(11) PRSNT#1 HSIn(6) HSIn(11) +12v +12v HSIp(2) HSIn(2) HSIp(7) HSIp(12) JTAG2 HSIn(7) HSIn(12) JTAG3 JTAG4 HSIp(3) RSVD JTAG5 HSIn(3) HSIp(13) +3.3v HSIp(8) HSIn(13) +3.3v...

  • Page 48: Table 3-15: Pcie X16 Side A Pinouts

    KINO-QM770 Mini-ITX SBC Description Description Description Description HSIn(5) HSIn(10) RSVD Table 3-15: PCIe x16 Side A Pinouts Description Description Description Description +12v +12v HSOp(2) RSVD HSOn(2) HSOp(7) HSOp(12) HSOn(7) HSOn(12) SMCLK SMDAT HSOp(3) PRSNT#2 HSOn(3) HSOp(13) +3.3v HSOp(8) HSOn(13) JTAG1...

  • Page 49: Power Button (On-Board)

    3.2.14 Power Button (On-board) CN Label: PWR_SW1 Push button CN Type: CN Location: See Figure 3-15 Push the on-board power button to power on the KINO-QM770. Figure 3-15: On-board Power Button Location 3.2.15 Power Connector (12V) CN Label: PWR2 CN Type: 4-pin connector...

  • Page 50: Serial Port Connectors (Com2)

    KINO-QM770 Mini-ITX SBC Figure 3-16: Power Connector Location Description Description Ground Ground +12V +12V Table 3-17: Power Connector Pinouts 3.2.16 RS-232 Serial Port Connectors (COM2) CN Label: COM2 CN Type: 10-pin header CN Location: See Figure 3-17 See Table 3-18 CN Pinouts: The 10-pin serial port connector provides one RS-232 serial communications channel.

  • Page 51: Rs-422/485 Serial Port Connector (Com3)

    KINO-QM770 Mini-ITX SBC Figure 3-17: RS-232 Serial Port Connector Location Description Description -NDCD2 -NCTS2 -NDSR2 -NDTR2 NSIN2 -XRI2 -NRTS2 NSOUT2 Table 3-18: Serial Port Connector Pinouts 3.2.17 RS-422/485 Serial Port Connector (COM3) CN Label: COM3 CN Type: 4-pin wafer CN Location:...

  • Page 52: Sata 6Gb/S Drive Connectors

    KINO-QM770 Mini-ITX SBC Figure 3-18: RS-422/485 Serial Port Connector Location Description RXD422- RXD422+ TXD422+/TXD485+ TXD422-/TXD485- Table 3-19: RS-422/485 Serial Port Connector Pinouts Use the optional RS-422/485 cable to connect to a serial device. The pinouts of the DB-9 connector are listed below.

  • Page 53: Sata 3Gb/S Drive Connectors

    KINO-QM770 Mini-ITX SBC CN Pinouts: See Table 3-21 The SATA connectors connect to SATA hard drives or optical drives with data transfer speeds as high as 6Gb/s. Figure 3-19: SATA 6Gb/s Drive Connector Locations Description Table 3-21: SATA 6Gb/s Drive Connector Pinouts 3.2.19 SATA 3Gb/s Drive Connectors...

  • Page 54: Sata Power Connectors

    KINO-QM770 Mini-ITX SBC The SATA connectors connect to SATA hard drives or optical drives with data transfer speeds as high as 3Gb/s. Figure 3-20: SATA 3Gb/s Drive Connector Locations Description Table 3-22: SATA 3Gb/s Drive Connector Pinouts 3.2.20 SATA Power Connectors...

  • Page 55: Smbus Connector

    KINO-QM770 Mini-ITX SBC Figure 3-21: SATA Power Connector Locations Description +V12S +V5S Table 3-23: SATA Power Connector Pinouts 3.2.21 SMBus Connector CN Label: CN Type: 4-pin wafer CN Location: See Figure 3-22 CN Pinouts: See Table 3-24 The SMBus (System Management Bus) connector provides low-speed system management communications.

  • Page 56: So-Dimm Connectors

    KINO-QM770 Mini-ITX SBC Figure 3-22: SMBus Connector Location Description SMB_DATA SMB_CLK +V5S Table 3-24: SMBus Connector Pinouts 3.2.22 SO-DIMM Connectors CN Label: DIMM1, DIMM2 CN Type: 204-pin DDR3 SO-DIMM connector CN Location: See Figure 3-23 The SO-DIMM connector is for installing memory on the system.

  • Page 57: Spdif Connector

    KINO-QM770 Mini-ITX SBC Figure 3-23: SO-DIMM Connector Locations 3.2.23 SPDIF Connector CN Label: SPDIF1 CN Type: 5-pin header CN Location: See Figure 3-24 CN Pinouts: See Table 3-25 Use the SPDIF connector to connect digital audio devices to the system.

  • Page 58: Spi Flash Connector

    KINO-QM770 Mini-ITX SBC DESCRIPTION SPDIFOUT SPDIFIN Table 3-25: SPDIF Connector Pinouts 3.2.24 SPI Flash Connector CN Label: JSPI1 8-pin header CN Type: CN Location: See Figure 3-25 CN Pinouts: See Table 3-26 The 8-pin SPI Flash connector is used to flash the BIOS.

  • Page 59: Spi Flash Connector (Ec)

    KINO-QM770 Mini-ITX SBC Description Table 3-26: SPI Flash Connector Pinouts 3.2.25 SPI Flash Connector (EC) CN Label: JSPI2 CN Type: 8-pin header See Figure 3-26 CN Location: CN Pinouts: See Table 3-27 The 8-pin EC SPI Flash connector is used to flash the BIOS.

  • Page 60: Tpm Connector

    KINO-QM770 Mini-ITX SBC 3.2.26 TPM Connector CN Label: TPM1 20-pin header CN Type: CN Location: See Figure 3-27 CN Pinouts: See Table 3-28 The Trusted Platform Module (TPM) connector secures the system on bootup. Figure 3-27: TPM Connector Location Description...

  • Page 61: Usb 2.0 Connectors

    KINO-QM770 Mini-ITX SBC 3.2.27 USB 2.0 Connectors CN Label: USB1, USB2 8-pin header CN Type: CN Location: See Figure 3-28 CN Pinouts: See Table 3-29 The USB header can connect to two USB devices. Figure 3-28: USB Connector Locations Description...

  • Page 62: External Interface Connectors

    KINO-QM770 Mini-ITX SBC 3.3 External Interface Connectors Figure 3-29 shows the KINO-QM770 motherboard external interface connectors. The KINO-QM770 on-board external interface connectors are shown in Figure 3-29. Figure 3-29: External Interface Connectors 3.3.1 Audio Connector CN Label: AUDIO_CV1 CN Type:...

  • Page 63: Dvi Connector

    KINO-QM770 Mini-ITX SBC Figure 3-30: Audio Jacks 3.3.2 DVI Connector CN Label: VIDEO1 CN Type: DVI connector See Figure 3-29 CN Location: CN Pinouts: See Table 3-30 and Figure 3-31 The 24-pin Digital Visual Interface (DVI) connector connects to high-speed, high-resolution digital displays.

  • Page 64: Ethernet And Usb 3.0 Connectors

    KINO-QM770 Mini-ITX SBC Description Description DVI_Clock + Data 1- DVI_Clock - Table 3-30: DVI Connector Pinouts Figure 3-31: DVI-I Connector 3.3.3 Ethernet and USB 3.0 Connectors CN Label: LAN1_USB1, LAN2_USB2 RJ-45 and USB 3.0 combo connector CN Type: CN Location:...

  • Page 65: Hdmi Connectors

    KINO-QM770 Mini-ITX SBC Description Description on: linked off: 10 Mb/s blinking: data is being sent/received green: 100 Mb/s orange: 1000 Mb/s Table 3-32: Connector LEDs The USB 3.0 connector can be connected to a USB device. Description VBUS GND1 STDA_SSRX1_N...

  • Page 66: Power Connector (12 V, Power Adapter)

    KINO-QM770 Mini-ITX SBC Description Description HDMI_DATA1# HDMI_DATA0 HDMI_HPD HDMI_GND HDMI_DATA0# HDMI_GND HDMI_CLK HDMI_GND HDMI_GND HDMI_CLK# Table 3-34: HDMI Connector Pinouts Figure 3-33: HDMI Connector 3.3.5 Power Connector (12 V, Power Adapter) CN Label: PWR1 CN Type: 4-pin Mini-DIN CN Location:...

  • Page 67: Serial Port Connector (Com1)

    KINO-QM770 Mini-ITX SBC 3.3.6 Serial Port Connector (COM1) CN Label: COM1 DB-9 CN Type: CN Location: See Figure 3-29 CN Pinouts: See Table 3-35 The serial port connects to a RS-232 serial communications device. PIN NO. DESCRIPTION PIN NO. DESCRIPTION...

  • Page 68: Installation

    KINO-QM770 Mini-ITX SBC Chapter Installation Page 52...

  • Page 69: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the KINO-QM770. Dry climates are especially susceptible to ESD. It is therefore critical to strictly adhere to the following anti-static precautions whenever the KINO-QM770, or any other electrical component, is handled.
  • Page 70 KINO-QM770 Mini-ITX SBC WARNING: The installation instructions described in this manual should be carefully followed in order to prevent damage to the KINO-QM770, KINO-QM770 components and injury to the user. Before and during the installation please DO the following: Read the user manual: The user manual provides a complete description of the installation instructions and configuration options.

  • Page 71: Cpu, Cpu Cooling Kit And So-Dimm Installation

    Running a CPU without a cooling kit may also result in injury to the user. The CPU, CPU cooling kit and DIMM are the most critical components of the KINO-QM770. If one of these component is not installed the KINO-QM770 cannot run. 4.3.1 Socket G2 CPU Installation WARNING: CPUs are expensive and sensitive components.

  • Page 72: Figure 4-1: Unlock Cpu Socket Retention Screw

    KINO-QM770 Mini-ITX SBC WARNING: When handling the CPU, only hold it on the sides. DO NOT touch the pins at the bottom of the CPU. Step 1: Unlock the CPU retention screw. When shipped, the retention screw of the CPU socket should be in the unlocked position. If it is not in the unlocked position, use a screwdriver to unlock the screw.

  • Page 73: Socket G2 Cooling Kit Installation

    KINO-QM770 Mini-ITX SBC Step 5: Align the CPU pins. Carefully align the CPU pins with the holes in the CPU socket. Step 6: Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are properly aligned, the CPU should slide into the CPU socket smoothly.

  • Page 74: Figure 4-3: Install Support Bracket

    KINO-QM770 Mini-ITX SBC Step 1: Install the support bracket. Remove the tape from the support bracket. From the solder side of the board, align the support bracket to the holes on board and stick in place. Figure 4-3: Install Support Bracket Step 2: Properly orient the cooling kit.

  • Page 75: Figure 4-4: Align The Cooling Kit

    KINO-QM770 Mini-ITX SBC Figure 4-4: Align the Cooling Kit Step 4: Place the cooling kit onto the CPU. Push down the fan with some pressure to secure the cooling kit with the support bracket. See Figure 4-5. Step 5: Tighten the screws. Use a screwdriver to tighten the four screws. In a diagonal pattern, tighten each screw a few turns then move to the next one, until they are all secured.

  • Page 76: So-Dimm Installation

    KINO-QM770 Mini-ITX SBC Figure 4-5: Secure the Cooling Kit 4.4 SO-DIMM Installation To install a SO-DIMM, please follow the steps below and refer to Figure 4-6. Figure 4-6: SO-DIMM Installation Step 1: Open the SO-DIMM socket handles. Open the two handles outwards as far as they can.

  • Page 77: Pcie Mini Card Installation

    0: 4.5 PCIe Mini Card Installation A PCIe Mini card slot is located on the solder side of the KINO-QM770. To install the PCIe Mini card, please refer to the diagram and instructions below. Figure 4-7: PCIe Mini Card Installation Step 1: Insert into the socket at an angle.

  • Page 78: Jumper Settings

    OPEN a jumper means removing the plastic clip from a jumper. Before the KINO-QM770 is installed in the system, the jumpers must be set in accordance with the desired configuration. The jumpers on the KINO-QM770 are listed in Table 4-1.

  • Page 79: At/Atx Mode Selection

    Jumper Location: See Figure 4-8 Set both of the jumpers select AT or ATX power mode for the KINO-QM770. AT power mode limits the system to on/off. ATX allows the system to use various power saving states and enter a standby state, so the system can be turned on remotely over a network.

  • Page 80: Figure 4-9: Clear Cmos Jumper Location

    Jumper Location: See Figure 4-9 If the KINO-QM770 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.

  • Page 81: Clear Me Rtc Registers

    KINO-QM770 Mini-ITX SBC 4.6.3 Clear ME RTC Registers Jumper Label: ME_RTC1 3-pin header Jumper Type: Jumper Settings: See Table 4-4 Jumper Location: See Figure 4-10 Resets the RTC registers used for the Intel® Management Engine when the on-board battery is changed.

  • Page 82: Flash Descriptor Security Override

    KINO-QM770 Mini-ITX SBC Jumper Location: See Figure 4-11 Sets the external DVI-I connector as an analog CRT connector or a DVI connector. Description Short 1-2 DVI (Default) Short 2-3 Table 4-5: Display Mode Selection Jumper Settings Figure 4-11: Display Mode Selection Jumper Location 4.6.5 Flash Descriptor Security Override...

  • Page 83: Lvds Voltage Selection

    KINO-QM770 Mini-ITX SBC Setting Description Short 1-2 Disabled (Default) Short 2-3 Enabled Table 4-6: Flash Descriptor Security Override Jumper Settings Figure 4-12: Flash Descriptor Security Override Jumper Location 4.6.6 LVDS Voltage Selection Jumper Label: J_VLVDS1 Jumper Type: 3-pin header Jumper Settings:...

  • Page 84: Lvds Resolution Selection

    KINO-QM770 Mini-ITX SBC Figure 4-13: LVDS Voltage Selection Jumper Location 4.6.7 LVDS Resolution Selection Jumper Label: J_PID1 Jumper Type: 8-pin header Jumper Settings: See Table 4-8 Jumper Location: See Figure 4-14 Selects the resolution of the LCD panel connected to the LVDS connector.

  • Page 85: Pcie Channel Mode Selection

    KINO-QM770 Mini-ITX SBC Description 5-6 & 7-8 1920 X 1080 (48bit) 1-2 & 5-6 & 7-8 1920 X 1200 (48bit) 3-4 & 5-6 & 7-8 2048 X 1536 (48bit) 1-2 & 3-4 & 5-6 & 7-8 LVDS disabled Table 4-8: LVDS Resolution Selection Jumper Settings Figure 4-14: LVDS Resolution Selection Jumper Location 4.6.8 PCIe Channel Mode Selection...

  • Page 86: Chassis Installation

    The chassis should have fans and vents as necessary to keep things cool. The KINO-QM770 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow through the board surface.

  • Page 87: Internal Peripheral Device Connections

    This section outlines the installation of peripheral devices to the onboard connectors. 4.8.1 SATA Drive Connection The KINO-QM770 is shipped with two SATA drive cable. To connect the SATA drive to the connector, please follow the steps below. Step 1: Locate the SATA connector and the SATA power connector.

  • Page 88: Single Rs-232 Cable (W/O Bracket)

    KINO-QM770 Mini-ITX SBC 4.8.2 Single RS-232 Cable (w/o Bracket) The single RS-232 cable consists of one serial port connector attached to a serial communications cable that is then attached to a D-sub 9 male connector. To install the single RS-232 cable, please follow the steps below.

  • Page 89: External Peripheral Interface Connection

    Devices can be connected to the external connectors. To install external devices, follow the directions in the subsections below. 4.9.1 Audio Connector The audio jacks on the external audio connector enable the KINO-QM770 to be connected to a stereo sound setup. To install the audio devices, follow the steps below. Step 1: Identify the audio plugs.

  • Page 90: Dvi Display Device Connection

    KINO-QM770 Mini-ITX SBC 4.9.2 DVI Display Device Connection The KINO-QM770 has a single female DVI-I connector on the external peripheral interface panel. The DVI-I connector is connected to a digital display device. To connect a digital display device to the KINO-QM770, please follow the instructions below.

  • Page 91: Hdmi Display Device Connection

    KINO-QM770 Mini-ITX SBC 4.9.3 HDMI Display Device Connection The HDMI connector transmits a digital signal to compatible HDMI display devices such as a TV or computer screen. To connect the HDMI cable to the KINO-QM770, follow the steps below. Step 1: Locate the HDMI connector.

  • Page 92: Usb Connection (Dual Connector)

    4.9.5 USB Connection (Dual Connector) The external USB 3.0 connectors provide easier and quicker access to external USB devices. Follow the steps below to connect USB devices to the KINO-QM770. Step 1: Locate the USB 3.0 connectors. The locations of the USB 3.0 connectors are shown in Chapter 3.

  • Page 93: Intel ® Amt Setup Procedure

    ® 4.10 Intel AMT Setup Procedure The KINO-QM770 is featured with the Intel® Active Management Technology (AMT). To enable the Intel® AMT function, follow the steps below. Step 1: Make sure the DIMM1 socket is installed with one DDR3 SO-DIMM.
  • Page 94 KINO-QM770 Mini-ITX SBC NOTE: To change the password, enter a new password following the strong password rule (containing at least one upper case letter, one lower case letter, one digit and one special character, and be at least eight characters).

  • Page 95: Bios

    KINO-QM770 Mini-ITX SBC Chapter BIOS Page 79...

  • Page 96: Introduction

    KINO-QM770 Mini-ITX SBC 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. 5.1.1 Starting Setup The UEFI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

  • Page 97: Getting Help

    KINO-QM770 Mini-ITX SBC Function Main Menu – Quit and do not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu F1 key General help, only for Status Page Setup Menu and Option...

  • Page 98: Main

    KINO-QM770 Mini-ITX SBC 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.

  • Page 99: Advanced

    KINO-QM770 Mini-ITX SBC System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. 5.3 Advanced Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus:...

  • Page 100: Acpi Configuration

    KINO-QM770 Mini-ITX SBC 5.3.1 ACPI Configuration The ACPI Configuration menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced ACPI Settings Select ACPI sleep state the system will enter ACPI Sleep State [S1 only (CPU Stop C…]...

  • Page 101: Rtc Wake Settings

    KINO-QM770 Mini-ITX SBC 5.3.2 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 4) configures RTC wake event. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Wake system with Fixed Time [Disabled] Enable or disable System wake on alarm event.

  • Page 102: Trusted Computing

    KINO-QM770 Mini-ITX SBC Enabled If selected, the following appears with values that can be selected: *Wake up every day *Wake up date *Wake up hour *Wake up minute *Wake up second After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off.

  • Page 103: Cpu Configuration

    KINO-QM770 Mini-ITX SBC Security Device Support [Disable] Use the Security Device Support option to configure support for the TPM. TPM support is disabled. Disable EFAULT Enable TPM support is enabled. 5.3.4 CPU Configuration Use the CPU Configuration menu (BIOS Menu 6) to view detailed CPU specifications and configure the CPU.
  • Page 104 KINO-QM770 Mini-ITX SBC Max CPU Speed: Lists the maximum CPU processing speed. Min CPU Speed: Lists the minimum CPU processing speed. CPU Speed: Lists the CPU processing speed Processor Core: Lists the number of the processor cores Intel HT Technology: Indicates if Intel HT Technology is supported by the CPU.

  • Page 105: Sata Configuration

    KINO-QM770 Mini-ITX SBC 5.3.5 SATA Configuration Use the SATA Configuration menu (BIOS Menu 7) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced SATA Mode Selection...

  • Page 106: Intel(R) Rapid Start Technology

    KINO-QM770 Mini-ITX SBC 5.3.6 Intel(R) Rapid Start Technology Use the Intel(R) Rapid Start Technology menu to configure Intel® Rapid Start Technology support. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Intel(R) Rapid Start Technology [Disabled] --------------------- : Select Screen ↑...

  • Page 107: Amt Configuration

    KINO-QM770 Mini-ITX SBC Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Intel Trusted Execution Technology Configuration Intel TXT support only can be enabled/disabled if SMX is enabled. VT and VT-d support must also be enabled prior --------------------- to TXT.

  • Page 108: Usb Configuration

    KINO-QM770 Mini-ITX SBC Intel AMT [Enabled] Use Intel AMT option to enable or disable the Intel® AMT function. Intel® AMT is disabled Disabled Enabled Intel® AMT is enabled EFAULT Un-Configure ME [Disabled] Use the Un-Configure ME option to perform ME unconfigure without password operation.

  • Page 109: F81866 Super Io Configuration

    KINO-QM770 Mini-ITX SBC USB Devices The USB Devices Enabled field lists the USB devices that are enabled on the system Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded.

  • Page 110: Serial Port N Configuration

    KINO-QM770 Mini-ITX SBC 5.3.10.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 13) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Serial Port 1 Configuration Enable or Disable Serial...
  • Page 111 KINO-QM770 Mini-ITX SBC IO=3F8h; Serial Port I/O port address is 3F8h and the interrupt IRQ=3, 4 address is IRQ3, 4 Serial Port I/O port address is 2F8h and the interrupt IO=2F8h; address is IRQ3, 4 IRQ=3, 4 IO=3E8h; Serial Port I/O port address is 3E8h and the interrupt...
  • Page 112 KINO-QM770 Mini-ITX SBC IO=2E8h; Serial Port I/O port address is 2E8h and the interrupt IRQ=3, 4 address is IRQ3, 4 5.3.10.1.3 Serial Port 3 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.

  • Page 113: F81866 H/W Monitor

    KINO-QM770 Mini-ITX SBC 5.3.11 F81866 H/W Monitor The F8186 H/W Monitor menu (BIOS Menu 14) shows the operating temperature, fan speeds and system voltages. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced PC Health Status Smart Fan Mode Select...

  • Page 114: Smart Fan Mode Configuration

    KINO-QM770 Mini-ITX SBC +V1.5 VCC3V VSB3V VBAT 5.3.11.1 Smart Fan Mode Configuration Use the Smart Fan Mode Configuration submenu (BIOS Menu 15) to configure the smart fan temperature and speed settings. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc.

  • Page 115: Serial Port Console Redirection

    KINO-QM770 Mini-ITX SBC SYS Fan Smart Fan Control [Auto Duty-Cycle Mode] Use the SYS_FAN1 Smart Fan Control option to configure the System Smart Fan (SYS_FAN1). Manual Duty The fan spins at the speed set in Manual by Duty Mode Cycle settings...

  • Page 116: Iei Feature

    KINO-QM770 Mini-ITX SBC Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced COM1 Console Redirection Console Redirection [Disabled] Enable or Disable > Console Redirection Settings COM2 Console Redirection [Disabled] --------------------- > Console Redirection Settings : Select Screen ↑ ↓: Select Item...

  • Page 117: Chipset

    KINO-QM770 Mini-ITX SBC Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover Auto Recovery Function [Disabled] system automatically within 10 min, when OS crashes. Please install Auto Recovery API service before enabling...

  • Page 118: Bios Menu 18: Chipset

    KINO-QM770 Mini-ITX SBC Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit > PCH-IO Configuration Host Bridge Parameters > System Agent (SA) Configuration --------------------- : Select Screen ↑ ↓: Select Item...

  • Page 119: Pch-Io Configuration

    KINO-QM770 Mini-ITX SBC 5.4.1 PCH-IO Configuration Use the PCH-IO Configuration menu (BIOS Menu 19) to configure the PCH chipset. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Chipset PCH-IO Configuration Control Detection of the Azalia device. Intel PCH RC Version 1.1.0.0...

  • Page 120: System Agent (Sa) Configuration

    KINO-QM770 Mini-ITX SBC Disabled Disable internal HDMI codec for High Definition Audio Enable internal HDMI codec for High Definition Audio Enabled EFAULT Power Saving Function [Disabled] Use the Power Saving Function BIOS option to enable or disable the power saving function.

  • Page 121: Graphics Configuration

    KINO-QM770 Mini-ITX SBC VT-d [Enabled] Use the VT-d option to enable or disable VT-d support. Disables VT-d support. Disabled Enabled Enables VT-d support. EFAULT 5.4.2.1 Graphics Configuration Use the Graphics Configuration menu to configure the video device connected to the system.
  • Page 122 KINO-QM770 Mini-ITX SBC PEG0 – Gen X [Gen1] Use the PEG0 – Gen X option to configure PEG0 B0:D1:F0. The following options are available: Gen1 Default Gen2 Gen3 DVMT Pre-Allocated [128MB] Use the DVMT Pre-Allocated option to set the amount of system memory allocated to the integrated graphics processor when the system boots.
  • Page 123 KINO-QM770 Mini-ITX SBC LVDS HDMI 2 HDMI 1 LCD Panel Type [By Hardware] Use the LCD Panel Type option to select the type of flat panel connected to the system. Configuration options are listed below. By Hardware EFAULT 640x480 18BIT...

  • Page 124: Memory Configuration

    KINO-QM770 Mini-ITX SBC 5.4.2.2 Memory Configuration Use the Memory Configuration submenu (BIOS Menu 22) to view memory information. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Chipset Memory Information Memory RC Version 1.1.0.0 Memory Frequency 1333 MHz Total Memory...
  • Page 125 KINO-QM770 Mini-ITX SBC Bootup NumLock State [On] Use the Bootup NumLock State BIOS option to specify if the number lock setting must be modified during boot up. Allows the Number Lock on the keyboard to be EFAULT enabled automatically when the computer system boots up.
  • Page 126 KINO-QM770 Mini-ITX SBC Option ROM Messages [Force BIOS] Use the Option ROM Messages option to set the Option ROM display mode. Sets display mode to force BIOS. Force EFAULT BIOS Sets display mode to current. Keep Current Launch PXE OpROM [Disabled] Use the Launch PXE OpROM option to enable or disable boot option for legacy network devices.

  • Page 127: Security

    KINO-QM770 Mini-ITX SBC 5.6 Security Use the Security menu (BIOS Menu 24) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Password Description Set Setup Administrator Password If ONLY the Administrator’s password is set,...

  • Page 128: Bios Menu 25:Exit

    KINO-QM770 Mini-ITX SBC Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Save Changes and Reset Reset the system after Discard Changes and Reset saving the changes. Restore Defaults Save as User Defaults...

  • Page 129: Software Drivers

    KINO-QM770 Mini-ITX SBC Chapter Software Drivers Page 113...

  • Page 130: Available Software Drivers

    Intel® AMT Installation instructions are given below. 6.2 Software Installation All the drivers for the KINO-QM770 are on the CD that came with the system. To install the drivers, please follow the steps below. Step 1: Insert the CD into a CD drive connected to the system.

  • Page 131: Figure 6-1: Introduction Screen

    KINO-QM770 Mini-ITX SBC Figure 6-1: Introduction Screen Step 3: Click KINO-QM770. Step 4: A new screen with a list of available drivers appears (Figure 6-2). Figure 6-2: Available Drivers Step 5: Install all of the necessary drivers in this menu.

  • Page 132: Chipset Driver Installation

    KINO-QM770 Mini-ITX SBC 6.3 Chipset Driver Installation To install the chipset driver, please do the following. Step 1: Access the driver list. (See Section 6.2) Step 2: Click “Chipset”. Step 3: Locate the setup file and double click on it.

  • Page 133: Figure 6-4: Chipset Driver License Agreement

    KINO-QM770 Mini-ITX SBC Figure 6-4: Chipset Driver License Agreement Step 9: The Read Me file in Figure 6-5 appears. Step 10: Click Next to continue. Figure 6-5: Chipset Driver Read Me File Page 117...

  • Page 134: Figure 6-6: Chipset Driver Setup Operations

    KINO-QM770 Mini-ITX SBC Step 11: Setup Operations are performed as shown in Figure 6-6. Step 12: Once the Setup Operations are complete, click Next to continue. Figure 6-6: Chipset Driver Setup Operations Step 13: The Finish screen in Figure 6-7 appears.

  • Page 135: Graphics Driver Installation

    KINO-QM770 Mini-ITX SBC Figure 6-7: Chipset Driver Installation Finish Screen 6.4 Graphics Driver Installation To install the Graphics driver, please do the following. Step 1: Access the driver list. (See Section 6.2) Step 2: Click “Graphics” and select the folder which corresponds to the operating system.

  • Page 136: Figure 6-8: Graphics Driver Welcome Screen

    KINO-QM770 Mini-ITX SBC Figure 6-8: Graphics Driver Welcome Screen Step 6: The License Agreement in Figure 6-9 appears. Step 7: Click Yes to accept the agreement and continue. Figure 6-9: Graphics Driver License Agreement Step 8: Setup Operations are performed as shown in Figure 6-10.

  • Page 137: Figure 6-10: Graphics Driver Setup Operations

    KINO-QM770 Mini-ITX SBC Step 9: Once the Setup Operations are complete, click Next to continue. Figure 6-10: Graphics Driver Setup Operations Step 10: The Finish screen in Figure 6-11 appears. Step 11: Select “Yes, I want to restart this computer now” and click Finish.Step 0:...

  • Page 138: Lan Driver Installation

    KINO-QM770 Mini-ITX SBC 6.5 LAN Driver Installation Step 1: Right-click the Computer button from the start menu and select Properties. (Figure 6-12). Figure 6-12: Windows Control Panel Step 2: The system control panel window in Figure 6-13 appears. Step 3: Click the Device Manager link (Figure 6-13).

  • Page 139: Figure 6-14: Device Manager List

    KINO-QM770 Mini-ITX SBC Step 4: A list of system hardware devices appears (Figure 6-14). Step 5: Right-click the Ethernet Controller that has question marks next to it (this means Windows does not recognize the device). Step 6: Select Update Driver Software.

  • Page 140: Figure 6-15: Update Driver Software Window

    KINO-QM770 Mini-ITX SBC Figure 6-15: Update Driver Software Window Step 8: Select “Browse my computer for driver software” and click N to continue. Step 9: Click Browse to select “X:\3-LAN” directory in the Locate File window, where “X:\” is the system CD drive. (Figure 6-16).

  • Page 141: Audio Driver Installation

    KINO-QM770 Mini-ITX SBC Figure 6-17: LAN Driver Installation Step 12: The Finish screen in Figure 6-18 appears. Click Close to exit. Step 0: Figure 6-18: LAN Driver Installation Complete 6.6 Audio Driver Installation To install the audio driver, please do the following.

  • Page 142: Figure 6-19: Installshield Wizard Welcome Screen

    KINO-QM770 Mini-ITX SBC Step 2: Click “Audio” and select the folder which corresponds to the operating system. Step 3: Double click the setup file. Step 4: The InstallShield Wizard is prepared to guide the user through the rest of the process.

  • Page 143: Figure 6-20: Audio Driver Software Configuration

    KINO-QM770 Mini-ITX SBC Figure 6-20: Audio Driver Software Configuration Step 8: After the driver installation process is complete, a confirmation screen appears (Figure 6-21). Figure 6-21: Restart the Computer Page 127...

  • Page 144: Intel® Rapid Storage Technology Driver Installation

    KINO-QM770 Mini-ITX SBC Step 9: The confirmation screen offers the option of restarting the computer now or later. For the settings to take effect, the computer must be restarted. Click F INISH restart the computer. Step 0: 6.7 Intel® Rapid Storage Technology Driver Installation To install the Intel®...

  • Page 145: Figure 6-23: Sata Raid Driver License Agreement

    KINO-QM770 Mini-ITX SBC Figure 6-23: SATA RAID Driver License Agreement Step 9: The Read Me file in Figure 6-24 appears. Step 10: Click Next to continue. Figure 6-24: SATA RAID Driver Read Me File Step 11: Setup Operations are performed as shown in Figure 6-25.

  • Page 146: Figure 6-25: Sata Raid Driver Setup Operations

    KINO-QM770 Mini-ITX SBC Figure 6-25: SATA RAID Driver Setup Operations Step 13: The Finish screen in Figure 6-26 appears. Step 14: Select “Yes, I want to restart this computer now” and click Finish.Step 0: Figure 6-26: SATA RAID Driver Installation Finish Screen...

  • Page 147: Usb 3.0 Driver Installation

    KINO-QM770 Mini-ITX SBC 6.8 USB 3.0 Driver Installation WARNING: Do not run this driver’s installer (Setup.exe) from a USB storage device (ie. external USB hard drive or USB thumb drive). For proper installation, please copy driver files to a local hard drive folder and run from there.

  • Page 148: Figure 6-28: Usb 3.0 Driver License Agreement

    KINO-QM770 Mini-ITX SBC Step 7: Read the License Agreement. Step 8: Click Yes to continue. Figure 6-28: USB 3.0 Driver License Agreement Step 9: The Read Me file in Figure 6-29 appears. Step 10: Click Next to continue. Figure 6-29: USB 3.0 Driver Read Me File...

  • Page 149: Figure 6-30: Usb 3.0 Driver Setup Operations

    KINO-QM770 Mini-ITX SBC Step 11: Setup Operations are performed as shown in Figure 6-30. Step 12: Once the Setup Operations are complete, click Next to continue. Figure 6-30: USB 3.0 Driver Setup Operations Step 13: The Finish screen in Figure 6-31 appears.

  • Page 150: Intel® Amt Driver Installation

    KINO-QM770 Mini-ITX SBC 6.9 Intel® AMT Driver Installation The package of the Intel® AMT components includes Intel® Management Engine Interface (Intel® ME Interface) Intel® Dynamic Application Loader Intel® Identity Protection Technology (Intel® IPT) Serial Over LAN (SOL) Intel® Manageability Engine Firmware Recovery Agent Intel®...

  • Page 151: Figure 6-32: Intel® Me Driver Welcome Screen

    KINO-QM770 Mini-ITX SBC Figure 6-32: Intel® ME Driver Welcome Screen Step 6: The license agreement in Figure 6-33 appears. Step 7: Read the License Agreement. Step 8: Click Yes to continue. Figure 6-33: Intel® ME Driver License Agreement Step 9: Setup Operations are performed as shown in Figure 6-34.

  • Page 152: Figure 6-34: Intel® Me Driver Setup Operations

    KINO-QM770 Mini-ITX SBC Figure 6-34: Intel® ME Driver Setup Operations Step 11: The Finish screen in Figure 6-35 appears. Step 12: Select “Yes, I want to restart this computer now” and click Finish.Step 0: Figure 6-35: Intel® ME Driver Installation Finish Screen...

  • Page 153: Abios Options

    KINO-QM770 Mini-ITX SBC Appendix BIOS Options Page 137...
  • Page 154 KINO-QM770 Mini-ITX SBC Below is a list of BIOS configuration options in the BIOS chapter. 　 BIOS Information .........................82 　 System Date [xx/xx/xx] ......................82 　 System Time [xx:xx:xx] .......................83 　 ACPI Sleep State [S1 only (CPU Stop Clock)]..............84 　 Wake System with Fixed Time [Disabled] .................85 　...
  • Page 155 KINO-QM770 Mini-ITX SBC 　 VT-d [Enabled]........................105 　 Primary Display [IGFX] ..................... 105 　 PEG0 – Gen X [Gen1]......................106 　 DVMT Pre-Allocated [128MB]................... 106 　 DVMT Total Gfx Mem [MAX]..................... 106 　 Primary IGFX Boot Display [VBIOS Default] ..............106 　...

  • Page 156: B One Key Recovery

    KINO-QM770 Mini-ITX SBC Appendix One Key Recovery Page 140...

  • Page 157: One Key Recovery Introduction

    KINO-QM770 Mini-ITX SBC B.1 One Key Recovery Introduction The IEI one key recovery is an easy-to-use front end for the Norton Ghost system backup and recovery tool. This tool provides quick and easy shortcuts for creating a backup and reverting to that backup or reverting to the factory default settings.

  • Page 158: System Requirement

    KINO-QM770 Mini-ITX SBC After completing the five initial setup procedures as described above, users can access the recovery tool by pressing <F3> while booting up the system. The detailed information of each function is described in Section B.5. NOTE: The initial setup procedures for Linux system are described in Section B.3.

  • Page 159: Supported Operating System

    KINO-QM770 Mini-ITX SBC partitions. Please take the following table as a reference when calculating the size of the partition. OS Image after Ghost Compression Ratio Windows® 7 7 GB 5 GB Windows® XPE 776 MB 560 MB Windows® CE 6.0...

  • Page 160: Setup Procedure For Windows

    KINO-QM770 Mini-ITX SBC Linux Fedora Core 12 (Constantine) Fedora Core 11 (Leonidas) Fedora Core 10 (Cambridge) Fedora Core 8 (Werewolf) Fedora Core 7 (Moonshine) RedHat RHEL-5.4 RedHat 9 (Ghirke) Ubuntu 8.10 (Intrepid) Ubuntu 7.10 (Gutsy) Ubuntu 6.10 (Edgy) Debian 5.0 (Lenny) Debian 4.0 (Etch)

  • Page 161: Hardware And Bios Setup

    KINO-QM770 Mini-ITX SBC The detailed descriptions are described in the following sections. NOTE: The setup procedures described below are for Microsoft Windows operating system users. For Linux, most of the setup procedures are the same except for several steps described in Section B.3.

  • Page 162: Figure B-2: Launching The Recovery Tool

    KINO-QM770 Mini-ITX SBC Step 2: Boot the system from recovery CD. When prompted, press any key to boot from the recovery CD. It will take a while to launch the recovery tool. Please be patient! Figure B-2: Launching the Recovery Tool Step 3: The recovery tool setup menu is shown as below.

  • Page 163: Figure B-4: Command Prompt

    KINO-QM770 Mini-ITX SBC Figure B-4: Command Prompt Step 5: The command prompt window appears. Type the following commands (marked in red) to create two partitions. One is for the OS installation; the other is for saving recovery files and images which will be an invisible partition.

  • Page 164: Figure B-5: Partition Creation Commands

    KINO-QM770 Mini-ITX SBC Figure B-5: Partition Creation Commands Page 148...

  • Page 165: Install Operating System, Drivers And Applications

    KINO-QM770 Mini-ITX SBC NOTE: Use the following commands to check if the partitions were created successfully. Step 6: Press any key to exit the recovery tool and automatically reboot the system. Please continue to the following procedure: Build the Recovery Partition.S t e p 0 :...

  • Page 166: Building The Recovery Partition

    KINO-QM770 Mini-ITX SBC B.2.4 Building the Recovery Partition Step 1: Put the recover CD in the optical drive. Step 2: Start the system. Step 3: Boot the system from the recovery CD. When prompted, press any key to boot from the recovery CD. It will take a while to launch the recovery tool. Please...

  • Page 167: Figure B-8: Building The Recovery Partition

    KINO-QM770 Mini-ITX SBC Step 5: The Symantec Ghost window appears and starts configuring the system to build a recovery partition. In this process the partition created for recovery files in Section B.2.2 is hidden and the recovery tool is saved in this partition.

  • Page 168: Create Factory Default Image

    KINO-QM770 Mini-ITX SBC B.2.5 Create Factory Default Image NOTE: Before creating the factory default image, please configure the system to a factory default environment, including driver and application installations. To create a factory default image, please follow the steps below.

  • Page 169: Figure B-12: About Symantec Ghost Window

    KINO-QM770 Mini-ITX SBC Figure B-12: About Symantec Ghost Window Step 4: Use mouse to navigate to the option shown below (Figure B-13). Figure B-13: Symantec Ghost Path Step 5: Select the local source drive (Drive 1) as shown in Figure B-14. Then click OK.

  • Page 170: Figure B-14: Select A Local Source Drive

    KINO-QM770 Mini-ITX SBC Figure B-14: Select a Local Source Drive Step 6: Select a source partition (Part 1) from basic drive as shown in Figure B-15. Then click OK. Figure B-15: Select a Source Partition from Basic Drive Step 7: Select 1.2: [Recovery] NTFS drive and enter a file name called...

  • Page 171: Figure B-16: File Name To Copy Image To

    KINO-QM770 Mini-ITX SBC Figure B-16: File Name to Copy Image to Step 8: When the Compress Image screen in Figure B-17 prompts, click High to make the image file smaller. Figure B-17: Compress Image Page 155...

  • Page 172: Figure B-18: Image Creation Confirmation

    KINO-QM770 Mini-ITX SBC Step 9: The Proceed with partition image creation window appears, click Yes to continue. Figure B-18: Image Creation Confirmation Step 10: The Symantec Ghost starts to create the factory default image (Figure B-19). Figure B-19: Image Creation Complete Step 11: When the image creation completes, a screen prompts as shown in Figure B-20.

  • Page 173: Auto Recovery Setup Procedure

    KINO-QM770 Mini-ITX SBC Step 12: The recovery tool main menu window is shown as below. Press any key to reboot the system. S t e p 0 : Figure B-21: Press Any Key to Continue B.3 Auto Recovery Setup Procedure...

  • Page 174: Figure B-22: Auto Recovery Utility

    KINO-QM770 Mini-ITX SBC Step 1: Follow the steps described in Section B.2.1 ~ Section B.2.3 to setup BIOS, create partitions and install operating system. Step 2: Install the auto recovery utility into the system by double clicking the Utility/AUTORECOVERY-SETUP.exe in the One Key Recovery CD. This utility MUST be installed in the system, otherwise, the system will automatically restore from the factory default image every ten (10) minutes.

  • Page 175: Figure B-24: Launching The Recovery Tool

    KINO-QM770 Mini-ITX SBC Step 4: Reboot the system from the recovery CD. When prompted, press any key to boot from the recovery CD. It will take a while to launch the recovery tool. Please be patient! Figure B-24: Launching the Recovery Tool Step 5: When the recovery tool setup menu appears, press <4>...

  • Page 176: Figure B-26: Building The Auto Recovery Partition

    KINO-QM770 Mini-ITX SBC Figure B-26: Building the Auto Recovery Partition Step 7: After completing the system configuration, the following message prompts to confirm whether to create a factory default image. Type Y to have the system create a factory default image automatically. Type N within 6 seconds to skip this process (The default option is YES).

  • Page 177: Figure B-28: Image Creation Complete

    KINO-QM770 Mini-ITX SBC Step 8: The Symantec Ghost starts to create the factory default image (Figure B-28). Figure B-28: Image Creation Complete Step 9: After completing the system configuration, press any key in the following window to restart the system.

  • Page 178: Setup Procedure For Linux

    KINO-QM770 Mini-ITX SBC BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit iEi Feature ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Auto Recovery Function [Enabled] Recover from PXE [Disabled] Select Screen ↑ ↓ Select Item Enter Go to SubScreen General Help Save and Exit Exit v02.61 ©Copyright 1985-2006, American Megatrends, Inc.

  • Page 179: Figure B-31: Partitions For Linux

    KINO-QM770 Mini-ITX SBC Partition 1: / Partition 2: SWAP NOTE: Please reserve enough space for partition 3 for saving recovery images. Figure B-31: Partitions for Linux Step 3: Create a recovery partition. Insert the recovery CD into the optical disk drive.

  • Page 180: Figure B-32: Manual Recovery Environment For Linux

    KINO-QM770 Mini-ITX SBC recovery partition. After completing the system configuration, press any key to reboot the system. Eject the recovery CD. Figure B-32: Manual Recovery Environment for Linux Step 5: Access the recovery tool main menu by modifying the “menu.lst”. To first access the recovery tool main menu, the menu.lst must be modified.

  • Page 181: Recovery Tool Functions

    KINO-QM770 Mini-ITX SBC Step 7: The recovery tool menu appears. (Figure B-34) Figure B-34: Recovery Tool Menu Step 8: Create a factory default image. Follow Step 2 Step 12 described in Section B.2.5 to create a factory default image. S t e p 0 : B.5 Recovery Tool Functions...

  • Page 182: Figure B-35: Recovery Tool Main Menu

    KINO-QM770 Mini-ITX SBC Figure B-35: Recovery Tool Main Menu The recovery tool has several functions including: 1. Factory Restore: Restore the factory default image (iei.GHO) created in Section B.2.5. 2. Backup system: Create a system backup image (iei_user.GHO) which will be saved in the hidden partition.

  • Page 183: Factory Restore

    KINO-QM770 Mini-ITX SBC B.5.1 Factory Restore To restore the factory default image, please follow the steps below. Step 1: Type <1> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to restore the factory default. A factory default image called iei.GHO is created in the hidden Recovery partition.

  • Page 184: Backup System

    KINO-QM770 Mini-ITX SBC B.5.2 Backup System To backup the system, please follow the steps below. Step 1: Type <2> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to backup the system. A backup image called iei_user.GHO is created in the hidden Recovery partition.

  • Page 185: Restore Your Last Backup

    KINO-QM770 Mini-ITX SBC B.5.3 Restore Your Last Backup To restore the last system backup, please follow the steps below. Step 1: Type <3> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to restore the last backup image (iei_user.GHO).

  • Page 186: Manual

    KINO-QM770 Mini-ITX SBC B.5.4 Manual To restore the last system backup, please follow the steps below. Step 1: Type <4> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears. Use the Ghost program to backup or recover the system manually.

  • Page 187: Restore Systems From A Linux Server Through Lan

    KINO-QM770 Mini-ITX SBC B.6 Restore Systems from a Linux Server through LAN The One Key Recovery allows a client system to automatically restore to a factory default image saved in a Linux system (the server) through LAN connectivity after encountering a Blue Screen of Death (BSoD) or a hang for around 10 minutes.

  • Page 188: Configure Dhcp Server Settings

    KINO-QM770 Mini-ITX SBC B.6.1 Configure DHCP Server Settings Step 1: Install the DHCP #yum install dhcp (CentOS, commands marked in red) #apt-get install dhcp3-server (Debian, commands marked in blue) Step 2: Confirm the operating system default settings: dhcpd.conf. CentOS Use the following command to show the DHCP server sample location: #vi /etc/dhcpd.conf...

  • Page 189: Configure Tftp Settings

    KINO-QM770 Mini-ITX SBC filename “pxelinux.0”; B.6.2 Configure TFTP Settings Step 1: Install the tftp, httpd and syslinux. #yum install tftp-server httpd syslinux (CentOS) #apt-get install tftpd-hpa xinetd syslinux (Debian) Step 2: Enable the TFTP server by editing the “/etc/xinetd.d/tftp” file and make it use the remap file.

  • Page 190: Configure One Key Recovery Server Settings

    KINO-QM770 Mini-ITX SBC Debian Replace the TFTP settings from “inetd” to “xinetd” and annotate the “inetd” by adding “#”. #vi /etc/inetd.conf Modify: #tftp dgram udp wait root /usr/sbin..(as shown below) #vi /etc/xinetd.d/tftp B.6.3 Configure One Key Recovery Server Settings Step 1: Copy the Utility/RECOVERYR10.TAR.BZ2 package from the One Key...

  • Page 191: Start The Dhcp, Tftp And Http

    KINO-QM770 Mini-ITX SBC B.6.4 Start the DHCP, TFTP and HTTP Start the DHCP, TFTP and HTTP. For example: CentOS #service xinetd restart #service httpd restart #service dhcpd restart Debian #/etc/init.d/xinetd reload #/etc/init.d/xinetd restart #/etc/init.d/dhcp3-server restart B.6.5 Create Shared Directory Step 1: Install the samba.

  • Page 192: Setup A Client System For Auto Recovery

    KINO-QM770 Mini-ITX SBC Modify: [image] comment = One Key Recovery path = /share/image browseable = yes writable = yes public = yes create mask = 0644 directory mask = 0755 Step 4: Edit “/etc/samba/smb.conf” for your environment. For example: Step 5:...

  • Page 193: Figure B-43: Disable Automatically Restart

    KINO-QM770 Mini-ITX SBC Figure B-43: Disable Automatically Restart Step 2: Configure the following BIOS options of the client system. Advanced → iEi Feature → Auto Recovery Function → Enabled Advanced → iEi Feature → Recover from PXE → Enabled Boot → Launch PXE OpROM → Enabled...
  • Page 194 KINO-QM770 Mini-ITX SBC MUST be installed in the system, otherwise, the system will automatically restore from the factory default image every ten (10) minutes. Step 6: Restart the client system from LAN. If the system encounters a Blue Screen of Death (BSoD) or a hang for around 10 minutes, it will automatically restore from the factory default image.

  • Page 195: Other Information

    KINO-QM770 Mini-ITX SBC NOTE: A firewall or a SELinux is not in use in the whole setup process described above. If there is a firewall or a SELinux protecting the system, modify the configuration information to accommodate them. B.7 Other Information B.7.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller...
  • Page 196 KINO-QM770 Mini-ITX SBC Step 5: When the following window appears, press <S> to select “Specify Additional Device”. Page 180...

  • Page 197: System Memory Requirement

    KINO-QM770 Mini-ITX SBC Step 6: In the following window, select a SATA controller mode used in the system. Then press <Enter>. The user can now start using the SATA HDD. Step 7: After pressing <Enter>, the system will get into the recovery tool setup menu.

  • Page 198: C Terminology

    KINO-QM770 Mini-ITX SBC Appendix Terminology Page 182...
  • Page 199 KINO-QM770 Mini-ITX SBC AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
  • Page 200 KINO-QM770 Mini-ITX SBC Direct Memory Access (DMA) enables some peripheral devices to bypass the system processor and communicate directly with the system memory. DIMM Dual Inline Memory Modules are a type of RAM that offer a 64-bit data bus and have separate electrical contacts on each side of the module.
  • Page 201 KINO-QM770 Mini-ITX SBC Liquid crystal display (LCD) is a flat, low-power display device that consists of two polarizing plates with a liquid crystal panel in between. LVDS Low-voltage differential signaling (LVDS) is a dual-wire, high-speed differential electrical signaling system commonly used to connect LCD displays to a computer.

  • Page 202: D Digital I/O Interface

    KINO-QM770 Mini-ITX SBC Appendix Digital I/O Interface Page 186...

  • Page 203: Introduction

    KINO-QM770 Mini-ITX SBC D.1 Introduction The DIO connector on the KINO-QM770 is interfaced to GPIO ports on the Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.

  • Page 204: Enable The Dio Output Function

    KINO-QM770 Mini-ITX SBC Initiates the INT 15H BIOS call D.3.2 Enable the DIO Output Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O output functions is listed below. Sets the digital port as output...

  • Page 205: E Hazardous Materials Disclosure

    KINO-QM770 Mini-ITX SBC Appendix Hazardous Materials Disclosure Page 189...

  • Page 206: Hazardous Materials Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    KINO-QM770 Mini-ITX SBC E.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 207 KINO-QM770 Mini-ITX SBC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Biphenyls Diphenyl (Pb) (Hg) (Cd) Chromium (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 208 KINO-QM770 Mini-ITX SBC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

This manual is also suitable for:

Kino-qm770-r10

Table of Contents
