IEI Technology kino-hm551 User Manual

Mini-itx sbc with socket g1 for intel mobile core /i5/i3 and celeron cpu, vga/dvi/lvds/hdmi, dual pcie gbe, usb 2.0, dual pcie mini, sata 3gb/s and audio, rohs
Hide thumbs Also See for kino-hm551:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

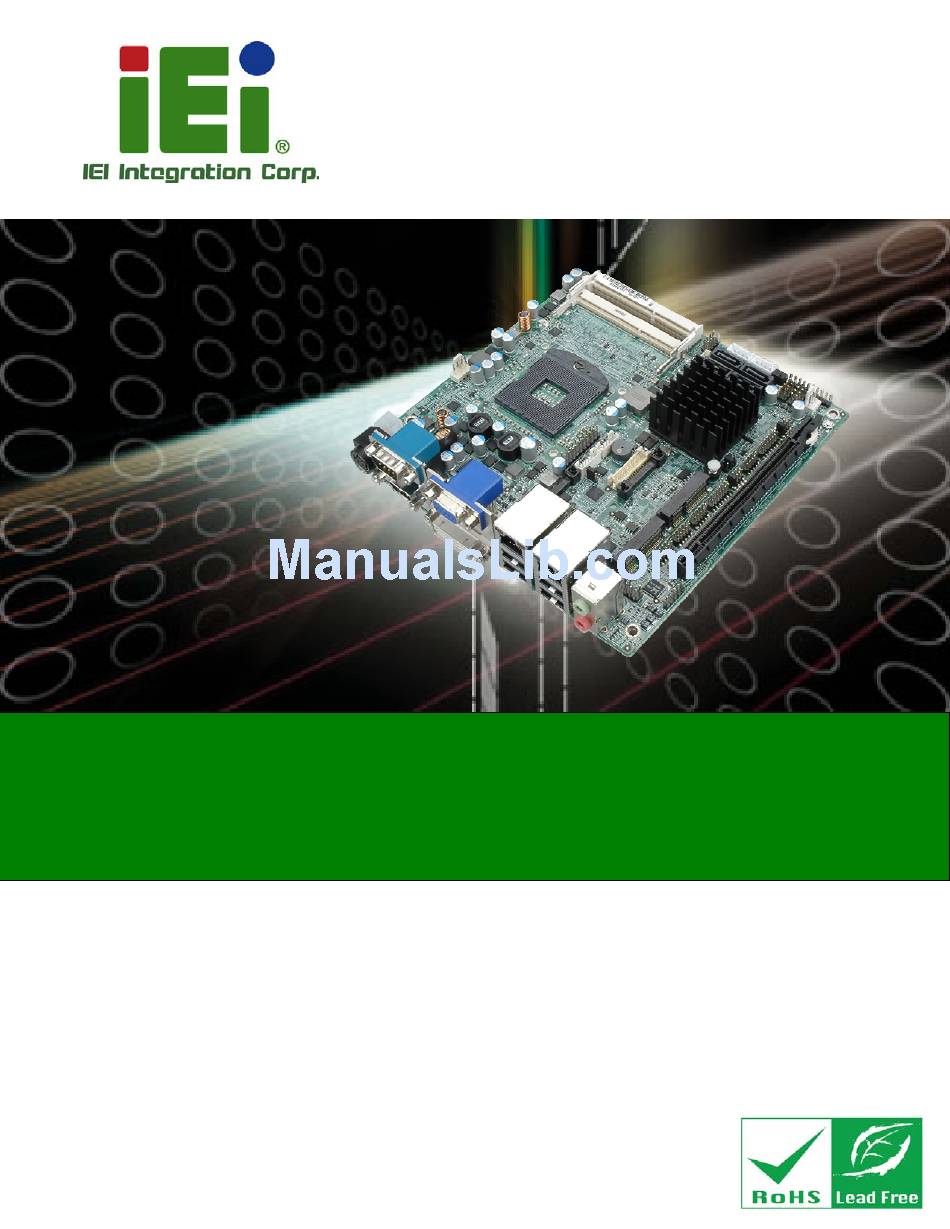

KINO-HM551
MODEL:
KINO-HM551
Mini-ITX SBC Supports Socket G1 for Intel® mobile Core™ i7/i5/i3 and
Intel® Celeron®, VGA/DVI/LVDS/HDMI Display, Dual GbE,
Eight USB 2.0, Dual PCIe Mini, Four SATA 3Gb/s, Audio, RoHS

User Manual

Page I
Rev. 1.03 - 22 October, 2014

Advertisement

Table of Contents
loading

Related Manuals for IEI Technology kino-hm551

Summary of Contents for IEI Technology kino-hm551

  • Page 1: User Manual

    KINO-HM551 MODEL: KINO-HM551 Mini-ITX SBC Supports Socket G1 for Intel® mobile Core™ i7/i5/i3 and Intel® Celeron®, VGA/DVI/LVDS/HDMI Display, Dual GbE, Eight USB 2.0, Dual PCIe Mini, Four SATA 3Gb/s, Audio, RoHS User Manual Page I Rev. 1.03 - 22 October, 2014...
  • Page 2 KINO-HM551 Revision Date Version Changes 22 October, 2014 1.03 Added Section 3.2.19: SPI Flash Connector Minor update 15 February, 2012 1.02 Updated Table 3-6: Fan Connector Pinouts 15 September, 2011 1.01 Modified Chapter 3 Connectors 17 November, 2011 1.00 Initial release...
  • Page 3 KINO-HM551 Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    ACKING 2.3.1 Optional Items....................11 3 CONNECTORS ......................12 3.1 P ..............13 ERIPHERAL NTERFACE ONNECTORS 3.1.1 KINO-HM551 Layout ..................13 3.1.2 Peripheral Interface Connectors ..............14 3.1.3 External Interface Panel Connectors............... 15 3.2 I ..............15 NTERNAL ERIPHERAL ONNECTORS 3.2.1 Audio Connector ....................15 3.2.2 Digital I/O Connector ..................
  • Page 5 KINO-HM551 3.2.13 RS-232/422/485 Serial Port Connector ............26 3.2.14 RS-232 Serial Port Connector ............... 27 3.2.15 SATA Drive Connectors ................. 28 3.2.16 SATA Power Connectors ................29 3.2.17 SMBus Connector ..................30 3.2.18 SPDIF Connector................... 31 3.2.19 SPI Flash Connector..................32 3.2.20 TPM Connector....................
  • Page 6 KINO-HM551 4.6.2 Motherboard Installation................. 57 4.7 I ............57 NTERNAL ERIPHERAL EVICE ONNECTIONS 4.7.1 Dual RS-232 Cable with Slot Bracket.............. 58 4.7.2 SATA Drive Connection ................... 59 4.8 E ........... 60 XTERNAL ERIPHERAL NTERFACE ONNECTION 4.8.1 Audio Connector ....................60 4.8.2 HDMI Display Device Connection ..............
  • Page 7 KINO-HM551 5.4.3 Intel IGD SWSCI OpRegion................90 5.5 B ........................92 5.6 S ......................... 94 ECURITY 5.7 E ......................... 95 A BIOS MENU OPTIONS ..................... 97 B TERMINOLOGY...................... 100 C DIGITAL I/O INTERFACE..................105 C.1 I ...................... 106 NTRODUCTION C.2 A 1................
  • Page 8 Figure 3-20: SPI Flash Connector Location................33 Figure 3-21: TPM1 Connector Location..................34 Figure 3-22: USB Connector Pinout Locations .................35 Figure 3-23: KINO-HM551 External Peripheral Interface Connector ........36 Figure 3-24: 4-pin Power Mini-DIN Connection .................36 Figure 3-25: Audio Connector .....................37 Figure 3-26: Ethernet Connector....................38 Figure 3-27: Serial Port DB-9 Male Connector................39...
  • Page 9 KINO-HM551 Figure 3-28: VGA Connector .......................40 Figure 4-1: Make sure the CPU socket retention screw is unlocked ........47 Figure 4-2: Lock the CPU Socket Retention Screw..............48 Figure 4-3: Cooling Kit Support Bracket ..................49 Figure 4-4: SO-DIMM Installation ....................50 Figure 4-5: Jumper Locations .....................50 Figure 4-6: AT/ATX Power Select Jumper Location..............52...
  • Page 10 KINO-HM551 List of Tables Table 1-1: Technical Specifications....................7 Table 3-1: Peripheral Interface Connectors ................15 Table 3-2: Rear Panel Connectors ....................15 Table 3-3: Audio Connector Pinouts ..................16 Table 3-4: Digital I/O Connector Pinouts..................17 Table 3-5: Fan Connector Pinouts ....................17 Table 3-6: Fan Connector Pinouts ....................18 Table 3-7: Front Panel Indicator Pinouts..................19...
  • Page 11 KINO-HM551 Table 4-1: Jumpers ........................51 Table 4-2: AT/ATX Power Select Jumper Settings ..............51 Table 4-3: Clear CMOS Jumper Settings..................53 Table 4-4: ME RTC Register Jumper Settings ................53 Table 4-5: LVDS Voltage Selection Jumper Settings..............54 Table 4-6: LVDS Screen Resolution Jumper Settings ..............56 Table 4-7: Serial Port Jumper Settings..................56...
  • Page 12 KINO-HM551 List of BIOS Menus BIOS Menu 1: Main ........................72 BIOS Menu 2: Advanced ......................73 BIOS Menu 3: ACPI Configuration ....................74 BIOS Menu 4: TPM Configuration ....................75 BIOS Menu 5: CPU Configuration ....................76 BIOS Menu 6: IDE Configuration....................77 BIOS Menu 7: USB Configuration ....................78 BIOS Menu 8: Super IO Configuration..................79...

  • Page 13: Introduction

    KINO-HM551 Chapter Introduction Page 1...

  • Page 14: Introduction

    KINO-HM551 1.1 Introduction Figure 1-1: KINO-HM551 The KINO-HM551 motherboard is a Socket G1 32nm Intel® Core™ i3, i5 and i7 processor platform. Two SO-DIMM sockets support up to 8 GB of 800 MHz or 1066 MHz DDR3 SDRAM memory. The integrated Intel® HM55 Express Chipset supports two GbE LAN ports through dual Realtek RTL8111E Ethernet controllers (ASF 2.0 support on LAN1).

  • Page 15: Connectors

    KINO-HM551 1.2 Connectors The connectors on the KINO-HM551 are shown in the figure below. Figure 1-2: Connectors Page 3...

  • Page 16: Dimensions

    KINO-HM551 1.3 Dimensions The dimensions of the board are listed below:  Length: 170 mm  Width: 170 mm Figure 1-3: KINO-HM551 Dimensions (mm) Page 4...

  • Page 17: Data Flow

    KINO-HM551 1.4 Data Flow F igure 1-4 shows the data flow between the two on-board chipsets and other components installed on the motherboard and described in the following sections of this chapter. Figure 1-4: Data Flow Block Diagram Page 5...

  • Page 18: Technical Specifications

    KINO-HM551 1.5 Technical Specifications KINO-HM551 technical specifications are listed in table below. Specification KINO-HM551 Mini-ITX Form Factor Socket G1 (rPGA989) Socket Socket 988A 32 nm Intel® Core™ i3 processor CPU Supported 32 nm Intel® Core™ i5 processor 32 nm Intel® Core™ i7 processor (i7 processors without integrated graphics) Intel®...

  • Page 19: Table 1-1: Technical Specifications

    KINO-HM551 Specification KINO-HM551 Display Ports One VGA port (2048x1536) One HDMI port (up to 1080p) One internal LVDS connector (1600x1200) One DVI-D port (1600x1200) Ethernet Two RJ-45 GbE ports Serial Ports Three RS-232 via three 10-pin headers One external RS-232 serial connector via DB-9 male Two RS-232/422/485 via 14–pin header...

  • Page 20: Unpacking

    KINO-HM551 Chapter Unpacking Page 8...

  • Page 21: Anti-Static Precautions

    Only handle the edges of the PCB: Don't touch the surface of the motherboard. Hold the motherboard by the edges when handling. 2.2 Unpacking Precautions When the KINO-HM551 is unpacked, please do the following:  Follow the antistatic guidelines above.

  • Page 22: Packing List

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the KINO-HM551 was purchased from or contact an IEI sales representative directly by sending an email to ales@ieiworld.com.

  • Page 23: Optional Items

    KINO-HM551 One Key Recovery CD Quick Installation Guide 2.3.1 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image CPU cooler for 55 W mobile processor (P/N: CF-989A-RS-R12) Dual USB cable (with bracket)

  • Page 24: Connectors

    KINO-HM551 Chapter Connectors Page 12...

  • Page 25: Peripheral Interface Connectors

    KINO-HM551 3.1 Peripheral Interface Connectors This chapter details all the jumpers and connectors. 3.1.1 KINO-HM551 Layout The figures below show all the connectors and jumpers. Figure 3-1: Connector and Jumper Locations Page 13...

  • Page 26: Peripheral Interface Connectors

    KINO-HM551 3.1.2 Peripheral Interface Connectors The table below lists all the connectors on the board. Connector Type Label Audio connector 10-pin header FRONT-PANEL1 Digital I/O connector 10-pin header DIO1 Fan connector (CPU) 4-pin wafer CPU_FAN1 Fan connector (system) 3-pin wafer...

  • Page 27: External Interface Panel Connectors

    VGA and DVI connector 15-pin Female, VIDEO1 24-pin Female Table 3-2: Rear Panel Connectors 3.2 Internal Peripheral Connectors The section describes all of the connectors on the KINO-HM551. 3.2.1 Audio Connector CN Label: FRONT-PANEL1 CN Type: 10-pin header CN Location:...

  • Page 28: Digital I/O Connector

    KINO-HM551 Figure 3-2: Audio Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION MIC-L ANALOG GND MIC-R PRESENCE# LINE-R MIC-JD FRONT-10 LINE-L INE-JD Table 3-3: Audio Connector Pinouts 3.2.2 Digital I/O Connector CN Label: DIO1 CN Type: 10-pin header CN Location:...

  • Page 29: Fan Connector (Cpu)

    KINO-HM551 PIN NO. DESCRIPTION PIN NO. DESCRIPTION Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 Table 3-4: Digital I/O Connector Pinouts 3.2.3 Fan Connector (CPU) CN Label: CPU_FAN1 CN Type: 4-pin wafer...

  • Page 30: Front Panel Indicators

    KINO-HM551 CN Pinouts: See Table 3-6 The fan connector attaches a cooling fan. Figure 3-5: Fan Connector Locations PIN NO. DESCRIPTION +12V Rotation Signal Table 3-6: Fan Connector Pinouts 3.2.5 Front Panel Indicators CN Label: F_PANEL1 CN Type: 10-pin header...

  • Page 31: Infrared Connector

    KINO-HM551 Figure 3-6: Front Panel Indicator Location FUNCTION PIN NO. DESCRIPTION FUNCTION PIN NO. DESCRIPTION Power LED PWR_LED+ Indicator Power Button PWR_BTN+ PWR_LED+ PWR_BTN- PWR_LED- HDD LED HDD_LED+ Reset RESET+ Indicator HDD_LED- RESET- Table 3-7: Front Panel Indicator Pinouts 3.2.6 Infrared Connector...

  • Page 32: Inverter Connector

    KINO-HM551 Figure 3-7: Infrared Connector Locations PIN NO. DESCRIPTION PIN NO. DESCRIPTION Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 Table 3-8: Infrared Connector Pinouts 3.2.7 Inverter Connector CN Label: INVERTER1 CN Type:...

  • Page 33: Keyboard/Mouse Connector

    KINO-HM551 PIN NO. DESCRIPTION BRIGHTNESS GROUND +12V GROUND BACKLIGHT ENABLE Table 3-9: Inverter Connector Pinouts 3.2.8 Keyboard/Mouse Connector CN Label: KB_MS1 CN Type: 6-pin wafer CN Location: See Figure 3-9 CN Pinouts: See Table 3-10 The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a PS/2 keyboard and mouse.

  • Page 34: Lvds Connector

    KINO-HM551 3.2.9 LVDS Connector CN Label: LVDS1 CN Type: 30-pin crimp CN Location: F igure 3-10 CN Pinouts: See Table 3-11 The LVDS connector is for an LCD panel connected to the board. Figure 3-10: LVDS Connector Locations PIN NO.

  • Page 35: Pcie Mini Card Slot (Full-Size)

    KINO-HM551 PIN NO. DESCRIPTION PIN NO. DESCRIPTION +LCD VCC +LCD VCC Table 3-11: LVDS Connector Pinouts 3.2.10 PCIe Mini Card Slot (Full-size) CN Label: Full-size PCIe Mini card slot CN Type: CN Location: See Figure 3-11 CN Pinouts: See Table 3-12 The PCIe Mini card slot is for installing PCIe Mini expansion cards.

  • Page 36: Pcie Mini Card Slot (Half-Size)

    KINO-HM551 PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIRST# VCC3 PCIRST# PERN2 3VDual PERP2 1.5 V SMBCLK PETN2 SMBDATA PETP2 USBD- USBD+ 1.5 V VCC3 Table 3-12: Full-size PCIe Mini Card Slot Pinouts 3.2.11 PCIe Mini Card Slot (Half-size) CN Label:...

  • Page 37: Figure 3-12: Half-Size Pcie Mini Card Slot Connector Location

    KINO-HM551 Figure 3-12: Half-size PCIe Mini Card Slot Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# VCC3 1.5 V CLK- CLK+ PCIRST# VCC3 PCIRST# PERN2 3VDual PERP2 1.5 V SMBCLK PETN2 SMBDATA PETP2 USBD- USBD+ 1.5 V Page 25...

  • Page 38: Power Supply Connector

    KINO-HM551 PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC3 Table 3-13: Half-size PCIe Mini Card Slot Pinouts 3.2.12 Power Supply Connector CN Label: PWR2 CN Type: 4-pin connector F igure 3-13 CN Location: CN Pinouts: See Table 3-14 The Power Supply connector provides +12 V power output.

  • Page 39: Serial Port Connector

    KINO-HM551 Figure 3-14: RS-232/422/485 Serial Port Location PIN NO. DESCRIPTION DATA CARRIER DETECT (DCD) DATA SET READY (DSR) RECEIVE DATA (RXD) REQUEST TO SEND (RTS) TRANSMIT DATA (TXD) CLEAR TO SEND (CTS) DATA TERMINAL READY (DTR) RING INDICATOR (RI) GND (GND)

  • Page 40: Sata Drive Connectors

    KINO-HM551 The connector supports three internal high speed UARTs. Figure 3-15: RS-232 Serial Port Connector Location PIN NO DESCRIPTION SOUT Table 3-16: RS-232 Serial Port Connector Pinouts 3.2.15 SATA Drive Connectors CN Label: S_ATA1, S_ATA2, S_ATA5, S_ATA6 CN Type: 7-pin SATA drive connectors...

  • Page 41: Sata Power Connectors

    KINO-HM551 The four SATA 3Gb/s drive connectors are each connected to a SATA 3Gb/s drive. The SATA 3Gb/s drives transfer data at speeds as high as 3.0 Gb/s. Figure 3-16: SATA Drive Connector Locations PIN NO. DESCRIPTION Table 3-17: SATA Drive Connector Pinouts 3.2.16 SATA Power Connectors...

  • Page 42: Smbus Connector

    KINO-HM551 Figure 3-17: SATA Power Connector Locations PIN NO. DESCRIPTION +5V (Supports 1A) +12V (Supports 1A) Table 3-18: SATA Power Connector Pinouts 3.2.17 SMBus Connector CN Label: CN Type: 4-pin wafer CN Location: F igure 3-18 CN Pinouts: T able 3-19 The SMBus (System Management Bus) connector provides low-speed system management communications.

  • Page 43: Spdif Connector

    KINO-HM551 Figure 3-18: SMBus Connector Pinout Locations PIN NO. DESCRIPTION SDAT SCLK Table 3-19: SMBus Connector Pinouts 3.2.18 SPDIF Connector CN Label: SPDIF1 CN Type: 5-pin connector CN Location: F igure 3-19 CN Pinouts: T able 3-20 This connector is used to connect digital audio devices to the system.

  • Page 44: Spi Flash Connector

    KINO-HM551 Figure 3-19: SPDIF Connector Pinout Locations PIN NO. DESCRIPTION SPDIFOUT SPDIFIN Table 3-20: SPDIF Connector Pinouts 3.2.19 SPI Flash Connector CN Label: JSPI1 CN Type: 8-pin header CN Location: See Figure 3-20 CN Pinouts: See Table 3-21 The 8-pin SPI Flash connector is used to flash the BIOS.

  • Page 45: Tpm Connector

    KINO-HM551 Figure 3-20: SPI Flash Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION SPI VCC SPI CS# SPI CLOCK SPI SO SPI SI Table 3-21: SPI Flash Connector Pinouts 3.2.20 TPM Connector CN Label: TPM1 20-pin connector CN Type: CN Location:...

  • Page 46: Usb Connectors

    KINO-HM551 Figure 3-21: TPM1 Connector Location PIN NO. DESCRIPTION PIN NO. DESCRIPTION LCLK LFRAME# LRERST# LAD3 LAD2 LAD1 LAD0 SB3V SERIRQ GLKRUN# LPCPD# LDRQ# Table 3-22: TPM1 Connector Pinouts 3.2.21 USB Connectors CN Label: USB1 and USB2 CN Type: 8-pin header...

  • Page 47: External Peripheral Interface Connector Panel

    DATAM- Table 3-23: USB Connector Pinouts 3.3 External Peripheral Interface Connector Panel F igure 3-23 shows the KINO-HM551 external peripheral interface connector (Mini-ITX SBC) panel. The KINO-HM551 Mini-ITX SBC panel consists of the following:  1 x 12 V adapter connector ...

  • Page 48: Adapter Connector

    KINO-HM551 Figure 3-23: KINO-HM551 External Peripheral Interface Connector 3.3.1 Adapter Connector CN Label: PWR1 CN Type: DC-IN CN Location: F igure 3-24 CN Pinouts: T able 3-24 Figure 3-24: 4-pin Power Mini-DIN Connection PIN NO. DESCRIPTION Table 3-24: Adapter Connector Pinouts...

  • Page 49: Audio Connector

    RJ-45 and USB port CN Location: F igure 3-26 CN Pinouts: T able 3-25 and Table 3-26 The KINO-HM551 is equipped with two built-in RJ-45 Ethernet controllers. Each controller can connect to the LAN through one RJ-45 LAN connector. Page 37...

  • Page 50: Hdmi Connector

    KINO-HM551 Figure 3-26: Ethernet Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION LAN_MDIP2 LAN_MDIP0 LAN_MDIN2 LAN_MDIN0 LAN_MDIP3 LAN_MDIP1 LAN_MDIN3 LAN_MDIN1 Table 3-25: LAN Connector Pinouts PIN NO. DESCRIPTION DATA- DATA+ Table 3-26: USB Connector Pinouts 3.3.4 HDMI Connector CN Label: HDMI1...

  • Page 51: Serial Port Db-9 Connector

    DB-9 Male CN Location: F igure 3-27 CN Pinouts: T able 3-28 The KINO-HM551 offers one external high speed UART port for a DB-9 female cable. Figure 3-27: Serial Port DB-9 Male Connector PIN NO. DESCRIPTION DATA CARRIER DETECT (DCD1)

  • Page 52: Vga And Dvi Connector

    KINO-HM551 PIN NO. DESCRIPTION TRANSMIT DATA (TXD1) DATA TERMINAL READY (DTR1) GND (GND1) DATA SET READY (DSR1) REQUEST TO SEND (RTS1) CLEAR TO SEND (CTS1) RING INDICATOR (RI1) Table 3-28: USB Connector Pinouts 3.3.6 VGA and DVI Connector CN Label:...

  • Page 53: Table 3-29: Vga Connector Pinouts

    KINO-HM551 PIN NO. DESCRIPTION PIN NO. DESCRIPTION DDCCLK Table 3-29: VGA Connector Pinouts The DVI (Digital Visual Interface) port connects to a monitor that supports DVI video input. PIN NO. DESCRIPTION PIN NO. DESCRIPTION DVI signal differential pair (2-) DVI signal differential pair (2+)

  • Page 54: Installation

    KINO-HM551 Chapter Installation Page 42...

  • Page 55: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the KINO-HM551. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the KINO-HM551 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 56: Installation Considerations

    KINO-HM551 is installed. All installation notices pertaining to the installation of the KINO-HM551 should be strictly adhered to. Failing to adhere to these precautions may lead to severe damage of the KINO-HM551 and injury to the person installing the motherboard. 4.2.1 Installation Notices...

  • Page 57: Unpacking

    4.3 Unpacking When the KINO-HM551 is unpacked, please check all the unpacking list items listed in Chapter 3 are indeed present. If any of the unpacking list items are not available please contact the KINO-HM551 vendor reseller/vendor where the KINO-HM551 was purchased or contact an IEI sales representative.

  • Page 58: Socket G1 Cpu Installation

    To install a socket G1 CPU onto the KINO-HM551, follow the steps below: WARNING: When handling the CPU, only hold it on the sides. DO NOT touch the pins at the bottom of the CPU.

  • Page 59: Figure 4-1: Make Sure The Cpu Socket Retention Screw Is Unlocked

    KINO-HM551 Figure 4-1: Make sure the CPU socket retention screw is unlocked Step 2: Inspect the CPU socket. Make sure there are no bent pins and make sure the socket contacts are free of foreign material. If any debris is found, remove it with compressed air.

  • Page 60: Socket G1 Cooling Kit Installation

    KINO-HM551 Figure 4-2: Lock the CPU Socket Retention Screw 4.4.2 Socket G1 Cooling Kit Installation An IEI Socket G1 CPU cooling kit can be purchased separately. (See Chapter 3) The cooling kit comprises a CPU heat sink and a cooling fan.

  • Page 61: Figure 4-3: Cooling Kit Support Bracket

    Make sure the hooks are properly secured to the bracket. To secure the cooling kit, close the top lever. Step 4: Connect the fan cable. Connect the cooling kit fan cable to the fan connector on the KINO-HM551. Carefully route the cable and avoid heat generating chips and fan blades. Page 49...

  • Page 62: So-Dimm Installation

    KINO-HM551 4.4.3 SO-DIMM Installation To install an SO-DIMM, please follow the steps below and refer to Figure 4-4. Figure 4-4: SO-DIMM Installation Step 1: Locate the SO-DIMM socket. Place the board on an anti-static mat. Step 2: Align the SO-DIMM with the socket. Align the notch on the memory with the notch on the memory socket.

  • Page 63: At/Atx Power Select Jumper Settings

    KINO-HM551 Before the KINO-HM551 is installed in the system, the jumpers must be set in accordance with the desired configuration. The jumpers on the KINO-HM551 are listed in T able 4-1. Description Type Label AT/ATX power select 3-pin header J_ATXCTL1...

  • Page 64: Clear Cmos Jumper

    Jumper Location: See Figure 4-7 If the KINO-HM551 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.

  • Page 65: Me Rtc Register Jumper

    KINO-HM551 Clear CMOS Description Short 1-2 Keep CMOS Setup Default Short 2-3 Clear CMOS Setup Table 4-3: Clear CMOS Jumper Settings The location of the clear CMOS jumper is shown in Figure 4-5 Figure 4-7: AT Auto Button Select Jumper Settings 4.5.3 ME RTC Register Jumper...

  • Page 66: Lvds Voltage Selection

    KINO-HM551 Figure 4-8: ME RTC Register Jumper Location 4.5.4 LVDS Voltage Selection WARNING: Incorrect voltages can destroy the LCD panel. Make sure to select a voltage that matches the voltage required by the LCD panel. Jumper Label: J_VLVDS1 Jumper Type:...

  • Page 67: Lvds Screen Resolution Selection

    KINO-HM551 Figure 4-9: LVDS Voltage Selection Jumper Locations 4.5.5 LVDS Screen Resolution Selection Jumper Label: J_PID1 Jumper Type: 8-pin header Jumper Settings: See Table 4-6 See Figure 4-10 Jumper Location: The LVDS Screen Resolution Selection jumper allows the LVDS screen voltage to be set.

  • Page 68: Serial Port Select Jumper

    KINO-HM551 Setting Description Short 1-2, 5-6, 7-8 2048 X 1536 (48bit) Table 4-6: LVDS Screen Resolution Jumper Settings Figure 4-10: LVDS Panel Resolution Jumper Pinout Locations 4.5.6 Serial Port Select Jumper Jumper Label: JP2, JP3 Jumper Type: 8-pin header Jumper Settings:...

  • Page 69: Chassis Installation

    The KINO-HM551 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow through the board surface.

  • Page 70: Dual Rs-232 Cable With Slot Bracket

    KINO-HM551 4.7.1 Dual RS-232 Cable with Slot Bracket The dual RS-232 cable slot connector consists of two connectors attached to two independent cables. Each cable is then attached to a D-sub 9 male connector that is mounted onto a slot. To install the dual RS-232 cable, please follow the steps below.

  • Page 71: Sata Drive Connection

    KINO-HM551 4.7.2 SATA Drive Connection The KINO-HM551 is shipped with two SATA drive cables. To connect the SATA drive to the connector, please follow the steps below. Step 1: Locate the SATA connector and the SATA power connector. The locations of the connectors are shown in Chapter 3.

  • Page 72: External Peripheral Interface Connection

    KINO-HM551 external peripheral interface connector making sure the pins are properly aligned. 4.8.1 Audio Connector The audio jacks on the external audio connector enable the KINO-HM551 to be connected to a stereo sound setup. To install the audio devices, follow the steps below. Step 1: Identify the audio plugs.

  • Page 73: Hdmi Display Device Connection

    4.8.2 HDMI Display Device Connection The KINO-HM551 has one female HDMI connector on the external peripheral interface panel. The HDMI connectors are connected to digital display devices. To connect a digital display device to the KINO-HM551, please follow the instructions below.

  • Page 74: Lan Connection

    Locate the RJ-45 connectors. The location of the LAN connectors is shown in Chapter 3. Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of the RJ-45 connectors on the KINO-HM551. See Figure 4-16. Page 62...

  • Page 75: Usb Connection

    KINO-HM551 Figure 4-16: LAN Connection Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN cable RJ-45 connector into the on-board RJ-45 connector. Step 0: 4.8.4 USB Connection The external USB Series "A" receptacle connectors provide easier and quicker access to external USB devices.

  • Page 76: Serial Device Connection

    KINO-HM551 Figure 4-17: USB Connector 4.8.5 Serial Device Connection The KINO-HM551 has a single female DB-9 connector on the external peripheral interface panel for a serial device. Follow the steps below to connect a serial device to the KINO-HM551. Step 1: Locate the DB-9 connector.

  • Page 77: Vga Monitor Connection

    4.8.6 VGA Monitor Connection The KINO-HM551 has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the KINO-HM551, please follow the instructions below.

  • Page 78: Dvi Display Device Connection

    Step 0: 4.8.7 DVI Display Device Connection The KINO-HM551 has a single female DVI-D connector on the external peripheral interface panel. The DVI-D connector is connected to a digital display device. To connect a digital display device to the KINO-HM551, please follow the instructions below.

  • Page 79: Software Installation

    Step 0: 4.9 Software Installation All the drivers for the KINO-HM551 are on the CD that came with the system. To install the drivers, please follow the steps below. Step 1: Insert the CD into a CD drive connected to the system.

  • Page 80: Figure 4-21: Introduction Screen

    KINO-HM551 Figure 4-21: Introduction Screen Step 3: Click KINO-HM551. Step 4: A new screen with a list of available drivers appears (Figure 4-22). Figure 4-22: Available Drivers Step 5: Install all of the necessary drivers in this menu. S t e p 0 :...

  • Page 81: Bios

    KINO-HM551 Chapter BIOS Page 69...

  • Page 82: Introduction

    KINO-HM551 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 83: Getting Help

    KINO-HM551 Function F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 key Load previous values. F3 key Load optimized defaults F4 key Save all the CMOS changes Esc key Main Menu – Quit and not save changes into CMOS...

  • Page 84: Main

    KINO-HM551 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main...

  • Page 85: Advanced

    KINO-HM551  System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year.  System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 86: Acpi Configuration

    KINO-HM551 5.3.1 ACPI Configuration The ACPI Configuration menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced ACPI Sleep State [S1 (CPU Stop Clock)] Select the highest API...

  • Page 87: Trusted Computing

    KINO-HM551 5.3.2 Trusted Computing Use the Trusted Computing menu (BIOS Menu 4) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM). Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced TPM Configuration Enables or Disables TPM...

  • Page 88: Bios Menu 5: Cpu Configuration

    KINO-HM551 Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced CPU Configuration Processor Type Intel(R) Core(TM) i7 EMT64 Supported ---------------------- : Select Screen Processor Speed 1596 MHz  : Select Item Processor Stepping 106e5 Microcode Revision Enter Select Processor Cores +/-: Change Opt.

  • Page 89: Sata Configuration

    KINO-HM551 5.3.4 SATA Configuration Use the SATA Configuration menu (BIOS Menu 6) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced SATA Configuration (1) IDE Mode. (2) AHCI Mode.

  • Page 90: Usb Configuration

    KINO-HM551  Enhanced Configures the Serial-ATA controller to be in enhanced mode. In this mode, IDE channels and SATA channels are separated. Some legacy OS do not support this mode.  Configures the Serial-ATA controller to be in compatible Compatible DEFAULT mode.

  • Page 91: Super Io Configuration

    KINO-HM551  Enabled All USB devices are enabled. EFAULT  Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded.

  • Page 92: H/W Monitor

    KINO-HM551 5.3.7 H/W Monitor The H/W Monitor menu (BIOS Menu 9) shows the operating temperature, fan speeds and system voltages. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced PC Health Status CPU Temperature :+53 C SYS Temperature...
  • Page 93 KINO-HM551  Manual Mode The fan spins at the speed set in: Manual Duty Cycle Setting (Min=0, Max=100) NOTE: CPU fan functions are supported only when using a 4-pin fan. When using a 3-pin fan, the functions are not supported.
  • Page 94 KINO-HM551  Third Boundary Temperature [40] WARNING: CPU failure can result if this value is set too high When the fan is off, it will only start when the temperature exceeds this setting.  Minimum Value: 0°C  Maximum Value: 127°C ...
  • Page 95 KINO-HM551  Manual Mode The fan spins at the speed set in: Manual Duty Cycle Setting (Min=0, Max=100) NOTE: SYS fan functions are supported only when using a 4-pin fan. When using a 3-pin fan, the functions are not supported.
  • Page 96 KINO-HM551  Third Boundary Temperature [40] WARNING: CPU failure can result if this value is set too high When the fan is off, it will only start when the temperature exceeds this setting.  Minimum Value: 0°C  Maximum Value: 127°C ...

  • Page 97: Serial Port Console Redirection

    KINO-HM551 5.3.7.1 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 10) allows the console redirection options to be configured. Console redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port.

  • Page 98: Console Redirection Settings

    KINO-HM551 5.3.7.2 Console Redirection Settings The Console Redirection Settings menu (BIOS Menu 11) allows the console redirection options to be configured. The option is active when Console Redirection option is enabled. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 99: Chipset

    KINO-HM551  9600 The transmission speed is 9600  The transmission speed is 19200 19200  38400 The transmission speed is 38400  57600 The transmission speed is 57600  115200 The transmission speed is 115200 EFAULT 5.4 Chipset Use the Chipset menu (BIOS Menu 12) to access the Northbridge and Southbridge...

  • Page 100: Northbridge Configuration

    KINO-HM551 5.4.1 Northbridge Configuration Use the Northbridge Chipset Configuration menu (BIOS Menu 13) to configure the Northbridge chipset. Aptio Setup Utility – Copyright (C) 2009 American Megatrends, Inc. Chipset Memory Information Select which graphics controller to use as the CPU Type Clarksfield primary boot device.

  • Page 101: Southbridge Configuration

    KINO-HM551 5.4.2 Southbridge Configuration Use the Southbridge Configuration menu (BIOS Menu 14) to configure the Southbridge chipset. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Chipset Auto Power Button Function [Disabled] When Auto Power Button Restore AC Power Loss...

  • Page 102: Intel Igd Swsci Opregion

    KINO-HM551  Enabled onboard High Definition Audio controller EFAULT automatically detected and enabled  Set Spread Spectrum [Disabled] Use the Set Spread Spectrum function option to reduce the EMI. Excess EMI is generated when the system clock generator pulses have extreme values. Spreading the pulse spectrum modulates changes in the extreme values from spikes to flat curves, thus reducing the EMI.
  • Page 103 KINO-HM551  DVMT/FIXED Memory [Maximum] Use the DVMT/FIXED Memory option to select memory size used by the Internal Graphics Device. Configuration options are listed below.  128 MB  256 MB  Maximum EFAULT  Active LFP [Enable LVDS] Use the Active LFP option to enable the LVDS connector. Configuration options are listed below.

  • Page 104: Boot

    KINO-HM551  Panel ID Resolution Displays the panel resolution detected by the BIOS. 5.5 Boot Use the Boot menu (BIOS Menu 16) to configure system boot options. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset...
  • Page 105 KINO-HM551  Does not enable the keyboard Number Lock automatically. To use the 10-keys on the keyboard, press the Number Lock key located on the upper left-hand corner of the 10-key pad. The Number Lock LED on the keyboard lights up when the Number Lock is engaged.

  • Page 106: Security

    KINO-HM551 5.6 Security Use the Security menu (BIOS Menu 17) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Password Description Set Setup Administrator Password If ONLY the Administrator’s password is set,...

  • Page 107: Exit

    KINO-HM551 5.7 Exit Use the Exit menu (BIOS Menu 18) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit...
  • Page 108 KINO-HM551  Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults.  Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options.

  • Page 109: Abios Menu Options

    KINO-HM551 Appendix BIOS Menu Options Page 97...
  • Page 110 KINO-HM551 　 BIOS Information .........................72 　 Memory Information ......................72 　 System Date [xx/xx/xx] ......................73 　 System Time [xx:xx:xx] .......................73 　 ACPI Sleep State [S1 (CPU Stop Clock)] ................74 　 TPM Support [Disable] ......................75 　 SATA Mode [IDE Mode] .......................77 　...
  • Page 111 KINO-HM551 　 Realtek 8111E PXE OpROM [Disabled]................93 　 Administrator Password .....................94 　 User Password ........................94 　 Set User Password ......................94 　 Save Changes and Reset ....................95 　 Discard Changes and Reset ....................95 　 Restore Defaults ........................95 　 Save as User Defaults ......................96 　...

  • Page 112: B Terminology

    KINO-HM551 Appendix Terminology Page 100...
  • Page 113 KINO-HM551 AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
  • Page 114 KINO-HM551 computer is usually a male DE-9 connector. The Digital-to-Analog Converter (DAC) converts digital signals to analog signals. Double Data Rate refers to a data bus transferring data on both the rising and falling edges of the clock signal. Direct Memory Access (DMA) enables some peripheral devices to bypass the system processor and communicate directly with the system memory.
  • Page 115 KINO-HM551 PCIe PCI Express (PCIe) is a communications bus that uses dual data lines for full-duplex (two-way) serial (point-to-point) communications between the SBC components and/or expansion cards and the SBC chipsets. Each line has a 2.5 Gbps data transmission rate and a 250 MBps sustained data transfer rate.
  • Page 116 KINO-HM551 USB 2.0 supports 480Mbps data transfer rates. The Video Graphics Array (VGA) is a graphics display system developed by IBM. Page 104...

  • Page 117: C Digital I/O Interface

    KINO-HM551 Appendix Digital I/O Interface Page 105...

  • Page 118: Introduction

    KINO-HM551 C.1 Introduction The DIO connector on the KINO-HM551 is interfaced to GPIO ports on the Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.

  • Page 119: Assembly Language Sample 1

    KINO-HM551 C.2 Assembly Language Sample 1 AX, 6F08H ;setting the digital port as input AL low byte = value AH – 6FH Sub-function: AL – 9 :Set the digital port as OUTPUT :Digital I/O input value C.3 Assembly Language Sample 2 AX, 6F09H ;setting the digital port as output...

  • Page 120: D Watchdog Timer

    KINO-HM551 Appendix Watchdog Timer Page 108...
  • Page 121 KINO-HM551 NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 122 KINO-HM551 NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30H ;time-out value is 48 seconds ; ADD THE APPLICATION PROGRAM HERE EXIT_AP, 1 ;is the application over?

  • Page 123: E Hazardous Materials Disclosure

    KINO-HM551 Appendix Hazardous Materials Disclosure Page 111...

  • Page 124: Hazardous Material Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    KINO-HM551 E.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 125 KINO-HM551 Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply Assemblies Battery...
  • Page 126 KINO-HM551 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

Table of Contents
