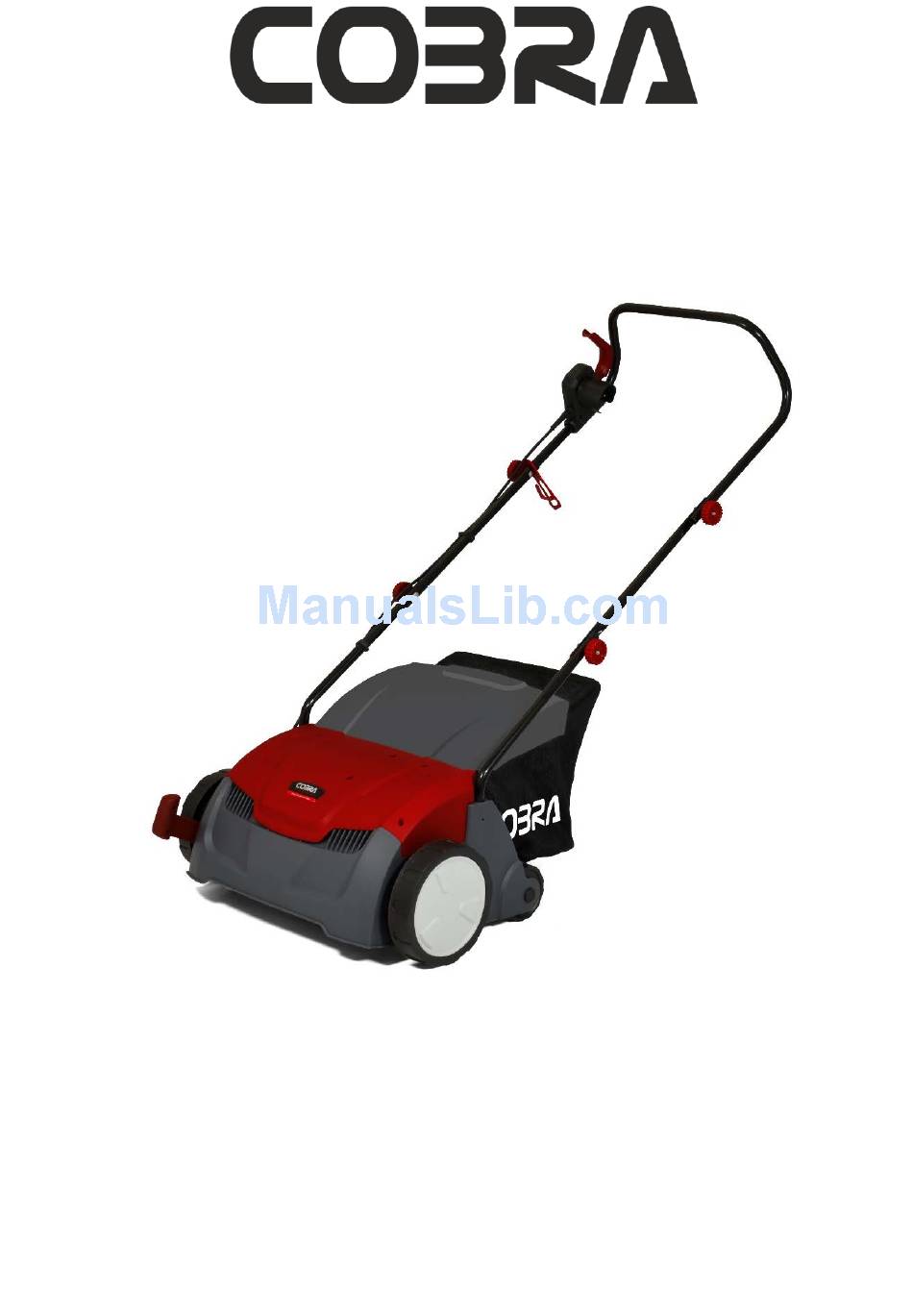

S32E 2 in 1 Scarifier and Raker
OPERATOR'S MANUAL
Before use please read & understand this manual, paying
particular attention to the safety instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S32E and is the answer not in the manual?

Questions and answers

Related Manuals for Cobra S32E

Summary of Contents for Cobra S32E

  • Page 1 S32E 2 in 1 Scarifier and Raker OPERATOR’S MANUAL Before use please read & understand this manual, paying particular attention to the safety instructions.

  • Page 3: General Safety Instructions

    SAFETY INSTRUCTIONS Warning! Read these instructions carefully before operating this machine. Make sure that you are familiar with the controls and properly operate the machine. Following these instructions, you can reduce the risk of fire, electric shock and personal injury. GENERAL SAFETY INSTRUCTIONS Read all safety warnings and all instructions.
  • Page 4 Operation 1. Operate the product only in daylight or in good artificial light. 2. Avoid operating the product in wet grass. If you must use the product in wet grass, take additional precautions to avoid slipping. 3. Always be sure of your footing on slopes. 4.

  • Page 5: Vibration And Noise Reduction

    Vibration and noise reduction To reduce the impact of noise and vibration emissions, limit the time of operation, use low-vibration and low-noise operating modes and wear personal protection equipment. Take the following points into account to minimize the vibration and noise exposure risks: 1.
  • Page 6 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.

  • Page 7: Double Insulation

    Double insulation: The tool is double insulated. This means that all the external metal parts are electrically insulated from the mains power supply. This is done by placing insulation barriers between the electrical and mechanical components making it unnecessary for the tool to be earthed. Important note: Be sure the supply is the same as the voltage given on the rating plate.
  • Page 8 Inspect the area where the product is to be used and remove all objects which could be thrown by the machine. If you find objects while operating stop the motor and remove them. Beware of sharp tines. Tines continue to rotate after the motor is switched off. Remove the plug from the power supply before maintenance work or if the power cord is damaged.
  • Page 9 Handle Cord strain relief Upper handle bar Mounting set (x4) for handle bar 4a. Knob 4b. Bolt Middle handle bar Lower handle bar Screw (x2) Support 26/02/2013 v1...

  • Page 10: Technical Data

    Air vents Depth/Height adjustment lever Wheel Castor Discharge opening Deflector guard 15. Grass catcher 15a. Bag 15b. Frame Cable clip (x2) Switch box Lock-off button Start/stop lever Power cable Cutting device (scarifying cylinder) 22. Mounting set for cutting device (x4) 22a.
  • Page 11 The declared vibration value has been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration value may also be used in a preliminary assessment of exposure. WARNING! The vibration emission value during actual use of the tool can differ from the declared value depending on the ways in which the tool is used.

  • Page 12: Intended Use

    OPERATION INSTRUCTIONS WARNING! Read all instructions carefully. Do not connect the scarifier to the mains supply power before it is completely assembled. Always wear gloves during assembly. 1. INTENDED USE 1). This scarifier and raker is designated with a rated input of 1300 Watts.
  • Page 13 b). Align the middle handle bars (5) to the lower ones (6). Make sure the holes in the handle bars (5, 6) correspond and secure them with one mounting set (4) on each side. (See Fig. 2). Fig. 2 c). Slide the cord strain relief (2) onto the upper handle bar (3). (See Fig.

  • Page 14: Grass Catcher Assembly

    e). Fix the cord with the cord clips (16) to the handle bar (Fig. 5). 2). GRASS CATCHER ASSEMBLY WARNING! Do not attempt to use the product without the grass catcher attached as objects may be thrown. WARNING! The product must be switched off and the cutting device must have stopped rotating before you attach or empty the grass catcher! Fig.

  • Page 15: Cutting Depth Adjustment

    4. CUTTING DEPTH ADJUSTMENT WARNING! Always switch the product off and remove the mains plug from the power supply before making any adjustments. Adjust the depth according to the needs of your lawn. The most suitable depth depends on the kind of lawn and the actual height of the grass.

  • Page 16: Power Connection

    5. POWER CONNECTION WARNING! Before operating the scarifier, ensure that the fastening elements are undamaged. In order to reduce the risk of injuries, always switch off the motor and pull out the mains plug before working on the machine. The product can be connected to any socket (with 230-240V alternating current).

  • Page 17: Overload Protection

    7. OVERLOAD PROTECTION The overload protection will be activated in the following circumstances: 1). A build up of scarified material around the cutting device. 2). If the material scarified is too large and causes the motor to work beyond its capacity. 3).
  • Page 18 9). Select the suitable working depth for the actual grass height. 10). Do not work with this product on a wet lawn because the grass may stick to the underside of the product, preventing the proper discharge of collected material, and could also cause you to slip and fall.

  • Page 19: Maintenance

    MAINTENANCE WARNING! Before carrying out any repairs or servicing work, you must ensure that the product has been disconnected from the power supply. Repairs and maintenance work other than those described within this instruction manual may be performed only by an authorised service agent.
  • Page 20 2. REPLACING/CHANGING THE CUTTING DEVICE WARNING! Always switch the product off, disconnect it from power supply and let it cool down before changing/replacing the cutting device! WARNING! Always use the correct cutting device according to the intended use! Observe the technical requirements of this product (see the Technical specifications scarifying cylinder with blades section) when purchasing and using cutting devices!

  • Page 21: After Use

    3. AFTER USE 1). Switch the product off, disconnect it from the power supply and let it cool down. 2). Check, clean and store the product as described below. 4. GRASS CATCHER 1). Inspect the grass catcher (15) before each use. Do not use it if you find any damage.
  • Page 22 GUARANTEE This Cobra product carries a guarantee of 12 months. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased. This guarantee specifically excludes losses caused due to:...

  • Page 23: Ec Declaration Of Conformity

    We, the importer Henton and Chattell Ltd. Declare that the product Designation: 1300w 2 in 1 Scarifier and Raker Model: S32E (6702) Complies with the following directives: 2006/42/EC / Annex 1 - Machinery Directive 2006/95/EC - Low Voltage Directive 2004/108/EC - Electromagnetic Compatibility Directive...
