Installation

Connecting cables - 2500/6000

3
4
4. Camera cable
Connect the camera and the camera cable.
5a. ISDN cables - using BRI interface
Connect the ISDN cables to the ISDN sockets (S/T-interface) provided by the service provider. Your main number
will be the number associated with the socket to which ISDN cable number 1 is connected.
5b. ISDN cable - using the PRI interface (6000/8000 only)
If you are using the PRI interface, the E1/T1 cable should be connected to a CSU (Channel Service Unit). You will need
a CSU between your system and the PRI line from your network provider, see Appendix 3.
5c. Other networks - using the External Network interface
If you are using other networks, please refer to 'External Network Settings' and 'Appendix 2'.
6. LAN cable
• To use the system on LAN, connect a LAN cable from the 'Ethernet' connector on the system to your LAN.
TANDBERG Videoconferencing System
1
6
5
2
14

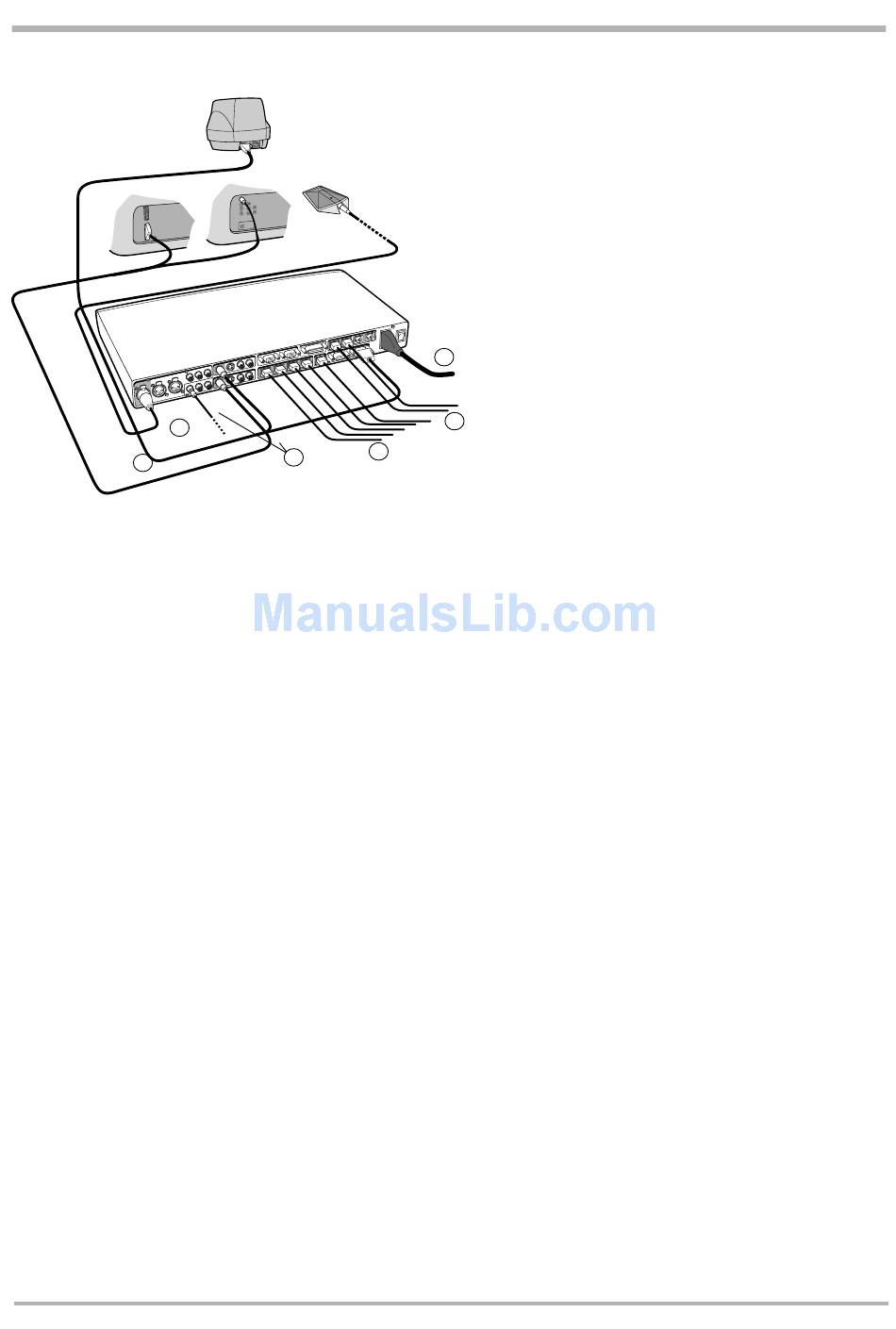

All cables needed in standard configuration are
connected to the codec. Connect these cables to the
other parts of the system:
1. Power cable
Connect the system power cable and monitor power
cable to an electrical distribution socket.
2. Monitor cables
Connect the Scart/S-video cable to the input on your
monitor (see drawing). RCA/S-Video: Connect the
audio cable terminating in two RCA connectors to your
monitor (not needed when the Natural Audio module is
a part of the system).
3. Microphone cable
Connect the microphone cable to the microphone.
