[1] GENERAL

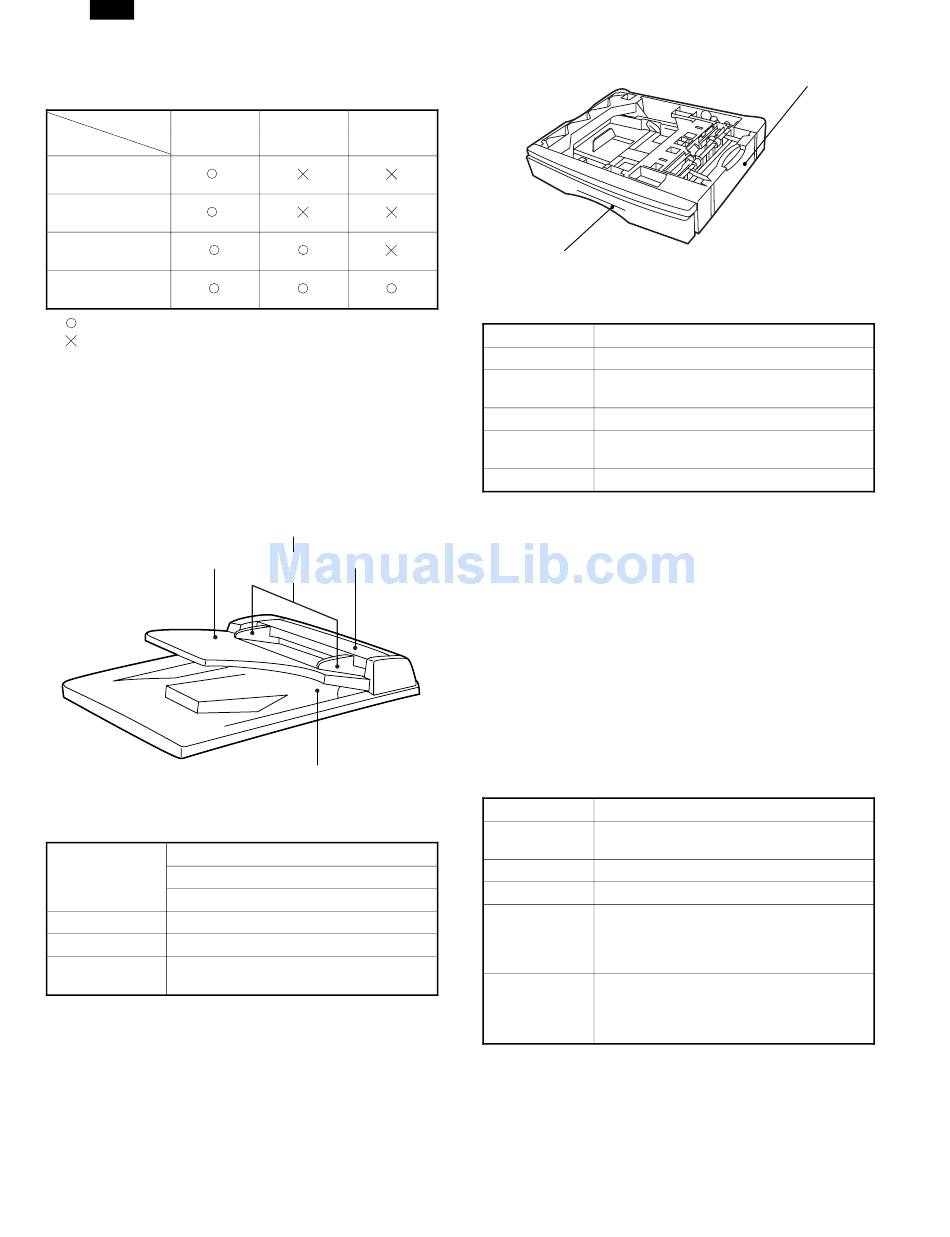

1. List of available options
Model
AR-150
Option
AR-SP3
(SPF)
AR-FX3
(FAX)
AR-DE9
(1 TRAY UNIT)
AR-PG1
(GDI + USB Kit)
: Option available
: Option not available
∗1: The option setup is provided in the models for Europe.
FAX and SPF are incompatible.
2. Outline and specifications of each op-
tion
A. AR-SP3 (Single Pass Feeder)
The single pass feeder (SPF) holds up to 30 originals for automatic
feeding.
Part names
Document feeder tray
Specifications
Weight: 14 to 23 lbs.
Acceptable
Size:
originals
Capacity: Up to 30 sheets
Power supply Drawn from the copier
Weight Approx.6.6 lbs.(3kg)
19.6" (W) × 15" (D) × 4.3" (H)
Dimensions
(498 mm (W) × 380 mm (D) × 110 mm (H))
B AR-DE9 (250 - Sheet Paper Feed Unit)
The paper feed unit provides the convenience of increased paper
capacity for the copier and a greater choice of paper sizes readily avail-
able for copying.
AR-155 AR-F151
∗1
∗1
Original guides
Feeding roller cover
SPF exit area
5-1/2" × 8-1/2" to 8-1/2" × 14"
Part names
∗1
Tray
Specifications
Copy paper size
Paper weight
Paper capacity
Weight
Dimensions
Power supply
C. AR-PG1 (GDI + USB Expansion Kit)
(1) MAIN FEATURES
a. Printing from Windows 3.1x, Windows 95, Windows 98*, and
Windows NT 4.0 applications
∗ USB is supported on Windows 98 pre-installed only.
G
High-speed and high-quality printing can be performed from Win-
dows 3.1x, Windows 95, Windows 98, and Windows NT 4.0 ap-
plications through the SHARP GDI (Graphics Device Interface)
system.
G
Since print data is processed in the computer, waiting time
during printing is short.
b. High-speed printing at 8 pages/min.
G
First print time is approximately 9.6 seconds.
(Excluding the communication time with PC)
G
Print speed is 8 pages/min., when printing multiple pages.
(2) SPECIFICATIONS
Resolution
Page description
language
Page orientation
First print time
Print speed
(multiple pages)
Interface port
∗ First print time may differ depending on operating conditions,
such as power-supply voltage and room temperature.
Also the time may differ depending on data quantity to be printed
and applications.
D. AR-FX3 (Facsimile Expansion Kit)
Refer to the AR-F151 Service Manual.
1 – 1
Side cover
5-1/2" × 8-1/2" to 8-1/2" × 14"
15 lbs. to 21 lbs.
One paper tray with capacity for 250 sheets
of 21 lb. bond paper
Approx. 6.6 lbs. (3 kg)
19.6" (W) × 15.6" (D) × 3.5" (H)
(498 mm (W) × 395 mm (D) × 88 mm (H))
Drawn from the copier
600 or 300 can be selected.
SHARP GDI (Parallel)
SHARP GDI, USB (USB)
Portrait or landscape
Approx. 9.6 seconds*
Approx. 8 pages per minute (letter or A4)
(Parallel)
Approx. 6 pages per minute (letter or A4)
(USB)
Bi-directional parallel interface
(IEEE 1284 compliant) 2 m (6 feet) Max.
USB (B-type) interface (twisted pair cable)
2 m (6 feet) Max.
