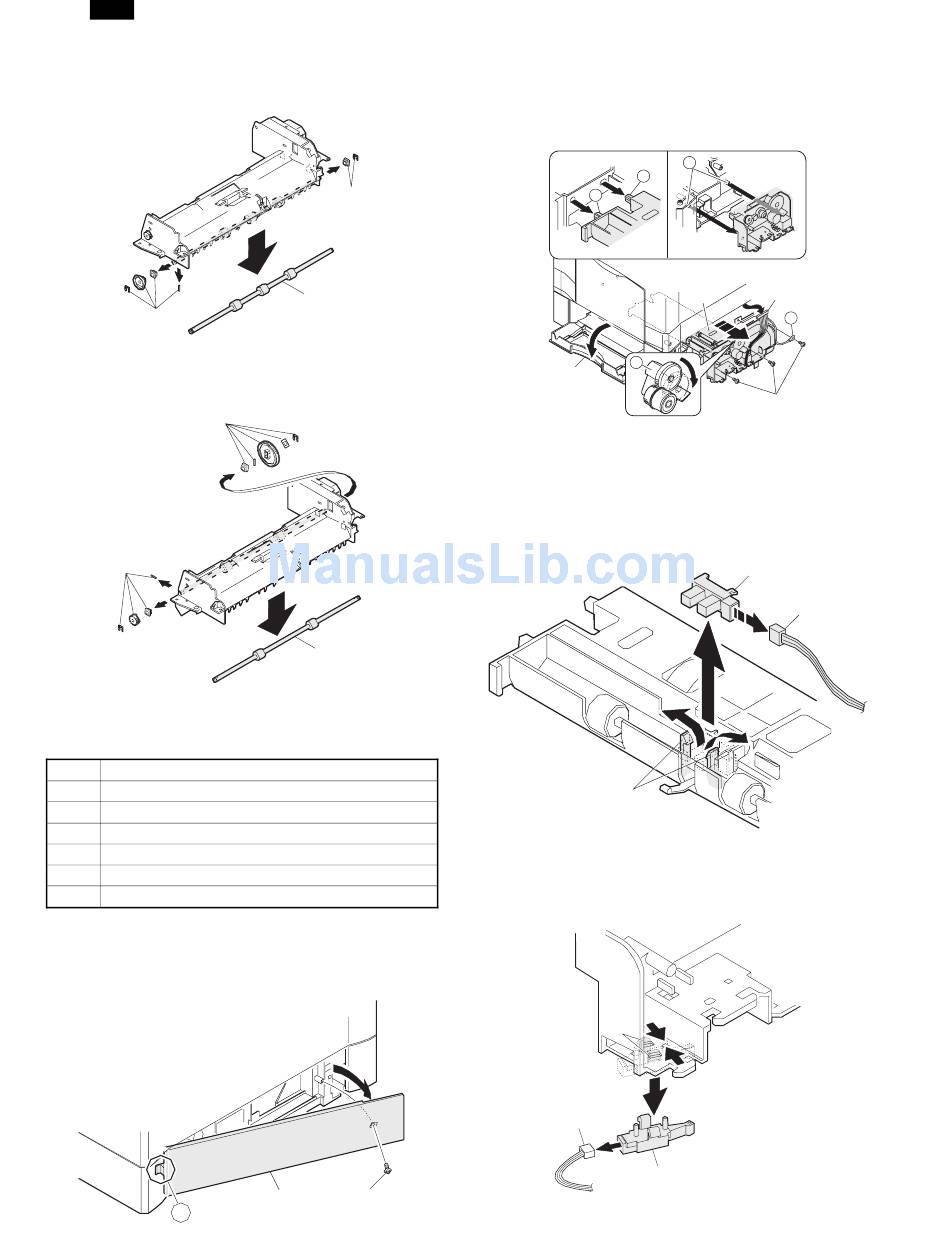

Sharp AR-SP3 (SPF) Service Manual page 18

AR-SP3
H. PS roller
1) Remove the parts.
2) Remove the PS roller.
1
I. Paper exit roller
1) Remove the parts.
2) Remove the paper exit roller.
1
1
[4] AR-DE9
1. Disassembly and assembly
No. Part name Ref.
A Paper sensor
B Cassette detection SW
C Paper feed solenoid
D Transport roller
E Paper feed clutch
F 2nd paper feed roller
Paper feed unit removal
1) Remove the screw.
2) Remove the rear cover.
*
When installing, engage the pawl and install the unit.
A
1
2
2
1
2
4 – 1
1) Open the right cabinet.
2) Remove three screws.
3) Remove one connector.
4) While tilting down the 2nd connection arm A, pull and remove the
paper feed unit toward you.
D
D
A
1
*
When installing, securely insert two bosses C on the machine side
and two bosses D on the paper feed unit side. Be sure to fix the
earth B.
*
Insert the 2nd page feed.
A. Paper sensor
1) Remove the pawl.
2) Remove the paper sensor.
3) Remove the harness.
1
B. Cassette detection SW
1) Remove the pawl.
2) Remove the cassette detection SW.
3) Remove the harness.
1
3
2
C
3
4
B
2
2
3
