Summary of Contents for Hyundai H- CDM8059

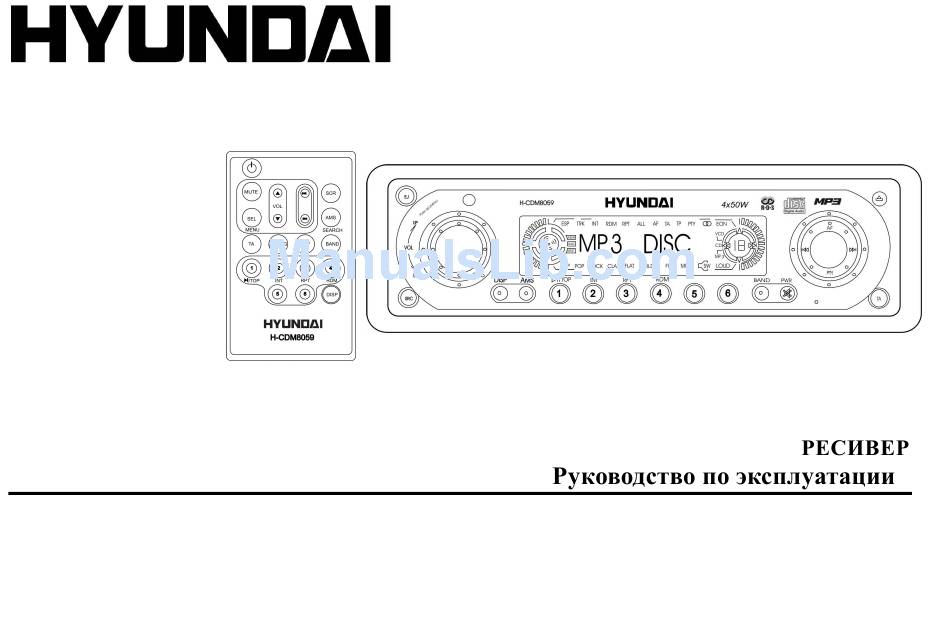

  • Page 1 H- CDM8059 CD/MP3-RECEIVER CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ..................................2 Important safeguards .................................

  • Page 3: Important Safeguards

    Important safeguards · Read carefully through this manual to familiarize yourself with this high-quality sound system. · Use only in a 12-volt DC negative-ground electrical system. · Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. · When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Installation/Connections

    Installation/Connections First complete the electrical connections, and then check them for correctness. Installation opening This unit can be install in any dashboard having an opening as shown below. The dashboard should be 4.75 5.56 mm thick in order to be able to support the unit. 1.
  • Page 5 Electrical connections...

  • Page 6: Panel Controls

    Panel controls 1. Disc eject. 2. Rotate the Multi-Control to adjust volume level. Press to select VOL/BAS/TRE/BAL/FAD, press- or + to adjust level. Press more than 2 seconds to Menu mode. MP3 track / file / character search. ESP 12s/45s 3.

  • Page 7: Remote Control

    11. Power on: press any button on the panel except and OPEN button to turn on the unit. Press more than 2 seconds to power off. 12. Band switch: FM1 – FM2 – FM3 – AM1 –AM2. 13. MP3 track 10 down. 14.
  • Page 8 AMS: - Radio Preset scan. - Radio Auto Preset. 10. Band Switch: FM1 – FM2 – FM3 –AM1 –AM2. 11. Program Type. 12. Track Random Play. 13. Track Repeat Play. 14. Display switch. 15. Volume. 16. Radio Tune / Track Seek. Inserting the batteries in the remote control 1.

  • Page 9: Button Tips

    Button tips Disc Load / Eject Press to slide down the panel. Load: Insert the disc into the slot. Press close the panel. Eject: Press to eject the disc. Close the panel. Note: · Do not close the panel before disc is taken out. ·...

  • Page 10: Menu Function

    Menu function Press SEL / MENU button more than 2 seconds to enter menu mode, then each press changes the mode as follows: TA mode MASK mode ESP mode DSP mode LOUD ON / OFF mode BEEP ON / OFF SEEK1/2 mode (only in tuner mode) ST / MO mode...
  • Page 11 DSP mode Rotate the Multi-Control to choose DSP sound effect. ROCK CLASSIC FLAT DSP OFF LOUD mode Rotate the Multi-Control to choose loud on or off. BEEP ON/OFF mode Rotate the Multi-Control to choose button beep sound on or off. SEEK 1/2 mode Rotate the Multi-Control to choose radio seek mode 1 or 2.

  • Page 12: Mp3 Play Back

    MP3 Play back While playing MP3 disc, the folder/file name and ID3 TAG (song title, album and artist) can entirely scroll displayed on the LCD display. Elapsed playing time and Track number Folder name and number File name and number Song title Album title Artist...

  • Page 13: Mp3 Overview

    MP3 Overview Notes on MP3 · MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. · This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. · The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.

  • Page 14: Anti-Theft System

    · Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required. · Note that the unit may not play Tracks in the order that you wrote them to the disc. Anti-Theft System This unit is equipped with a slide-down detachable and mask panel.

  • Page 15: Handling Compact Discs

    Handling compact discs · Dirty, scratched or warped discs may cause skip ping or noise. · Handle the disc only by the edges. To keep clean do not touch its surface. · Discs should be stored in their cases after use to avoid scratches. ·...

  • Page 16: Components

    Components 1. Mounting collar 1 pc. 2. Tapping screws M5x6 mm 4 pcs. M4x6 mm 4 pcs. 3. Mounting bolt (50 mm) 1 pc. 4. Wire connector 1 pc. 5. Removable faceplate case 1 pc. 6. Trim plate 1 pc. 7.

  • Page 17: Troubleshooting Guide

    Troubleshooting guide General Car's engine switch is not on. Turn your car's key to ACC or ON. No power or no sound Cable is not correctly connected. Check connection. Fuse is burnt. Replace fuse. Check volume or mute on / off. Disc Disc is upside down.

  • Page 18: Specification

    Specification General. Power supply 12V DC (11V-16V) Test voltage 14.4V, negative ground Maximum power output: 50Wx4 channels Rated power output (RMS): 25Wx4 channels (4 10% T.H.D.) Suitable speaker impedance: 4-8 ohm Pre-Amp output voltage: 2.0V(CD play mode: 1KHz, 0 dB, 10K load) Fuse: Dimensions (W x H x D) / Weight: 178 50 166 mm / 1.7kg...
  • Page 19 ..................................19 ..............................20 ..............................21 ............................. 23 ..........................25 ................................. 27 ................................28 3..............................30 3 ..................................31 ..............................33 ............................34 ................................... 35 .................................. 35 ........................ 36 ............................37...
  • Page 20 · · 12 . · · · · · · · · · · ·...
  • Page 21 4,75 5,56...
  • Page 23 VOL/BAS/TRE/BAL/FAD, ESP 12s/45s AF ( TA (...
  • Page 24 PTY ( OPEN, : FM1 – FM2 – FM3 – AM1 – AM2. 3 10 3 +10 19. AMS:...
  • Page 25 VOL/BAS/TRE/BAL/FAD, Volume REG ( Aux ( 9. AMS: : FM1 – FM2 – FM3 – AM1 – AM2.
  • Page 26 « + » ·...
  • Page 27 · · AMS: 1 6.
  • Page 28 DISP, MASK LOUD ON/OFF BEEP ON/OFF SEEK ½ ( ST/MO LOCAL/DX VOL. TA ALARM TA SEEK. , TA/TP MENU SELECT TA SEEK. TA ALARM: TA/TP TA SEEK: TA SEEK.
  • Page 29 MASK MASK DPI ASK ALL. MASK DPI: MASK ALL: NO RDS DSP: POP ROCK CLASSIC FLAT DSP OFF LOUD BEEP ON/OFF SEEK ½ SEEK 1: SEEK 2: LO/DX...
  • Page 30 ST/MO VOL LAST / ADJUST VOL LAST: VOL ADJ, ID3 TAG ( TRACK SCH . 001 . 100, 100,...
  • Page 31 · FILE SCH . · MPEG 3 · CD-ROM, CD-R CD-RW. · ISO 9660. · .mp3 . · .mp3 , ·...
  • Page 32 · 256. · · · VBR, . VBR: CD-R CD-RW, MP3. · 44,1 · · ISO 9660, · CD-R · MP3 CD-R CD-RW · · CD-R CD-RW CD-R CD-RW · 1. ID3TAG. ·...
  • Page 33 POWER...
  • Page 34 · · · · · · · · · ·...
  • Page 36 30 , NO FILE: ERR-7: ERR-10: ERR-11: ERR-3: ERR-4: RESET...
  • Page 37 12 , 16 ) 14,4 , (RMS): (4 10 % .D.) 2.0 ( CD: 1 , 10 178 50 166 / 1,8 ESP: CD (40 ), MP3 (120 ) 87,5 108,0 / 55 IF: 50 / 70 522-1620 (S/N = 20 - 20 >...
