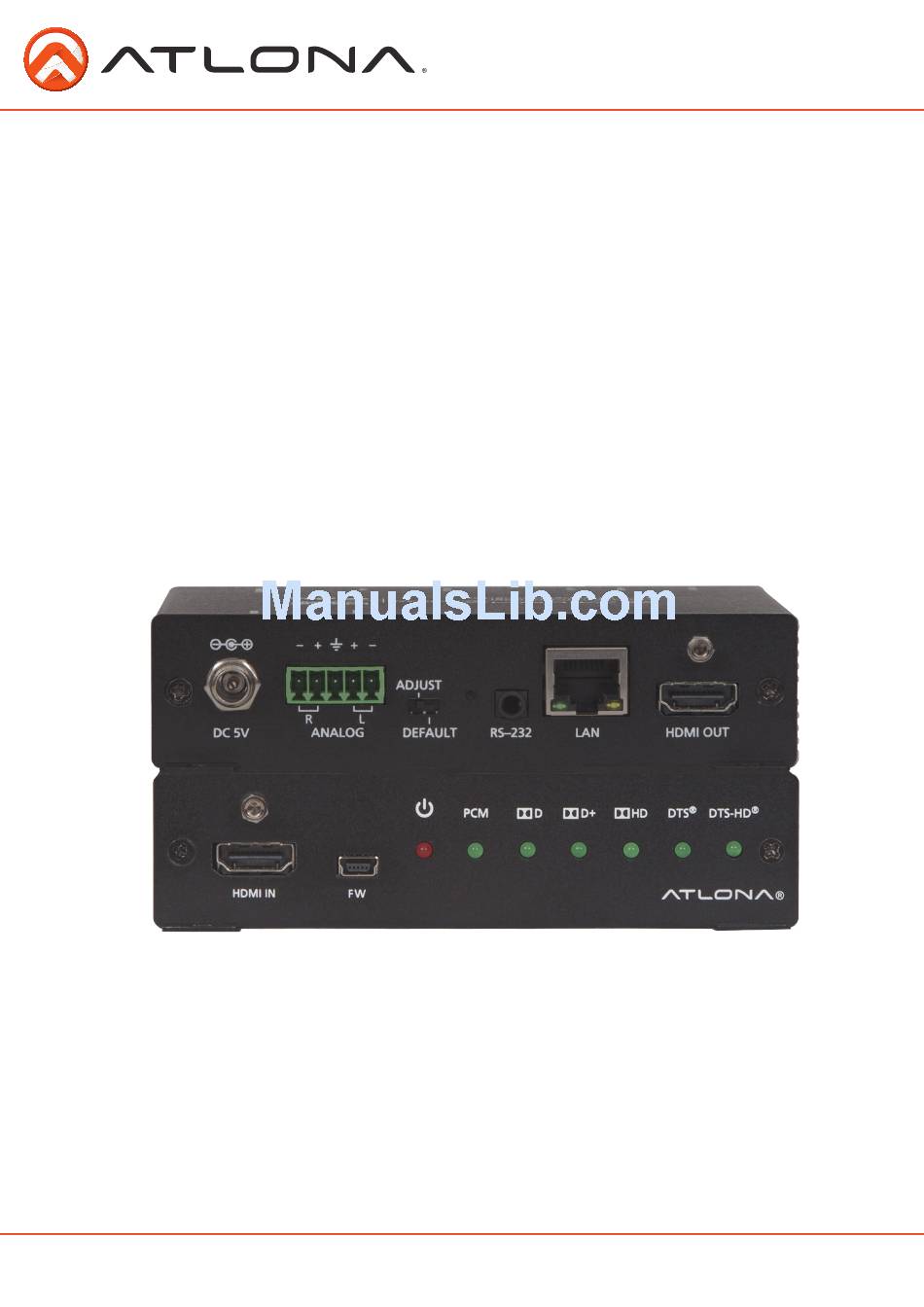

- Page 1 4K/UHD HDMI Multi-Channel Digital to Two-Channel Balanced Analog Audio Converter AT-UHD-M2C-BAL User Manual Please check http://www.atlona.com/UHD-M2C-BAL.html for the most recent firmware update or manual. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
................ 5 6. WebGUI ................ 6-10 7. RS-232 ................ 11-13 8. Specifications ................ 14 8. Safety Information ................ 15 9. Warranty ................ 16 10. Atlona Product Registration ................ 17-18 11. Trademark Acknowledgement ................ 18 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction The Atlona 4K HDMI Multi-channel to Two Channel Balanced Audio Converter accepts up to Dolby TrueHD and DTS-HD Master Audio then down converts it to two channel or one channel +4dBu balanced audio. With built in RS-232, TCP/IP, and GUI control for audio mode switching, volume, bass, and treble adjustment, the M2C-BAL provides an easy interface to control systems. -

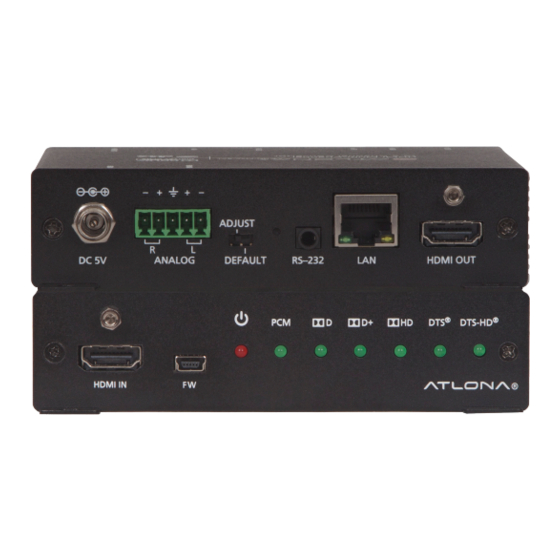

Page 4: Panel Description
3.5mm pin out - Tip: 2 (TX), Ring: 3(RX), Sleeve: 5 (Ground) 5. LAN port: Connect network switch or router to this port for TCP/IP or WebGUI control 6. HDMI out port: Connect to an HDMI display, extender, or switcher Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Analog Audio
BALANCED UNBALANCED Important! With unbalanced connections a jumper is needed between ground and negative to reduce noise Note: Set the unbalanced output level in the webGUI to reduce or prevent distortion Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 6 RS-232 commands. TCP/IP WebGUI Atlona has created an easy to use WebGUI for initial setup and later changes to the configuration of the M2C-BAL. To begin, plug a LAN cable into the LAN port of the M2C-BAL and your network, then type the IP...
-
Page 7: Webgui
If your control system supports password protection, you can turn login mode on. The GUI always requires a password. Note: The username and password used in IP Login Mode will be the same login information as the WebGUI. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 8 6. Volume - Set output volume level Range from -80 to 6 7. Bass - Set bass boost or cut Range from -15 to 15 8. Treble - Set treble boost or cut Range from -15 to 15 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 9 Note: User information will display for the admin only. Up to 3 users other than admin can be added. Note: Only the admin password can be changed. The username will always remain “root”. If the admin password is lost the system must be returned to factory settings and setup repeated. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 10 M2C-BAL. Note: When HDCP reports as non-compliant, only user created content is transmitted. Protected content from all sources (ex. BluRay, AppleTV, etc) is blocked. This function is controllable through RS-232 and TCP/IP. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 11 Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None. (see picture C) Set up is done and any hyperterminal program may be used to control the M2C-BAL. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 12 Version OSD ex. Version x.x.xx firmware [MCU] OSD menu [OSD] DSP [DSP] FPGA [FPGA] Type AT-UHD-M2C-BAL Displays the model information Mreset Mreset Reset device to manufacture default HDCPSet1 X HDCPSet1 X Set HDCP reporting mode of the HDMI input Ex.
- Page 13 IPQuit Logs out of TCP/IP Connection IPAddUser X Y TCP/IP user was added Adds a user for TCP/IP control Ex. IPAddUser Atlona 1234 X= user and Y= Password IPAddUser sta username password Displays a list of users and passwords username password...
-
Page 14: Connection Diagram
HDMI OUT ZIGBEE 12V DC FACTORY HDMI COMPONENT WIFI 1 DIGITAL eSATA RESTORE COAX OUT RELAYS WIFI 2 SERIAL 1 AUDIO IN CONTACTS IR OUT VIDEO OUT AUDIO OUT ETHERNET SERIAL 2 control system Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 15: Specifications
Dimension H x W x D 30 x 125 x 110 (mm) 1.18 x 4.92 x 4.33 (inch) Weight Device 0.28 kg 0.61 lbs Certification Power Supply CE, FCC, cULus, RCM Product CE, FCC Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 16: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. - Page 17 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
-
Page 18: Atlona Product Registration
Atlona’s authorized distributors, dealers and resellers can be found at www.atlona.com . Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.
