Summary of Contents for Legacy Legacy LDVD84

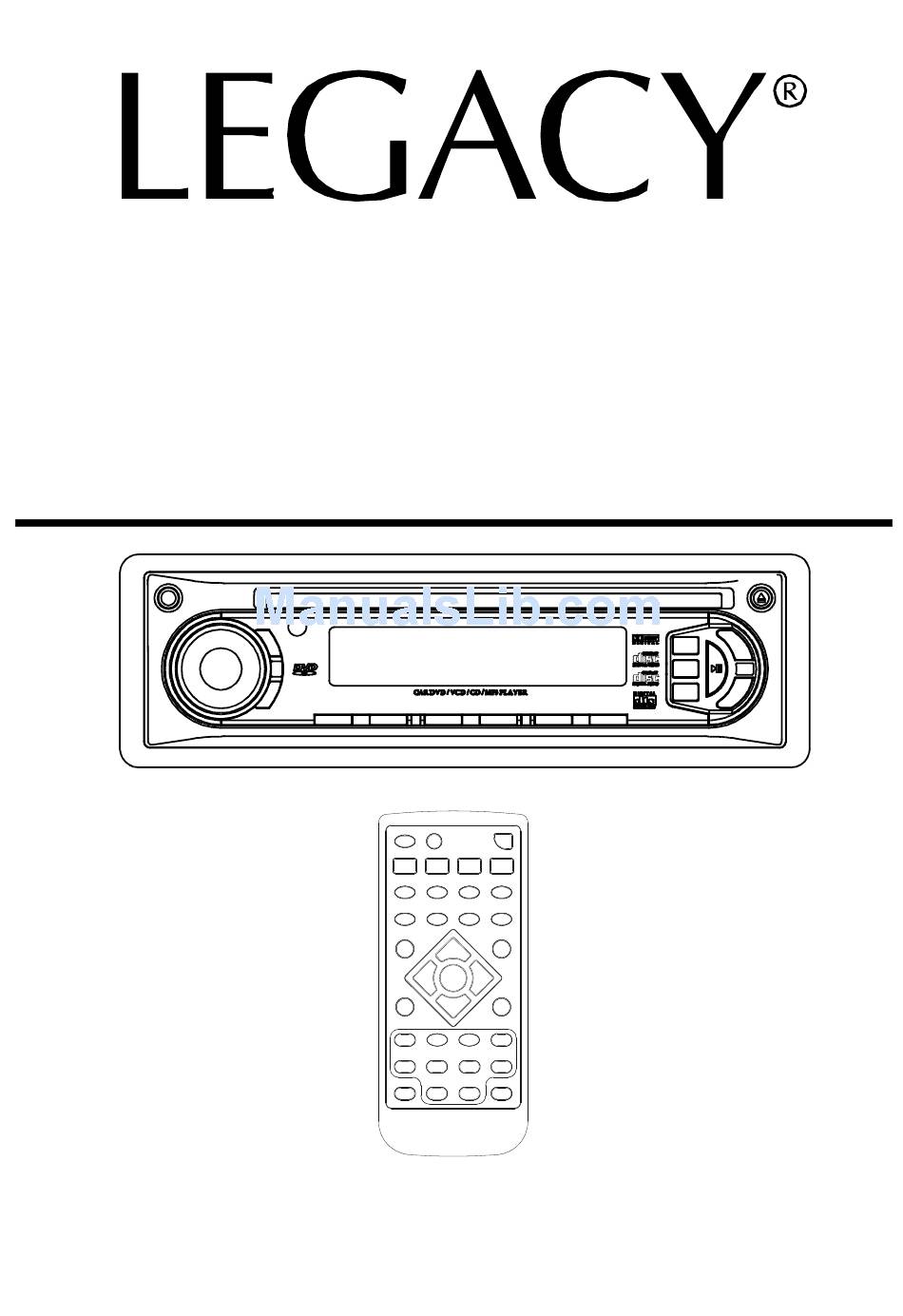

- Page 1 LDVD 84 OWNER's MANUAL Mobile Video System DVD/VCD/CD/MP3 PLAYER WITH MANUALLY TUNED SYNTHESIZER STEREO RADIO...
- Page 3 CAUTION: THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD PLAYER CORRECTLY AS INSTRUCTED. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN...
- Page 4 Disc formats supported by this player 12 cm disc V I D E O (Single-sided disc only) Video CD 12 cm disc 12 cm disc 12 cm disc Discs which cannot be played with this player DVD-ROM DVD-R/DVD-RAM CD-G Handling and Cleaning Dirt, dust, scratches and warping disc will cause misoperation.
- Page 5 Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. Use only the parts included with the unit to ensure proper installation.
- Page 6 DASH BOARD METAL MOUNTING STRAP HEX NUT SPRING WASHER CONSOLE PLAIN WASHER PLAIN WASHER TAPPING SCREW SLIDE BRACKET HOUSING HEX BOLT...
-
Page 7: Removing The Front Panel
HOW TO REMOVE AND INSTALL THE FRONT PANEL 1.Press the release button and pull-off the front panel. Keep front panel into the case. 2.To install the front panel, insert the panel into the housing and make sure the panel is properly installed, otherwise, abnormalities occurs on the display or some keys will not function properly. -
Page 8: Wiring Connection
WIRING CONNECTION ANTENNA CONNECTOR IGNITION 0.5A SWITCH (B+) FUSE BOX MEMORY (B+) YELLOW BACK-UP BLACK GROUND (B-) POWER BLUE ANTENNA FRONT Lch SPK. REAR Lch SPK. FOR 4x7W SYSTEM MAIN UNIT REAR RCAOUTPUT CABLE (OPTIONAL) FRONT RCA OUTPUT CABLE (FOR RCA LINE OUT VERSION ONLY) WHITE GREY WHITE/BLACK... - Page 9 Disc search button, cooperatively used with numeric buttons 1. GOTO Display statistical disc information during playback 2 DISPLAY Press it to eject the disc. 3. EJECT Changing of the SUBTITLE language on multi-subtitle 4. SUBTITLE language DVD disc Changing of the AUDIO soundtrack on multi-audio soundtrack 5.
-
Page 10: Preparing The Remote Control
Preparing the Remote Control Inserting the Batteries 1.Open the battery compartment cover. 2.Insert the new batteries. Make sure that the positive and negative terminals of the batteries are oriented indicated. 3.Close the cover Face the remote control towards the player front face IR mark (remote control signal receiver). -
Page 11: Select Mode
ON/OFF Press POWER button (13) to turn on the unit. Press it again to turn off. FACEPLATE RELEASE Press REL button (2) to detach the removable faceplate. SET THE CLOCK Press CLK button (6) to change the display to clock display. Press it again to return to previous display. -
Page 12: Liquid Crystal Display
Volume Adjust volume level by using VOL+ (10) and VOL- (9) buttons. Note: The unit is initially set to volume mode. Bass Press SEL button (8) one time. Adjust bass level by using VOL+(10) and VOL-(9) buttons. Treble Press SEL button (8) two times. Adjust treble level by using VOL+(10) and VOL -(9) buttons. -
Page 13: Flashing Led
FLASHING LED If the front panel is not on the main unit, LED (19) will be flashing. RESET BUTTON FUNCTION RESET button (20) is placed on the housing and must be activated with either a ballpoint pen or thin metal object. The RESET button is to be activated for the following reasons: -Initial installation of the unit when all wiring is completed. -
Page 14: Basic Operation
BASIC OPERATION -> FM -> MW -> (for 2 bands Europe) -> FM -> AM -> (for 2 bands USA) Refer to the explanation of diode matrix. 2). CDP mode changed the mode to Radio mode. When pressed long, it is engaging whether TA mode on or off. When TA mode is on and a traffic announcement is transmitted: TA(INFO) - When the unit was in CDP mode, it will switch temporarily to radio mode. - Page 15 Pause (still picture) Pressing during playback will stop play temporary. Return to normal playback, press once again. Repeat Press the REPEAT button to select repeat mode as follow. DVD: Press the REPEAT button to select repeat mode as follow. CHAPTER REPEAT ON TITLE REPEAT ON REPEAT OFF VCD/CD:...
-
Page 16: Title Menu Function
(2) Press DISPLAY for the second time: T:01/18 P: 00:00:25 LR SINGLE REMAIN (3) Press DISPLAY for the third time: T:01/18 P: 00:00:25 LR D ISC TOTAL ELAPSED (4) Press DISPLAY for the fourth time: T:01/18 P: 00:00:25 LR TOTAL REMAIN (5) Press DISPLAY for the fifth time: The message on the screen will be cleared for SVCD and VCD. -
Page 17: Folder Repeat
Multi-angle Function (For DVD only) Press ANGLE during playback. Each time the button is pressed, number of the angle changes in sequential order. Notes: -The angle number is different according to the disc. -The function only work for discs having scenes recorded at different angles. -
Page 18: General Setup
INITIAL SETUP SETUP MENU --- MAIN PAGE--- GENERAL SETUP SPEAKER SEUP AUDIO SETUP PREFERENCES EXIT SETUP 1.Press SETUP in the stop mode. (Press the stop button twice to ensure the player under STOP mode.) 2.The initial SETUP menu is displayed. 3.Select the preferred item by using the buttons. - Page 19 --- GENERAL PAGE --- TV DISPLAY PIC MODE ANGLE MARK N-FLICKER OSD LANG CAPTIONS SCR SAVER MAIN PAGE PIC mode setup Select AUTO, the player PIC mode will depend on DVD disc. Select HI-RES format for best image resolution. Select N-FLICKER format on format on image or picture under noise affect.
- Page 20 --- GENERAL PAGE --- TV DISPLAY PIC MODE ANGLE MARK OSD LANG CAPTIONS SCR SAVER MAIN PAGE SCR SAVER setup Select the SCR SAVER output ON/OFF. SPEAKER SETUP --- SPEAKER SETUP PAGE --- DOWNMIX LT/RT STEREO MAIN PAGE This is to activate the audio output from DOLBY AC3 5.1 DOWNMIX to 2 channel mode.
-
Page 21: Preferences Setup
--- AUDIO SETUP--- AUDIO OUT OP MODE LPCM OUTPUT DYNAMIC MAIN PAGE LPCM OUTPUT Select the LPCM OUTPUT between LPCM 48K and LPCM 96K. --- AUDIO SETUP --- AUDIO OUT OP MODE LPCM OUTPUT DYNAMIC MAIN PAGE Dynamic Range Control Select DRC and adjust the dynamic range of a Dobly Digital encoded program. - Page 22 --- PREFERENCES PAGE --- TV TYPE AUDIO ENGLISH SUBTITLE FRENCH DISC MENU SPANISH PARENTAL CHINESE PASSWORD JAPANESE DEFAULTS MP3 PLAY MAIN PAGE Select the preferred SUBTITLE language by using the cursor buttons. --- PREFERENCES PAGE--- TV TYPE AUDIO SUBTITLE DISC MENU ENGLISH PARENTAL PASSWORD...
-
Page 23: Defaults Table
--- PREFERENCES PAGE --- TV TYPE AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD RESET DEFAULTS MP3 PLAY MAIN PAGE DEFAULTS Select reset to become factory initial setting. --- PREFERENCES PAGE --- TV TYPE AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD DEFAULTS NO MENU MP3 PLAY WITH MENU MAIN PAGE... - Page 24 Supply Voltage: Current Consumption: Signal System: Discs Played: Audio Output Level: Audio Signal Output: Characteristics: Frequency Coverage: Sensitivity (S/N = 30 dB): Frequency Coverage: Sensitivity (S/N = 20 dB): Frequency Coverage: Sensitivity (S/N = 20 dB): Note: Specifications and design are subject to modification, without notice, due to improvements in technology.
- Page 25 Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom The car ignition switch is not on. No power. The fuse is blown. Presence of disc inside the player.
