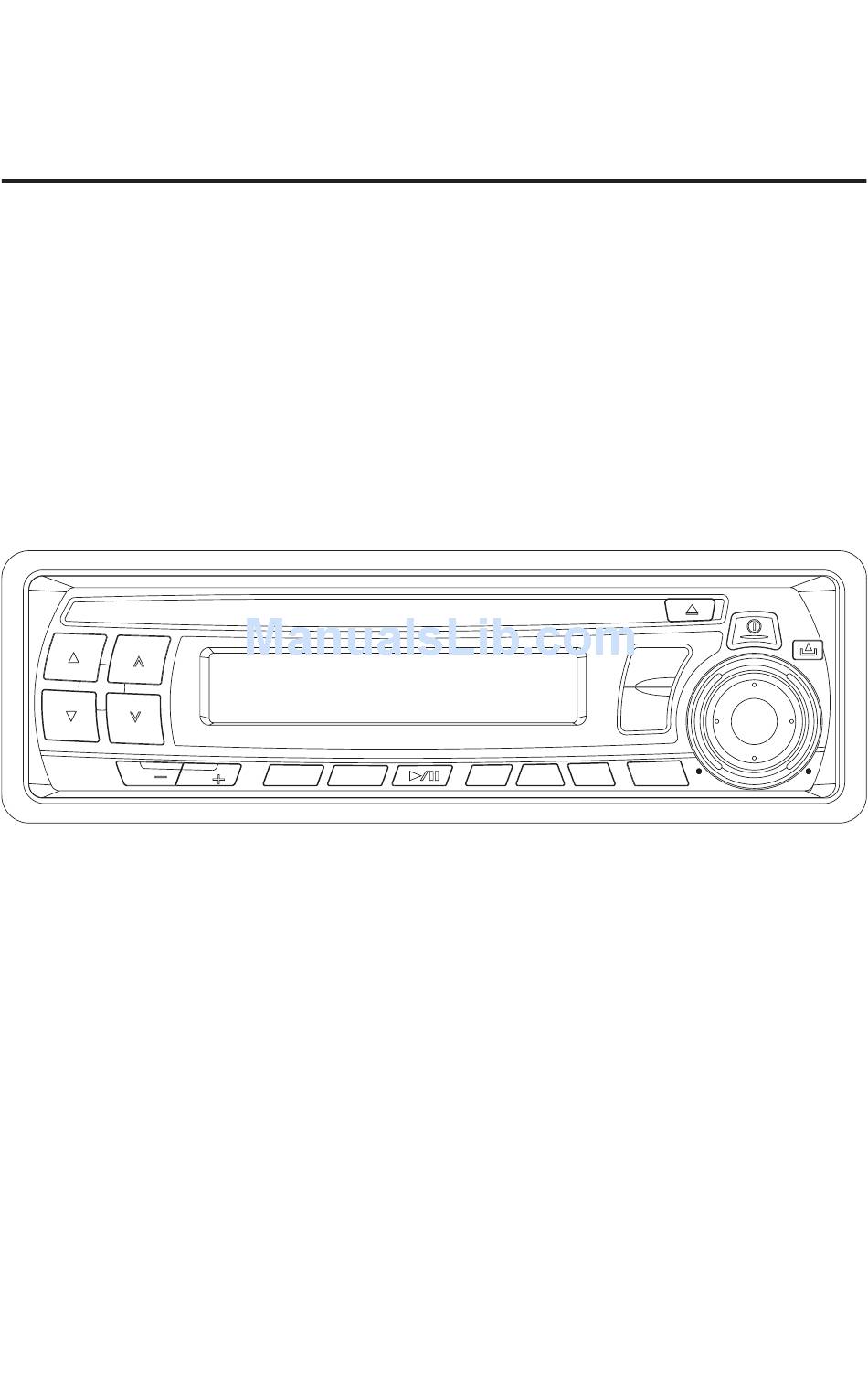

- Page 1 OWNER’S MANUAL MANUALLY TUNED SYNTHESIZER STEREO RADIO WITH COMPACT DISC PLAYER DIGITAL...
-
Page 2: Table Of Contents
CONTENTS Installation ...3 DIN Front-Mount (Method A) ...3 Installing the unit ...3 Removing the unit ...4 DIN Rear-Mount (Method B) ...4 How To Remove And Install The Front Panel (Optional) ...5 Wiring Connection ...6 2 X 7W System ...6 4 X 7W or 2 X 25W System...6 Operation ...7 Radio Operation ...10 CD Operation...11... -
Page 3: Installation
INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. •... -
Page 4: Removing The Unit
(Fig. 2) Removing the unit DIN REAR-MOUNT (Method B) Installation using the screw holes on the sides of the unit. 1. Dashboard 2. Nut (5mm) 3. Spring washer 4. Screw (5 x 25mm) 5. Screw 6. Strap Be sure to use the strap to secure the back of the unit in place. -
Page 5: How To Remove And Install The Front Panel (Optional)
HOW TO REMOVE AND INSTALL THE FRONT PANEL (OPTIONAL) 1. Press the release button and pull-off the front panel. Keep front panel into the case. 2. To install the front panel, insert the panel into the housing and make sure the panel is properly installed, otherwise, abnormalities occurs on the display or some keys will not function properly. -
Page 6: Wiring Connection
WIRING CONNECTION ANTENNA CONNECTOR CHOKE BOX MEMORY YELLOW BACK-UP BLACK GROUND (B–) POWER ANTENNA (FOR POWER ANT. VERSION ONLY) – SPEAKER WHITE/BLACK WIRING CONNECTION ANTENNA CONNECTOR IGNITION SWITCH (B+) CHOKE BOX MEMORY YELLOW BACK-UP BLACK GROUND (B–) POWER BLUE ANTENNA 2-SPEAKERS SYSTEM 4-SPEAKERS SYSTEM WHITE... -
Page 7: Operation
OPERATION GENERAL OPERATION • ON/OFF Press PWR button (1) to turn on the unit. Press it again to turn it off. • FACEPLATE RELEASE Press REL button (2) to detach the removable faceplate. • LOUDNESS Press LOU/RND button (8) shortly to reinforce the bass output. 8 13 22 21... - Page 8 • SET THE CLOCK Press DSP button (9) to change the display to clock display. Press it again to return to previous display. In clock display, press and hold the DSP button (9) for several seconds until the clock display flashes. Press VOL (4) to change hours.
- Page 9 • FLASHING LED If the front panel is not on the main unit, LED (21) will be flashing. • RESET BUTTON FUNCTION RESET button (22) is placed on the housing and must be activated with either a ballpoint pen or thin metal object. The RESET button (22) is to be activated for the following reasons: - Initial installation of the unit when all wiring is completed.
-
Page 10: Radio Operation
RADIO OPERATION • BAND Press BND button (10) to change bands as below: • SELECT STATION Rotate TUNING knob (11) clockwise or anticlockwise to adjust the frequency upward or downward. • LOCAL/DISTANT Press the LOC/RPT button (12) to select between local setting for reception of strong station and distant setting for reception of weak stations when tuning. -
Page 11: Cd Operation
CD OPERATION • DISC PLAY Gently insert a compact disc with the label side facing up into the disc slot (16). The disc is then automatically loaded into the unit and starts playing with the first track of the disc. The digital display will indicate the track number and the time of the track. -
Page 12: Specification
SPECIFICATION GENERAL Power Supply Requirements Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power - Version V - Low Power Version Current Drain - Version V - Low Power Version CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response... -
Page 13: Trouble Shooting
TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot be Presence of CD disc inside loaded or ejected.
