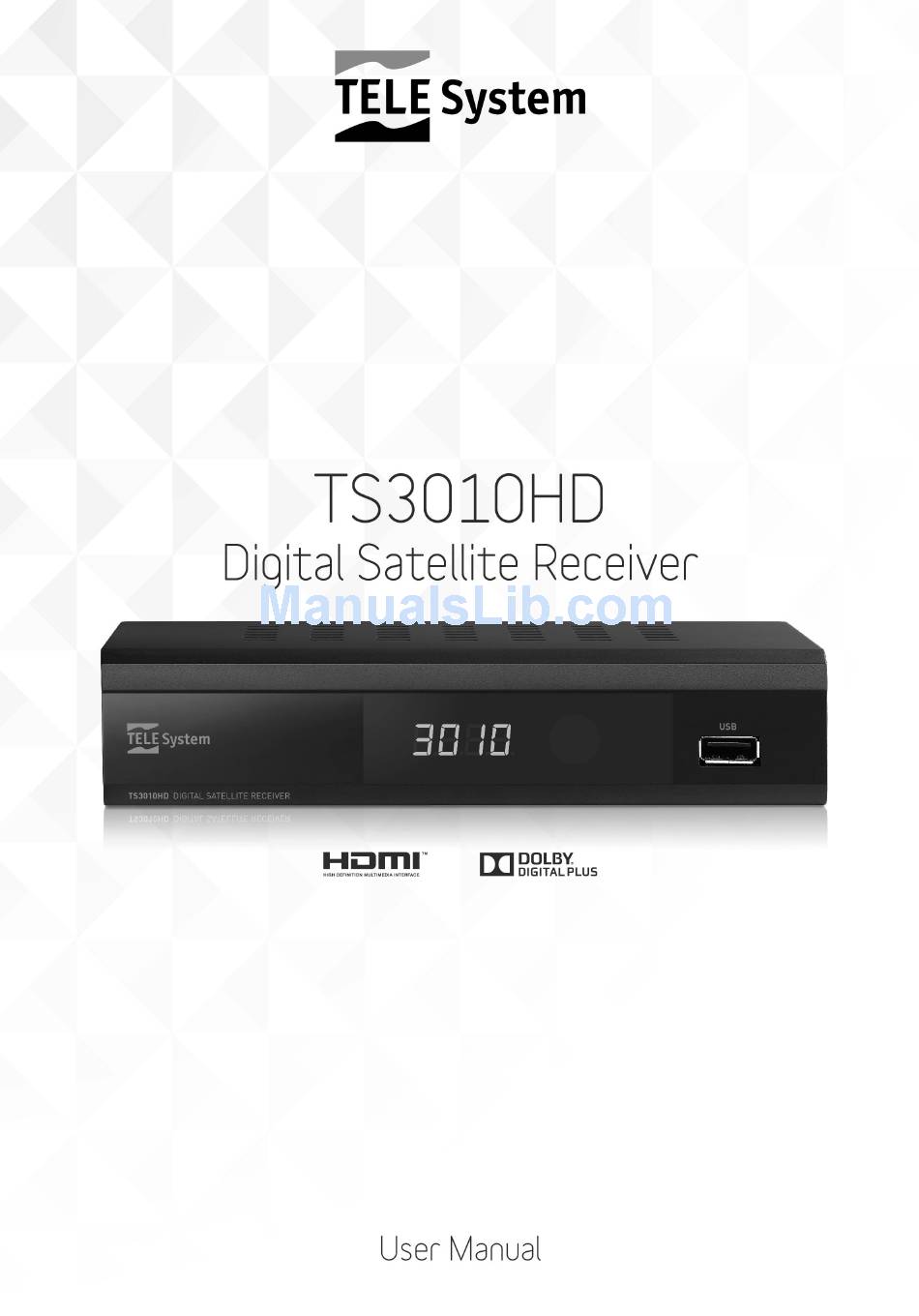

- Page 1 Manuale utente User manual Manual de uso...
- Page 3 Dear Customer, Thank you for choosing TELE System TS3010HD - Digital Satellite Receiver. In this manual you will find information to help you connect, use and take care of the receiver and learn as much as you can about it.
-
Page 5: Table Of Contents
Index Installation ..................................1 Safety Regulations ..............................1 Product Description ............................... 2 1.2.1 Front panel ..............................2 1.2.2 Back panel ..............................2 Remote control ..............................3 1.3.1 Batteries .............................. -
Page 7: Installation
TS3010HD 1 Installation 1.1 Safety Regulations We advise you to read the following advice concerning the safety regulations carefully in order to ensure safe use of the appliance. ELECTRICAL SUPPLY The receiver must be supplied by a 230V~, 50Hz current. -
Page 8: Product Description

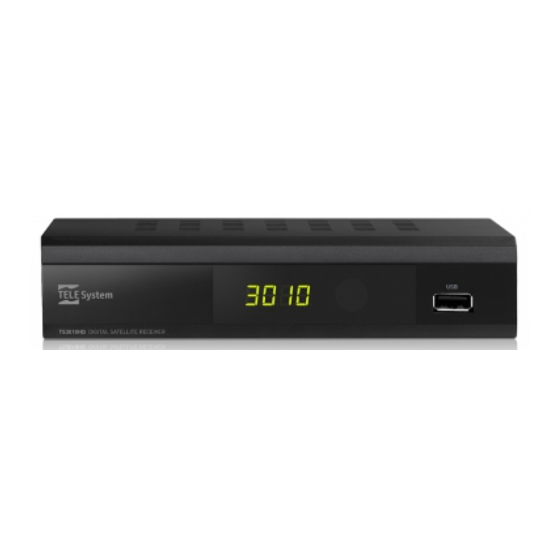

TELE System 1.2 Product Description 1.2.1 Front panel DISPLAY LED : display, 4-digit, 7-segment LED : LED indicator: green=ON, red=Standby IR Infrared : sensor for remote control USB : USB port for memory device connection (optional). CAUTION! Compatible with USB memory devices formatted with FAT32 file systems. -
Page 9: Remote Control
TS3010HD 1.3 Remote control Get well-acquainted with your remote control and you will find it much easier to navigate through the various menu options. 1.3.1 Batteries Information and warnings Substitute or insert the batteries the first time you use the product or when the remote control doesn’t properly respond to pressure on the buttons. -
Page 10: Connections
TELE System 1.4 Connections Satellite digital TV is transmitted via numerical type signals from satellites. This is why it is essential to make sure that the antenna is correctly pointed. If your receiver is unable to tune into any channels, before contacting the aftersales service, it is important that you have your antenna plant controlled by a specialist antenna installer. -
Page 11: Getting Started
TS3010HD 2 Getting Started CAUTION! Before reading this chapter you must have carefully read the previous chapter. To make it easier to use the receiver and manage the great many satellite channels, several windows and menus can be opened by pressing just one remote control button (see section 1.3.2). The menus have been designed for the most common needs and their functions are essential in saving time when using the receiver. -
Page 12: Usb
TELE System Setting a timer from the EPG screen A timer can be set directly from the EPG screen using the information it contains. To do so, open the EPG menu: Press EPG • Use ◄/► to select a channel •... -
Page 13: Timeshift
TS3010HD 2.5.2 Timeshift Timeshift temporarily records a program until you switch channels. It is therefore possible to resume viewing a program being recorded using ◄◄ REW and II PAUSE (PLAY/PAUSE) buttons. Press STOP to view the live event. 2.5.3 File recognition... -
Page 14: Advanced Functions
TELE System 3 Advanced Functions CAUTION! Modification of some parameters in this menu may affect the correct operation of the receiver. Therefore it is important that you carefully read this section of the manual before changing any settings. Some functions are protected by a password to prevent accidental changes (see section 3.6). -
Page 15: Channels Search
TS3010HD Resolution : 576i / 576p / 720p / 1080i / 1080p (50 Hz) TV Formay : PAL or NTSC color system. Video Output : Value of TV SCART video output in three-color process ( RGB ) or composite video ( CVBS ) 3.3 Channels Search... -
Page 16: Motor Mode
TELE System CAUTION! If the signal Strength and Quality bars at the bottom of the screen do not respond or indicate low level, make sure the parameters have been entered correctly and that the selected TP is not out-of-date. Satellite channels scan... -
Page 17: Transponder Management And Single Channel Search
TS3010HD DiSEqC 1.3 Set limit/location Set Motor to DiSEqC 1.3 and then press Set Limit (RED button) to enter the motor setup interface and define the following: Move Continue : adjustment of the antenna position Move Step : Step adjustment of the antenna position Set West/East Limit : define left/right rotation limits for the motor Goto reference : recalls the default motor position. -
Page 18: Db Management
TELE System 3.3.2 DB management The Database management allow you to download or upload the channels list by USB device. Load from USB : press OK button to upload the channel list from USB device. Backup to USB : press OK button to download the channel list inside an USB device. -
Page 19: Multimedia
TS3010HD After the USB is connected, and after each decoder start-up, a control of the device is undertaken that could last a few minutes depending on the amount of memory in the device. After the first recording, a folder called HBPVR is created, that acts as the receiver’s working folder for recordings. -
Page 20: Troubleshooting Guide
TELE System 4 Troubleshooting Guide PROBLEM PROBABLE CAUSE SOLUTION The LEDs on the front panel don’t light The receiver is not plugged into the Make sure the receiver is plugged into power socket. the power socket. Antenna cable is not connected to the Connect the antenna cable to the receiver. -
Page 21: Menu Organization
TS3010HD 5 Menu Organization The receiver menu is organized as follows: Program Picture Channel Time Option System Search ▼ ▼ ▼ ▼ ▼ ▼ ▼ -Program Edit - Aspect ratio - Dish Setup - Time Offset - OSD - Parental... -
Page 22: Glossary
TELE System 7 Glossary Broadcaster Company transmitting the satellite TV signal and manages the information transmitted. Coded channels Television channels viewed only by paying a fee. The digital signal is coded so that viewing is only allowed on special Common Interface receivers that have optional components to access the channel, like CAM cards and subscriptions (on sale at household electronics dealers and/or directly from the service provider). -
Page 23: Technical Specifications
TS3010HD 8 Technical Specifications Type of product Free To Air (FTA) High Definition (HD) Satellite (DVB-S) receiver with USB Input frequency 950÷2150 MHz LNB switching 13/18V , 22 KHz, 500mA LNB Loop through DiSEqC Tone Burst, DiSEqC 1.0, DiSEqC 1.2/USALS... - Page 24 Satellite Receiver TELE System TS3010HD CE conformity declaration: Tele System Electronic states that this product meets the basic European requirements of 2009/125/EC (ErP - Ecodesign requirements for energy-related products) and 2004/108/EC (EMC - Electromagnetic Compatibility), 2006/95/EC (LVD - Low Voltage Directive), following the technical directives:...
