Summary of Contents for Tele System TS4020 PRO T2S2

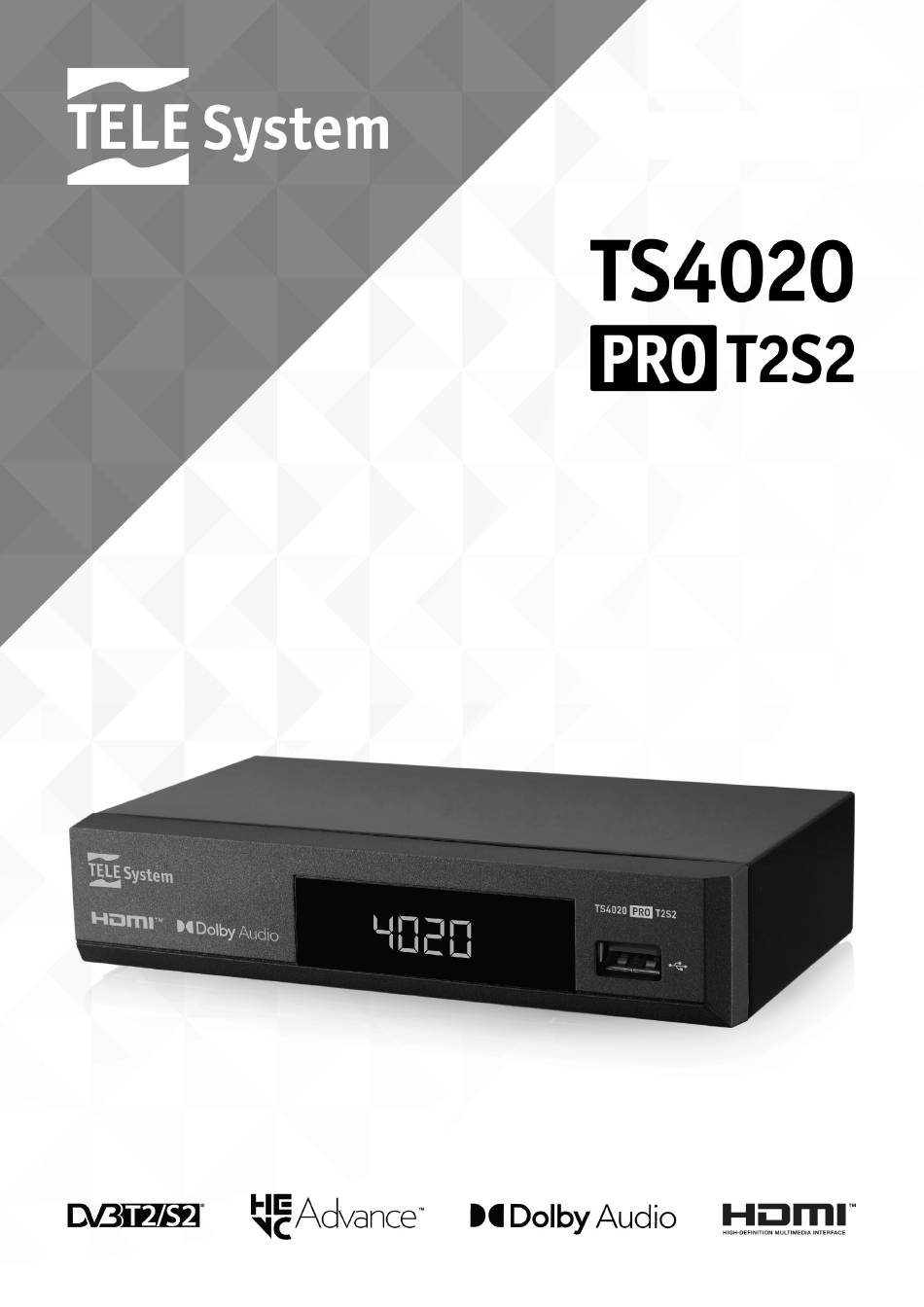

- Page 1 User Manual...
- Page 3 Dear Customer, Thank you for choosing the TELE System TS4020 PRO T2S2 digital combo receiver. This guide provides information on using the device, connections, controls and care, which will help you get to know your new receiver better. To make consultation easier, the manual has been divided into several sections: The first concerns the installation, the connections of the receiver with other devices and the functions of the remote control.
-
Page 4: Table Of Contents
TELE System Index INSTALLATION SECTION ................................ 1 ............................1 AFETY AND DISPOSAL REGULATIONS PRODUCT DESCRIPTION AND LINKS ..........................2 ....................................2 RONT PANEL ..............................2 EAR PANEL AND CONNECTIONS ..................................3 EMOTE CONTROL 2.3.1 Batterie ....................................3 2.3.2 Remote control buttons and functions ........................3 ............................. -
Page 5: Installation Section
TS4020 PRO T2S2 1 Installation Section 1.1 Safety and disposal regulations • For safe use of the appliance, and for your own safety, we invite you to carefully read the following advice regarding safety measures. POWER SUPPLY • The supplied power supply must be connected exclusively to a 230V~ 50Hz power outlet. -
Page 6: Product Description And Links
TELE System 2 Product description and links 2.1 Front panel DISPLAY: indication of the selected channel number or the current time (when the receiver is in standby) IR: infrared sensor of the remote control. LED: status indicator: stand-by (RED) – on (GREEN). -
Page 7: Remote Control
TS4020 PRO T2S2 2.3 Remote control Knowledge of the remote control forms the basis for using the receiver and navigating the various functions and menus. 2.3.1 Batterie Information and warnings Insert or replace the batteries when using the product for the first time or if the remote control does not respond to button presses. -
Page 8: First Installation Of The Receiver
TELE System 2.4 First Installation of the Receiver Once you have finished connecting the receiver and connected the power supply to the mains socket, the receiver will start automatically. If this does not happen, turn on the device using the appropriate button of the remote control or the front panel. -
Page 9: Section For Simplified Use
TS4020 PRO T2S2 3 Section for simplified use WARNING Before reading this chapter, you should have carefully read the previous chapter. To simplify the use of the receiver and the management of the numerous digital channels, there are some windows and menus that can be reached by pressing a single button on the remote control. -
Page 10: Use And Warnings
TELE System 3.6.1 Use and warnings Before using a USB mass storage device, such as a hard disk (Hard Disk Driver - HDD) or a flash memory/pen drive, please follow the important rules and warnings below. 3.6.1.1 Connection The USB stick must be formatted in FAT32. -
Page 11: Advanced Usage Section
TS4020 PRO T2S2 4 Advanced usage section WARNINGS Changing some menu parameters may affect the correct operation of the receiver. Therefore, read this section of the manual carefully before making any adjustments. To avoid tampering, some functions are protected by a security code defined directly by the user during the first installation (see par. -
Page 12: Parental Control
TELE System 4.4.1.4 AV Setup This menu features the following audio and video settings, which should be adjusted according to the characteristics of the audio/video devices connected to the receiver: TV system . Setting the TV decoding system (available options: Auto/PAL/NTSC). -
Page 13: Timer
TS4020 PRO T2S2 4.4.2 Timer To manually program a timer for viewing one or more non-concurrent events, tune in the channel you are interested in and access the Settings / Timer menu. Use the OK button to access the list and then the BLUE button to add or modify with the arrow buttons ▲/▼... - Page 14 TELE System Multi-satellite DiSEqC antenna system For each selected satellite proceed with the following settings: • LNB Type: type of converter (Low Noise Block converter - LNB) associated with the chosen satellite. For common satellite systems in Italy, the Universal one is used.
-
Page 15: Update
TS4020 PRO T2S2 Terrestial Television broadcasters may activate new television and radio services, partially modify existing broadcasts or eliminate them completely. It is suggested to reinstall or keep the receiver's channel list updated. Automatic Search Channel scan function on all available frequencies; through the Search Mode option you can decide to update the... -
Page 16: Channel Management Menu
TELE System 4.5 Channel Management Menu Menu for editing the channel list. Favorites (RED button) Select the channel in the list, press the RED button on the remote control and choose the favorites list to which you want to add the channel, confirm with OK and then press EXIT. Proceed in the same way for the other channels to be added to the favorites list, finally press EXIT to exit and save the changes. -
Page 17: Menu Map
TS4020 PRO T2S2 5 Menu map The receiver menu is structured as follows: Main Menu -- TV -- Radio -- Media -- Settings ---- Preferences ---- OSD Setup ---- Language ---- Local Time ---- AV Setup ---- Parental Control ---- Sleep timer... -
Page 18: Troubleshooting Guide
TELE System 6 Troubleshooting Guide SYMPTOM POSSIBLE CAUSE REMEDY The receiver is disconnected from the Check that the receiver is connected to mains. the mains. Make sure the power supply is working. The power supply is plugged in, but it WARNING: Risk still doesn't work. - Page 19 TS4020 PRO T2S2 SYMPTOM POSSIBLE CAUSE REMEDY Disconnect the power to the receiver Temporary receiver block. and reconnect it after a few moments. tuned channel transmits Disconnect the antenna cable, restart The receiver does not respond to the inappropriate data that blocks the the receiver, change the channel, then remote control buttons.
-
Page 20: Glossary
TELE System 7 Glossary Broadcaster Entity that transmits the satellite television signal and that manages the information transmitted. Encrypted Channels Blacked-out TV channels. The digital signal is encoded to allow viewing only by users who have special receivers called Common Interface combined with optional devices to access the channel, such as CAM and subscriptions (purchasable in electronics stores and/or directly from the providers that offer the service). -
Page 21: Technical Features
TS4020 PRO T2S2 8 Technical features Product type HD DVB-T/T2 + DVB-S/S2 H.265 Zapper Digital Terrestrial/Satellite Receiver Terrestrial: VHF: 174÷230MHz UHF: 470÷862MHz Input frequencies Satellite: 950-2150 MHz 265 MPEG-2 MP@ML/HL - HEVC/H.265 - H.264/MPEG-4 Video Decoding AVS/AVS+ - VC1 SP@ML, MP@HL, AP@L0~3 HDR(HDR10 and HLG) and Wide Color Gamut(BT.2020) processing... - Page 24 Digital Terrestrial and Satellite Zapper Receiver DVB-T/T2+DVB-S/S2 HEVC, USB TELE System TS4020 PRO T2S2 EU Declaration of Conformity Tele System Digital declares under its sole responsibility that this product satisfies the essential requirements of the European directives 2014/53/EU (Radio Equipment Directive - RED)
