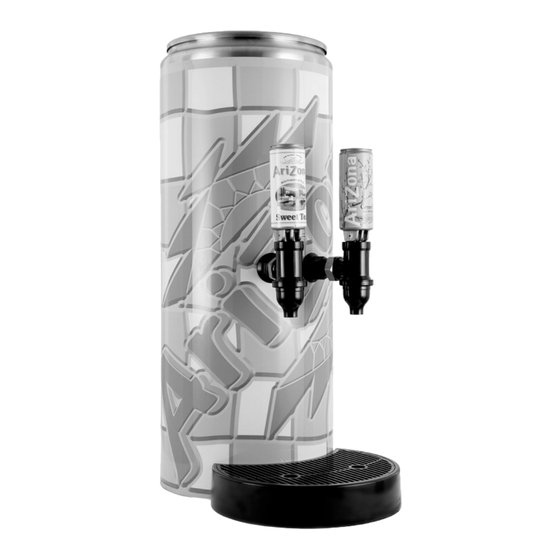

Arizona tea dispenser (tea urn)
Hide thumbs
Also See for ARIZONA TEA DISPENSER 925:
Advertisement
Quick Links
ARIZONA TEA DISPENSER (TEA URN)
The information contained in this document is subject to change without notice.
SCHROEDER AMERICA MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. SCHROEDER AMERICA shall not be liable for errors contained herein or for incidental consequential
damages in connection with the finishings, performance, or use of this material.
This document contains proprietary information which is protected by copyright. All right reserved.
This manual must be read and understood before the installation and operation of this dispenser.
PATENT NUMBERS: UK GB2489844; UK GB2495228; US D696,887
INSTALLATION INSTRUCTION, PARTS LIST
AND CONFIGURATION GUIDE
Dispenser Model No. 925
© Copyright 2015 by Schroeder America, all rights reserved.
THIS DOCUMENT CONTAINS IMPORTANT INFORMATION
Schroeder America
5620 Business Park • San Antonio, TX 78218
210.662.8200 • Fax: 210.667.2600 • www.schroederamerica.com
Toll-Free 877.404.2488
Please refer to the Schroeder America website (www.schroederamerica.com)
for information relating to Schroeder America installation and Service
Manuals, Instruction Sheets, Technical Bulletins, Service Bulletins, etc.
FOR THE
NOTICE:
Rev: 5/15
PN: 805-0018
Advertisement
Related Manuals for Schroeder America ARIZONA TEA DISPENSER 925
Summary of Contents for Schroeder America ARIZONA TEA DISPENSER 925
- Page 1 BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SCHROEDER AMERICA shall not be liable for errors contained herein or for incidental consequential damages in connection with the finishings, performance, or use of this material.
- Page 2 1. DISPENSER DIMENSIONS AND WEIGHT A. Double valve dispenser weight is 13 lbs. B. Double valve shipping weight is 19 lbs. 2. WATER AND SYRUP REQUIREMENTS Minimum Maximum Water/Soda 40 PSIG (2.8 kg/cm2) 110 PSIG (7.73 kg/cm2) Syrup (Sugar) 20 PSIG (2.8 kg/cm2) 70 PSIG (4.92 kg/cm2) 3.
- Page 3 Mounting Template Base Fully Installed Can C. Sealing to countertop: NOTE: To comply with National Sanitation Foundation (NSF) requirements with the United States, unit base must be sealed to the countertop. 1. Liberally apply silastic sealant (such as Dow Corning RTV 730 or equivalent) on base bottom edge.
- Page 4 L. Unit is now operational. 4. RATIO/BRIX The Schroeder America Dispenser has been thoroughly tested and sanitized prior to shipment. The installer will be required to ratio/brix the dispenser. A Schroeder America Dispenser syrup separator or refractometer may be used.
- Page 5 F. Adjust syrup flow to required ratio. 5. CLEANING AND SANITIZING The Schroeder America Dispenser is shipped from the factory cleaned and sanitized in accordance with NSF guidelines. The dispenser must also be cleaned and sanitized after installation is complete. It is recommended that the operator provide continuous maintenance as required by the manual and/or state and local guidelines to ensure proper operation.
- Page 6 NOTE: It is recommended that the nozzle be removed and cleaned daily. D. Sanitizing: Cleaning and Sanitizing are not required for potable water circuits. The potable water lines should remain connected during the cleaning procedures for the concentrate circuits to avoid contamination.
-
Page 7: Troubleshooting
6. TROUBLE SHOOTING A. No water dispensed • Check water supply • Check Shut-off (is it open) • Check ratio/brix adjustment • Line plugged B. No syrup dispensed • Check C0 pressure • Check for product • Check Shut-off • Check ratio/brix adjustment •... - Page 8 CAN ASSEMBLY...
- Page 9 CAN ASSEMBLY CAN ASSEMBLY ITEM SCHROEDER PN DESCRIPTION 664-0029 CAN WELDMENT,AZ TEA 319-0717 LID, ARIZONA TEA 637-0016 ASSY,VALVE,POSTMIX,ARIZONA 256-0021 PLATE, VALVE, TEA 224-0006 SCREW, 6-19x.500, PLASTITE, PH, PHD 632-0145 SUB-ASSY, WATER, AZT 632-0146 SUB-ASSY, S1, AZT 645-0173 SHANK ASSY, PMV 265-0642 SPACER, PMV TO 10”...
-
Page 10: Flow Control Assembly
FLOW CONTROL ASSEMBLY... - Page 11 FLOW CONTROL ASSEMBLY FLOW CONTROL ASSEMBLY ITEM SCHROEDER PN DESCRIPTION 265-0362 BRACKET,MTG, VALVE, TEA 224-0002 SCREW, 8-16x.375, PLASTITE, PHSL, PHD 208-0010 O-RING, 2-010 625-0034 BACKBLOCK SUB-ASSY, BLACK - WITH 208-0010 637-0003 ASSY, VALVE, BACKBLOCK, BLACK - COMPLETE 208-0110 O-RING, 2-110 625-0009 STEM ASSY, SHUT OFF - WITH 208-0110 256-0011...
- Page 12 POST MIX VALVE ASSEMBLY...
- Page 13 POST MIX VALVE ASSEMBLY POSTMIX VALVE ASSEMBLY ITEM SCHROEDER PN DESCRIPTION 631-0148 HANDLE SUBASSY, ARIZONA TEA 279-0076 RETAINER, PIN, PMV 631-0079 CAP ASSEMBLY, PMV 215-0008 SPRING, POSTMIX VALVE 625-0031 PISTON ASSY, POSTMIX VALVE - WITH 208-0010-429 208-0010-429 O-RING, 2-010, LUBRICATED 631-0080 VALVE SEAT ASSY, PMV - WITH 208-0009 208-0009...
- Page 14 SHANK AND TUBE ASSEMBLY WHILE INDIVIDUAL PARTS ARE AVAILABLE, SUPPLIER RECOMMENDATION IS TO PURCHASE ENTIRE TUBING ASSEMBLY TUBE ASSEMBLIES ITEM SCHROEDER PN DESCRIPTION 632-0145 SUB-ASSY, WATER, PMV, AZT 632-0146 SUB-ASSY, S1, PMV, AZT 030-0029 TUBE, .218 x .032, WATER, PMV 030-0030 TUBE, .218 x .032, S1, PMV 265-0380...
- Page 15 ACCESSORIES SHUT-OFF TOOL FLOW CONTROL TOOL P.N. 316-0005 P.N. 316-0006 SEPARATOR KIT, MECHANICAL CONTROL P.N. 316-0010 P.N. 675-0005 3/8 90 DEG BARB, FITTING 1/4 90 DEG BARB, FITTING P.N. 626-0013 P.N. 626-0012...
- Page 16 Period of Warranty applicable to the original measured from the date of replacement. This Commercial Warranty does not include, and Schroeder America will not assume or pay, the expense of any repair, replacement, analysis or any other service or parts furnished by any party other than Schroeder America unless specifically authorized in writing by Schroeder America.
