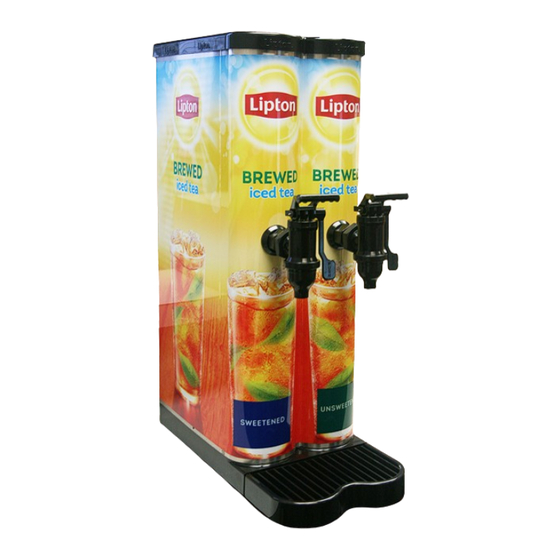

Schroeder America 925 Installation Instruction, Parts List And Configuration Manual

Pepsi 2v tea dispenser
Hide thumbs Also See for 925:

Advertisement

Quick Links

Download this manual
The information contained in this document is subject to change without notice.
SCHROEDER AMERICA MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. SCHROEDER AMERICA shall not be liable for errors contained herein or for incidental consequential
damages in connection with the finishings, performance, or use of this material.
This document contains proprietary information which is protected by copyright. All right reserved.
This manual must be read and understood before the installation and operation of this dispenser.
PATENT NUMBERS: UK GB2489844; UK GB2495228; US 8,955,723; US D696,887; US 9,016,509 B2
INSTALLATION INSTRUCTION, PARTS LIST
AND CONFIGURATION GUIDE
PEPSI 2V TEA DISPENSER
Dispenser Model No. 925
© Copyright 2015 by Schroeder America, all rights reserved.
THIS DOCUMENT CONTAINS IMPORTANT INFORMATION
5620 Business Park • San Antonio, TX 78218
210.662.8200 • Fax: 210.667.2600 • www.schroederamerica.com
Please refer to the Schroeder America website (www.schroederamerica.com)
for information relating to Schroeder America installation and Service
Manuals, Instruction Sheets, Technical Bulletins, Service Bulletins, etc.
FOR THE
NOTICE:
Schroeder America
Toll-Free 877.404.2488
Rev: 7/15
PN: 805-0011

Advertisement

loading

Related Manuals for Schroeder America 925

Summary of Contents for Schroeder America 925

  • Page 1 BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SCHROEDER AMERICA shall not be liable for errors contained herein or for incidental consequential damages in connection with the finishings, performance, or use of this material.
  • Page 2 1. DISPENSER DIMENSIONS AND WEIGHT A. Single valve dispenser weight is 14.5 lb. B. Single valve shipping weight is 16 lb. 2. WATER AND SYRUP REQUIREMENTS Minimum Maximum Water/Soda 40 PSIG (2.8 kg/cm2) 110 PSIG (7.73 kg/cm2) Syrup (Sugar) 20 PSIG (2.8 kg/cm2) 70 PSIG (4.92 kg/cm2) Water/Soda 10 PSIG (2.8 kg/cm2)
  • Page 3 B. Urn/Base Mounting The urn may be installed loose on the countertop or mounted to the countertop with fasteners. 1. Using template, locate the desired position of the urn & mark center of the holes on the counter. Drill holes using 13/64 bit 2.
  • Page 4 This will equal the flow rate. NOTE: The Schroeder America Tea Dispenser is designed to flow 2.4 oz/sec. or 12 oz/5 sec. This is the proper setting for 5:1 ratio. B. To adjust flow control assembly, turn yellow adjustment screw (Fig 4.1), clockwise to increase flow and counterclockwise to decrease flow.

  • Page 5: Cleaning And Sanitizing

    F. Adjust syrup flow to required ratio. 5. CLEANING AND SANITIZING The Schroeder America Dispenser is shipped from the factory cleaned and sanitized in accordance with NSF guidelines. The dispenser must also be cleaned and sanitized after installation is complete. It is recommended that the operator provide continuous maintenance as required by the manual and/or state and local guidelines to ensure proper operation.

  • Page 6: Troubleshooting

    NOTE: Alternate - using a fitment removed from a bag in box container. Attach fitment to concentrate fitting. Prepare sanitizing solution in a container and set fitment/fitting assembly in solution. 4. Pull tea urn dispenser handle, solution will begin to flow towards dispensing valve. 5.
  • Page 7 NOTES...
  • Page 8 2V SCALLOPED CAN ASSEMBLY...
  • Page 9 2V SCALLOPED CAN ASSEMBLY 2 VALVE SCALLOP CAN ASSEMBLY ITEM SCHROEDER PN DESCRIPTION 634-0066 WELDMENT, WRAPPER, 2V SCALLOP,TEA 265-0473 LID, TEA, 2VLV MANUAL 637-0005 ASSY, VALVE, POSTMIX, ADA LEVER 256-0021 PLATE, VALVE, TEA 224-0006 SCREW, 6-19x.500, PLASTITE, PH, PHD 632-0110 SUB-ASSY, WATER, PMV 632-0111 SUB-ASSY, S1, PMV...

  • Page 10: Flow Control Assembly

    FLOW CONTROL ASSEMBLY...
  • Page 11 FLOW CONTROL ASSEMBLY FLOW CONTROL ASSEMBLY ITEM SCHROEDER PN DESCRIPTION 265-0362 BRACKET,MTG, VALVE, TEA 224-0002 SCREW, 8-16x.375, PLASTITE, PHSL, PHD 208-0010 O-RING, 2-010 625-0034 BACKBLOCK SUB-ASSY, BLACK - WITH 208-0010 637-0003 ASSY, VALVE, BACKBLOCK, BLACK - COMPLETE 208-0110 O-RING, 2-110 625-0009 STEM ASSY, SHUT-OFF - WITH 208-0110 256-0011...
  • Page 12 POST MIX VALVE ASSEMBLY...
  • Page 13 POST MIX VALVE ASSEMBLY POSTMIX VALVE ASSEMBLY ITEM SCHROEDER PN DESCRIPTION 265-0549 HANDLE, POSTMIX VALVE 279-0152 RETAINER, PIN, PMV,ADA 631-0079 CAP ASSEMBLY, PMV 215-0008 SPRING, POSTMIX VALVE 625-0031 PISTON ASSY, POSTMIX VALVE - WITH 208-0010-429 208-0010-429 O-RING, 2-010, LUBRICATED 631-0080 VALVE SEAT ASSY, PMV - WITH 208-0009 208-0009 O-RING, 2-009...
  • Page 14 SHANK AND TUBE ASSEMBLY WHILE INDIVIDUAL PARTS ARE AVAILABLE, SUPPLIER RECOMMENDATION IS TO PURCHASE ENTIRE TUBING ASSEMBLY TUBE ASSEMBLIES ITEM SCHROEDER PN DESCRIPTION 632-0110 SUB-ASSY, WATER, PMV 632-0111 SUB-ASSY, S1, PMV 030-0029 TUBE, .218 x .032, WATER, PMV 030-0030 TUBE, .218 x .032, S1, PMV 265-0380 FERRULE, PMV 626-0005...
  • Page 15 ACCESSORIES DRIP TRAY ASSY, TEA BASE, SCALLOPED, 2VLV TEA P.N. 631-0108 P.N. 265-0471 KIT, DRAIN ADAPTOR, DRIP TRAY, TEA 3/8 90 DEG BARB, FITTING 1/4 90 DEG BARB, FITTING P.N. 675-0062 P.N. 626-0013 P.N. 626-0012 SHUT-OFF TOOL FLOW CONTROL TOOL P.N.
  • Page 16 Period of Warranty applicable to the original measured from the date of replacement. This Commercial Warranty does not include, and Schroeder America will not assume or pay, the expense of any repair, replacement, analysis or any other service or parts furnished by any party other than Schroeder America unless specifically authorized in writing by Schroeder America.
