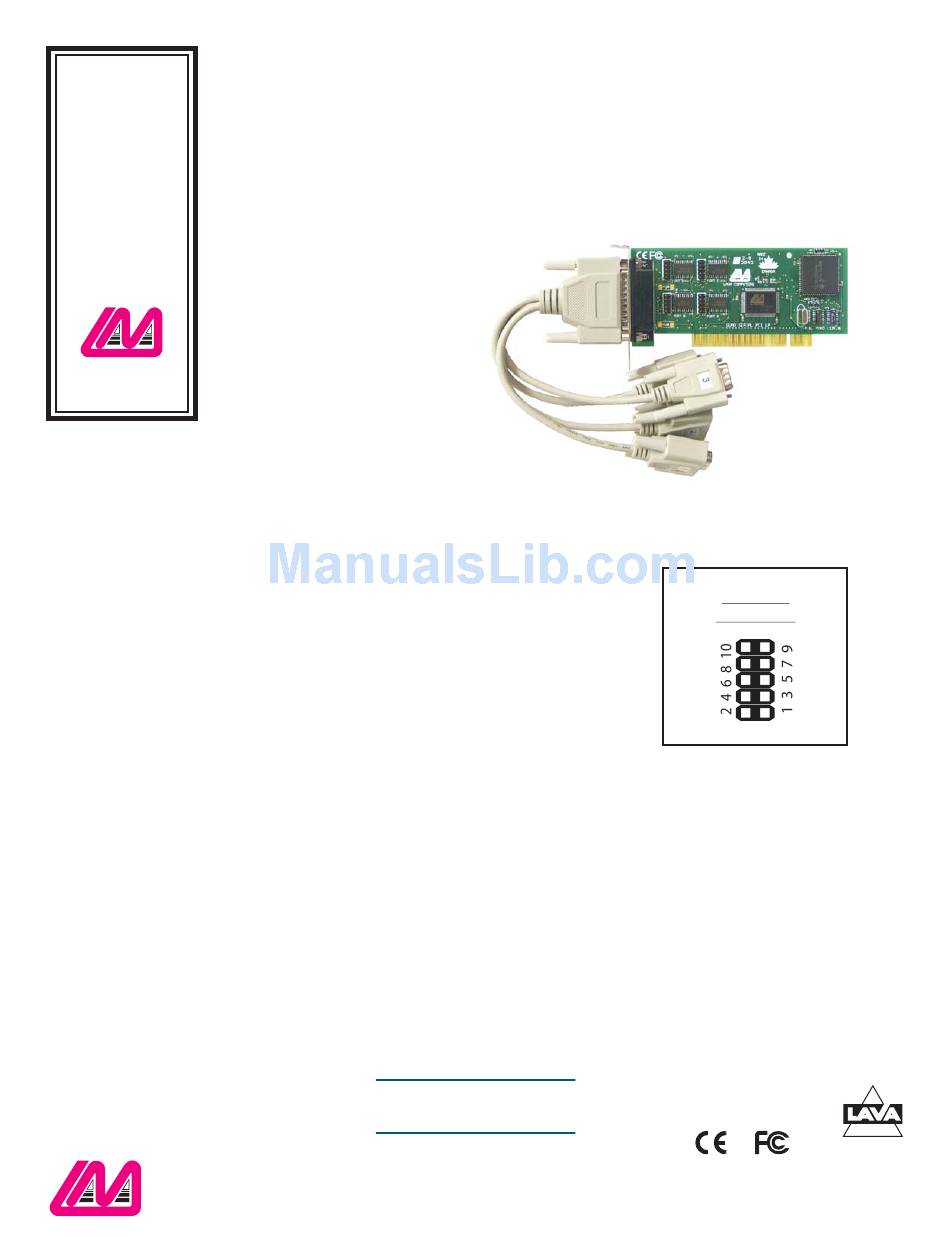

Lava Quattro-PCI/LP Datasheet

I O /
Board
by:
LAVA
Features:
!
PCI bus low-profile four port serial board with 16550 UARTs.
!
Serial port connection through either fanout cable or on-board pin
headers.
!
Each port is capable of a maximum data throughput rate up to
115.2 kbps.
!
All four ports share one PCI bus IRQ – even when accessed
simultaneously, saving valuable resources for other expansion
cards.
!
Includes Lava Com Port Redirect Utility for renaming COM ports – allows for backward
compatibility with software that supports COM 1-4 only.
!
Easy Plug&Play installation – automatically configures I/O addresses & IRQ.
!
Ideal for connecting a bar-code scanner, credit card reader, cash drawer, and receipt printer to a
single card, using a single IRQ.
!
Compliant with PCI Specification 2.2.
!
Lava Lifetime Warranty.
LAVA COMPUTER MFG INC.
2 VULCAN STREET, TORONTO, ON CANADA M9W 1L2
QUATTRO-PCI/LP
PCI Bus
4-Port
Serial Board
with
16550 UARTs
Lava: "The Source For Ports"
LAVA
TEL:(416) 674-5942
FAX:(416) 674-8262
Pin Header
Assignments
– RI
CTS RTS
DSR GND
DTR Tx
Rx DCD
L I F E T I M E
W A R R A N T Y
www.lavalink.com
Rev. B00
