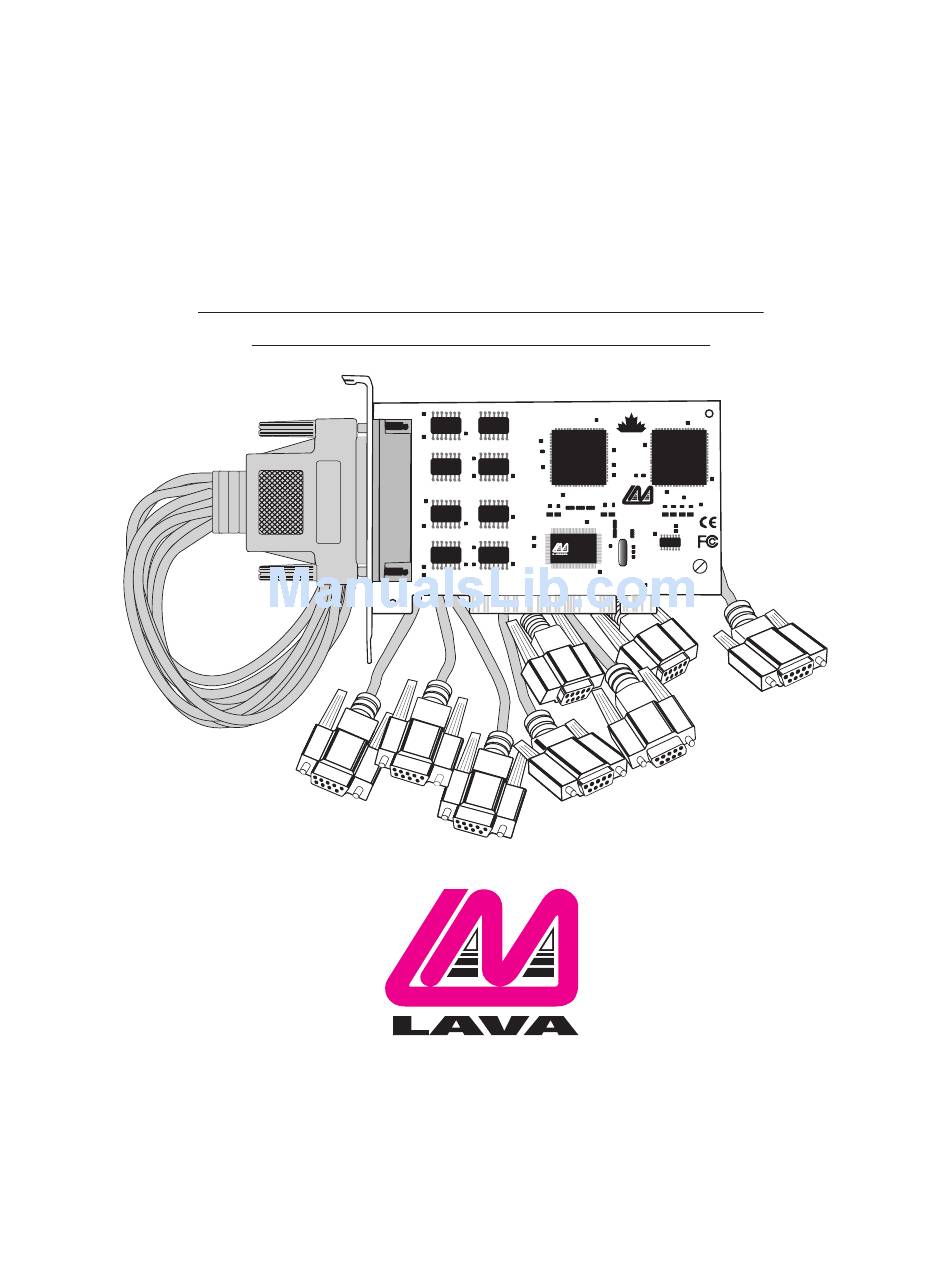

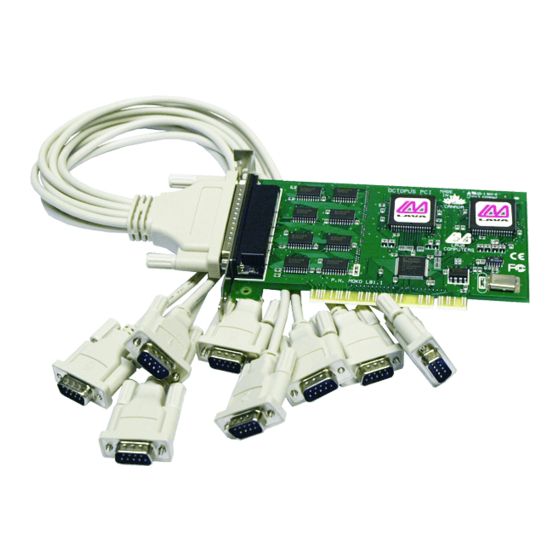

- Page 1 LAVA Octopus-550 Installation Manual OCTOPUS PCI MADE CANADA LAVA COMPUTERS MOKO S3/S4 FN16F-000 0837 RoHS P.N. MOKO L81.2 Rev. C00...
-
Page 2: Windows Nt 4.0 Installation
Windows NT 4.0 Installation 1. With the power turned off, insert the Octopus-550 card into any free PCI slot in your PC. Boot NT logging on as “Administrator” . 2. Place the Octopus-550 Installation CD into your computer and select Run from the Start Menu. When prompted type: A:\NT4.0\Setup. -
Page 3: Dos & Windows 3.X Installation
Note: Native DOS and Windows 3.X support a maximum of four Com ports in a PC. If you wish to use four ports on the Octopus-550, you must disable the existing ports on your motherboard. Users running DOS or Windows 3.x exclusively on a system with an Octopus-550 will be... - Page 4 Windows 95/98/Me/2000/ Vista/Win 7 Installation 1. With the power turned off, insert the Octopus-550 card into any free PCI slot in your PC. Make sure the card is well seated. Attach the cable. Turn your PC on and start Windows.
- Page 5 Address & IRQ) used by any one of the eight ports on the Octopus- 550 must be made through the Resources page of the appropriate Octopus-550 PARENT – not through the individual Ports pages. Modifying I/O Address and IRQ Resources is NOT...
- Page 6 PC, Windows will by default configure the Octopus-550 ports as Com 5 through Com 12. To change the Com number of any of these ports (e.g. reassign Com 5 to be Com 3), please use the Lava Com Port Redirect Utility included in the “Utils\Redirect“...
- Page 7 Changing the Com numbering of your Octopus- 550 ports (Windows 2000/XP/Vista/Win 7 only) In Windows 2000 and later, Com port numbering can be changed by double-clicking the serial port entry displayed in Windows' Device Manager. Go to Port Settings | Advanced, and choose Com Port #.
-
Page 8: Technical Support
Fax: + 416 674-8262 E-mail: tech@lavalink.com Internet: www.lavalink.com LAVA Computer MFG Inc. This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference...
