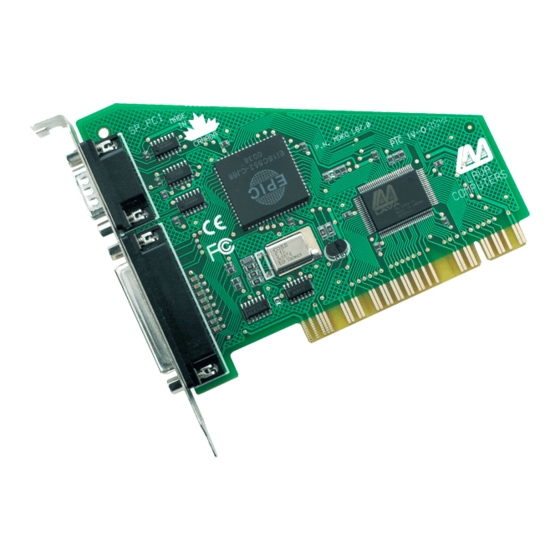

- Page 1 Lava SP-PCI Installation Manual SP PCI MADE CANADA P.N. MOKO L82.0 LAVA PN MOKO S-1 MADE IN JAPAN COMPUTERS 0255351 Rev. B00...
- Page 2 1. Before opening the casing of your computer, make sure that all power is off. 2. Locate an unused PCI slot and insert the SP-PCI card into it. Ensure that the card is well seated. 3. Screw the metal bracket of the SP-PCI card to your PC’s casing and replace the machine’s cover.
- Page 3 SP-PCI card. Any Plug and Play devices attached to the SP-PCI will now also be detected and installed. Windows XP may display a message to the effect that the drivers are not digitally signed.This warning can be ignored.
- Page 4 PCI device, its default address (Input/Output Range) is beyond the standard range of ISA I/O addresses. In order to connect such a peripheral to the SP-PCI card, the I/O address range of the card must therefore be changed manually.This section describes how this is done.
- Page 5 2. Remove the check mark from the Use Automatic Settings box. Note: In some cases Windows will give an error message to the effect that "Windows cannot modify this resource" at this point. If you are unable to access the settings for changing system resources, reboot the system in Safe Mode to make changes to resource settings.
- Page 6 Unless you already have more than 4 Com Ports installed in your PC, Windows will by default configure the SP-PCI as Com 5. If you wish to change this assigned Com number (e.g. reassign Com 5 to be Com 3), please use the Lava Com Port Redirect Utility included in the “Utils\Redirect“...
-
Page 7: Release Notes
This is normal, and does not indicate a fault in your SP-PCI card. C. The parallel port of the SP-PCI card will not work at address 0278h or 0378h if it is installed in a PCI slot that is behind a PCI-to-PCI bridge. -
Page 8: Technical Support
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Lava Computer MFG Inc. 908 Niagara Falls Blvd. #629. North Tonawanda NY 14120-2060...
