Lava 2SP-PCI Datasheet

Lava The Source for Ports

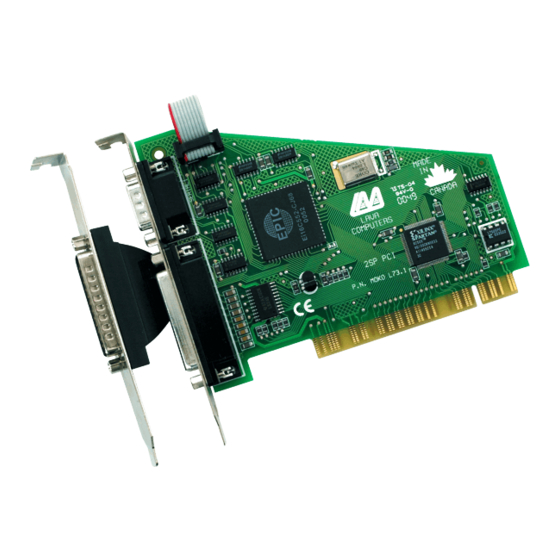

LAVA 2SP-PCI
PCI Bus Dual 16550 Serial and
Enhanced Parallel Combo Board
Features & Benefits
Adds two 16550 UART serial ports and one EPP
l
parallel port to PCI-equipped PCs
Each serial port (one 9-pin & one 25-pin) is
l
capable of a maximum data throughput rate up
to 115.2 kbps
Enhanced Parallel Port (EPP) incorporates Lava's
l
PCI Parallel Port technology – capable of data
throughput rates up to 3x faster than ISA
EPP ports
Both serial ports share one IRQ – saves valuable
l
resources for other expansion cards
Easy Plug and Play installation – automatically
l
selects next available IRQ and I/O addresses
Compatible with external modems, handhelds,
l
digital cameras, UPSes, POS devices, external
drives, printers, scanners, and video-conferencing
equipment
Compliant with PCI Specification 2.1
l
Lava Lifetime Warranty
l

Connectors

One DB-9 male RS-232
l
One DB-25 male RS-232
l
One DB-25 female IEEE 1284
l

System Requirements

PCI host slot
l
Drivers ship with product. For updated software
support visit www.lavalink.com.
2 Vulcan Street
Tel: 416.674.5942
Toronto, ON Fax: 416.674.8262
Canada M9W 1L2 Email: sales@lavalink.com
www.lavalink.com
