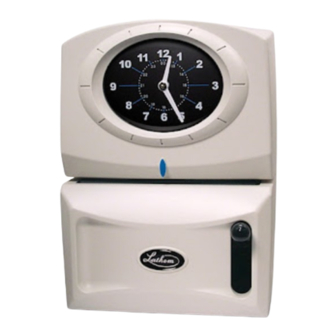

Lathem 1200 Series User Manual

Time recorder
Hide thumbs

Advertisement

Table of Contents

1200 SERIES
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lathem 1200 Series

Summary of Contents for Lathem 1200 Series

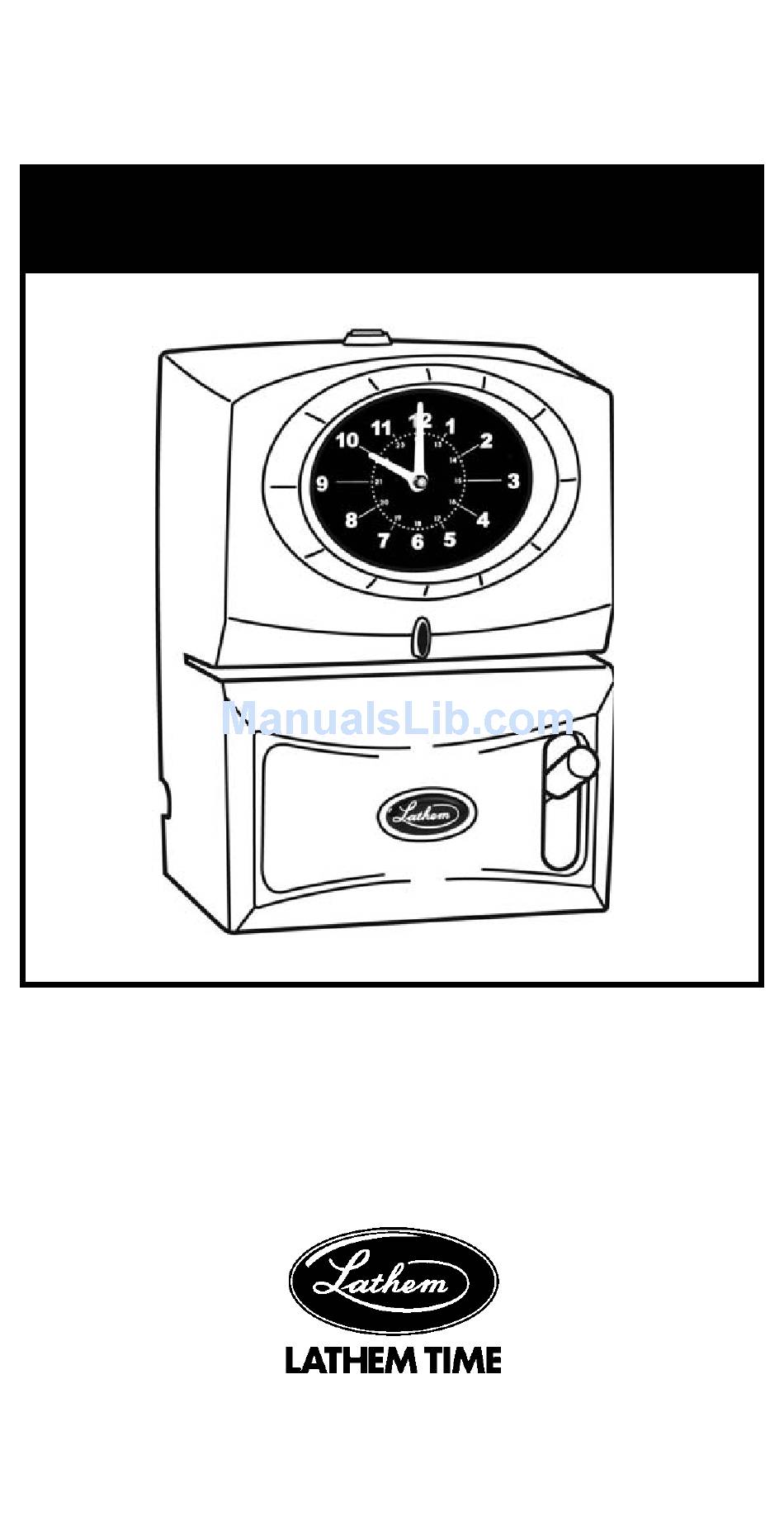

  • Page 1 1200 SERIES User’s Manual...
  • Page 2 Lathem Time Corporation 200 Selig Drive, SW Atlanta, GA 30336 1-800-241-4990 1-404-691-0400 www.lathem.com Copyright © 2003 Lathem Time Corporation. All rights reserved.

  • Page 3: Table Of Contents

    Here’s all the information you need for setting and operating your new Lathem time recorder. Service information is also included in this manual, in case any problems ever arise. Thank you for choosing a Lathem time recorder. Should you ever need assistance, please let us know. Ordering Accessories ... 2 Setting the Time ...

  • Page 4: Ordering Accessories

    1200 Series User’s Manual Ordering Accessories Lathem time recorders fulfill a wide range of timekeeping requirements. For maximum results, only use Lathem accessories specifically designed to fit your time recorder. To purchase the appropriate accessories for your time recorder, contact your local Lathem dealer or visit:...

  • Page 5: Setting The Time

    Figure 1. Note position of the Overthrow Lever and the Setting Wheel. 4. Press the red Overthrow Lever – 1.3 away from you until it clicks. This releases the wheels allowing them to turn. 1200 Series User’s Manual Figure 1...
  • Page 6 1200 Series User’s Manual Set the Time on the Type Wheels 1. Locate the Center Line where all the wheels line up as shown in Figure 2. 2. Rotate the wheels using a pointed object. Rotate each wheel until the correct date and time are aligned at the Center Position, as shown in Figure 2.
  • Page 7 1. Make a sample registration on paper. 2. Rotate Clock Face Setting Wheel 3.1 until the clock face displays the same time as shown on the sample registration. DO NOT TURN CLOCK HANDS EXCEPT BY USING SETTING WHEEL. 1200 Series User’s Manual Figure 3...

  • Page 8: Changing The Ribbon

    3. Lift ribbon hold-down guide 4.2 – use pencil to support in up position. 4. Remove ribbon and replace with new Lathem ribbon. Make sure the ribbon feeds from bottom of spools and runs BETWEEN reversing fingers 4.3, the red side aligned with date wheel(s).

  • Page 9: Replacing The Type Section

    1. Remove the top cover. 2. Remove Type Section Retaining Ring – 5.1. 3. Lift type section slightly and move it to the right to release Hinge Pins – 5.2 from their sockets. Unit will lift out. 1200 Series User’s Manual Figure 5...

  • Page 10: Changing The Motor

    1200 Series User’s Manual Changing the Motor 1. Unplug cord from wall outlet. 2. Remove type section from main frame (see “Replacing the Type Section”). 3. Figure 6 shows a close-up of cam block terminal. 4. Disconnect Motor Wire Leads – 6.1 by turning each Screw –...

  • Page 11: Warranty

    In no event will Lathem be liable for any direct, special, or consequential damages arising out of or in connection with the delivery, use or inability to use, or performance of this product.
  • Page 12 Printed in USA P/N: OMTR12-0603...
