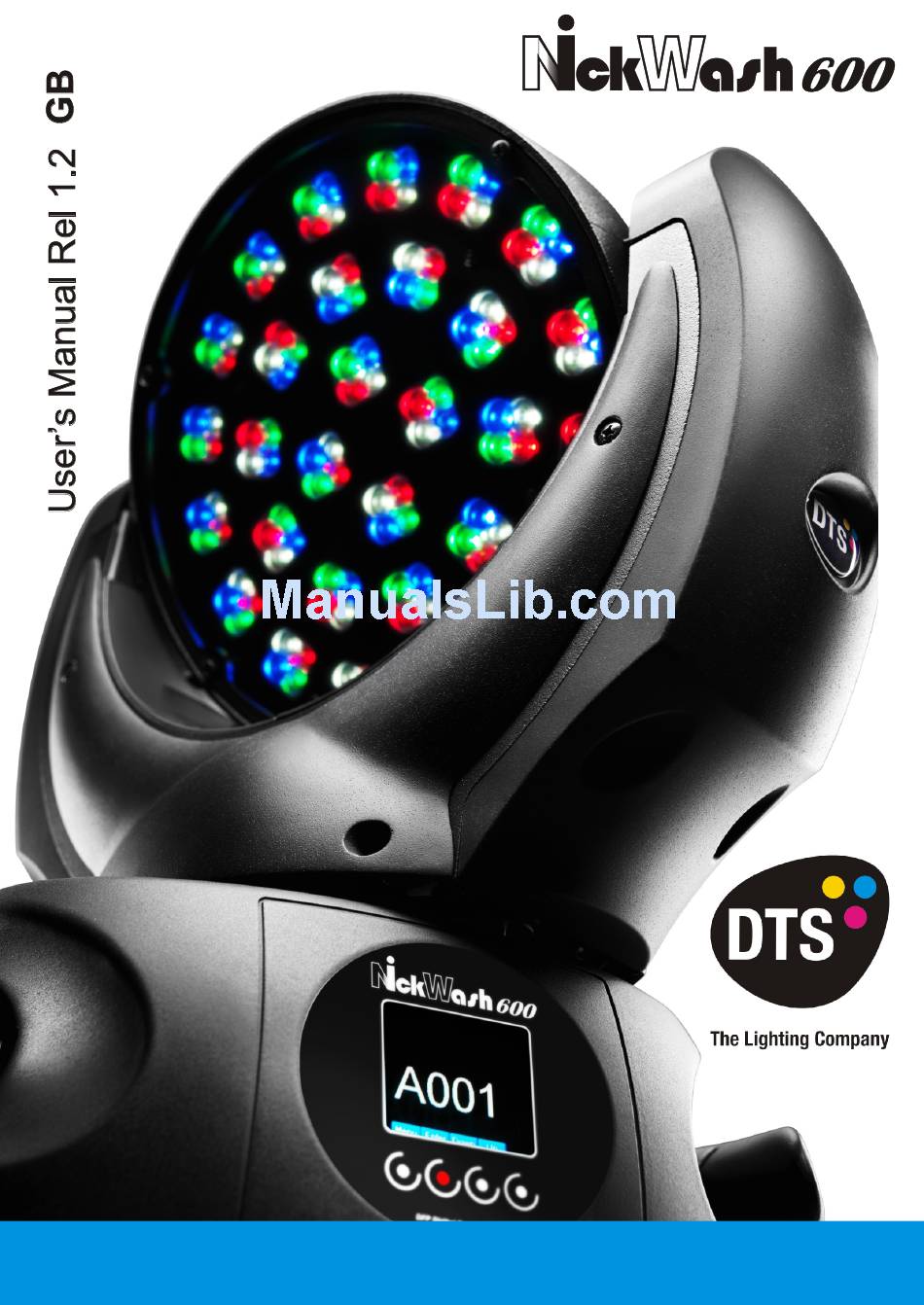

  • Page 1 Made in Italy Made in Italy D.T.S. Illuminazione srl Via Fagnano Selve 10/12/14 info@dts-lighting.it http://www.dts-lighting.it 47843 Misano Adriatico (RN) ITALIA Tel +39 0541 611131 Fax +39 0541 611111...

  • Page 2: Nick Wash 600 Arc

    D.T.S . DTS si riserva il diritto di apportare senza preavviso cambiamenti e modifiche estetiche , funzionali o di design a ciascun proprio prodotto. D.T.S non assume alcuna responsabilità sull’uso o sull’applicazione dei prodotti o dei circuiti descritti.

  • Page 3: Table Of Contents

    NICK WASH 600 ARC 1200 INDEX 1- SYMBOLS 2- GENERAL WARNING 3- GENERAL WARRANTY CONDITION 4- TECHNICAL FEATURES 5- TECHNICAL SPECIFICATIONS 6- ACCESSORIES 7- IMPORTANT SAFETY INFORMATION 7.1 Fire prevention 7.2 Prevention of electric shock 7.3 Safety 7.4 Level of protection against the penetration of solid and liquid objects...

  • Page 4: Symbols

    NICK WASH 600 ARC 1200 1- SYMBOLS Graphic symbols used on this manual THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL MEANS “DO NOT PLACE THE UNIT ON INFLAMMABLE SURFACES”...

  • Page 5: Technical Features

    NICK WASH 600 is a self-contained compact high-output LED moving head projector with 13,5° - 40° motorized zoom. NICK WASH 600 is one of the brightest compact LED projectors on the market: luminosity at 5 m is no less than 3.100 Lux (13,5°).

  • Page 6: Technical Specifications

    NICK WASH 600 ARC 1200 5- TECHNICAL SPECIFICATIONS Independent operation Fully programmable via built-in user interface Master or Slave capability (chains of up to 32 interconnected units) Remote control Remotely controlled by cable or wireless; USITT DMX 512 serial digital protocol (reception / transmission)

  • Page 7: Accessories

    •1 x “C” Clamp GQUICK with “Fast Lock” connection 1/4 turn (max. load. 80Kg) (cod. 0521A014) • User’s manual 03.LDR005.TWS Nick Wash 600 Electr. Power Supply, Motorized Zoom, Wireless DMX ready, Black colour • 1 x INDOOR IP20 omnidirectional 2dBi antenna cod. 0508A033 •1 x POWERCONN male cable connector (cod.

  • Page 8: Important Safety Information

    -High voltage is present inside the unit. Unplug the unit prior to performing any function which involves touching the inside of the moving head. -The level of technology inherent in the NICK WASH 600 requires the assistance of specialised personnel for all servicing. Please refer to an authorised DTS service centre.

  • Page 9: Installation

    NICK WASH 600 is moving. Two 1/4 turn Fast Locks connections placed in the base of the units allow to hang the NICK WASH 600 by using the Fast Lock ‘C’ clamps provided in the box.

  • Page 10: Mains Connection

    NICK WASH 600 ARC 1200 9.3- Movement Unlimited Pan rotation; unlimited Tilt rotation (NICK WASH 600 ZOOM F.A.R.) Pan 540° (2,0 sec.), Tilt 270° (1,2 sec.) (NICK WASH 600 ZOOM) 270° Free Axis Rotation ("F.A.R.”) WARNING Do not place any object in the path of the projector’s movement...

  • Page 11: Dmx Signal Connection

    NICK WASH 600 ARC 1200 11- DMX SIGNAL CONNECTION The unit operates using the digital DMX 512 (1990) signal. Connection between the mixer and the projector or between projectors must be carried out using a two pair screened ø 0.5 mm cable and a XLR 5 or 3 pins connector.
  • Page 12 ARC 1200 11.1-DMX Addresses NICK WASH 600 can be used in 2 different DMX modes: 17 DMX control channels (default for NO FAR models) , 20 DMX control channels (default for FAR model). Here below is described the DMX channels addressing for the controller when NICK WASH 600 is set to...

  • Page 13: Display Functions

    90-260V AC, 50/60Hz DISPLAY FUNCTIONS The NICK WASH 600 display panel shows all the available functions . Using these functions, it is possible to change some of the parameters and add some functions. Changing the DTS setting can vary the functions of the unit so that it does not respond to the DMX 512 used to control it.
  • Page 14 NICK WASH 600 ARC 1200 13- DISPLAY FUNCTIONS DMX mode DMX Set DMX SET DMX SET Menu Up-Down ENTER Up-Down ENTER 17 channels (Default for NO FAR DMX MODE / MACRO DMX MODE DMX MODE MODELS) DMX Mode 20 channels (Default for FAR model)
  • Page 15 NICK WASH 600 ARC 1200 13- DISPLAY FUNCTIONS GAMMA CORRECTION DMX SET Menu Up-Down ENTER Up-Down ENTER Linear = Linear courrent output GAMMA CORRECTION GAMMA CORR. DMX MODE Quadratic = Linear light output This menu allow to select between 20 ch...
  • Page 16 NICK WASH 600 ARC 1200 13- DISPLAY FUNCTIONS AUTO AUTO-FIXED COL. DMX SET Menu Up-Down ENTER Up-Down ENTER AUTOMATIC MODE DMX MODE COLOR Automatic demo game without 20 ch DMX controller FIXED COLOURS By setting all the units connected to...
  • Page 17 Logging out all NICK WASH 600 linked to a transmitter Press and hold the function button of the transmitter for about 3 seconds. When the display is blinking on Nick Wash 600, it mean that the units are logged out.
  • Page 18 NICK WASH 600 ARC 1200 13- DISPLAY FUNCTIONS EMERGENCY EMERGECY EMERGENCY DMX SET Menu Up-Down ENTER Up-Down ENTER Disabled = Default EMERGENCY SELECTION DMX MODE Emergency operating mode. By setting Emergency mode, it 20 ch will be possible to select one of...
  • Page 19 NICK WASH 600 ARC 1200 13- DISPLAY FUNCTIONS DEFAULT SET DEFAULT SET DMX SET Menu Up-Down ENTER Up-Down ENTER DEFAULT SETTINGS DMX MODE To restore default settings 20 ch MENU ENTER DOWN MENU ENTER DOWN DEFAULT SET DMX SET DMX MODE...
  • Page 20 NICK WASH 600 ARC 1200 13- DISPLAY FUNCTIONS PAN INVERTION SYSTEM DMX SET SYTEM Menu Up-Down ENTER Up-Down ENTER Default = NORM PAN INVERSION DMX MODE PAN INVERTION / TILT INVERTION / PAN-TILT SPEED / FAN MAX SPEED / 20 ch...
  • Page 21 NICK WASH 600 ARC 1200 13- DISPLAY FUNCTIONS LEDs CIRCUIT BOARD SOFTWARE SOFTWARE SOFTWARE DMX SET Menu Up-Down ENTER Up-Down ENTER DMX MODE SOFTWARE LEDs circuit board software, MOTORS 20 ch Id 0D0E001D circuit boards software (Pan&Tilt - Zoom) v1.19 Mar 30 2011...

  • Page 22: Periodic Cleaning

    Attention: Disconnect mains power prior to removing the projector housing. Fuse replacement Locate the fuse, which protect the electronics, in the base of the NICK WASH 600. Using a multimeter, test the condition of the fuse, replacing it with one of equivalent type if necessary.

  • Page 23: Dmx Protocol

    NICK WASH 600 ARC 1200 16- DMX PROTOCOL 17 CHANNELS MODE (DEFAULT FOR NO FAR MODELS) PAN msb 540° PAN lsb TILT msb 270° TILT lsb SPEED MOVEMENT SHUTTER DIMMER GREEN BLUE AMBER \ WHITE WHITE PREPROGRAMMED MACRO FUNCTION ZOOM...
  • Page 24 NICK WASH 600 ARC 1200 DMX CHANNEL SHUTTER Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) Black - out Open 10-19 20-29 Black-out Strobe( from 3.27 s to 30 ms) 30-119 Pulse up (from 42.6s to120ms) 120-149 Pulse down(from 42.6s to120ms)
  • Page 25 NICK WASH 600 ARC 1200 DMX CHANNEL AMBER \ WHITE Parameter: Move DMX range Mid point Range Mode Option Function Value DMX value (degrees) 0 255 Proportional colour WHITE (Pre-programmed White at diff. color temperature) DMX CHANNEL Parameter: Move DMX range...
  • Page 26 NICK WASH 600 ARC 1200 COLOUR MACROS DMX CHANNEL Parameter: DMX SET MACRO MENU Up-Down Up-Down ENTER ENTER Up-Down ENTER Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 0-14 No Function 15-29 Macro 1 30-44...
  • Page 27 NICK WASH 600 ARC 1200 COLOUR MACROS DMX CHANNEL Parameter: DMX SET MACRO MENU ENTER ENTER Move DMX range Mid point range Mode Option Function Value DMX value (degrees) Rainbow Speed 1 (6 Sec.) 175-184 Rainbow Speed 2 (15 Sec.) 185-194 Rainbow Speed 3 (30 Sec.)
  • Page 28 NICK WASH 600 ARC 1200 16- DMX PROTOCOL 20 CHANNELS MODE (DEFAULT FOR FAR MODELS) PAN msb 540° PAN lsb TILT msb 270° TILT lsb SPEED MOVEMENT PAN FAR TILT FAR SHUTTER DIMMER GREEN BLUE AMBER \ WHITE WHITE PREPROGRAMMED...
  • Page 29 NICK WASH 600 ARC 1200 DMX CHANNEL PAN FAR Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) 000-010 Position mode 540° (standard path) Position mode 360° ( 1 turn) 011-020 021-030 Position mode 720° ( 2 turns) 031-040 Position mode 1080°...
  • Page 30 NICK WASH 600 ARC 1200 DMX CHANNEL SHUTTER Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) Black - out Open 10-19 20-29 Black-out Strobe( from 3.27 s to 30 ms) 30-119 Pulse up (from 42.6s to120ms) 120-149 Pulse down(from 42.6s to120ms)
  • Page 31 NICK WASH 600 ARC 1200 DMX CHANNEL AMBER \ WHITE Parameter: Move DMX range Mid point Range Mode Option Function Value DMX value (degrees) 0 255 Proportional colour WHITE (Pre-programmed White at diff. color temperature) DMX CHANNEL Parameter: Move DMX range...
  • Page 32 NICK WASH 600 ARC 1200 COLOUR MACROS DMX CHANNEL Parameter: DMX SET MACRO MENU Up-Down Up-Down ENTER ENTER Up-Down ENTER Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 0-14 No Function 15-29 Macro 1 30-44...
  • Page 33 NICK WASH 600 ARC 1200 COLOUR MACROS DMX CHANNEL Parameter: DMX SET MACRO MENU ENTER ENTER Move DMX range Mid point range Mode Option Function Value DMX value (degrees) Rainbow Speed 1 (6 Sec.) 175-184 Rainbow Speed 2 (15 Sec.) 185-194 Rainbow Speed 3 (30 Sec.)
  • Page 34 NICK WASH 600 ARC 1200 NOTES...
  • Page 35 NICK WASH 600 ARC 1200 NOTES...
  • Page 36 D.T.S. assumes no responsibility for the use or application of the products or circuits described herein. MADE IN ITALY *0517I178* 0517I178 D.T.S. Illuminazione s.r.l - Via Fagnano Selve 10-12-14 47843 - Misano Adriatico (RN) Italy Tel. +39 0541 611131 Fax +39 0541 611111 info@dts-lighting.it www.dts-lighting.it...
