3.8.1 Trigger Configuration

The configurable pins are disabled if they are all set to None. If both the serial sequence and the configurable
pins are disabled, the trigger is disabled.
To configure the XPort's email trigger settings:
1. On the main menu, click Trigger 1, Trigger 2, or Trigger 3 to configure the desired trigger settings. The

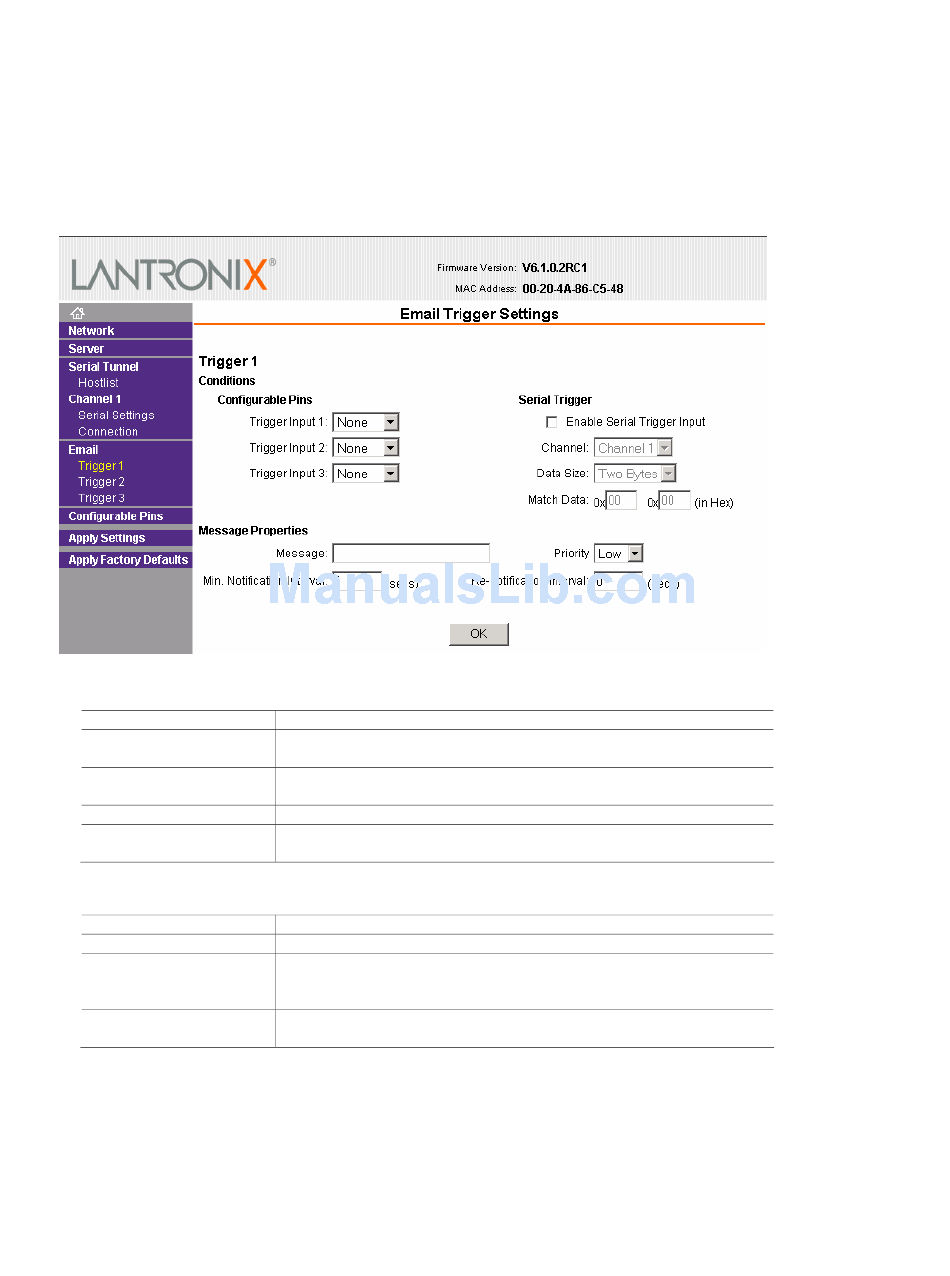

Email Trigger Settings page opens.
2. Configure or modify the following fields:
Conditions
Configurable Pins
Enable Serial Trigger
Input
Channel
Data Size
Match Data
Note: All of the conditions must match for the XPort to send an email notification.
Message Properties
Message
Priority
Notification Interval
Re-notification Interval
3. When you are finished, click the OK button.
4. On the main menu, click Apply Settings.
NET485 User Guide
Not supported on the NET485.
Enabling this option causes specified serial communications to count
as a trigger input.
Select the channel prompting the trigger. For the XPort, there is only
one channel.
Select the data size prompting the trigger.
Enter the data, which, when it appears in the communication stream,
prompts a trigger.
The subject line of the trigger event email to the specified recipient(s).
The priority level for the email.
The minimum time allowed between individual triggers. If a trigger
event occurs within the minimum interval since the last trigger, it is
ignored.
Indicates the time interval in which a new email message is sent to the
recipient(s) when a single trigger event remains active.
