Device Installer

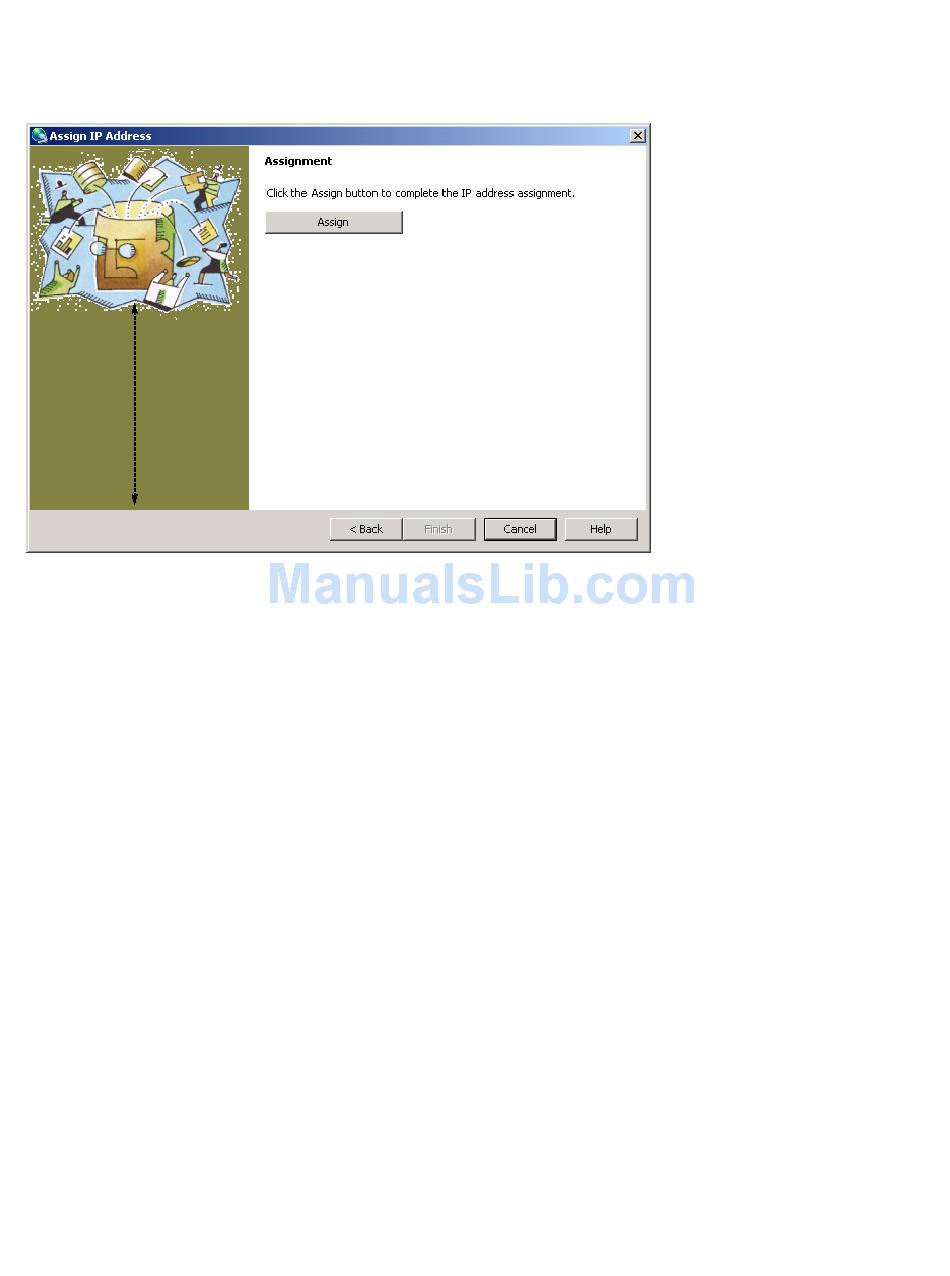

3.1.6 Assignment

Click the Assign button and wait until the progress bar shows the task is complete.
Click the Finish button to return to the main Device Installer dialog.
Select the device from the main window list and select Ping from the Tools menu. The Ping Device dialog
box shows the IP address of the selected unit.
Click the Ping button. The results display in the Status window. Click the Clear Status button to clear the
window so you can ping the device again.
Note: If you do not receive "Reply" messages, make sure the unit is properly attached to the network and that the IP
address assigned is valid for the particular network segment you are working with. If you are not sure, check with your
systems administrator.
Click the Close button to finish.
3-4 NET485 User Guide
