Figure 1 - Rs485 Transceiver - GridConnect Device Server MSS 485 User Manual

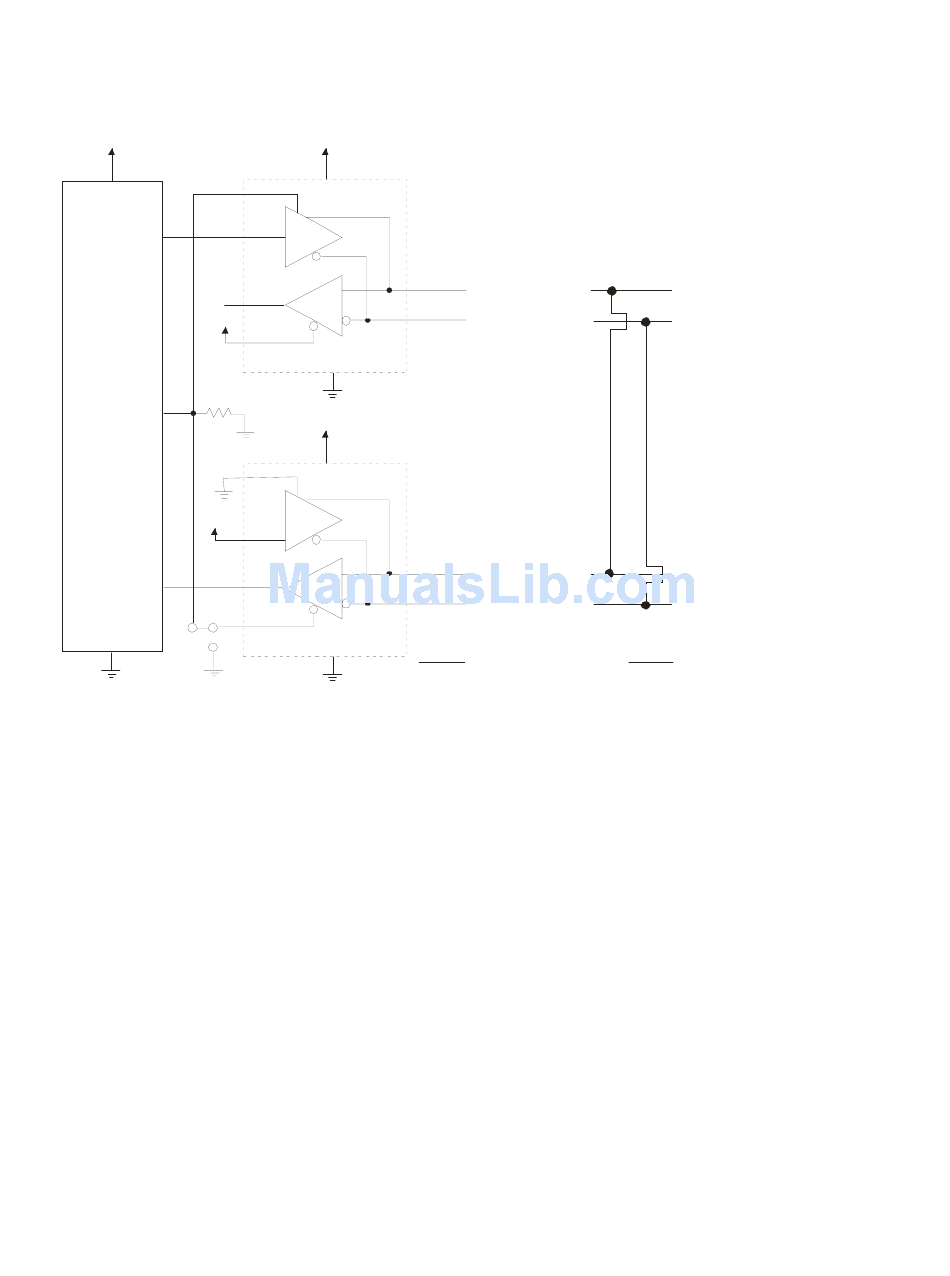

The NET485 can handle both RS485 and RS422 communications. This is done by connecting the XPort to a
pair of RS485 transceivers. The following schematic demonstrates how the circuit is wired for RS422 and
RS485.
3.3V
2
3
Vcc
4
4
TX
1
3.3V
2
XPort 485
R13
6
CP1
10K
3
3.3V
4
5 1
RX
2
3 2
GND
J2 1
1

Figure 1 - RS485 Transceiver

The transmit section of the XPort is labeled TX on pin 4. The receive section of the XPort is labeled RX on
pin 5. Note that the CP1 pin on the XPort pin 6, which is configured to control the level of RS485_TXEN, is
connected to both transceivers. The transmit section is enabled with a High signal on pin 3, U2 and the
receive section is enabled with a Low signal on pin 2, U4.
There is a jumper option J2 that permits RS485/RS422 Half Duplex or RS422 Full Duplex. With the jumper
in the factory set position between pins 2 and 3, the unit is set for RS485/RS422 Half Duplex.
For RS422 mode, use the four signals produced by the two transceivers plus a signal ground.
For RS485 mode, the TXDA signal is jumpered to the RXDA terminal, and the TXDB signal is jumpered to
the RXDB terminal. The three signals are TXDA, RXDB, and signal ground.
NET485 User Guide
3.3V
U2
8
Vcc
DE
D
DI
6
R
7
RO
RE
G ND
5
3.3V
U4
8
Vcc
DE
D
DI
6
R
7
RO
RE
G ND
5
RS422
RS485
Half-Duplex
Mode
Mode
TXDA (Pin 7)
TXDB (Pin 6)
RXDA (Pin 5)
RXDB (Pin 4)
SGND (Pin 3)
Overview
TXDA (Pin 7)
TXDB (Pin 6)
RXDA (Pin 5)
RXDB (Pin 4)
SGND (Pin 3)
1-3
