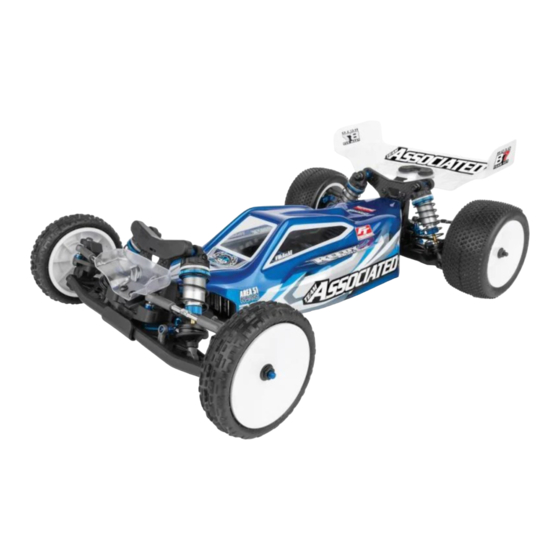

Associated Electrics RC10 B7 TEAM KIT Manual

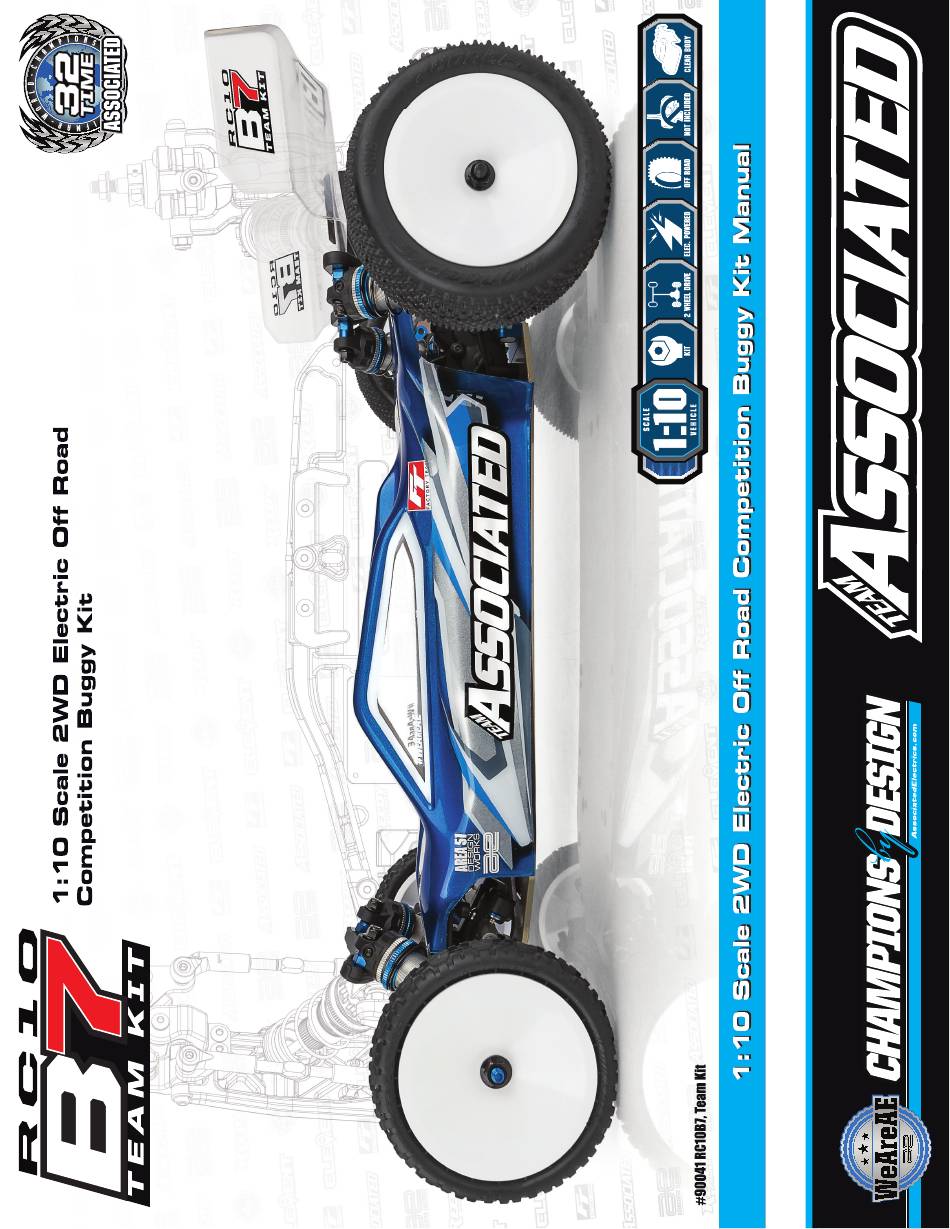

1:10 scale 2wd electric off road competition buggy kit
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RC10 B7 TEAM KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Associated Electrics RC10 B7 TEAM KIT

Summary of Contents for Associated Electrics RC10 B7 TEAM KIT

  • Page 2 • Hobby Knife • Needle Nose Pliers • FT Universal Tire Balancer (#1498) • Calipers or a Precision Ruler • FT Body Scissors (#1737) • Soldering Iron Associated Electrics, Inc. Customer Service 21062 Bake Parkway. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 3 :: Hardware - 1:1 Scale View :: Hardware - 1:1 Scale View :: Hardware - 1:1 Scale View :: Hardware - 1:1 Scale View Ball Bearings Button Head (bhcs) Flat Head (fhcs) 4x7x2.5mm (31732) 2x4mm (31510) 2x3mm (91749) 2.5x6mm (31520) 3x8mm (25201) 5x8x2.5mm (31400) 2.5x10mm (31522)
  • Page 4 :: Table of Contents :: Table of Contents 1....Cover 11....Gearbox Build Bag 6 2....Introduction 14....Rear Hubs Build 3....1:1 Hardware “Fold Out” Bag 7 4....Table of Contents 15....Turnbuckles Build Bag 8 5....Steering Build Bag 1 16....Shocks Build Bag 9 5....Front Suspension Build Bag 2 19....Electronics Build...
  • Page 5 1/24 :: Bag 1 - Bag 1 - Step 1 Step 1 Front 91973 91983 Note orientation 31732 Steering Aluminum of steering rack 4 x 7 x 2.5 Bellcrank Steering Bellcranks 31732 Ball Bearing (Right) 4 x 7 x 2.5 Ball Bearing Front 91048...
  • Page 6 :: Bag 2 - Bag 2 - Step 2 Step 2 91976 91975 91977 FT B6.4 FT B6.4 FT B6.4 Aluminum, Carbon Fiber, Steel, 33g #91988 Battery Foamis only 6.15g needed if your battery is too short to fi t between the side rails. 91988 B6.4 Battery Foam...
  • Page 7 :: Bag 2 - Bag 2 - Step 4 Step 4 92418 Servo Mount 41089 25202 M3 x 6mm LP M3 x 10mm #91728 - Servo Spacers SHCS FHCS are not required for most servos. :: Bag 2 - Bag 2 - Step 5 Step 5 89203 Do not overtighten...
  • Page 8 :: Bag 2 - Bag 2 - Step 7 Step 7 92443 3 3 2 2 Shock Bushing, 92427 92426 Front Bumper Front Shock Tower Cover See installation notes in next step! 92430 89208 Front Shock 41091 M3 x 14mm Tower, B7 M3 x 20mm FHCS...
  • Page 9 :: Bag 3 - Bag 3 - Step 2 Step 2 31532 92442 91049 M3 x 8mm Caster Block 31532 Heavy-duty BHCS Pivot Balls M3 x 8mm Ballstud, 10mm BHCS Steering stop screw. Set fl ush with caster 31383 block to start. 92415 92414 FT Ballstud...
  • Page 10 :: Bag 4 - Bag 4 - Step 2 Step 2 The (#92432) C and (#92433) D aluminum arm mounts allow for a large amount of setup combinations when using the (#92014) 0.5° and 1° arm mount inserts. For a complete list of pill setup combinations, please visit our website by using the link below.
  • Page 11 :: Bag 5 - Bag 5 - Step 3 Step 3 31522 M2.5 x 10mm BHCS 92306 Gear Diff Sun Gear LTC 92133 Gear Diff Gasket, B74 92138 Gear Diff Outdrive Pin Fill to top of the cross pins :: Bag 6 - Bag 6 - Step 1 Step 1 92406...
  • Page 12 :: Bag 6 - Bag 6 - Step 3 Step 3 Arm Mount D: Diff Height Add a drop of Diff Lube (#6591 - ° In ° In not included) to the teeth of the diff gear, idler gear, and top shaft. 89203 92407 M3 x 16mm...
  • Page 13 :: Bag 6 - Bag 6 - Step 5 Step 5 91891 41095 92426 Slipper Spring M3 x 22mm LP Rear Tower Adapter, Outer SHCS 91891 Cover 25612 Slipper Spring M3 Locknut, Adapter, Inner Flanged 92276 B74.1 Slipper Spring, 500lb 92431 Rear Shock Tower, B7...
  • Page 14 :: Bag 7 - Bag 7 - Step 1 Step 1 91047 Rear Axle Height Heavy-duty Ballstud, 6mm 92412 92413 +3mm 31382 B7 Rear Carbon B7 Hubs, HRC Rear Hubs, Ballstud Washers, 5.5x1.0mm, blue 92179 +2mm 92441 Rear Hub Rear Hub Link Inserts Setup Mount, +1mm...
  • Page 15 :: Bag 8 - Bag 8 - Step 1 Step 1 92308 92308 92337 Racers Tip: Ball Cup Ball Cup Turnbuckle 92360 3.5x48mm Use black grease Titanium (#6588) on the threads of the Turnbuckle Measurements given are turnbuckles for 3.5x48mm approximation.
  • Page 16 :: Bag 9 - Bag 9 - Step 1 Step 1 31510 31510 M2 x 4mm M2 x 4mm 91932 92428 BHCS BHCS FT 13mm Shock FT 13mm Mount the shock Shock Piston, Piston, 2.5mm pistons with the 89278 [2x1.6] 2.5mm [2x1.9] number facing up! 89278...
  • Page 17 :: Bag 9 - Bag 9 - Step 4 Step 4 91926 13mm Shock 31510 M2 x 4mm Front Shock: 35wt BHCS #5429 Shock Bleeding Steps: Rear Shock: 30wt #5422 Before assembly, get each bleed screw and thread it 1-2 turns into the shock cap, then remove the Stroke Stroke screw.
  • Page 18 :: Bag 9 - Bag 9 - Step 7 Step 7 Use outside hole in front arm! 25612 M3 Locknut w/ Flange 3 3 2 2 25189 M3 x 22mm BHCS Build x2 (right and left side) :: Bag 9 - Bag 9 - Step 8 Step 8 Make sure the fl...
  • Page 19 :: Bag 10 - Bag 10 - Step 1 Step 1 Fan not included! 89203 See page 25 for gear M3 x 16mm mesh setting BHCS instructions! Motor not included! 41096 M3 x 8mm LP SHCS Pinion & Setscrew not included! :: Bag 10 - Bag 10 - Step 2 Step 2...
  • Page 20 :: Bag 10 - Bag 10 - Step 3 Step 3 Standard Standard See note at bottom of page! 92418 Thumb Screw 25211 M3 x 10mm 92463 BHCS Front Front 1 2 3 4 5 1 2 3 4 5 Battery Holder Kit Setting - #3 Kit Setting - #3...
  • Page 21 :: Bag 10 - Bag 10 - Step 5 Step 5 25202 M3 x 10mm FHCS 92424 Wing, B7 Install button and washer 92417 with wing mount Wing Button Wing Mount 92417 6° - Mount under wing - KIT Wing Mount 3°...
  • Page 22 :: Bag 2 - :: Tuning Tips - Painting, Beginners :: Tuning Tips - Painting, Beginners Bag 2 - Step 1 Step 1 Painting: Your Kit requires a clear polycarbonate body. You will need to prep the body before you can paint it. Wash the INSIDE thoroughly with warm water and liquid detergent (do not use any detergents with scents or added hand lotion ingredi- ents!).
  • Page 23 :: Tuning Tips (cont.) :: Tuning Tips (cont.) :: Bag 2 - Bag 2 - Step 1 Step 1 Motor Gearing: Proper motor gearing will result in maximum performance and run time while reducing the chance of overheating and premature motor failure.
  • Page 24 Kit Setup (Carpet) Driver: Driver: Event: Event: Qualify: Qualify: Main: Main: Date: Date: Track: Track: Finish: Finish: Best Lap Time: Best Lap Time: Front Suspension: Front Suspension: 13mm Steering Bellcrank Position: Up Ride Height: Ball Stud Spacing: Down -1 degree Camber: 0 degree Toe:...
  • Page 25 Driver: Driver: Event: Event: Qualify: Qualify: Main: Main: Date: Date: Track: Track: Finish: Finish: Best Lap Time: Best Lap Time: Front Suspension: Front Suspension: Steering Bellcrank Position: Up Ride Height: Ball Stud Spacing: Down Camber: Toe: Ball Stud Spacing: Ball Stud Spacing: Anti-Roll Bar: Bump Steer Spacing: Ball Stud Spacing:...
