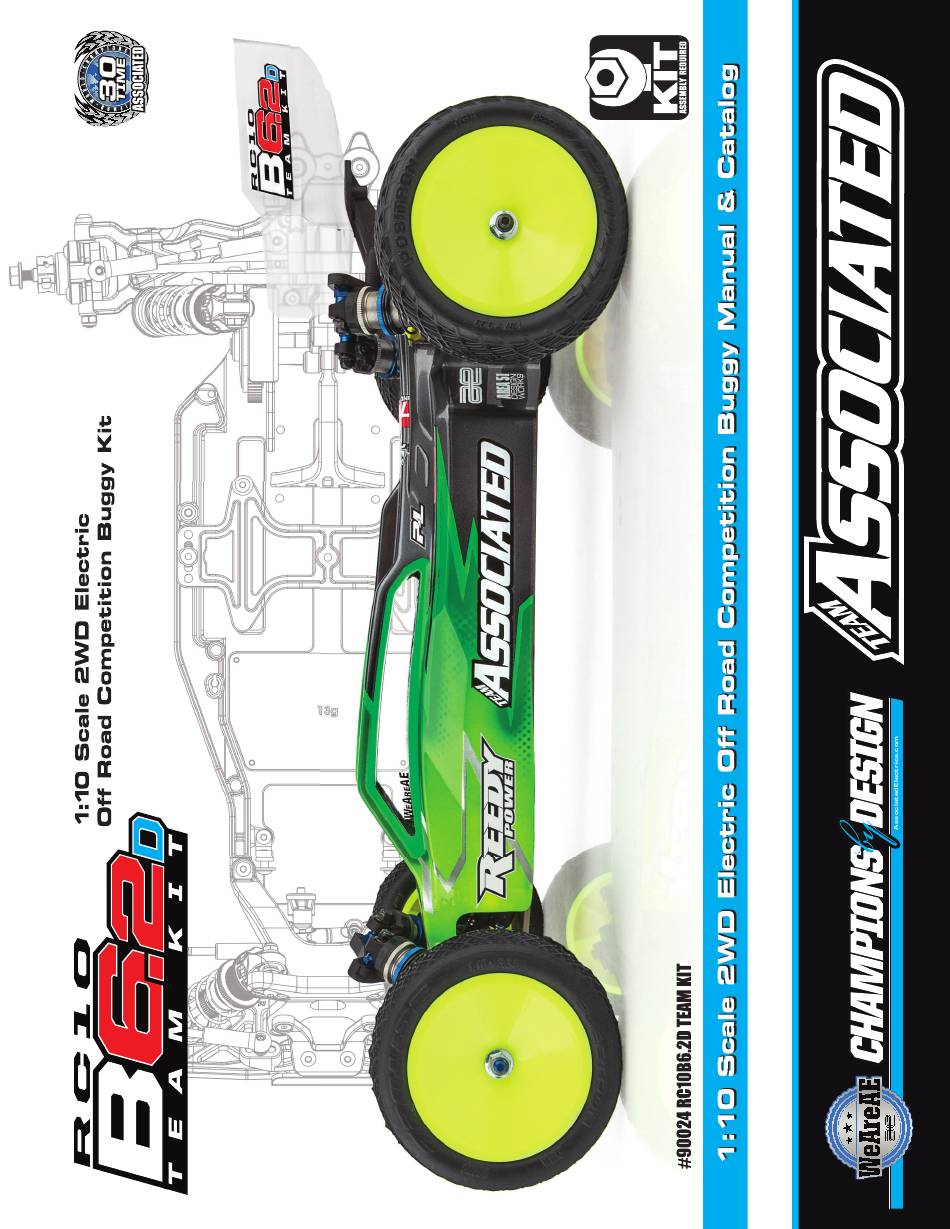

Associated Electrics RC10B6.2D KIT Manual & Catalog

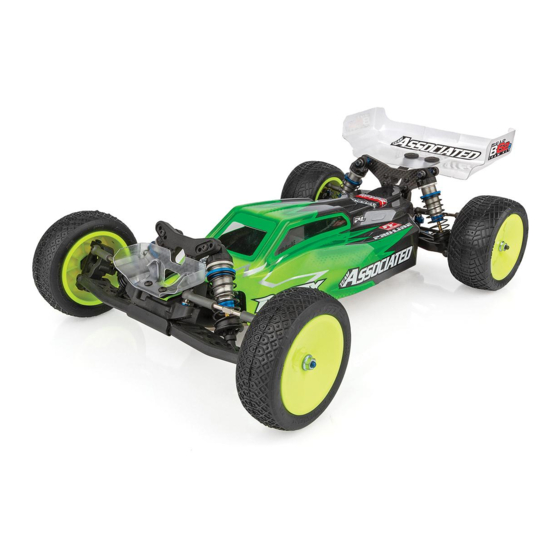

1:10 scale 2wd electric off road competition buggy kit
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RC10B6.2D KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Associated Electrics RC10B6.2D KIT

Summary of Contents for Associated Electrics RC10B6.2D KIT

  • Page 2 New parts will be noted on supplementary sheets located in the appropriate parts bags. Check each bag for these sheets before you start to build. :: RC10B6.2D KIT Features :: RC10B6.2D KIT Features • New symmetric rear arms with improved geometry and stiffness can be flipped to allow a “split” for rear shock mounting position •...
  • Page 3 :: Hardware - 1:1 Scale View :: Hardware - 1:1 Scale View Button Head (bhcs) Flat Head (fhcs) Ball Bearings 2x4mm (31510) 2x3mm (91749) 3x7x3mm (91475) Aluminum (8545) 2.5x8mm (31448) 2.5x6mm (31520) 5x8x2.5mm (31400) 3x8mm (25201) 2.5x8mm (31521) Aluminum (8553) Titanium (91592) 5x10x4mm (91560) 2.5x10mm (31522)
  • Page 4 Each part in the This symbol indicates a Racers Tip. foldout has a number assigned to it for ordering replacement parts. Associated Electrics, Inc. Customer Service 21062 Bake Parkway. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 5 1/20 :: Bag 1 - Bag 1 - Step 1 Step 1 Front 91475 31382 3 x 7 x 3 FT Ballstud Ball Bearing 91667 Washer, Note orientation Steering of steering rack. Aluminum 91475 Bellcrank (1mm) 3 x 7 x 3 (Right) Ball Bearing 91667...
  • Page 6 :: Bag 2 Bag 2 - - Step 2 Step 2 91746 91652 91734 B6 FT Aluminum Side Rails Battery Chassis Weight, (L & R) Foam, B6 #91734 - Side Rail Foams Have two thickness options to accomodate any battery size. 25202 25201 91749...
  • Page 7 :: Bag 2 Bag 2 - - Step 5 Step 5 25187 91766 Top Plate, M3 x 14mm 25211 BHCS M3 x 10mm BHCS :: Bag 2 Bag 2 - - Step 6 Step 6 25211 M3 x 10mm BHCS The front hinge pin brace has a sharp edged side, and a...
  • Page 8 :: Bag 2 - Bag 2 - Step 8 Step 8 #91865 - Front Wing Mount is used as a tuning option to Use the outer most hole on increase front end stabillity by adding a front wing (included). the shock tower for kit setup If you do not use #91865, use #25202 M3x10mm FHCS instead of #89208 M3x14mm FHCS.
  • Page 9 :: Bag 3 - Step 3 25187 91676 M3 x 14mm Caster Hat BHCS Bushing 91776 Top: 1mm Caster Block Bottom: 2mm Spacer 91670 Front Hinge Pin (Outer, 3x226mm) 31510 M2 x 4mm BHCS #91670 - Hinge Pin will be tight in the caster blocks, but should rotate freely Build 2 (1 left, 1 right)
  • Page 10 :: Bag 5 - Step 1 Bag 5 - Step 1 6581 7666 7666 3/32 carbide Diff Drive Diff Drive diff balls Ring Ring 91701 91701 Ball Diff 91419 Ball Diff Outdrive Outdrive Diff Gear, :: Bag 5 - Step 2 Bag 5 - Step 2 6573 Diff thrust...
  • Page 11 :: Bag 6 - Step 1 Bag 6 - Step 1 91790 91799 B6.1 Layback B6.1 Laydown Gearbox Top Shaft (right & left) B6.2D comes with a #91790 Layback 91560 transmission and a #91791 Laydown 5 x 10 x 4, transmission.
  • Page 12 :: Bag 6 - Step 4 Bag 6 - Step 4 91803 91811 B6.1 Slipper 91813 B6.1 Spur Hub, Inner There’s also a B6.1 Gear 72T, 48P spur Gear, 78T gear (#91809) Guard included for 9611 stock motor use! Slipper Pad, V2 91799 91795...
  • Page 13 :: Bag 7 - Step 1 Bag 7 - Step 1 Rear Axle Height 91047 Heavy-duty +3mm 31383 Ballstud, Ballstud Washers, Setup 5.5x2.0mm, blue 92179 B6.2 Rear +2mm Hub Inserts 92180 Rear Hub Link Mounts +1mm 91857 B6.2 Rear Hubs 89202 +0mm M3 x 12mm...
  • Page 14 :: Bag 8 - Step 1 Bag 8 - Step 1 91722 91723 91722 Ball Cup Turnbuckle Ball Cup 3x48mm Steering Turnbuckle Racers Tip: 27.90mm Orient the notch Use black grease to the left throughout the (#6588) on the car. It indicates which end threads of the has the left hand threads! turnbuckles for...
  • Page 15 :: Bag 9 - Step 1 Bag 9 - Step 1 91491 91480 91626 31510 12mm 12x23mm V2 FT 12mm V2 M2 x 4mm Shock Cap Shock Bodies Shock Piston, BHCS O-Ring (front) 2x1.6 flat Mount the shock Lightly rub shock oil 89278 pistons with the (front)
  • Page 16 :: Bag 9 - Step 4 Bag 9 - Step 4 #91814 12mm Shock Spring Cups 91304 12mm Threaded Threaded Racers Tip: Collar O-ring Front: Use your finger to rub 3.70mm shock oil on the o-ring for smoother adjustment! Rear: 91814 8.40mm 91831...
  • Page 17 :: Bag 10 - Step 2 Bag 10 - Step 2 Receiver not ESC not 25225 included! included! M3 x 3mm 91730 Set Screw Battery Strap Shoulder 6338 Screw Antenna Make sure the Tube & Cap 6727 battery strap shoulder screw is Servo flush with the top of flush with the top of...
  • Page 18 :: Bag 10 - Step 5 25202 91718 Wing M3 x 10mm Wing Mount Button FHCS 91741 6° - Mount under wing - KIT Wing, 91718 3° - Mount on top of wing Wing Mount 0° - Mount under wing Front of Vehicle :: Bag 10 - Step 6 Bag 10 - Step 6...
  • Page 19 :: Bag 10 - Step 8 Bag 10 - Step 8 91826 M4 Steel 91826 Serrated M4 Steel Nut, with Serrated Flange - Nut, with Silver Flange - Silver Build 2 (1 left, 1 right) Build 2 (1 left, 1 right) :: :: Notes Notes...
  • Page 20 :: Tuning Tips :: Tuning Tips Painting: Your Kit comes with a clear polycarbonate body. You will need to prep the body before you can paint it. Wash the INSIDE thoroughly with warm water and liquid detergent (do not use any detergents with scents or added hand lotion ingredients!).
  • Page 21 :: Tuning Tips (cont.) :: Tuning Tips (cont.) Motor Gearing: Proper motor gearing will result in maximum performance and run time while reducing the chance of overheating and premature motor failure. The gear ratio chart lists recommended starting gear ratios for the most widely used motor types.
  • Page 22 :: Tuning Tips :: Tuning Tips Front Camber Links: Changing the length of the camber link is considered a bigger step than adjusting the ball end height on the tower. Shortening the camber link (or lowering the ball end) will give the front end less roll and quicken steering *Raise or lower the response.
  • Page 23 :: Shocks :: Shocks :: Ball Differential :: Ball Differential 4187 .030 Nylon Washer 1733 Diff Shims 31327 VCS3 Shock Bottom Cap and O-Ring 2 ea. 6573 Diff Thrust Washer & Bolt 31510 2x4mm BHCS 6574 Precision Diff Thrust Balls, 5/64” 89278 2.5mm Washer 6575...
  • Page 24 :: Transmission :: Transmission 25188 M3 x 20mm BHCS 89203 89203 25202 M3 x 10mm FHCS 25204 M3 x 16mm FHCS 89202 31383 Ballstud Washers, 5.5x2.0 mm, blue aluminum 31448 M2.5 x 8mm FHCS 31532 M3 x 8mm BHCS 89202 M3 x 12mm BHCS 91790 89218...
  • Page 25 :: Gear Differential :: Gear Differential 31522 M2.5 x 10mm BHCS 91563 31522 91563 FT Bearings, 10x15x4 mm 91792 91780 B6.1 Gear Differential Rebuild 91782 91782 B6.1 Gear Differential Seals 91783 B6.1 Gear Differential Case 91785 91780 91784 B6.1 Aluminum Cross Pins 91783 91785 B6.1 Gear Differential Outdrives...
  • Page 26 :: Front Arm :: Front Arm 25187 M3 x 14mm BHCS 25188 M3 x 20mm BHCS 25187 91048 25215 M3 Locknut, Black 31382 FT Ballstud Washer, aluminum1mm 31510 M2 x 4mm BHCS 91049 31532 31531 M3 x 6mm, BHCS 31382 25215 31532 M3 x 8mm, BHCS...
  • Page 27 :: Front Shock Tower :: Front Shock Tower 25188 M3 x 20mm BHCS 25202 M3 x 10mm FHCS 25612 M3 Locknuts w/Flange 31530 M3x5mm BHCS 89208 M3x14mm FHCS 91768 B6.1 Front Shock Tower 91771 91771 B6.1 Shock Tower Covers 91768 25188 91815 91815...
  • Page 28 :: Front Bulkhead / Steering :: Front Bulkhead / Steering 25187 M3 x 14mm BHCS 25204 M3 x 16mm FHCS 25211 M3 x 10mm BHCS 25225 M3 x 3mm Set Screw 31283 Ball Studs, Long, 5mm 31382 Ballstud Washers, 5.5x1.0 mm, blue aluminum 89202 M3 x 12mm BHCS...
  • Page 29 :: :: Factory Team and Option Parts Cont... Factory Team and Option Parts Cont... :: Factory Team and Option Parts Factory Team and Option Parts 1369 FT Alum. Clamping Servo Horn 23T, 15.5 mm 91806 B6.1 Vented Slipper Hub, outer 1370 FT Alum.
  • Page 30 :: Reedy Competition Motors & Spare Parts :: Reedy Competition Motors & Spare Parts :: Reedy Chargers / :: Reedy Chargers / Charger Accessories Charger Accessories Sonic 540-M3 6.5 5.0mm 1S-2S Balance Charge lead w/SP Clip (4mm) Sonic 540-M3 6.0 4.0mm 1S-2S Balance Charge lead w/SP Clip (4mm) Sonic 540-M3 5.5 27200...
  • Page 31 :: Contact Information :: Contact Information Check out the following web sites for all of our electric kits, current products, new releases, setup help, tips, and racing info! Associated Electrics, Inc. 21062 Bake Parkway Lake Forest, CA 92630-8853 USA http://www.TeamAssociated.com http://www.RC10.com...
  • Page 32 B6.2D Kit Setup Driver: Event: Date: Track: Qualify: Main: Finish: Best Lap Time: Front Suspension: Front Suspension: 22mm Ride Height: Bump Steer Spacing: Ball Stud Spacing: Camber: -1° Toe: 0° #91680 +1 Anti-Roll Bar: Steering Plate: Arm Type: #91673 Gull-Wing, Standard Axle Height: Tower Type: #91768 Gull-Wing...
  • Page 33 Driver: Event: Date: Track: Qualify: Main: Finish: Best Lap Time: Front Suspension: Front Suspension: Ride Height: Bump Steer Spacing: Ball Stud Spacing: Camber: Toe: Anti-Roll Bar: Steering Plate: Arm Type: Axle Height: Tower Type: Steering Stop Spacing: Ball Stud Spacing: Caster Block Insert: Steering Block: Bulkhead Type:...
