Associated Electrics RC10B7D Manual
  1. Manuals
  2. Brands
  3. Associated Electrics Manuals
  4. Motorized Toy Car
  5. RC10B7D
  6. Manual

Associated Electrics RC10B7D Manual

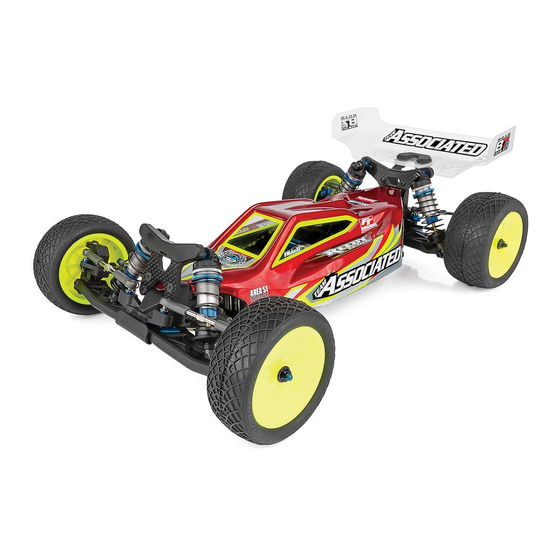

1:10 scale 2wd electric off road competition buggy kit
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RC10B7D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Associated Electrics RC10B7D

Summary of Contents for Associated Electrics RC10B7D

  • Page 2 • Shock tower covers front and rear • 3.5mm turnbuckles and ballcups :: Additional :: Additional Your new RC10B7D Team Kit comes unassembled and requires the • 2 cell LiPo battery pack following items for completion (refer to www.AssociatedElectrics.com • Polycarbonate specific spray paint and www.Reedypower.com for suggestions):...
  • Page 3 :: Hardware - 1:1 Scale View :: Hardware - 1:1 Scale View :: Hardware - 1:1 Scale View :: Hardware - 1:1 Scale View Button Head (bhcs) Flat Head (fhcs) Ball Bearings 2x4mm (31510) 2x3mm (91749) 4x7x2.5mm (31732) 2.5x6mm (31520) 3x8mm (25201) 5x8x2.5mm (31400) 3x6mm (31531)
  • Page 4 :: Table of Contents :: Table of Contents 1....Cover 11....Gearbox Build Bag 6 2....Introduction 14....Rear Hubs Build 3....1:1 Hardware “Fold Out” Bag 7 4....Table of Contents 15....Turnbuckles Build Bag 8 5....Steering Build Bag 1 16....Shocks Build Bag 9 5....Front Suspension Build Bag 2 19....Electronics Build...
  • Page 5 1/24 :: Bag 1 - Bag 1 - Step 1 Step 1 Front 91973 91983 Note orientation 31732 31732 Steering Aluminum of steering rack 4 x 7 x 2.5 4 x 7 x 2.5 Bellcrank Steering Bellcranks Ball Bearing Ball Bearing (Right) Front 91048...
  • Page 6 :: Bag 2 - Bag 2 - Step 2 Step 2 91976 91975 91977 #91988 Battery Foamis only FT B6.4 FT B6.4 FT B6.4 needed if your battery is too Aluminum, Carbon Fiber, Steel, 33g short to fi t between the side rails. 6.15g 91988 B6.4 Battery...
  • Page 7 :: Bag 2 - Bag 2 - Step 4 Step 4 92418 Servo Mount 41089 25202 M3 x 6mm LP #91728 - Servo Spacers M3 x 10mm SHCS are not required for most servos. FHCS :: Bag 2 - Bag 2 - Step 5 Step 5 89203 M3 x 16mm...
  • Page 8 :: Bag 2 - Bag 2 - Step 7 Step 7 92443 Shock 3 3 2 2 Bushing, 92427 92426 Front Front Shock Bumper Tower Cover See installation notes 92430 in next step! Front Shock 89208 41091 Tower, B7 M3 x 14mm M3 x 20mm FHCS LP SHCS...
  • Page 9 :: Bag 3 - Bag 3 - Step 2 Step 2 31532 92442 91049 M3 x 8mm Caster Block Heavy-duty 31532 BHCS Pivot Balls Ballstud, 10mm M3 x 8mm BHCS Steering stop screw. 31383 Set fl ush with caster FT Ballstud block to start.
  • Page 10 :: Bag 4 - Bag 4 - Step 2 Step 2 The (#92432) C and (#92433) D aluminum arm mounts allow for a large amount of setup combinations when using the (#92014) 0.5° and 1° arm mount inserts. For a complete list of pill setup combinations, please visit our website by using the link below.
  • Page 11 :: Bag 4 - Bag 4 - Step 5 Step 5 6575 As you tighten the diff bolt, you will notice the T-nut ears moving closer to the bottom of the outdrive slot. This compresses the spring behind the T-nut. The spring should be Locking completely T-nut...
  • Page 12 :: Bag 6 - Bag 6 - Step 3 Step 3 Diff Height Arm Mount D: Add a drop of Diff Lube (#6591 - ° In ° In not included) to the teeth of the diff gear, idler gear, and top shaft. 92407 B7 Diff...
  • Page 13 :: Bag 6 - Bag 6 - Step 5 Step 5 91801 41095 92426 Slipper Spring M3 x 22mm LP Rear Tower Adapter, Outer SHCS Cover 91801 25612 Slipper Spring M3 Locknut, Adapter, Inner Flanged 91801 B6.1 Slipper Spring 92431 Rear Shock Tower, B7 92159...
  • Page 14 :: Bag 7 - Bag 7 - Step 1 Step 1 91047 Rear Axle Height Heavy-duty Ballstud, 6mm 92412 92413 +3mm 31382 B7 Rear Carbon Ballstud Washers, Hubs, Std B7 Rear Hubs, 92179 5.5x1.0mm, blue Rear Hub 92441 Inserts +2mm Rear Hub Link Mount, +1mm 31383...
  • Page 15 :: Bag 8 - Bag 8 - Step 1 Step 1 92308 92308 92337 Racers Tip: Ball Cup Ball Cup Turnbuckle 92360 3.5x48mm Use black grease Titanium (#6588) on the Turnbuckle threads of the Measurements given are 3.5x48mm turnbuckles for approximation.
  • Page 16 :: Bag 9 - Bag 9 - Step 1 Step 1 31510 31510 M2 x 4mm M2 x 4mm 91934 92428 BHCS BHCS FT 13mm Shock FT 13mm Mount the shock Shock Piston, Piston, 2.5mm pistons with the 89278 [2x1.8] 2.5mm [2x1.9] number facing up! 89278...
  • Page 17 :: Bag 9 - Bag 9 - Step 4 Step 4 91926 13mm Shock 31510 M2 x 4mm Front Shock: 30wt BHCS #5422 Rear Shock: 30wt Shock Bleeding Steps: #5422 Before assembly, get each bleed screw and thread Stroke Stroke it 1-2 turns into the shock cap, then remove the screw.
  • Page 18 :: Bag 9 - Step 7 Use middle hole in front arm! 25612 M3 Locknut w/Flange 3 3 2 2 25189 M3 x 22mm BHCS Build x2 (right and left side) :: Bag 9 - Step 8 Make sure the fl ange on the shock pivot ball is towards the rear arm.
  • Page 19 :: Bag 10 - Bag 10 - Step 1 Fan not included! 89203 See page 25 for gear See page 25 for gear M3 x 16mm mesh setting mesh setting BHCS instructions! instructions! Motor not included! 41096 M3 x 8mm LP SHCS Pinion &...
  • Page 20 :: Bag 10 - Bag 10 - Step 3 Step 3 See note at bottom 92418 Standard Standard of page! Thumb Screw 25211 M3 x 10mm 92463 BHCS Battery Holder Front Front 1 2 3 4 5 1 2 3 4 5 O-Ring Kit Setting - #1 Kit Setting - #1...
  • Page 21 :: Bag 10 - Bag 10 - Step 5 Step 5 25202 M3 x 10mm FHCS 92424 Wing, B7 Install button and washer 92417 with wing mount Wing Button Wing Mount 92417 6° - Mount under wing - KIT Wing Mount 3°...
  • Page 22 :: Bag 2 - :: Tuning Tips - Painting, Beginners :: Tuning Tips - Painting, Beginners Bag 2 - Step 1 Step 1 Painting: Your Kit requires a clear polycarbonate body. You will need to prep the body before you can paint it. Wash the INSIDE thoroughly with warm water and liquid detergent (do not use any detergents with scents or added hand lotion ingredi- ents!).
  • Page 23 :: Tuning Tips (cont.) :: Tuning Tips (cont.) :: Bag 2 - Bag 2 - Step 1 Step 1 Motor Gearing: Proper motor gearing will result in maximum performance and run time while reducing the chance of overheating and premature motor failure.
  • Page 24 Kit Setup (Dirt) Driver: Driver: Event: Event: Qualify: Qualify: Main: Main: Date: Date: Track: Track: Finish: Finish: Best Lap Time: Best Lap Time: Front Suspension: Front Suspension: 19mm Steering Bellcrank Position: Up Ride Height: Down Ball Stud Spacing: -1 degree Camber: 0 degree Toe:...
  • Page 25 Driver: Driver: Event: Event: Qualify: Qualify: Main: Main: Date: Date: Track: Track: Finish: Finish: Best Lap Time: Best Lap Time: Front Suspension: Front Suspension: Steering Bellcrank Position: Up Ride Height: Down Ball Stud Spacing: Camber: Toe: Ball Stud Spacing: Ball Stud Spacing: Anti-Roll Bar: Bump Steer Spacing: Ball Stud Spacing:...

This manual is also suitable for:

90042Rc10b7d team kit
