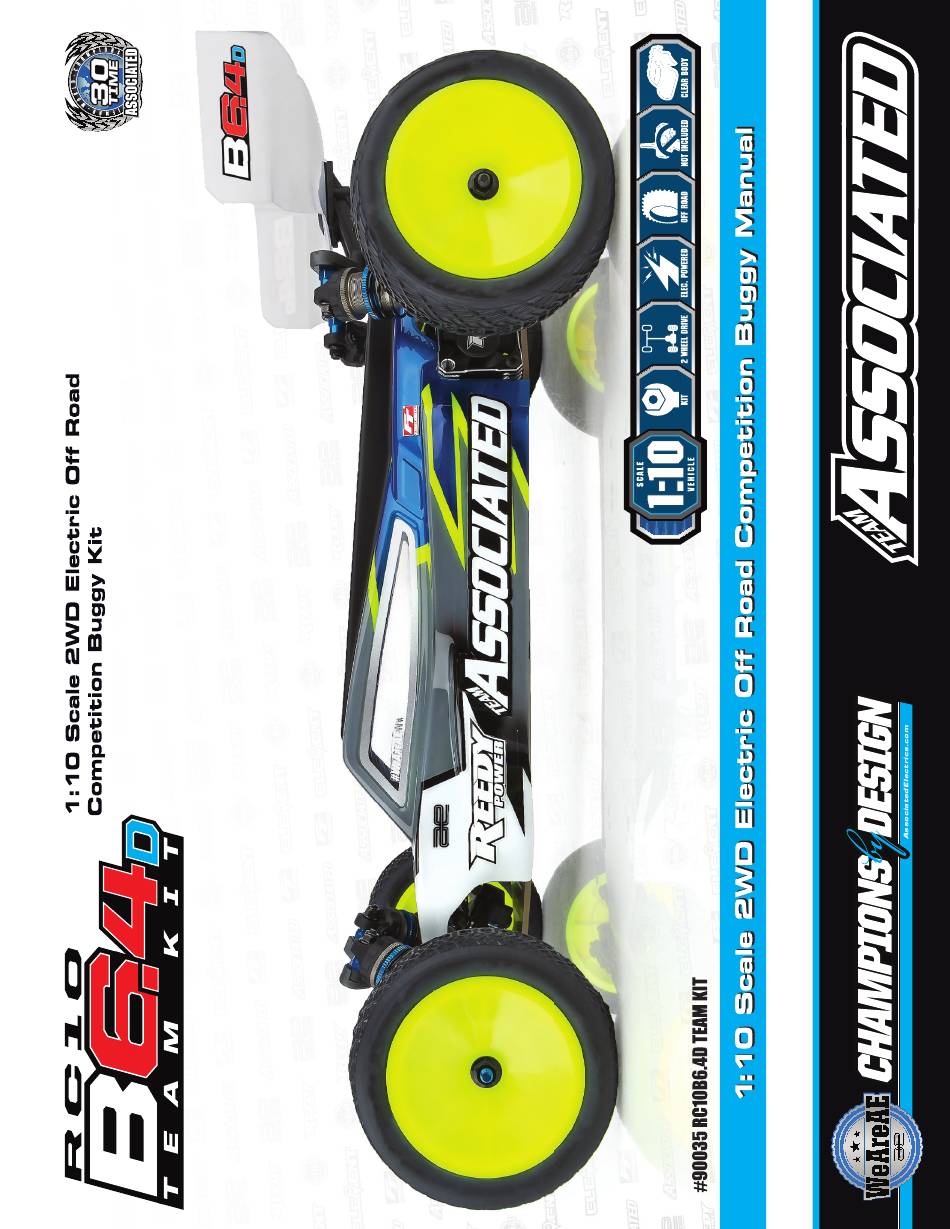

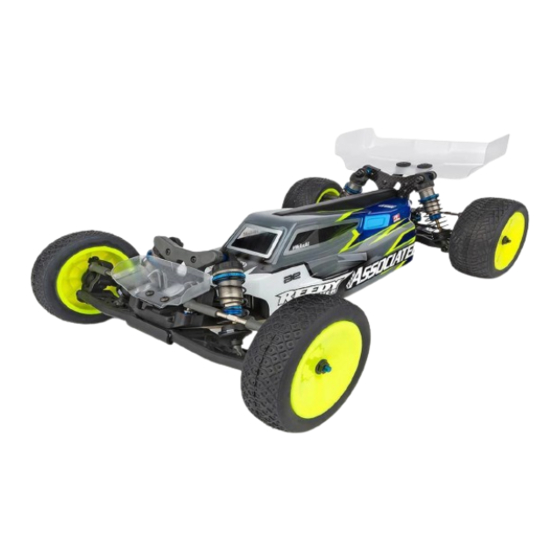

Associated Electrics RC10 B6.4D TEAM KIT Manual

1:10 scale 2wo electric off road competition buggy
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RC10 B6.4D TEAM KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Associated Electrics RC10 B6.4D TEAM KIT

Summary of Contents for Associated Electrics RC10 B6.4D TEAM KIT

  • Page 2 • FT Dual Turnbuckle Wrench (#1114) • Calipers or a Precision Ruler • Soldering Iron • Hobby Knife • Wire Cutters • Needle Nose Pliers Associated Electrics, Inc. Customer Service 21062 Bake Parkway. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 3 :: Hardware - 1:1 Scale View :: Hardware - 1:1 Scale View Button Head (bhcs) Flat Head (fhcs) Ball Bearings 2x4mm (31510) 2x3mm (91749) 4x7x2.5mm (31732) Aluminum (8545) 2.5x8mm (31448) 2.5x6mm (31520) 5x8x2.5mm (8680) 3x8mm (25201) 2.5x8mm (31521) 3x10mm (25202) 5x10x4mm (91560) 2.5x10mm (31522) 3x12mm (25203)
  • Page 4 Each part in the This symbol indicates a Racers Tip. foldout has a number assigned to it for ordering replacement parts. Associated Electrics, Inc. Customer Service 21062 Bake Parkway. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 5 3/22 :: Bag 1 - Bag 1 - Step 1 Step 1 Front 31283 91973 5mm Ball Steering 31732 Stud, Long Bellcrank 4 x 7 x 2.5 Note orientation (Right) Ball Bearing of steering rack. 91973 Steering Bellcrank 91973 (Left) Steering Rack 31382...
  • Page 6 :: Bag 2 Bag 2 - - Step 1 Step 1 91967 B6.4 Chassis Note: There are two bulkheads Check the screw length as Check the screw length as included in the kit (0 °, 2.5 °). both 14mm and 16mm are both 14mm and 16mm are 0 °...
  • Page 7 :: Bag 2 Bag 2 - - Step 4 Step 4 91885 Servo Mount 31531 Brace M3 x 6mm BHCS 91887 Servo Mount 41089 M3 x 6mm #91728 - Servo Spacers LP SHCS are not required for most servos. :: Bag 2 Bag 2 - - Step 5 Step 5 91971...
  • Page 8 :: Bag 2 - Bag 2 - Step 7 Step 7 91685 Front Bumper 25204 91670 25225 M3 x 16mm Front Hinge Pin M3 x 3mm FHCS (Inner, 3x34mm) Set Screw :: Bag 2 - Step 8 Bag 2 - Step 8 #91978 - Front Wing Mount is used as a tuning option to increase front end stabillity by adding a front wing (included).
  • Page 9 :: Bag 3 - Step 2 Bag 3 - Step 2 91901 91049 Use shorter Caster 25215 Heavy-duty screw in front! Block M3 Locknut, Ballstud, black 10mm 31531 M3 x 6mm BHCS 31532 M3 x 8mm BHCS You can install an optional #31520 screw to use as a steering stop setting.
  • Page 10 :: Bag 4 - Step 2 Bag 4 - Step 2 Arm Mount D: The (#91882) C and (#91883) D aluminum arm mounts allow for a large amount of setup ° Out Down combinations when using the (#92014) 0.5° and 1° arm mount inserts. For a complete list of pill setup combinations, please visit our website by using the link below.
  • Page 11 :: Bag 5 - Step 3 Bag 5 - Step 3 6575 As you tighten the diff bolt, you will notice the T-nut ears moving closer to the bottom of the outdrive slot. This compresses the Locking spring behind the T-nut. The spring should be completely T-nut compressed at the time the T-nut reaches the end of the slot.
  • Page 12 :: Bag 6 - Step 2 Bag 6 - Step 2 91791 91563 Diff Height B6.1 Laydown 10x15x4 Gearbox Top Bearing Add a drop of Diff Lube (#6591) to the teeth of the diff gear, idler gear, and top shaft. Setup 91792 B6.1 Diff...
  • Page 13 :: Bag 6 - Step 5 Bag 6 - Step 5 91801 41095 25612 Slipper Spring M3 x 22mm M3 Locknut, Adapter, Outer 91801 LP SHCS Flanged Slipper Spring 91885 Adapter, Inner Rear Tower Cover 91801 B6.1 Slipper Spring 91881 Rear Shock Tower, B6.3 92159...
  • Page 14 :: Bag 7 - Step 1 31383 Rear Axle Height 91047 Ballstud Washers, Heavy-duty 5.5x2.0mm, blue +3mm Ballstud, 31382 Ballstud Washers, 92179 5.5x1.0mm, blue +2mm Rear Hub Inserts 92180 Setup Rear Hub Link Mounts +1mm 91857 B6.2 Rear Hubs 89202 +0mm M3 x 12mm Build x2 (right and left side)
  • Page 15 :: Bag 8 - Step 1 Bag 8 - Step 1 91722 91723 91722 Racers Tip: Ball Cup Turnbuckle Ball Cup 3x48mm Use black grease (#6588) on the threads of the turnbuckles for easier ball cup Front Camber Turnbuckle installation! 22.50mm Orient the notch to the left throughout the...
  • Page 16 :: Bag 9 - Step 1 Bag 9 - Step 1 31510 31510 M2 x 4mm M2 x 4mm 91936 91937 BHCS BHCS FT 13mm FT 13mm Mount the shock Shock Piston, Shock Piston, pistons with the 89278 number facing up! 2mm [2x1.6] 2mm [2x1.7] 89278...
  • Page 17 :: Bag 9 - Step 4 Bag 9 - Step 4 91926 13mm Shock Bleeding Steps: 31510 Shock Cap M2 x 4mm Front Shock: 30wt Before assembly, get each bleed screw and thread it 1-2 turns into BHCS #5422 the shock cap, then remove the Rear Shock: 30wt screw.
  • Page 18 :: Bag 9 - Step 7 Bag 9 - Step 7 Use outside hole in front arm! 25612 M3 Locknut w/Flange 3 2 2 25188 M3 x 20mm BHCS Build x2 (right and left side) :: :: Bag 9 - Step 8 Make sure the flange on the shock pivot ball is...
  • Page 19 :: Bag 10 - Step 1 Bag 10 - Step 1 Motor not included! See page 25 for gear mesh setting instructions! Pinion & Setscrew not included! 31532 89218 M3 x 8mm 3 x 8mm BHCS Washer :: :: Bag 10 - Step 2 Bag 10 - Step 2 Fan not included! 91978...
  • Page 20 :: Bag 10 - Step 2 Bag 10 - Step 2 25225 M3 x 3mm 6338 Set Screw Antenna Antenna can be mounted Tube & Cap Receiver not on the right or left side of included! the chassis. ESC not 6727 included! Servo...
  • Page 21 :: Bag 10 - Step 4 Bag 10 - Step 4 Front Front 91729 Thumb Screw, B6 Battery not included! :: Bag 10 - Step 5 - Optional Chassis Brace Configuration Bag 10 - Step 5 - Optional Chassis Brace Configuration 91885 91723 91885...
  • Page 22 :: Bag 10 - Step 6 Bag 10 - Step 6 91981 B6.4 Body, clear 91158 M3 x 4mm BHCS 91866 B6.2 Wing, front Install hook and loop tape (#91743) along the side braces in 2 spots. One near the front, and one in the middle.
  • Page 23 :: Bag 10 - Step 8 Bag 10 - Step 8 Body Trimming / Mounting: Body Trimming for Length: There are 2 body trimming options depending There are 2 body trimming options depending on what transmission you choose to run. on what transmission you choose to run.

  • Page 24: Tips For Beginners

    :: Tuning Tips :: Tuning Tips Painting: Your Kit comes with a clear polycarbonate body. You will need to prep the body before you can paint it. Wash the INSIDE thoroughly with warm water and liquid detergent (do not use any detergents with scents or added hand lotion ingredients!).
  • Page 25 :: Tuning Tips (cont.) :: Tuning Tips (cont.) Motor Gearing: Proper motor gearing will result in maximum performance and run time while reducing the chance of overheating and premature motor failure. The gear ratio chart lists recommended starting gear ratios for the most widely used motor types.
