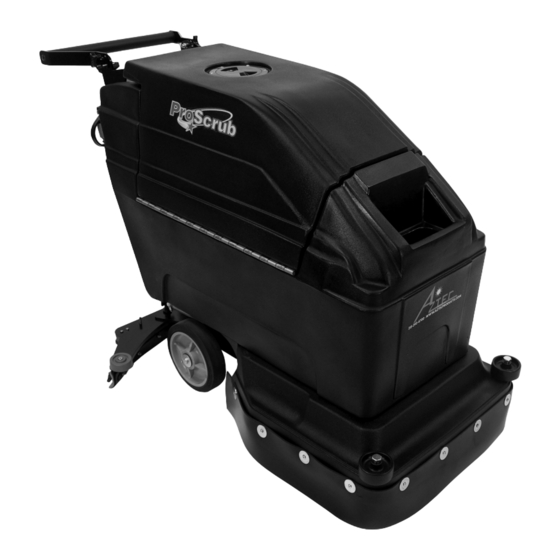

Aztec 20" ProScrub Owner's Manual

Automatic scrubber
Hide thumbs Also See for 20" ProScrub:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
OWNER'S MANUAL
20" ProScrub
AZTEC PRODUCTS, INC.
READ and UNDERSTAND this material before operating or servicing
this equipment. Failure to understand how to safely operate this
tool could result in an accident causing injury or death.

Advertisement

Table of Contents
loading

Related Manuals for Aztec 20" ProScrub

Summary of Contents for Aztec 20" ProScrub

  • Page 1 OWNER’S MANUAL 20" ProScrub AZTEC PRODUCTS, INC. READ and UNDERSTAND this material before operating or servicing this equipment. Failure to understand how to safely operate this tool could result in an accident causing injury or death.

  • Page 2: Recommended Safety Procedures

    PG. 2 ProScrub 7. Keep scrubber moving along floor to avoid INTRODUCTION burning or damage to floor surface. The 20” ProScrub Automatic Scrubber is designed to scrub floors in an indoor 8. Never use flammable or explosive cleaning environment and is not recommended for any solutions such as gasoline, kerosene, other use.
  • Page 3 ProScrub PG. 3 c. Make sure that you recharge the batteries DRAINING AND FILLING THE TANKS in a well-ventilated area. 1. Before draining either tank, make sure all d. Batteries emit explosive gases. Keep away switches are at the “OFF” position. from sparks and flame.

  • Page 4: Recommended Maintenance Schedule

    PG. 4 ProScrub b. Fill the tank with up to 14 gallons of water Helpful hints: and chemical solution. 1. While scrubbing, periodically check the c. Use indicator at rear of scrubber to check recovery tank. If foam buildup is heavy, use amount of fluid in tank.

  • Page 5: Protect Your Warranty

    CALL (800) 331-1423 The ProScrub is an innovative and unique machine. Since it was 3. When dealing with Aztec Products, Inc., ask for an RGA first introduced it has undergone a process of continuous number when you are ordering the replacement part.

  • Page 6: Parts List

    PG. 6 ProScrub SOLUTION TANK PARTS LIST PART # DESCRIPTION PART # SOLUTION TANK 108-AS-1 DRAIN HOSE BRACKET 288-030-1000 MOTOR LIFT ADJUST. BRKT. 288-030-700 FOOT LEVER ADJUST. BRKT. 283-030-105 3/8 - 16*3/4" BOLT 164-10111 5/16 USS FLAT WASHER 164-20156 DRAIN HOSE (SOLUTION TANK) 216-0212 BRACKET (SOLUTION VALVE) 283-030-115 VALVE FITTING...
  • Page 7 ProScrub PG. 7 SHROUD PARTS LIST PART # DESCRIPTION PART # SPLASH SKIRT 030-20-118 BRUSH SHROUD 108-AS-20 1 3/4" SHOULDER BOLT 196-70212 POLY WHEEL 156-PB03041-08 SWIVEL CASTER 156-030 FLAT WASHER 164-20153 1/4 - 20*1/2" BOLT 164-10003 SQUEEGEE PARTS LIST PART # DESCRIPTION PART # FRONT SUPPORT...
  • Page 8 PG. 8 ProScrub DRIVE ASSEMBLY (AFTER SERIAL #2534) DRIVE ASSEMBLY PARTS LIST PART # DESCRIPTION PART # 20" PAD DRIVER 030-20-262 5/16 - 18*3/4" BOLT 164-10059 1/4" FLAT WASHER 164-20155 MOTER BRUSH ADAPTER 288-030-800 MOTOR SWIVEL PLATE 283-030-130 BRUSH MOTOR 030-BRUSHM 5/16 - 18*1"...

  • Page 9: Control Panel Parts List

    ProScrub PG. 9 CONTROL PANEL CONTROL PANEL PARTS LIST PART # DESCRIPTION PART # HANDLE GRIP (FOAM) 030-GRIP HANDLE ADJUSTMENT BRKT. 283-030-125 HANDLE BOLT 164-132DA23020P HANDLE ADJUSTMENT KNOB 030-20-114 HANDLE BASE BRACKET 283-030-120 ROCKER SWITCH 030-20-108 CONTROL PANEL PLATE 283-030-275 COVER PLATE 283-030-270 SOLENOID...
  • Page 10 PG. 10 ProScrub...

  • Page 11: Troubleshooting

    ProScrub PG. 11 TROUBLESHOOTING PROBLEM SYMPTOM SOLUTION No power, nothing Batteries need charging Charge the batteries runs Batteries faulty Replace batteries Loose battery cable Tighten cable connection Batteries not connected Properly Brush motor does Faulty brush switch Contact service center not run Machine circuit breaker has tripped.
  • Page 12 In order to obtain parts warranty the following procedure must be followed: 1. Call your direct purchase source, distributor or Aztec to obtain an RGA (Return Goods Authorization) number. 2. Return defective part via prepaid ground freight to your purchase source with RGA number clearly marked on packaging.
