Understanding the Signal Booster Lights and
Troubleshooting
During installation mode the signal booster is resetting itself very

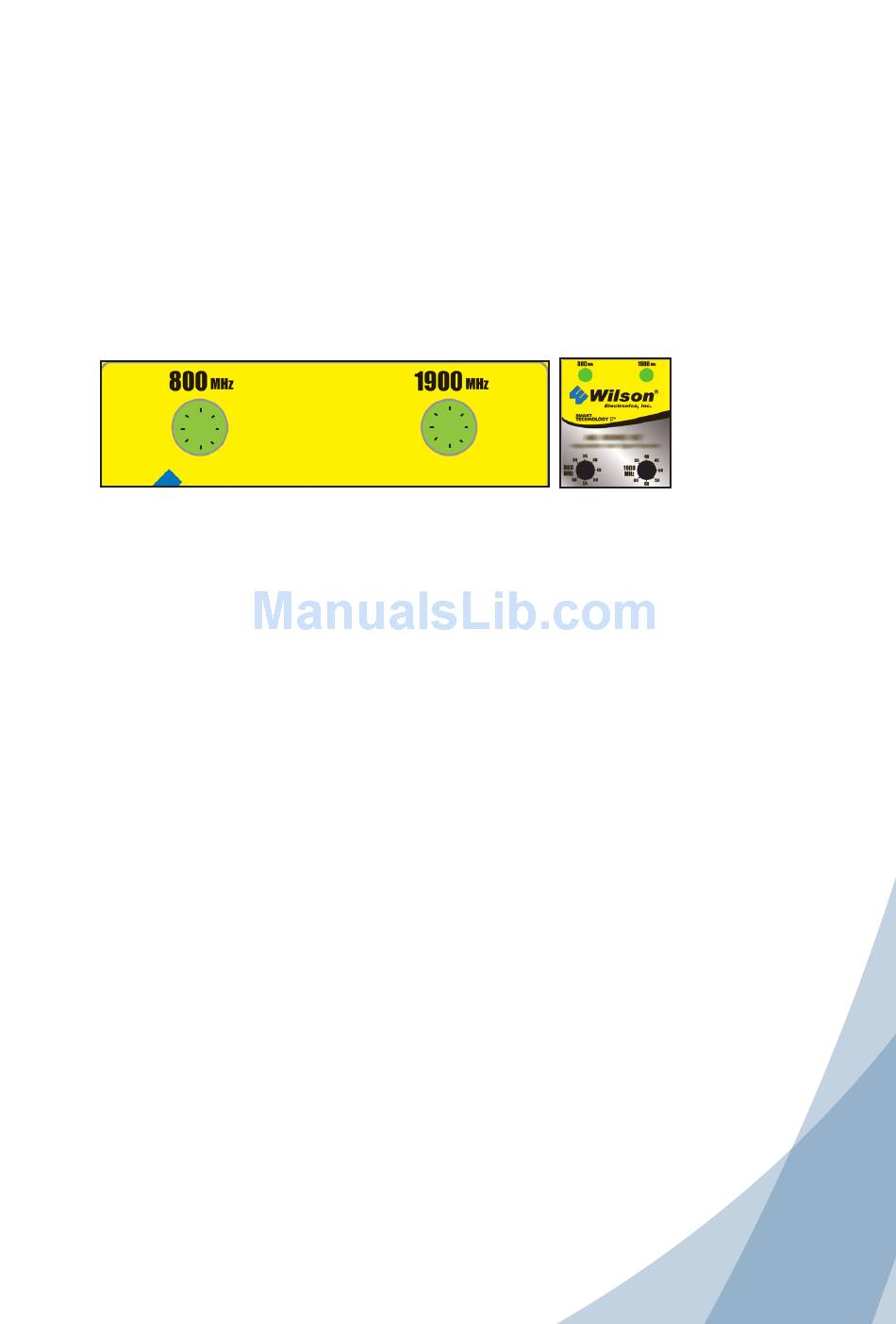

quickly to aid the installer . The Signal Booster is equipped with
two indicator lights, one for the 800 MHz band and the other for
the 1900 MHz band . For the first 15 minutes that the booster is
plugged in, it is programed for a test and alignment period . During
this time, both lights will do one of the following 4 things:
Note: If after the initial 15 minutes you are not done with the
installation, the signal booster can be reset and enter installation
mode again by disconnecting and reconnecting the power supply
from the booster.
1. BLINkING GREEN
If the signal booster is blinking green, the signal booster is
operating properly . If you are happy with the coverage area in
your building, then you are done . Blinking will stop after the 15
minute installation period .
2. BLINkING ORANGE
Note: For AG Pro Installer see additional instructions on page
14. If either of the two lights on the signal booster are blinking
orange the signal booster is experiencing receiver overload .
The signal booster has protection shut off circuits to prevent
the disruption of cell towers . If one or both lights are blinking
orange, this indicates that the booster has shut down due to
close proximity to a cell tower . First, turn down the gain control
on the band that is blinking until you get a blinking green light .
The booster is now working with reduced gain . If the gain is
not adequate for good coverage, you will need to turn the gain
to maximum and then turn the outside antenna away from the
cell tower until the light turns to blinking green . If the booster
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
12
