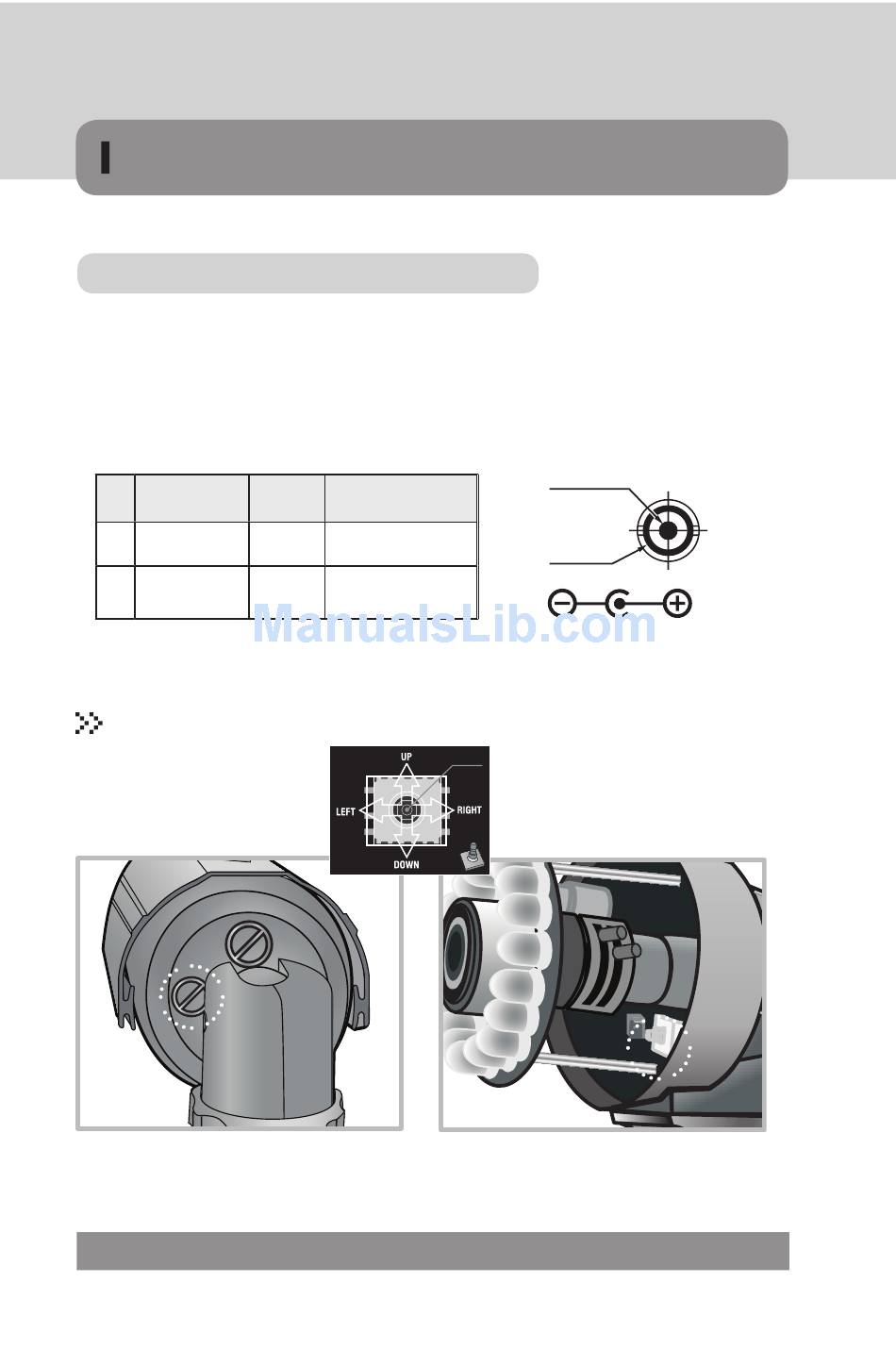

Microdigital MDC-H4090C User Manual page 37

OSD OPERATION
Connecting to Monitor and Power
For 12V DC Power Type
- Connect the video-out jack to the video-in jack of monitor.
- Connect the power adapter to the power input connecter.
- Use 12V DC power source.
- Use the power rated at least 600mA (12VDC)
NO Function
#1 Video Output
#2 Power Input
MDC-H6xxx
MDC-H6290VTD
-35H, 36H, 45, 48
♦ Unscrew the OSD button cap
Terminal
Remark
Color
Yellow 1.0 Vp-p
12V DC(10V~15V),
Red
Max 4.8W / 600mA
#1
#2
Video Output
GND
Video Video
(Yellow) (Yellow) Y Y
Push(set)
Power - DC 12V Power - DC 12V
(Red) (Red)
MDC-H6290VTD
-24H, 42, 30, 40
♦ Unscrew the front cover
