COMPONENTS

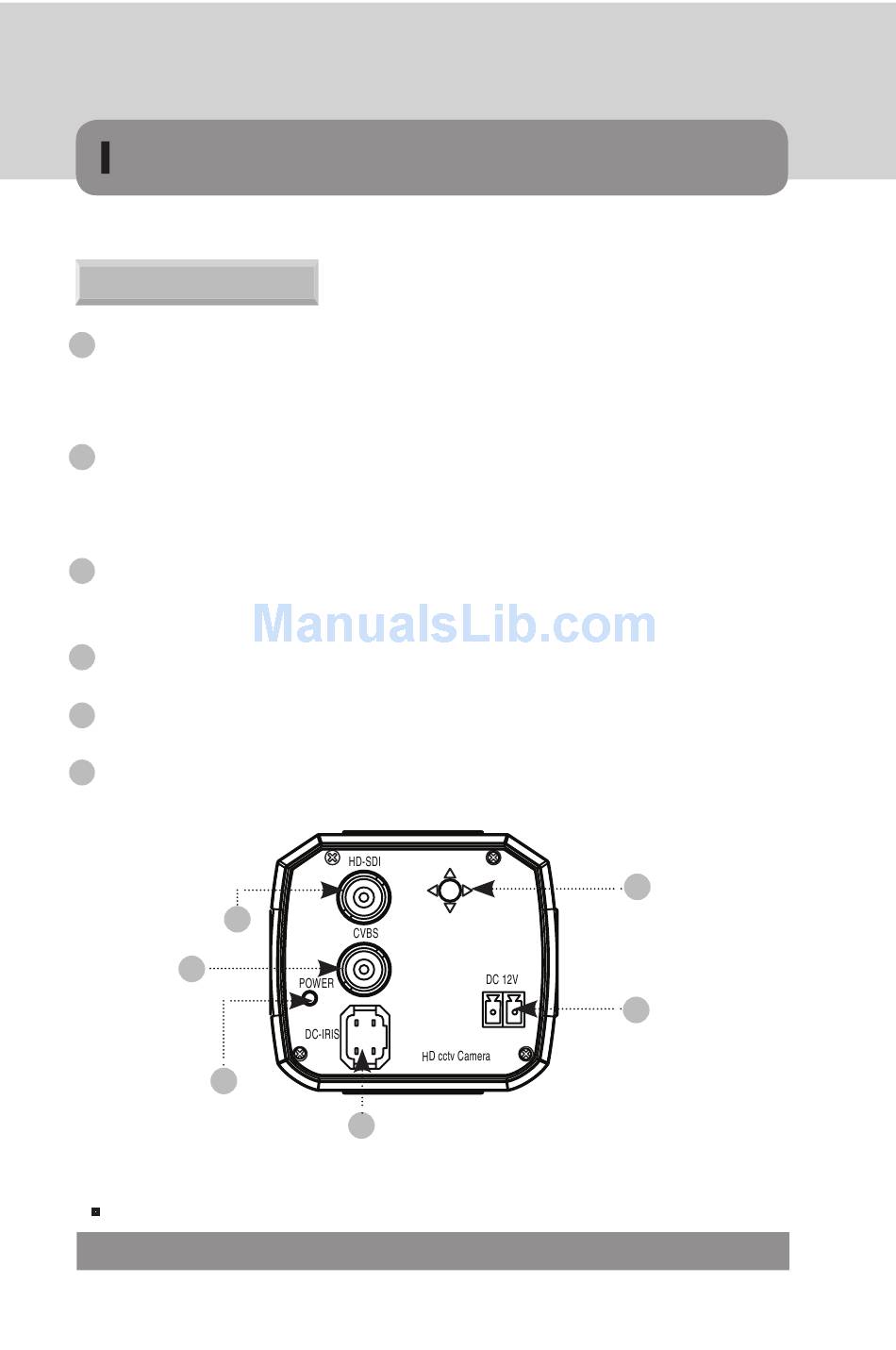

Rear view
1 HD-SDI Output
720p "50 / 60fps", 1080p "30 / 25fps" resolution output, SMPTE292M
Compatible
2 CVBS Output
· D1 Resolution, "4:3" display ratio scaling (source : "16:9" display ratio)
· NTSC/PAL, This port is very helpful for installers to install HD-SDI camera easy.
3 OSD Control
Arrow – Move to Up / Down / Left / Right, MENU – Menu Setup / OK Button
4 DC IRIS JACK
5 12V / GND : DC12V Power Input
Arrow – Move to Up/Down/Left/Right, MENU – Menu Setup / OK Button
6 Power Lamp
1
2
6
Specifications and Designs are subject to change without prior notice due to improvement
18
MICRODIGITAL
4
3
5
