www.microdigital.co.kr
Full HD 1080P 2.1 Mega Pixel
CMOS HD-SDI Camera
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDC-H4090C and is the answer not in the manual?

Questions and answers

Summary of Contents for Microdigital MDC-H4090C

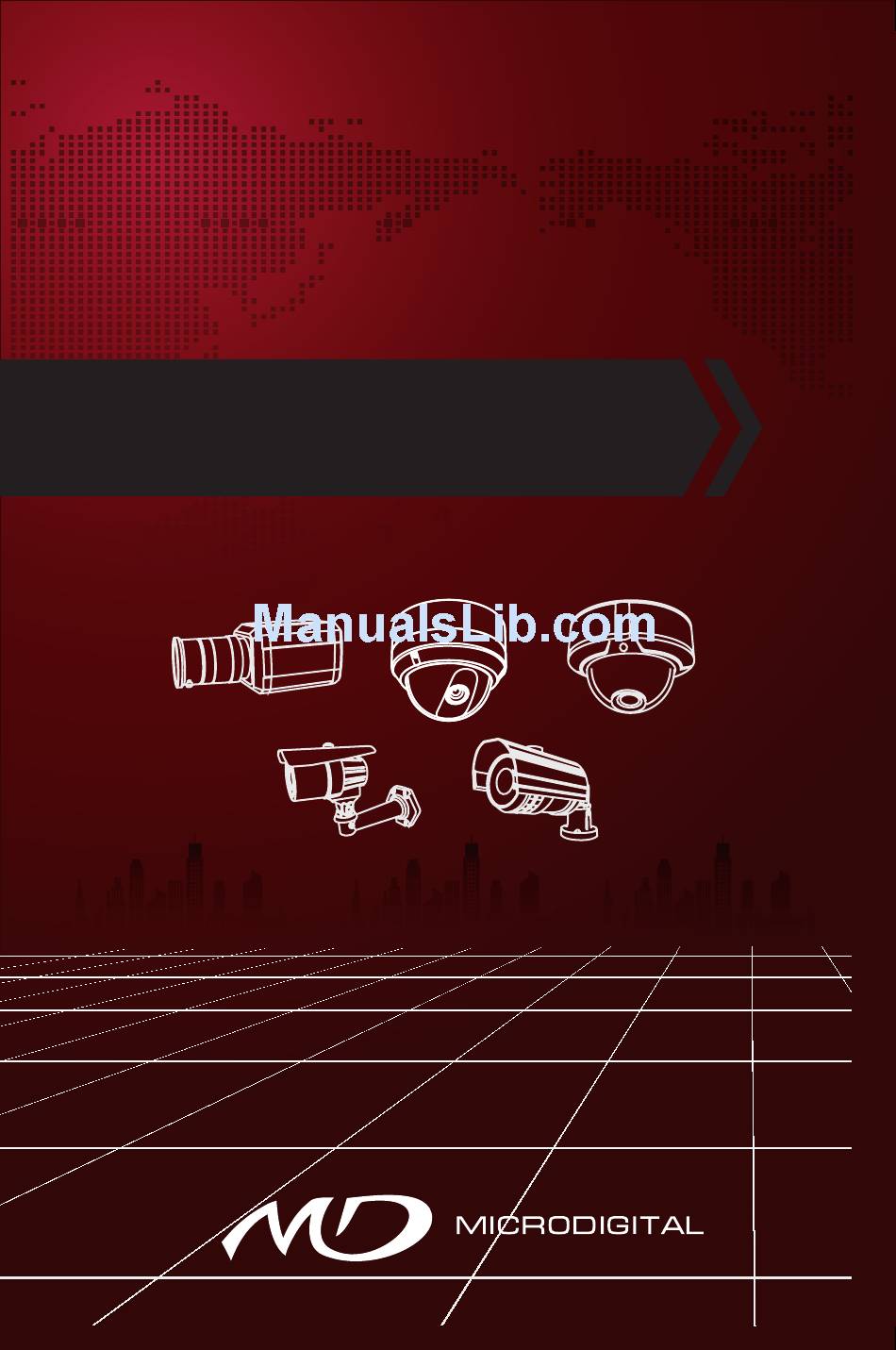

  • Page 1 Full HD 1080P 2.1 Mega Pixel CMOS HD-SDI Camera USER MANUAL...
  • Page 2 Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. MICRODIGITAL...
  • Page 3 • Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • This installation should be made by a qualified service person and should abide to all local codes. MICRODIGITAL...
  • Page 4 If it gets wet, wipe it dry immediately. Liquids • Do not expose the camera to can contain minerals that corrode the rain or spill beverage on it. electronic components. • Do not expose the camera to If exposed to radioactivity the CCD will fail. radioactivity. MICRODIGITAL...
  • Page 5 - To avoid fire or shock hazard, must use a UL listed power supply. • Monitor Impedance. - Set the impedance switch to 75ohm standard position. - When monitor is set to high impedance mode, the picture becomes blurred. In this case, just check the position of the monitor impedance switch. MICRODIGITAL...
  • Page 6: Table Of Contents

    29 - 30 ▪ BULLET CAMERA ▪ DOME CAMERA ▪ VANDAL CAMERA 33 - 34 • OSD OPERATION 35 - 42 ▪ BOX CAMERA ▪ BULLET CAMERA 36 - 37 ▪ DOME CAMERA ▪ VANDAL CAMERA • INSTRUCTIONS • OSD STRUCTURE MICRODIGITAL...
  • Page 7 CONTENTS • OSD STRUCTURE -MAIN MENU • MODEL • EXPOSURE • WHITE BALANCE • IMAGE • INTELLIGENCE • SPECIAL FUNC • DISPLAY MICRODIGITAL...
  • Page 8: Description

    • EX) MDC - H8220 - TDN - 30 HU Built in Heater / UTC Number of IR-LED H 8 2 2 0 Day / Night Filter mechanism Power source Number of Pixels B/W(1) / Color(2) Case type Model type MICRODIGITAL...
  • Page 9 MS : SUFACE DOME MOUNT TYPE (VANDAL) 9: MINI VANDAL F(E) MF : FLUSH V(E) MOUNT TYPE IR & HEATER (MDC-6xxx, 7xxx, 8xxx MODEL) Heater Built-in Heater UTC Remote Control Heater -30H Built-in IR LED Built-in IR LED With Heater MICRODIGITAL...
  • Page 10: Description

    DAY / NIGHT FILTER CHANGE TRUE DAY / NIGHT (ICR-IR Cut Filter Removable) POWER SOURCE AC 24V AC 230V DC 12V DC 12V MDC-xxx0 MDC-xxx1 MDC-xxx2 - DC 12V - AC 24V / DC 12V, Dual-Power - AC 230V MICRODIGITAL...
  • Page 11: Specification

    0 ~ 10 steps MIRROR Off / H / V / H&V FREEZE Off / On D.ZOOM x1 ~ x32 Off / On Off / On Off / Low / Middle / High / Auto D.COMPRESS Off / On MICRODIGITAL...
  • Page 12 ON / DONE Language English OSD Text 0 ~ 9, A ~ Z, a ~ z Electrical Power Source DC12V±10% General Operating Temperature -10°C ~ +50°C (Humidity : 0%RH ~ 80%RH) Storage Temperature -20°C ~ +60°C (Humidity : 0%RH ~ 90%RH) MICRODIGITAL...
  • Page 13: Specification

    SPECIFICATION MDC-H4090C LENS C/CS Mount Without TDN Mechanism Power Consumption Max. 2.1W(at 12V) MDC-H4090CTD LENS C/CS Mount With TDN Mechanism Power Consumption Max. 2.1W(at 12V) MDC-H6290VTD-45 Built in TDN Lens Filter Changeable Vari-Focal 6.0~50.0mm DC Auto Iris Lens IR LED 12pcs Giant &...
  • Page 14: Features

    Additional Functions 1. OSD - On Screen Display menu - the camera can be controlled by selecting text displayed on the monitor screen. 2. Free Area Selectable function of Intelligent Motion Detection 3. Privacy Color Masking for 32 Area selection MICRODIGITAL...
  • Page 15: Features

    When the camera is installed with flush mount, the unit can be Vandal Proof installed into an existing two-gang junction box. 2. Surface or Flush Mounting using the supplied surface mount bracket. Weather proof IP66 MDC-H6290VTD , MDC-H8290VTD MODEL IP66 MICRODIGITAL...
  • Page 16: Components

    COMPONENTS 1. Camera 2. Auto IRIS Lens Connection Plug 3. L-WRENCH 4. C - Mount Adaptor 5. Manual Width Height depth MICRODIGITAL...
  • Page 17: Over View

    Loosen the clamp screw with a L-Wrench before adjusting the Back Focal length. 4 Mount bracket Use the screw holes provided when fixing the camera onto a mounting bracket. The mounting bracket can be attached to either the bottom or the top of the camera. MICRODIGITAL...
  • Page 18: Rear View

    4 DC IRIS JACK 5 12V / GND : DC12V Power Input Arrow – Move to Up/Down/Left/Right, MENU – Menu Setup / OK Button 6 Power Lamp Specifications and Designs are subject to change without prior notice due to improvement MICRODIGITAL...
  • Page 19: Bullet Camera

    COMPONENTS 1. Varifocal IR Bullet Camera 2. Cable for Extra Video 3. L-WRENCH 4. Screw for Installation 5. Manual MICRODIGITAL...
  • Page 20 COMPONENTS MDC-H6290VTD-24H & 42 (70Ø) / 32 & 40H (90Ø) 1 Lens 2 IR-LED / Heater (Option) 3 Zoom / Focus Lever 4 OSD Joystick (Option) 5 Cable Management Bracket 6 VBS-Extra for connecting to LCD (Option) VBS-EXTRA MICRODIGITAL...
  • Page 21 32pcs Giant LED, 4pcs 24pcs IR-LED, Heater IR-LED IR-LED Heaters 4pcs Heaters Power Consumption Normal 140mA IR LED ON 390mA 430mA 440mA 490mA Heater ON 550mA 650mA ▶Specifications and Designs are subject to change without prior notice due to improvement MICRODIGITAL...
  • Page 22 • D1 Resolution, “4:3” display ratio scaling (source : “16:9” display ratio) • NTSC/PAL, This port is very helpful for installers to install HD-SDI camera easy. 7 HD-SDI Output • 1080P “25/30fps” resolution output, SMPTE292M Compatible 8 12V/GND : DC12V Power Input MICRODIGITAL...
  • Page 23 & 30pcs IR-LED & IR-LED & IR-LED IR-LED 4pcs Heater 4pcs Heater Power Consumption Normal 170mA IR LED ON 410mA 450mA 380mA 490mA Heater ON 600mA 570mA ▶Specifications and Designs are subject to change without prior notice due to improvement MICRODIGITAL...
  • Page 24: Dome Camera

    COMPONENTS Vandal Resistant Dome Camera (Surface Type) Service Monitor Cable Manual L-Wrench Mounting Screw Vandal Resistant Dome Camera (Flush Type) L-Wrench Tapping Screw Manual Service Monitor Cable Surface Mount Bracket Surface Mount Screw MICRODIGITAL...
  • Page 25 · Adjust the pan and tilt to give the correct angle of view. 3 OSD Joystick / Board 4 VBS-Extra for connecting to LCD · Please use the supplied wire when connecting to an external monitor. 5 IR LED MDC-H7290VTD MDC-H7290F VBS-EXTRA MDC-H7290VTD-30 MICRODIGITAL...
  • Page 26 COMPONENTS Dimension MDC-H7290 VTD-30 Dimension Diameter 100ø Width Height 30pcs IR LED IR-LED Power Consumption Normal 160mA IR LED ON 360mA ▶Specifications and Designs are subject to change without prior notice due to improvement MICRODIGITAL...
  • Page 27: Vandal Camera

    · 1080p ”30/25fps” resolution output, SMPTE292M Compatible 6 CVBS Output · D1 Resolution, “4:3” display ratio scaling (source : “16:9” display ratio) · NTSC/PAL, This port is very helpful for installers to install HD-SDI camera easy. 7 12V/GND : DC 12V Power Input DC 12V MICRODIGITAL...
  • Page 28 COMPONENTS Dimension MDC-H8290 VTD-30 Dimension Diameter 100ø Width 148mm Height 120mm 30pcs IR LED IR-LED Power Consumption Normal 160mA IR LED ON 360mA ▶Specifications and Designs are subject to change without prior notice due to improvement MICRODIGITAL...
  • Page 29: Installation

    Strip off about 2mm of the insulation of wires inside the lens cable. · Remove the cover of the auto iris lens connection plug and solder the · wires to the connector pins inside the plug, as shown below. MICRODIGITAL...
  • Page 30 Set the lens selection switch, located on the rear of the camera, to ei- · ther DC or VIDEO, depending on the type of auto iris lens being used. MICRODIGITAL...
  • Page 31: Bullet Camera

    • Adjust picture direction pan & tilt Caution! To avoid smear, never face the camera directly to the strong light source such as sun or spot light. 3 AXIS BRACKET MOUNTING SCREW 77 / 88ø TYPE MOUNTING SCREW 70 / 90ø TYPE CABLE MANAGEMENT BRACKET MICRODIGITAL...
  • Page 32: Dome Camera

    • Adjust picture direction pan & tilting. • Close the dome with the ring screwed. Ceiling Ceiling BASE HOUSING MOUNTING SCREW DOME COVER HOLDER DOME COVER L-Wrench L-Wrench MDC-H7290VTD / MDC-H7290VTD-30 (Three Screw) (Three Screw) MICRODIGITAL...
  • Page 33: Vandal Camera

    Fixed the camera to a celling using four screws. Adjust desired focus and scene by turning and moving the 3-axis camera bracket by hand. Put the dome cover over the base. Fix the dome cover on the base by L-Wrench. MICRODIGITAL...
  • Page 34: Installation

    Connect the dome base to the surface mount bracket by screws. Adjust desired focus and scene by turning and moving the 3-axis camera bracket by hand. Put the dome cover over the base. Fix the dome cover on the base by L-Wrench. L-Wrench MICRODIGITAL...
  • Page 35: Osd Operation

    The Standard voltage for camera option : DC 12V± 10%, AC 24V ±10%. Settings can be made using the 4 or 5 buttons located on the nearby of the camera. RIGHT LEFT HD-SDI CVBS SET(Push) DOWN DC 12V POWER DC-IRIS HD cctv Camera MICRODIGITAL...
  • Page 36: Bullet Camera

    - Connect the adaptor to the power input connector as shown in the following figure. The Standard voltage for camera option : DC 12V± 10%, AC 24V ±10%. ▪ Nomal we donnot use the RS-485 addisional cable. only have power and video MICRODIGITAL...
  • Page 37 Max 4.8W / 600mA Video Video (Yellow) (Yellow) MDC-H6xxx Push(set) Power - DC 12V Power - DC 12V (Red) (Red) MDC-H6290VTD MDC-H6290VTD -35H, 36H, 45, 48 -24H, 42, 30, 40 ♦ Unscrew the OSD button cap ♦ Unscrew the front cover MICRODIGITAL...
  • Page 38: Dome Camera

    OSD OPERATION MDC-H7xxx Push(set) MDC-H7290F / H7290V / H7290VTD / H7290VTD-30 (OSD JOYSTICK) MDC-H8xxx Without Heater type OSD Board MICRODIGITAL...
  • Page 39 NTSC / PAL Video Input Level 1.0 Vp-p / 75 Ohm BNC Video Output Level 1.0 Vp-p / 75 Ohm BNC Control OSD, PAN/Focus MicroDigital Compatibility Except Other Companies UTC Product Family Distance Video Output Distance TEST : 500M (RG59) Operation temperature -20°C ~ +60°C...
  • Page 40: Instructions

    • To finish and save the settings, select [EXIT] and press the SET button ( ▪ An item with the ↵ icon also has sub-menus. To select a sub-menu, press the SET button. ▪ An item with the - - - icon has no sub-menus available for selection MICRODIGITAL...
  • Page 41: Osd Structure

    Select real or still mode - OFF / ON Select maximum digital zoom magnification D.ZOOM - x1~x32 Select High Light Compensation. - OFF / ON IMAGE Select Digital WDR(Wide Dynamic Range) - OFF / ON Select Digital Noise Reduction - AUTO/OFF/LOW/MIDDLE/HIGH D.COMPRESS Video image data compression function MICRODIGITAL...
  • Page 42 Select Composite signal - OFF / ON COMM Set up the camera ID, baud rate, protocol All the settings will be restored to the factory DEFAULT default. DISP SEL Select display item. DISPLAY SET TITLE Select camera title menu (Text edit) MICRODIGITAL...
  • Page 43: Osd Structure -Main Menu

    To the push of each main menu selection, the sub-menu is displayed. MODEL MENU MODE D&N EXPOSURE WHITE BAL. IMAGE INTELLIGENCE SPECIAL FUNC DISPLAY EXIT ▶ MODE : Select mode • D&N / COLOR / IR SMART / IR CDS MICRODIGITAL...
  • Page 44: Exposure

    Can be set in AUTO or MANUAL • AUTO / 1/30(25),1/60(50),1/120(100),1/240,1/500,1/1000,1/2000,1/4000, 1/8000, 1/16000,1/30000,1/60000 sec ▶ DSS : Select maximum DSS(Digital Slow Shutter) • OFF / x2, x3, x4 ▶ AGC : Select Auto Gain Control • OFF / ON MICRODIGITAL...
  • Page 45 · GAP : LOW / MIDDLE / HIGH This setting adjusts the margin of change from the setting of light to dark / daytime to nighttime and dark to light / nighttime to daytime. If this setting is too low then fluctuation may occur. MICRODIGITAL...
  • Page 46 • SMART IR : OFF / ON · THRS : Set-up Smart IR turns on point. When you level up the value, Smart IR turns on in a low light condition. SMART IR function only works with IR Smart Model. MICRODIGITAL...
  • Page 47: White Balance

    » BLUE GAIN : Adjust B gain value 0 ~ 20 · INDOOR : Set color temperature to be Indoor light (3700°K) · OUTDOOR : Set color temperature to be Outdoor light (5100°K) ▶ CHROMA : Adjust CHROMA gain value • 0 ~ 20 steps MICRODIGITAL...
  • Page 48: Image

    When extremely bright light is projected to the camera masking is used on the portion to prevent partial saturation on the monitor. • OFF / ON · ON LEVEL : 0 ~ 20 steps COLOR : Black, White, Yellow, Cyan, Green, Magenta, Red, Blue MICRODIGITAL...
  • Page 49: Intelligence

    · Y-POS : Adjust the mask Y-Axis position · X-SIZ : Adjust the mask X-Axis size · Y-SIZ : Adjust the mask Y-Axis size · COLOR : Cyan, Green, Magenta, Red, Blue, Black, White, Yellow · TRANS : Select mask transparency level (0 ~ 4) MICRODIGITAL...
  • Page 50 · Y-SIZ : Adjust the AREA Y-Axis size · TRANS : Adjust color tone of out of selected areas. · INTERVAL :Select the alarm interval time (0 ~ 255sec) · DWELL : Select the duration time about changing MD mode (0 ~ 255sec) · RETURN MICRODIGITAL...
  • Page 51: Special Func

    ▶ DEFECT DET : Compensates for bad pixels that my occur. Occurs when the whole screen is in full black or if there is bad pixelation and it changes the THRS values until the screen is fixed. (OFF / ON) MICRODIGITAL...
  • Page 52 · 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200bps • PROTOCOL : Select operating protocol · PELCO-D / PELCO-P / UPDATE ▶ DEFAULT : All the settings will be restored to the factory default. MICRODIGITAL...
  • Page 53: Display

    , . ( ) { } [ ] 0 1 2 3 4 5 6 7 8 9 * + - / = ~ ! ? " ' C L R P O S RETURN MICRODIGITAL...
  • Page 54 MEMO MICRODIGITAL...
  • Page 55 MENO MICRODIGITAL...
  • Page 56 TOTAL SECURITY SOLUTION Design and specifications are subject to change without notice. www.microdigital.co.kr sales@microdigital.co.kr #1212, Hoseodae Venture Tower, 319, Gasan-Dong, Geumcheon-Gu, Seoul, Korea Tel :+82-2-2627-5279 / Fax :+82-2-2627-5295 P/N : 3690-0003A...
