OSD OPERATION

MDC-H4xxx

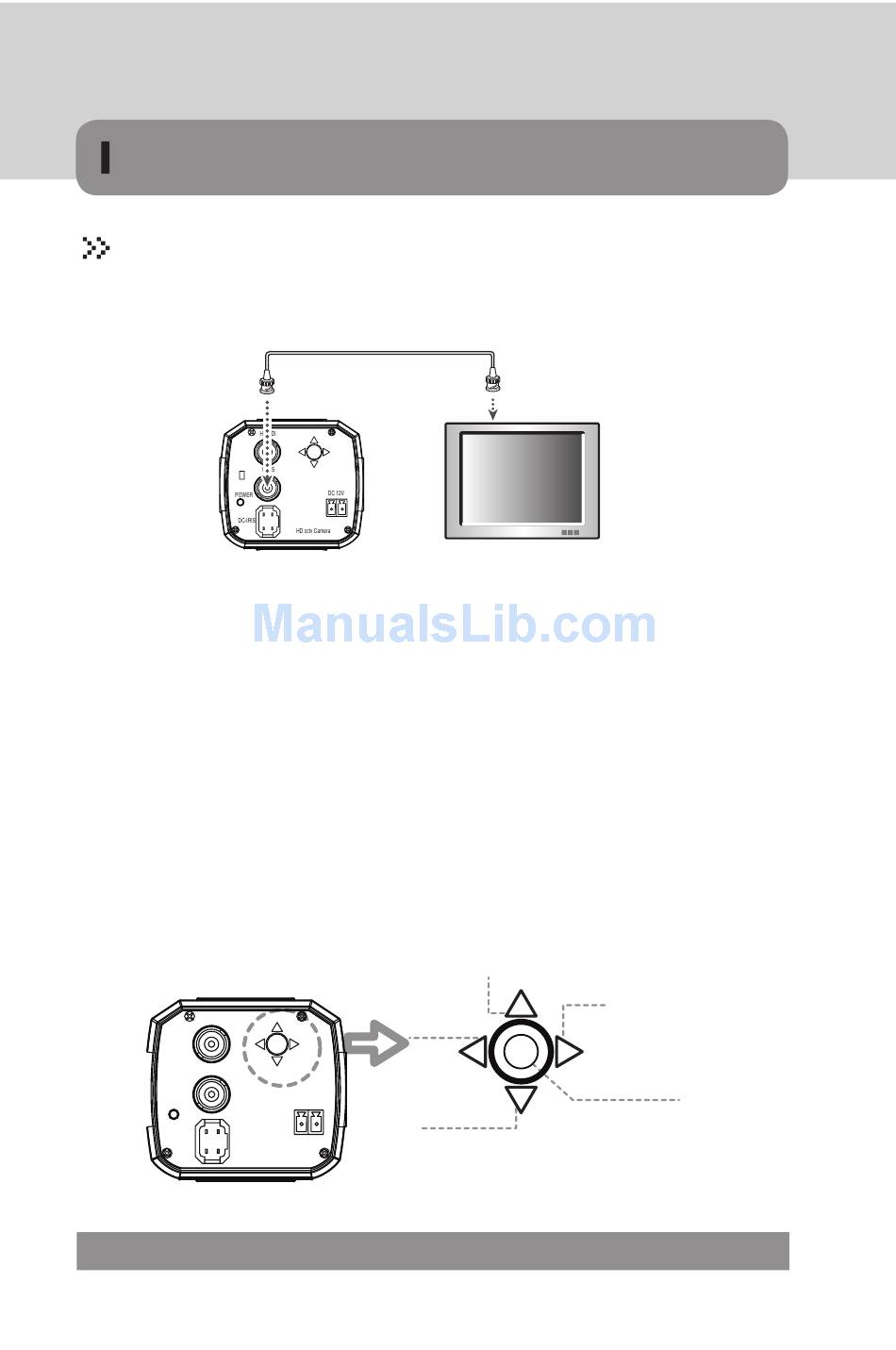

1) Connection to Monitor
- As the connecting method varies with the instruments, refer to the manual sup-
plied with the instrument.
- If necessary, you can connect the monitor to the REMOTE jack on the back of
your camera.
- Only connect the cable when the power is furned off.
2) Connection to Power
- Connect the adaptor to the power input connector as shown in the following
figure. The Standard voltage for camera option : DC 12V± 10%, AC 24V ±10%.
Settings can be made using the 4 or 5 buttons located on the nearby of the camera.
HD-SDI
CVBS
POWER
DC-IRIS
Camera
LEFT
DC 12V
HD cctv Camera
Monitor
UP
RIGHT
SET(Push)
DOWN
MICRODIGITAL 35
