INSTALLATION
MDC-H4xxx
Lens
• The camera is supplied without a lens. Lenses, such as auto iris,
CS-Mount and C-Mount, can be used.
▹When using an auto iris lens

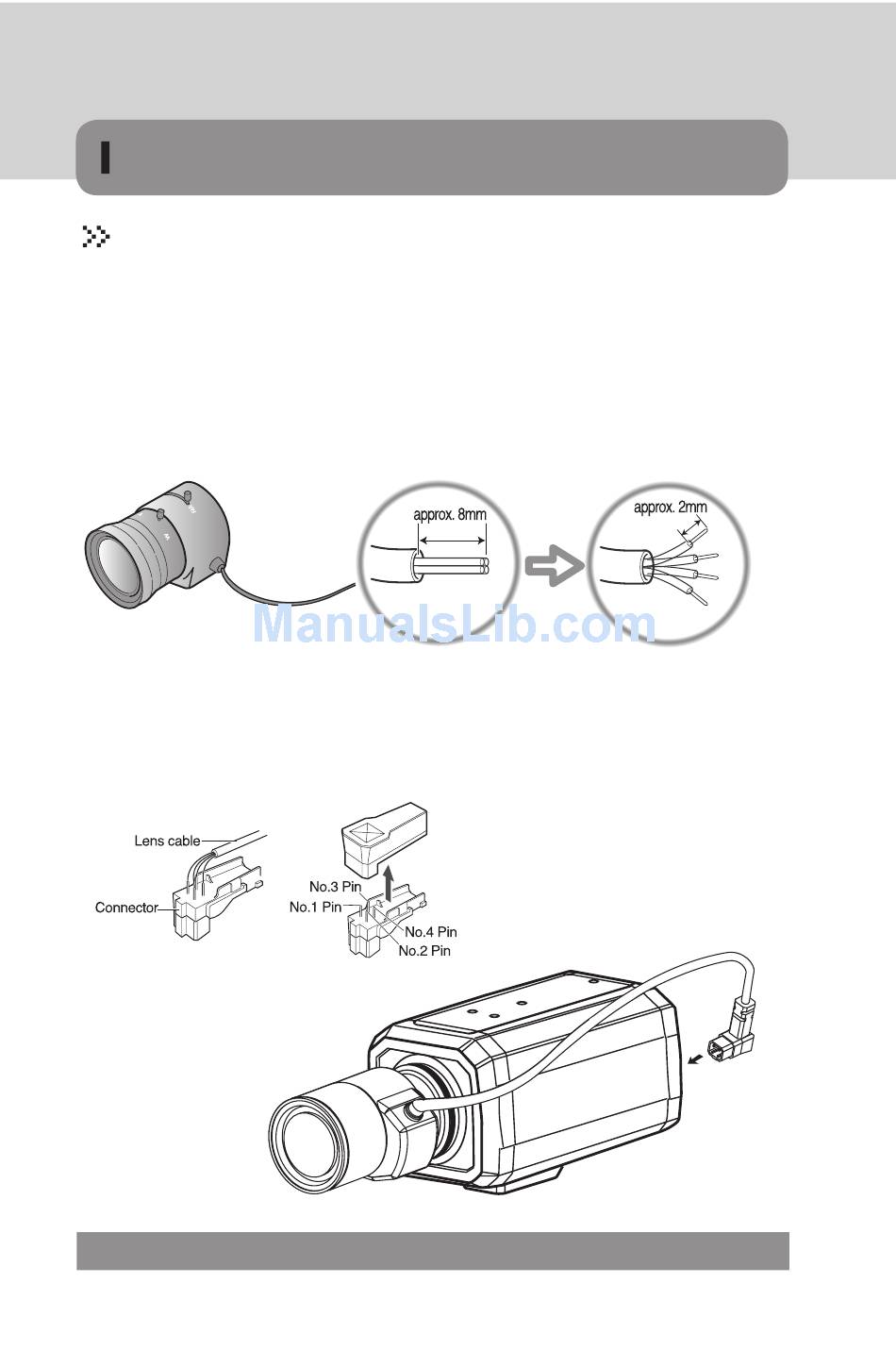

Strip back about 8mm of the outer sheath of the auto iris lens cable.
·
Strip off about 2mm of the insulation of wires inside the lens cable.
·
Remove the cover of the auto iris lens connection plug and solder the
·
wires to the connector pins inside the plug, as shown below.
