Brave – Door Entry System
Brave SlimDP - 01
Brave SlimDP - 02
Brave SlimDP - 04
User and Service Manual
Version 2.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SlimDP - 01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Brave SlimDP - 01

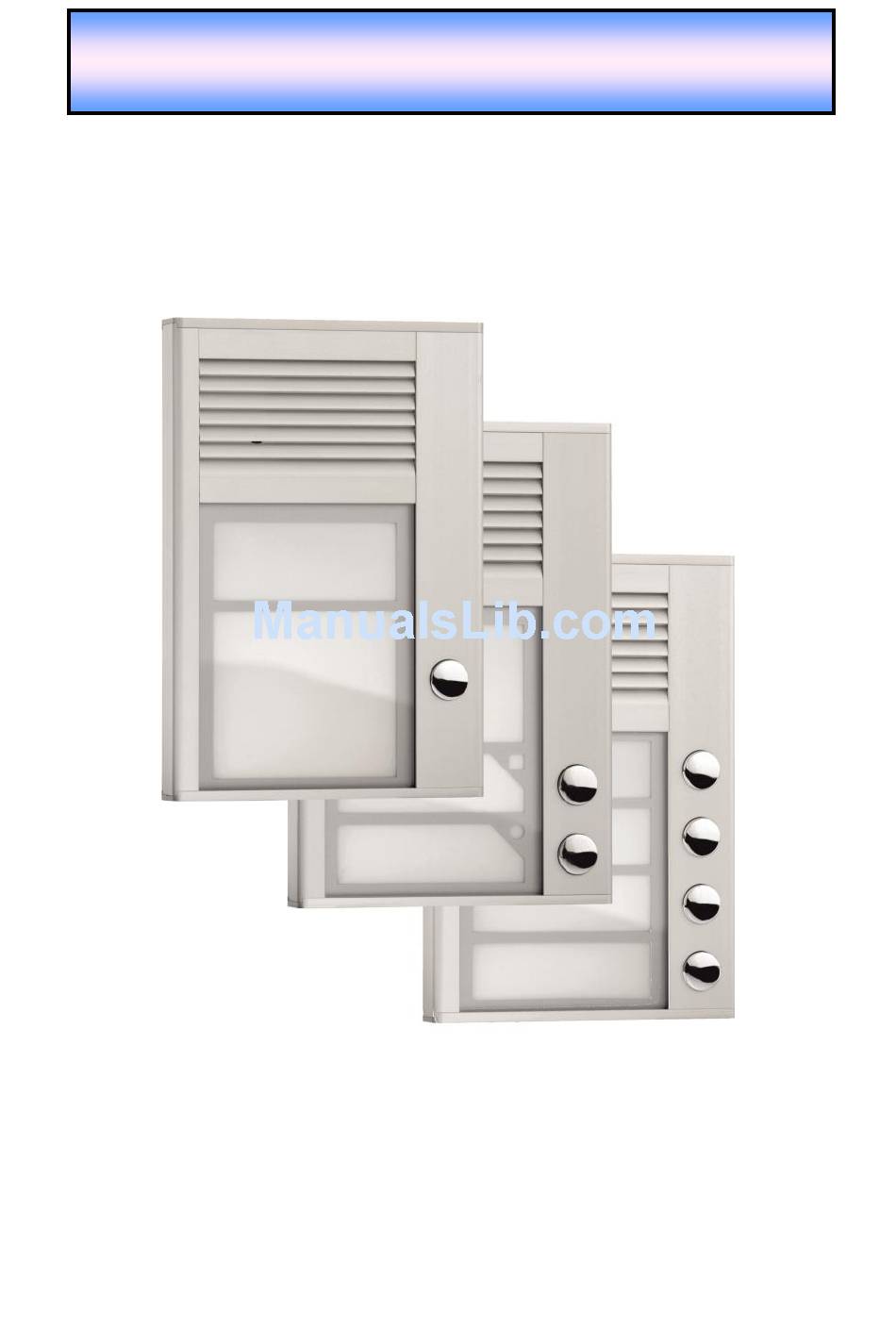

  • Page 1 Brave – Door Entry System Brave SlimDP - 01 Brave SlimDP - 02 Brave SlimDP - 04 User and Service Manual Version 2.6...
  • Page 3 Congratulation on purchasing the Brave SlimDP „BRAVE Slim Door Phone‟, which is a continuation of the successful SlimDP „Slim Door Phone‟. The Brave SlimDP is a universal project with the title “BRAVE” with different designs bringing a wider spectrum of functions and possibilities.

  • Page 4: Table Of Contents

    Table of Contents BASIC FEATURES ..................... 6 .................... 6 EATURES ..................7 ERMINOLOGY ......... 8 RAVE VERSIONS AND DIFFERENCES ..................8 NIT FEATURES INSTALLATION ....................9 ......... 9 PENING WIRING WALL MOUNTING AND SETTINGS 2.1.1 Name card panel ..................9 2.1.2 Uncover control elements .................
  • Page 5 ASIC SETTING AND DELETION ............... 43 ND OF PROGRAMMING ............... 44 ARAMETER OVERVIEW TECHNICAL PARAMETERS................. 47 ..............47 LECTRICAL PARAMETERS ..............47 ECHANICAL DIMENSIONS TABLE FOR EASY PROGRAMMING ............48 DRILLING MASTER BOARD ................ 52 BRAVE SlimDP – User and service manual...

  • Page 6: Basic Features

     Electronic volume setting without the need to open the front cover  Version A is with integrated 1W amplifier  Programmable with PC, via USB cable, and remote DTMF programming  Integrated regulated heating of the PCB BRAVE SlimDP – User and service manual...

  • Page 7: Terminology

    PBX extension) The manufacturer continuously improves the product firmware. The technology used allows you to upload to Brave the latest version of the firmware any time using a standard computer with BraveSet and USB cable. The latest version of the firmware is available at http://www.alphatech.cz...

  • Page 8: Brave Slimdp Versions And Differences

    The features and parameters that are available to, and can be set, differ for each version of the Brave. It is therefore necessary to set the parameters for all versions including any add-on parameters for each version.

  • Page 9: Installation

    (see figure-2). 3. The panel will be released. Pull it towards you to remove (see figure – 3). 2.1.2 Uncover control elements 4. Push the aluminium speaker grille down (see figure – 4). BRAVE SlimDP – User and service manual...

  • Page 10: Wiring And Wall Mounting

    1,0A) determines the load on the power supply. If you activate the heating feature the PCB current will climb to about 150mA. We recommend power supply AC 12V/1A for normal version and we recommend power supply DC 12V/1A for version with amplifier. BRAVE SlimDP – User and service manual...
  • Page 11 A dedicated Windows program is included on the CD (requires version W98SE or higher). Under no circumstances use 120V or 230V direct current (DC)! This can be solved by the use of contactors (power relays). BRAVE SlimDP – User and service manual...

  • Page 12: Switches

    -20 C) and secondly it helps to protect the PCB against humidity when installed outside. Note: Door entry system Brave SlimDP is designed in such a way that it is possible to connect 10-18V AC or 12-24V DC to the terminals 12V (polarity is unimportant).

  • Page 13: Voice Level

    We choose when the direction to the phone is interrupted. If parameter 73 greater than parameter 72, thus favored direction to the speaker. We choose this if the interrupted sound in the speaker of communicator. BRAVE SlimDP – User and service manual...

  • Page 14: Location Of Doorphone Components

    Loudspeaker Heating LED for activation lighting Service switch PC connector SlimDoorPhone fixing screw hole 12V =/~ for Telephone relay, light and line heating connection Hole for lead in cable Relay Buttons Microphone BRAVE SlimDP – User and service manual...

  • Page 15: Changing Name Cards

    3. Push name card panel upwards and push the bottom edge in (see figure - 3). 4. Push the name card panel back down behind the lip of the casing (see figure - 4). BRAVE SlimDP – User and service manual...

  • Page 16: Connect The Keyboard

    Recommended is use low power locks. The choice is entered by gradual pressing of buttons with digits. Firstly the key symbol must be pressed to enter a password. When pressing X, the guard will hang up. BRAVE SlimDP – User and service manual...

  • Page 17: Code Relay (Cosw)

    Activation is performed only when positive result compared serial information transmitted between Brave and the board code relay Brave is set in several codes to activate the relay code. Relay can be activated codes for one or two impulses can...

  • Page 18: Other Accessories

    2.7.2 Power supply 12V AC A 12V/1A AC alternative power supply is recommended for the Brave SlimDP normal version. This is not a part of delivery and must be ordered separately. Further details of power supplies and...

  • Page 19: Door Entry System Operation

    Empty memory (no number is programmed) 1300-2100 It is useful to know what tones the Brave SlimDP plays during installation as it will assist in the analysis of its state and operation. The sounds can be turned off in several levels (parameters 61,62,63 and 65).

  • Page 20: Caller At The Door

    Visitor finds the appropriate name (for example Mr Smith) and presses the button. The Brave will pick up a line, "plays" the pick up line tone (if it is not prohibited para.62) and dials the phone number saved under that button (parameter 1 or 2 depending on system regime).

  • Page 21: Relays Regimes

    Brave entry system (i.e. Mr Smith). 3.4.1 Outbound call An outbound call is a call from the Brave system (i.e. started by a visitor). Once the system has been dialled, a phone inside of the building rings and on pick up it is possible to talk to the visitor at the door.

  • Page 22: Incoming Call

    “connection with SlimDP” to “on”. Next is possible dial telephone numbers from keyboard and control relay 1 by code from SlimKey and from exit button connected on SlimKey. This settings is on SlimKey, in Brave SlimDP is connection with SlimKey detected automaticaly.

  • Page 23: Parameter Programming

    Brave is and ask be connected to the branch to . The brave will pick up (you will hear the which the Brave is connected) pick-up tone –...

  • Page 24: Programming With The Help Of Apc - Programme Brave Set

    If you want to keep a connection opened during the programming (prolong the 30 sec time) regime (i.e. before a customer decides what else he wants to be set) then you can press * or #, the Brave immediately answers with an error tone but will prolong the time before disconnecting.

  • Page 25: Description Of Programmable Parameters

    Basic setting never change or delete these saved Flash numbers. Pause Note. The Day/Night regime switch over remains set in the Brave even after a line disconnection. Examples of setting: first button is supposed to dial 358 during the day and 0603441296 during the night, then the programming is - 101358 and wait for ♫, then 2010 *0 603441296 and wit...

  • Page 26: Relays

    Day/Night (parameter 47) and then set the same code for switching over Day/Night (parameters 45 and 46). His way it is guaranteed that Brave will always be in Day regime and you can only programme telephone numbers for the day regime (parameter 1).
  • Page 27 (11-444444) – relay number [relay number [1 in SlimDP] – order [1 - 5] for 1 impulse. 5 passwords (external codes) from Brave‟s buttons (external code of code lock) – order = * to set password (external code) for 2 impulses hh...
  • Page 28 Programming: 351*8 ♫ , 431*8 ♫ , 361*9 ♫. If you are in conversation with the Brave, the command to open a gate would be button 9, the first impulse starts and the gate opens, the second impulse stops it, the time the gate is opened "opened space"...
  • Page 29 – turns on transmission serial code to activate the first relay. CAUTION - at activation this function never connect to the circuit electric lock without board COSW - code relay - threatens to destroy the relay in Brave communicator! The following codes may be the same or different for the resolution switching on multiple parallel connected relay code.
  • Page 30 Default activation code 1 pulse from phone abcd 0000 (0000-1111) abcd – Brave sends a serial code for the code relay (COSW) after evaluation code from telephone (DTMF) namely for 1 pulse Parametr Value Description Default activation code 2 pulses from buttons...

  • Page 31: Basic Parameters

    155 266 the phone (00-99,*0-*9) g – Command order [1-2] (there are 2 to disconnect the Brave from both relays) bb – Command for disconnecting the Brave from the phone [2 spaces] It is advantageous to set the same command for relay switching on...
  • Page 32 – Line disconnection by repeated pressing of the same number: k=0 function is disabled; and k=1 repeatedly pressing the same button to disconnect the line. WARNING !! setting of this parameter materially affects number dialling! BRAVE SlimDP – User and service manual...

  • Page 33: Time Parameters

    Number of rings before the Brave picks up (1-9) q – The number of rings before an incoming call is picked up. The Brave picks up between rings 2 secs. after detecting the q-th ring. It is possible to set the number of rings between 1 and 9.
  • Page 34 Basic Time before commencing a choice (1-5) z – Time [sec] after the Brave picks up, before it commences a choice [range 1-5]. This time is different for each switchboard phone system, but generally most operate within 2 seconds after a line is picked up.
  • Page 35 Transmit level of DTMF choice v [-dBm] (04-16) Transmission level of (DTMF) choice to the line, the range is -4 to - 16dBm, input the required level where uu=04 is -4dBm, uu=10 is -10dBm BRAVE SlimDP – User and service manual...
  • Page 36 Preemphase is the ratio of the upper and lower groups of DTMF frequencies. It is possible to choose ratio 2.2 dB - p=0 (Europe) or ratio 3.2dB - p=1 (Australia) Choice of DTMF volume levels (4 levels): Volume in DTMF [dB] s - choice BRAVE SlimDP – User and service manual...

  • Page 37: System Parameters

    Acoustic ticking signal during a call (0/1) Ticking during a call is switched off as standard. However, by switching it on you can differentiate on the switchboard a call from the Brave by a faint ticking. The values are: Ticking into a call is off...
  • Page 38 (1 or 2) in "electric lock" (modes 1 and 5). This feature is there because if you often use code lock function or exit button, so the switch-on time to hear the tone exchange. For some customers, this can be distracting. BRAVE SlimDP – User and service manual...
  • Page 39 By switching this function on t=1 the processor goes into sleep mode immediately after the line connection, and after 3 secs. The Brave initialises. The line connection after the power supply connection is then delayed - state switching on/restarting of the switchboard. If...
  • Page 40 Suppression of background noise (0/1) This function is set to off as standard n=0. If the Brave is installed in noisy location (train station, busy street, car park etc.) by switching on this circuit n=1 the noise level is set as a default threshold for switching on the microphone and is not one way opened.
  • Page 41 (0/1) Nearly every country in the world has different telephone norms and this parameter enables you to lower the voltage on the Brave‟s terminals to connect telephone line voltages in active state by 1V. Where it is required the respective norm I=0 lowers line voltage by 1V, as standard it is l=1.
  • Page 42 (0/1/2) The Brave has a circuit for installations remote from the switchboard (>100m) that can compensate for the loss caused by a conduit. This function is switched off as standard k=0, but it is possible to set on 2 levels, depending on the current...

  • Page 43: Basic Setting And Deletion

    WARNING !!! deletion is irreversible and it would be necessary to reprogramme them again! 5.8 End of programming Paramet Value Meaning Basic E N D of programming After choosing 9 programming tone the Brave disconnects. BRAVE SlimDP – User and service manual...

  • Page 44: Parameter Overview

    0000 (0000-1111) Type of choice v – ton/impulse (0/1) Sign for call prolonging (* / #) Command for Brave disconnection from g bb 155 266 the phone (00-99,*0-*9) BRAVE SlimDP – User and service manual...
  • Page 45 Command for switch over to NIGHT (0099,*0-*9) Regime system choice (0/1) Line disconnection by repeat press of the same button (0/1) Umber of rings before Brave picks up (1-9) Maximum length of call (0-9,*,#) Time between button presses (1-9) Time of disconnection for repeat choice...
  • Page 46 Basic setting only for parameters 4x only 5.. Basic setting only for parameters 5x only 6.. Basic setting only for parameters 6x only 7.. Basic setting only for parameters 7x E N D BRAVE SlimDP – User and service manual...

  • Page 47: Technical Parameters

    Value Conditions Minimum line current 18mA Line picked up Minimum line voltage Line disconnected Voltage on the line when Brave < 8V I = 20mA picks up (VA characteristic) < 12V I = 60 mA Lead in in disconnected state <...
  • Page 48 (1 imp.) Night Passw. for relay 1 3213 (1 imp.) Night 3214 Passw. for relay 1 (1 imp.) Night 3215 Passw. for relay 1 (1 imp.) Night 321* Passw. for relay 1 (2 imp.) BRAVE SlimDP – User and service manual...
  • Page 49 2 imp./phn. 0000-1111 code for activation other mode 0000-1111 Type of choice tone / imp. 0 / 1 * / # Sign for prolonging of call Brave disconnection from 00-*9 phone Brave disconnection from 00-*9 phone 0000-9999 Service password...
  • Page 50 Speed of switching over voice 1 - 4 atomization 0 / 1 VA characteristic Compensation for loss of 0 / 1 / 2 conduit 04 - 16 Level of signalisation trans. -dBm BRAVE SlimDP – User and service manual...
  • Page 51 WARRANTY: Each and every product has been tested before it leaves the factory. The manufacturer guarantees that the product and its features will work in accordance with the descriptions in this manual as long as the customer uses the product in accordance with the manufacturer‟s instructions. Warranties will be extended when a warranty repair has been undertaken.

  • Page 52: Drilling Master Board

    8 Drilling master board...
  • Page 53 © JR 2013 Version 2.6 X/13...
